#include <ImFusion/GUI/PixelInfoOverlay.h>

InfoOverlay to show information about the pixel currently underneath the mouse cursor. More...

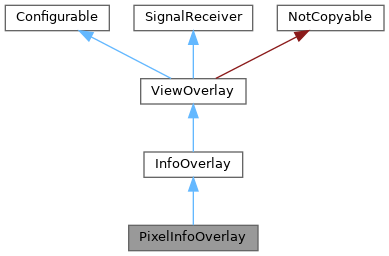

Inheritance diagram for PixelInfoOverlay:

Detailed Description

InfoOverlay to show information about the pixel currently underneath the mouse cursor.

Public Types
enum	Coordinates { NoCoordinates = 0 , ShowPixelCoordinates = 1 << 0 , ShowWorldCoordinates = 1 << 1 }
	Bitmask enum to select which coordinates to show in overlay. More...

enum	ValueDomains { ShowOriginalValuesOnly = 0 , ShowStorageValues = 1 << 0 , ShowRealWorldUnits = 1 << 1 }
	Bitmask enum to select which value domain/unit to use when printing pixel intensities. More...

Public Types inherited from InfoOverlay
enum class	Style { Overlay = 0 , Tooltip }
	Enumeration specifying how the text information shall be presented. More...

Public Types inherited from ViewOverlay
enum class	Anchor { BottomLeft = 0 , BottomRight = 1 , TopLeft = 2 , TopRight = 3 , Top = 4 , Bottom = 5 , Left = 6 , Right = 7 , Fill = 8 }
	Anchor point of the overlay in the parent View. More...

enum class	LayoutDirection { Horizontal = 0 , Vertical = 1 }
	Layout direction when stacking multiple ViewOverlays at the same anchor.

Public Member Functions
	PixelInfoOverlay (const SliceView &view)
	Instantiate an PixelInfoOverlay for the given 2D view.

	PixelInfoOverlay (const ImageView2D &view)

Flags< Coordinates >	shownCoordinates () const
	Returns the selected coordinate systems to show.

void	setShownCoordinates (Flags< Coordinates > value)
	Sets the selected coordinate systems to show.

Flags< ValueDomains >	shownValueDomains () const
	Returns the selected value domains to show.

void	setShownValueDomains (Flags< ValueDomains > value)
	Sets the selected value domains to show.

Public Member Functions inherited from InfoOverlay
const vec4 &	textColor ()
	Returns the used text color in Style::Overlay mode.

void	setTextColor (const vec4 &color)
	Set the used text color in Style::Overlay mode.

void	setStyle (Style s)

Style	style () const

GlTextOverlay *	glOverlay ()
	Get a pointer to the underlying GlTextOverlay to allow for more customization than setTextColor().

void	render () override
	Calls GlOverlay::render() on the underlying glOverlay() using the current viewport() shrinked by margin().

EventResult	handleInputEvent (const InputEvent &event) override
	Handle a user event received from the parent View.

Public Member Functions inherited from ViewOverlay
	ViewOverlay (std::unique_ptr< GlOverlay > glOverlay)
	Instantiate a new ViewOverlay taking ownership of the underlying GlOverlay which must not be null.

const GlOverlay &	glOverlay () const
	Get a pointer to the underlying overlay.

GlOverlay &	glOverlay ()
	Get a pointer to the underlying overlay.

const GL::Viewport &	viewport ()
	Returns the area where this overlay is rendered.

bool	isVisible () const
	Returns the visibility of this overlay.

virtual void	setVisible (bool value)
	Sets the visibility of this overlay.

const vec2i &	margin () const
	Returns the margin in pixels between the border of the drawing area and the border of the overlay content.

void	setMargin (const vec2i &value)
	Sets the margin in pixels between the border of the drawing area and the border of the overlay content.

vec2i	minimalSizeHint () const
	Returns the underlying GlOverlay's minimal size hint plus the configured margin().

vec2i	sizeHint () const
	Returns the underlying GlOverlay's size hint plus the configured margin().

void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.

void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.

Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.

	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.

SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.

virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Protected Member Functions
std::string	createSizeHintText () override
	Implement this function to return a largest sample text that would give a hint about the necessary overlay size.

std::string	createText (vec2i mousePositionPx) override
	Implement this function to specify what text to display for the given mouse position.

std::string	lookupPixelIntensity (const SharedImageSet &sis, const vec3i &pixelPos) const

Protected Member Functions inherited from InfoOverlay
void	updateSizeHint ()
	Updates the size hint of the overlay so that the view overlay layouting can be updated.

Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Protected Attributes
const View *	m_view = nullptr
	parent view to use for pixel lookup

const GlSliceView *	m_sliceView = nullptr
	parent view to use for pixel lookup

Flags< Coordinates >	m_shownCoordinates = ShowPixelCoordinates
	Selected coordinate systems to show in overlay.

Flags< ValueDomains >	m_shownValueDomains = ShowOriginalValuesOnly
	Selected value domains to show in overlay.

Protected Attributes inherited from InfoOverlay
GlTextOverlay *	m_textOverlay = nullptr

Style	m_style = Style::Overlay

std::optional< vec2i >	m_pixelPos = std::nullopt

std::string	m_text

Protected Attributes inherited from ViewOverlay
std::unique_ptr< GlOverlay >	m_glOverlay

GL::Viewport	m_viewport = {}

vec2i	m_margin = vec2i::Zero()

bool	m_isVisible = true

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Attributes inherited from ViewOverlay
Signal	signalUpdateRequested
	Emitted in order to notify the parent Display that it's contents have changed and need to be re-rendered.

Signal	signalLayoutNeeded
	Emitted whenever the size hints or margin have changed to notify the parent View that it needs to perform overlay layouting.

Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Member Enumeration Documentation

◆ Coordinates

enum Coordinates

Bitmask enum to select which coordinates to show in overlay.

See also: CoordinateSystems

Enumerator
NoCoordinates	Don't show coordinates under mouse cursor.
ShowPixelCoordinates	Show pixel coordinates under mouse cursor.
ShowWorldCoordinates	Show world coordinates under mouse cursor.

◆ ValueDomains

enum ValueDomains

Bitmask enum to select which value domain/unit to use when printing pixel intensities.

See also: PixelValueDomains

Enumerator

ShowOriginalValuesOnly

Show only values in original value domain, i.e. storage values with shift/scale applied.

ShowStorageValues

Show only values as stored currently in memory.

ShowRealWorldUnits

Additionally print units if a RealWorldMappingDataComponent is present.

Warning: PixelInfoOverlay does not validate if the unit information is accurate.

Member Function Documentation

◆ createSizeHintText()

std::string createSizeHintText ( )

overrideprotectedvirtual

Implement this function to return a largest sample text that would give a hint about the necessary overlay size.

Implements InfoOverlay.

◆ createText()

std::string createText ( vec2i mousePositionPx )

overrideprotectedvirtual

Implement this function to specify what text to display for the given mouse position.

Implements InfoOverlay.

The documentation for this class was generated from the following file:

ImFusion/GUI/PixelInfoOverlay.h
