#include <ImFusion/Base/LabelDataComponent.h>

DataComponent to store meta data of a label map. More...

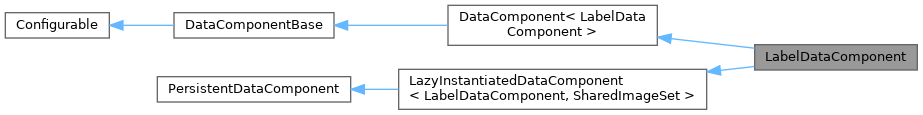

Inheritance diagram for LabelDataComponent:

Detailed Description

DataComponent to store meta data of a label map.

Label maps are assumed to be always of type unsigned char, thus there is a maximum of 255 different labels since the value 0 is considered background. The set of labels is stored in a LabelConfig map storing metadata (e.g. name, color, visibility, ...) for each known label.

LabelDataComponent offers helper methods to provide windowing information and color maps that can be used for rendering label maps. They will cover the entire unsigned char value range and use the default color/visibility for unconfigured label values.

By default, labels are considered to be exclusive, which means that every pixel of the underlying label map image corresponds to exactly one of the known LabelConfigs. Special use cases may use the LabelOverlapEncoder interface to define storage value representing multiple overlapping label configs. However, be advised that this is an optional and experimental extension and algorithms are not required to handle such values correctly.

See also: Data::Modality::LABEL, LabelDataComponentWidget

Classes
struct	LabelConfig
	Helper struct encapsulating the metadata of a label value. More...

Public Types
enum class	SegmentationAlgorithmType { Unknown , Automatic , SemiAutomatic , Manual }
	Type of algorithm used to generate the segment. More...

Public Member Functions
	LabelDataComponent (const SharedImageSet *labelMap=nullptr)
	Instantiate a new LabelDataComponent.

	LabelDataComponent (const LabelDataComponent &rhs)

LabelDataComponent &	operator= (const LabelDataComponent &rhs)

bool	operator== (const LabelDataComponent &rhs) const

Data::Modality	sourceModality () const
	Returns the modality the label map is based on.

void	setSourceModality (Data::Modality value)
	Sets the modality the label map is based on.

std::string	id () const override
	Returns a unique string identifier for this type of data component.

void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.

void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.

Public Member Functions inherited from DataComponent< LabelDataComponent >
std::unique_ptr< DataComponentBase >	clone () const override
	Creates a clone of this data component.

std::unique_ptr< Subclass >	cloneDerived () const

bool	assign (const DataComponentBase &other) override
	Assigns the content of other to this data component.

bool	equals (const DataComponentBase &other) const override
	Compares this data component to other for equality.

Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Static Public Member Functions
static LabelConfig	defaultLabelConfig (int pixelValue)
	Returns a high-level default label configuration for the given pixel value:

Static Public Member Functions inherited from LazyInstantiatedDataComponent< LabelDataComponent, SharedImageSet >
static LabelDataComponent &	get (const SharedImageSet &data)
	Returns the specific options of type T that are associated with the given data.

static LabelDataComponent *	get (const SharedImageSet *data)

Public Attributes
Signal< LabelDataComponent * >	signalChanged
	Signal emitted if any setting of this DataComponent has changed;.

Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Functions to get/set the label configuration
const std::map< int, LabelConfig > &	labelConfigs () const
	Returns the map of known label configurations.

void	setLabelConfigs (std::map< int, LabelConfig > labelConfigs)
	Sets the map of known label configurations.

std::optional< LabelConfig >	labelConfig (int pixelValue) const
	Returns the label configuration for the given pixel value if existent.

void	setLabelConfig (int pixelValue, const LabelConfig &labelConfig)
	Sets the given label configuration for the given pixel value.

void	setDefaultLabelConfig (int pixelValue)
	Sets the default label configuration for the given pixel value.

bool	hasLabel (int pixelValue) const
	Returns true if a label configuration exists for the given pixel value.

void	removeLabel (int pixelValue)
	Removes the label configuration for the given pixel value if existent.

void	setLabelColor (int labelValue, const vec4 &color)
	Sets the label color to use for the value labelValue, will create a new default LabelConfig if needed.

void	setVisibility2d (int labelValue, bool isVisible)
	Sets whether to show the label with value labelValue in 2D views, will create a new default LabelConfig if needed.

void	setVisibility3d (int labelValue, bool isVisible)
	Sets whether to show the label with value labelValue in 3D views, will create a new default LabelConfig if needed.

void	setLabelName (int labelValue, const std::string &name)
	Sets the label name for the value labelValue, will create a new default LabelConfig if needed.

Utility functions to derive label configuration from a given label map
void	detectLabels (const SharedImageSet &sis)
	Checks the pixel intensities present in the given image(s) and creates a new default label configuration for each label that does not yet exist.

void	removeUnusedLabels (const SharedImageSet &sis)
	Checks the pixel intensities present in the given image(s) and removes all label configurations for non-existing pixel values.

Experimental support for overlapping label maps
LabelOverlapEncoder *	overlapEncoder () const
	Returns the overlap encoder instance if available.

void	setOverlapEncoder (std::unique_ptr< LabelOverlapEncoder > encoder)
	Sets an overlap encoder instance to add support for overlapping label values.

std::vector< std::unique_ptr< SharedImageSet > >	convertOverlapEncoderToLayers (const SharedImageSet &labelmap) const
	Converts the given labelmap with overlapping labels into multiple layers without overlap.

Properties and helper functions for rendering label maps
const SharedImage &	colormap2d () const
	Returns the color map with 2d label visibility to use for rendering the label map.

const SharedImage &	colormap3d () const
	Returns the color map with 3d label visibility to use for rendering the label map.

vec2	windowLevelNormalized (const ImageDescriptor &img) const
	Returns window/level configuration to use the color map for the given image.

vec2	windowLevelNormalized (const Image &img) const

vec2	opaqueRange3d () const
	Returns the of intensities where the labels are visible in 3d.

Additional Inherited Members
Protected Member Functions inherited from DataComponentBase
	DataComponentBase (const DataComponentBase &)=default

DataComponentBase &	operator= (const DataComponentBase &other)=default

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Member Enumeration Documentation

◆ SegmentationAlgorithmType

enum class SegmentationAlgorithmType

strong

Type of algorithm used to generate the segment.

Enumerator
Unknown	Unknown.
Automatic	Label calculated fully automatically.
SemiAutomatic	Label calculated with user assistance.
Manual	Label defined fully manually.

Constructor & Destructor Documentation

◆ LabelDataComponent()

LabelDataComponent ( const SharedImageSet * labelMap = nullptr )

explicit

Instantiate a new LabelDataComponent.

Parameters

labelMap Optional pointer to the underlying label map. If not null, will call detectLabels() to create a default LabelConfig for each label value present in labelMap.

Note: The images are expected to be of type unsigned char.

Member Function Documentation

◆ defaultLabelConfig()

static LabelConfig defaultLabelConfig ( int pixelValue )

static

Returns a high-level default label configuration for the given pixel value:

if pixelValue is 0: LabelConfig{"Background", vec4(0, 0, 0, 1), false, false} / - if \a pixelValue is i > 0:LabelConfig{"Label i", defaultColor(i)}

◆ setDefaultLabelConfig()

void setDefaultLabelConfig ( int pixelValue )

Sets the default label configuration for the given pixel value.

This is a convenience function with the same effect as setLabelConfig(pixelValue, defaultLabelConfig(pixelValue)).

◆ detectLabels()

void detectLabels ( const SharedImageSet & sis )

Checks the pixel intensities present in the given image(s) and creates a new default label configuration for each label that does not yet exist.

Note: The images are expected to be of type unsigned char.

◆ removeUnusedLabels()

void removeUnusedLabels ( const SharedImageSet & sis )

Checks the pixel intensities present in the given image(s) and removes all label configurations for non-existing pixel values.

Note: The images are expected to be of type unsigned char.

◆ convertOverlapEncoderToLayers()

std::vector< std::unique_ptr< SharedImageSet > > convertOverlapEncoderToLayers ( const SharedImageSet & labelmap ) const

Converts the given labelmap with overlapping labels into multiple layers without overlap.

If no overlapEncoder is set or the encoder does not contain any overlaps, an empty list is returned. The number of returned layers depends on the number of overlaps. Which labels end up in which layer is unspecified. The resulting layers will also contain a LabelDataComponent with only the labels present in this layer.

See also: LabelOverlapToLayersAlgorithm

◆ id()

std::string id ( ) const

overridevirtual

Returns a unique string identifier for this type of data component.

Note: To avoid conflicts make sure to include potential plugin names into this ID. Due to the modular architecture of the ImFusion library, uniqueness of IDs cannot be checked at compile time. However, DataComponentFactory will check the uniqueness of the ID during registration.

Implements DataComponentBase.

◆ configure()

void configure ( const Properties * p )

overridevirtual

Configure this object instance by de-serializing the given Properties.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configuration() for the inverse functionality

Reimplemented from Configurable.

◆ configuration()

void configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configure() for the inverse functionality

Reimplemented from Configurable.

The documentation for this class was generated from the following file:

ImFusion/Base/LabelDataComponent.h
