#include <ImFusion/GUI/HistogramOverlay.h>
ViewOverlay to show an intensity histogram of the first shown image in a SliceView. More...

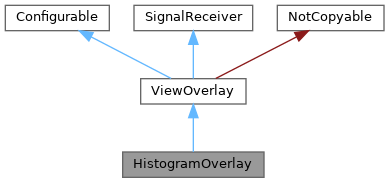

Inheritance diagram for HistogramOverlay:ViewOverlay to show an intensity histogram of the first shown image in a SliceView.
Additionally, it shows a the visual representation of the datasets window/level as configured in its DisplayOptions2d. Basic mouse interaction allows for manipulating window/level as well for configuring the overlay itself through a context menu.
Public Member Functions | |
| HistogramOverlay (SliceView *view2d) | |
| const GlHistogramOverlay * | glOverlay () const |
| Get a pointer to the underlying GlHistogramOverlay. | |
| GlHistogramOverlay * | glOverlay () |
| Get a pointer to the underlying GlHistogramOverlay. | |
| void | render () override |
| Calls GlOverlay::render() on the underlying glOverlay() using the current viewport() shrinked by margin(). | |
| EventResult | handleInputEvent (const InputEvent &event) override |
| Handle a user event received from the parent View. | |
| Public Member Functions inherited from ViewOverlay | |
| ViewOverlay (std::unique_ptr< GlOverlay > glOverlay) | |
| Instantiate a new ViewOverlay taking ownership of the underlying GlOverlay which must not be null. | |
| const GlOverlay & | glOverlay () const |
| Get a pointer to the underlying overlay. | |
| GlOverlay & | glOverlay () |
| Get a pointer to the underlying overlay. | |
| const GL::Viewport & | viewport () |
| Returns the area where this overlay is rendered. | |
| bool | isVisible () const |
| Returns the visibility of this overlay. | |
| virtual void | setVisible (bool value) |
| Sets the visibility of this overlay. | |
| const vec2i & | margin () const |
| Returns the margin in pixels between the border of the drawing area and the border of the overlay content. | |
| void | setMargin (const vec2i &value) |
| Sets the margin in pixels between the border of the drawing area and the border of the overlay content. | |
| vec2i | minimalSizeHint () const |
| Returns the underlying GlOverlay's minimal size hint plus the configured margin(). | |
| vec2i | sizeHint () const |
| Returns the underlying GlOverlay's size hint plus the configured margin(). | |
| void | configure (const Properties *p) override |
| Configure this object instance by de-serializing the given Properties. | |
| void | configuration (Properties *p) const override |
| Serialize the current object configuration into the given Properties object. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
| Public Member Functions inherited from SignalReceiver | |
| SignalReceiver ()=default | |
| Default constructor. | |
| SignalReceiver (const SignalReceiver &other) | |
| Copy constructor, does not copy any existing signal connections from other. | |
| SignalReceiver & | operator= (SignalReceiver rhs) |
| Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs. | |
| virtual | ~SignalReceiver () |
| Virtual destructor disconnects from all connected signals. | |
Protected Types | |
| enum class | InteractionMode { None , Moving , ResizeLeft , ResizeRight } |
Protected Member Functions | |
| void | onViewDataChanged () |
| void | updateHistogram () |
| Menu | createContextMenu () const |
| Protected Member Functions inherited from SignalReceiver | |
| void | disconnectAll () |
| Disconnects all existing connections. | |
Protected Attributes | |
| GlHistogramOverlay * | m_typedOverlay = nullptr |
| SliceView * | m_view2D = nullptr |
| const SharedImageSet * | m_currentSIS = nullptr |
| int | m_currentFocus = -1 |
| DisplayOptions2d * | m_currentDisplayOptions = nullptr |
| std::shared_ptr< SignalConnection > | m_viewDataChangedConnection |
| enum ImFusion::GUI::HistogramOverlay::InteractionMode | m_interactionMode = InteractionMode::None |
| vec2 | m_mouseMoveStart = vec2::Zero() |
| mouse position where the operation started | |
| double | m_startLevel = 0 |
| level when the operations started | |
| double | m_startWindow = 0 |
| window when the operations started | |
| Protected Attributes inherited from ViewOverlay | |
| std::unique_ptr< GlOverlay > | m_glOverlay |
| GL::Viewport | m_viewport = {} |
| vec2i | m_margin = vec2i::Zero() |
| bool | m_isVisible = true |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
Additional Inherited Members | |
| Public Types inherited from ViewOverlay | |
| enum class | Anchor { BottomLeft = 0 , BottomRight = 1 , TopLeft = 2 , TopRight = 3 , Top = 4 , Bottom = 5 , Left = 6 , Right = 7 , Fill = 8 } |
| Anchor point of the overlay in the parent View. More... | |
| enum class | LayoutDirection { Horizontal = 0 , Vertical = 1 } |
| Layout direction when stacking multiple ViewOverlays at the same anchor. | |
| Public Attributes inherited from ViewOverlay | |
| Signal | signalUpdateRequested |
| Emitted in order to notify the parent Display that it's contents have changed and need to be re-rendered. | |
| Signal | signalLayoutNeeded |
| Emitted whenever the size hints or margin have changed to notify the parent View that it needs to perform overlay layouting. | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
|
overridevirtual |
Calls GlOverlay::render() on the underlying glOverlay() using the current viewport() shrinked by margin().
Reimplemented from ViewOverlay.
|
overridevirtual |
Handle a user event received from the parent View.
The default implementation is empty.
Reimplemented from ViewOverlay.
