#include <ImFusion/GL/GlSliceRenderer.h>
Interface for a class that can render data into a GlSlice/GlSliceView. More...

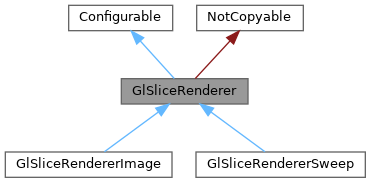

Inheritance diagram for GlSliceRenderer:Interface for a class that can render data into a GlSlice/GlSliceView.
Implement the Configurable interface in order to provide an automatically generated GUI for configuration when using the InteractiveViewOptionsOverlay.
Public Member Functions | |
| GlSliceRenderer ()=default | |
| Creates a new GlSliceRenderer using the given decorator for masking. | |
| virtual std::string | name () const =0 |
| Returns the name for identification/GUI usage of this slice renderer. | |
| virtual bool | accepts (const Data *data) const =0 |
| Returns whether this slice renderer is capable of displaying the given data. | |
| virtual void | render (const GL::ViewState &viewState, const Slice &slice, const Data &data, const DisplayOptions2d &displayOptions, bool encodeDistance)=0 |
| Renders the data in the given configuration. | |
| virtual mat4 | defaultPose (const Data &data, Slice::AnatomicalPlane originalPlane) const =0 |
| Returns the default view matrix to use for showing the given dataset in a slice view of the given anatomical plane. | |
| virtual vec2 | extent (const Slice &slice, const Data &data)=0 |
| Returns the 2D extent of the data when rendering it onto slice in pixels. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configure (const Properties *p) |
| Configure this object instance by de-serializing the given Properties. | |
| virtual void | configuration (Properties *p) const |
| Serialize the current object configuration into the given Properties object. | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
Additional Inherited Members | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
|
pure virtual |
Returns the name for identification/GUI usage of this slice renderer.
Implemented in GlSliceRendererImage, and GlSliceRendererSweep.
|
pure virtual |
Returns whether this slice renderer is capable of displaying the given data.
Implemented in GlSliceRendererImage, and GlSliceRendererSweep.
|
pure virtual |
Renders the data in the given configuration.
| viewState | GlState object defining view and projection matrices. |
| slice | Slice on which to render the data. |
| data | The data to render |
| displayOptions | The display options to use for rendering. |
| encodeDistance | Flag whether to encode the distance to the border in the secondary color buffer. |
Implemented in GlSliceRendererImage, and GlSliceRendererSweep.
|
pure virtual |
Returns the default view matrix to use for showing the given dataset in a slice view of the given anatomical plane.
This function is for instance use by the reset function of ImageView2D/GlSliceView.
Implemented in GlSliceRendererImage, and GlSliceRendererSweep.
Returns the 2D extent of the data when rendering it onto slice in pixels.
Implemented in GlSliceRendererImage, and GlSliceRendererSweep.
