ImFusion::InteractiveAnnotation Class Reference

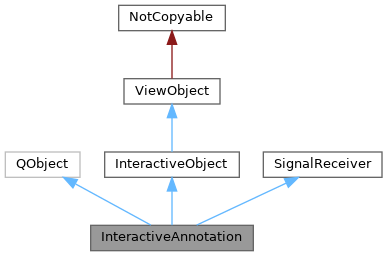

Inheritance diagram for ImFusion::InteractiveAnnotation:

Public Slots
void	setName (QString name)
	Opens a QInputDialog to pick a new name for this annotation.
void	plotLineProfile (SharedImageSet *is, bool clearPrevious=true)
	Plot line profile, if the annotation already had a line plot with the same data source it is replaced.
void	plotLineProfiles (const std::vector< SharedImageSet * > &images, bool clearPrevious=true)
void	createPlotData (const std::vector< SharedImageSet * > &isVec)
void	updatePlotData (const SharedImageSet *is)
void	sampleLineProfile (const SharedImageSet *is, Tensor< 1 > *&x, std::vector< Tensor< 1 > * > &y, int interpolationRange=0)
	Sample values from image. Creates one y-value tensor per channel. Interpolation is in pixels and over a line for 2D and slice for 3D data.
void	setShowStatistics (bool showStatistics)
	Add statistics.
bool	showStatistics () const
void	updateStatistics (SharedImageSet *is)
void	sliceSpline (SharedImageSet *is)
	Slice spline.
void	onViewUpdate ()
	Called when view is updated to redraw additional information; such as statistics, line plots etc.
void	refineAnnotation (SharedImageSet *is)
	Refine annotation.
void	convertToLabelMap (SharedImageSet *is)
	Convert a closed spline to a label map.
void	closeLoopAnnotation ()
	Close an open contour represented by a spline.

Public Member Functions
	InteractiveAnnotation (MainWindowBase *mw, GlAnnotation *object, Manipulator *manipulator=0, bool own=true)
bool	sceneEvent (QEvent *event, InteractiveView *view) override
	Called by the hosting InteractiveView to notify on user input events.
GlAnnotation *	gl ()
const GlAnnotation *	gl () const
MainWindowBase *	mw ()
void	onTransformationChanged (const Data *data)
	Used to redraw plots as necessary.
void	onDataDeleted (const Data *data)
	Removes all associated plots if the source data gets deleted.
void	goTo (Data *data=nullptr) const
	Center the views contained in the default display widget which show data on the object.
void	removeFromLinePlot ()
	Removes any plots sampled with this annotation, will also delete the plot view if this causes it to become empty.
void	onAnnotationChanged (const GlPointBasedAnnotation *)
virtual void	goTo (DisplayWidgetMulti *display, Data *data=nullptr, int frame=-1) const
	Center the views contained in the passed display widget which show data on the object.
Public Member Functions inherited from ImFusion::InteractiveObject
	InteractiveObject (GlObject *object, Manipulator *manipulator=nullptr, bool own=true)
	Instantiate a new InteractiveOverlay, optionally taking ownership of the underlying GlObject and Manipulator.
template<typename T>
const T *	gl () const
	Get a typed pointer to the underlying GlObject.
template<typename T>
T *	gl ()
	Get a typed pointer to the underlying GlObject.
const GlObject *	gl () const
	Get the underlying abstract GlObject.
GlObject *	gl ()
	Get the underlying abstract GlObject.
const Manipulator *	manipulator () const
	Get the underlying manipulator.
Manipulator *	manipulator ()
	Get the underlying manipulator.
GUI::EventResult	handleInputEvent (const GUI::InputEvent &event, const GUI::View &view) override
	Gets called by the parent view in order to handle user input events.
Public Member Functions inherited from ImFusion::GUI::ViewObject
	ViewObject (std::unique_ptr< GlObject > glObject)
	Instantiate a new ViewObject taking ownership of the underlying GlObject which must not be null.
const GlObject &	glObject () const
	Get the underlying abstract GlObject.
GlObject &	glObject ()
const GlObject *	gl () const
	Original API methods for the underlying abstract GlObject.
GlObject *	gl ()
Public Member Functions inherited from ImFusion::SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Static Public Member Functions
static std::vector< InteractiveView * >	getRelevantViews (const InteractiveObject *object, const Data *data, DisplayWidgetMulti *display)

Protected Attributes
QMap< QString, QAction * >	m_actions
Protected Attributes inherited from ImFusion::InteractiveObject
GlObject *	m_object
Manipulator *	m_manipulator = nullptr
bool	m_own = true
Protected Attributes inherited from ImFusion::GUI::ViewObject
std::unique_ptr< GlObject >	m_glObject

Additional Inherited Members
Public Attributes inherited from ImFusion::InteractiveObject
Signal< const InteractiveObject * >	signalDeleted
	Signal emitted when this instance is deleted.
Protected Member Functions inherited from ImFusion::SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Member Function Documentation

sceneEvent()

bool ImFusion::InteractiveAnnotation::sceneEvent ( QEvent * event, InteractiveView * view )

overridevirtual

Called by the hosting InteractiveView to notify on user input events.

Default implementation will foward the event to the Manipulator if the object is visible.

Returns

true if the event has been handled and should no longer be passed to other objects.

Reimplemented from ImFusion::InteractiveObject.

goTo() [1/2]

void ImFusion::InteractiveAnnotation::goTo

(

Data *

data = nullptr

)

const

Center the views contained in the default display widget which show data on the object.

If no data is specified, the default view group is centered.

goTo() [2/2]

virtual void ImFusion::InteractiveObject::goTo ( DisplayWidgetMulti * display, Data * data = nullptr, int frame = -1 ) const

virtual

Center the views contained in the passed display widget which show data on the object.

If no data is specified, the default view group is centered.

Reimplemented from ImFusion::InteractiveObject.

---

The documentation for this class was generated from the following file:

• ImFusion/GUI/InteractiveAnnotation.h
