| GlTree (Tree *tree) |
| |
| Geometry::AlignedBox | bounds () const override |
| | Get the axis-aligned bounding box of this GlObject in world space.
|
| |
| vec3 | center () const override |
| | Return the center of the object in local coordinates without considering any matrix.
|
| |
| vec3 | extent () const override |
| | Return the extent of the object in local coordinates without considering any matrix.
|
| |
| void | setMatrix (const mat4 &m) override |
| | Set the modelview matrix of this object.
|
| |
| const mat4 & | matrix () const override |
| | Return the modelview matrix.
|
| |
| std::string | typeName () const override |
| | Return unique identifier for this object class used for serialization.
|
| |
|
void | setPointColor (const vec3 &color) |
| | Set point color.
|
| |
|
vec3 | pointColor () |
| | Get point color.
|
| |
|
void | setPointSize (float s) |
| | Set the point size.
|
| |
|
float | pointSize () |
| | Retrieve the point size.
|
| |
| virtual void | setTree (Tree *tree) |
| | Set the underlying tree data which is to be visualized.
|
| |
|
Tree * | tree () |
| | Get the underlying tree data.
|
| |
|
const Tree * | tree () const |
| |
| virtual void | setView (const GlView *view) |
| | Set the view through which this annotation is currently being manipulated.
|
| |
|
virtual const GlView * | view () const |
| | Get the view through which this annotation is currently being manipulated.
|
| |
| virtual bool | hitTest (int, int, const GlView &) const |
| | Perform hit test with points of underlying object. Return true if object is hit, false otherwise.
|
| |
| virtual void | setEditable (bool editable) |
| | When a GlAnnotation is editable it may alter its visualization and render UI elements for its manipulation.
|
| |
| virtual bool | editable () const |
| | When a GlAnnotation is editable it may alter its visualization and render UI elements for its manipulation.
|
| |
| virtual void | setColor (const vec3 &color) |
| | Set annotation color.
|
| |
| virtual vec3 | color () const |
| | Return annotation color.
|
| |
| virtual void | setAlpha (double v) |
| | Set alpha channel.
|
| |
| virtual double | alpha () const |
| | Get alpha channel.
|
| |
| virtual void | setLineWidth (float lineWidth) |
| | Set annotation line width.
|
| |
| virtual float | lineWidth () const |
| | Return annotation line width.
|
| |
| virtual void | setLabelVisible (bool visible) |
| | Set annotation label visibility.
|
| |
| virtual bool | labelVisible () const |
| | Return annotation label visibility.
|
| |
|
virtual void | setLabelBackgroundVisible (bool visible) |
| | Set annotation label background visibility.
|
| |
|
virtual bool | labelBackgroundVisible () const |
| | Return annotation label background visibility.
|
| |
|
virtual void | setLabelBackgroundColor (vec4 color) |
| | Set annotation label background color.
|
| |
|
virtual vec4 | labelBackgroundColor () const |
| | Return annotation label background color.
|
| |
|
virtual void | setLabelBackgroundMargin (int margin) |
| | Set annotation label background margin in pixels.
|
| |
|
virtual int | labelBackgroundMargin () const |
| | Return annotation label background margin in pixels.
|
| |
| virtual void | setLabelDepthTest (bool depthTest) |
| | Set annotation label depth test flag.
|
| |
| virtual bool | labelDepthTest () const |
| | Return annotation label depth test flag.
|
| |
| virtual void | setLabelColor (const vec3 &color) |
| | Set annotation label color.
|
| |
| virtual vec3 | labelColor () const |
| | Return annotation label color.
|
| |
| virtual void | setLabelText (const std::string &label) |
| | Set annotation label text.
|
| |
| virtual std::string | labelText () const |
| | Return annotation label text.
|
| |
| virtual void | setLabelTextPrefix (const std::string &labelPrefix) |
| | Set annotation label text prefix.
|
| |
|
std::string | labelTextPrefix () const |
| | Return annotation label text prefix.
|
| |
| virtual void | setLabelTextSuffix (const std::string &labelSuffix) |
| | Set annotation label text suffix.
|
| |
|
std::string | labelTextSuffix () const |
| | Return annotation label text suffix.
|
| |
|
virtual void | setName (const std::string &name) |
| | Set annotation name.
|
| |
| virtual std::string | name () const |
| | Return annotation name.
|
| |
| void | configure (const Properties *p) override |
| | Set one or multiple properties.
|
| |
| void | configuration (Properties *p) const override |
| | Retrieve the properties of this object.
|
| |
| virtual void | setSelected (bool m) |
| | When a GlAnnotation is selected, it may be rendered differently to distinguish it from non-selected annotations.
|
| |
|
bool | selected () const |
| | When a GlAnnotation is selected, it may be rendered differently to distinguish it from non-selected annotations.
|
| |
| virtual void | setMatrixWithoutMoving (const mat4 &m) |
| | Change the matrix without moving the annotation, e.g. for linking it with an image transformation.
|
| |
|
void | copyStyle (const GlAnnotation &other) |
| | Copies the settable parameters from another GlAnnotation.
|
| |
| virtual void | draw (const GlView &view)=0 |
| | Draw the object in 3D space.
|
| |
| virtual Geometry::AlignedBox | boundsSpherical () const |
| | Get the spherical bounds of this GlObject in world space.
|
| |
| virtual void | setVisible (bool visible) |
| | Set object visibility.
|
| |
|
virtual bool | visible () const |
| | Return object visibility.
|
| |
| virtual void | setAlwaysVisible (bool alwaysVisible) |
| | Set if object is always visible.
|
| |
|
virtual bool | alwaysVisible () const |
| | Return if object is always visible.
|
| |
|
RenderingOrderGroup | renderingOrder () const |
| | Return current rendering order value for this GlObject.
|
| |
|
void | setRenderingOrder (RenderingOrderGroup group) |
| | Set rendering order value for this GlObject.
|
| |
|
void | setDraw3DIn2DView (bool draw3DIn2DView) |
| |
| void | configure (const Properties *p) override |
| | Configure this object instance by de-serializing the given Properties.
|
| |
| void | configuration (Properties *p) const override |
| | Serialize the current object configuration into the given Properties object.
|
| |
| virtual void | configureDefaults () |
| | Retrieve the properties of this object, replaces values with their defaults and sets it again.
|
| |
|
void | registerParameter (ParameterBase *param) |
| | Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
|
| |
|
void | unregisterParameter (const ParameterBase *param) |
| | Remove the given Parameter or SubProperty from the list of registered parameters.
|
| |
|
| Configurable (const Configurable &rhs) |
| |
|
| Configurable (Configurable &&rhs) noexcept |
| |
|
Configurable & | operator= (const Configurable &) |
| |
|
Configurable & | operator= (Configurable &&) noexcept |
| |
|
| SignalReceiver ()=default |
| | Default constructor.
|
| |
|
| SignalReceiver (const SignalReceiver &other) |
| | Copy constructor, does not copy any existing signal connections from other.
|
| |
|
SignalReceiver & | operator= (SignalReceiver rhs) |
| | Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
|
| |
|
virtual | ~SignalReceiver () |
| | Virtual destructor disconnects from all connected signals.
|
| |

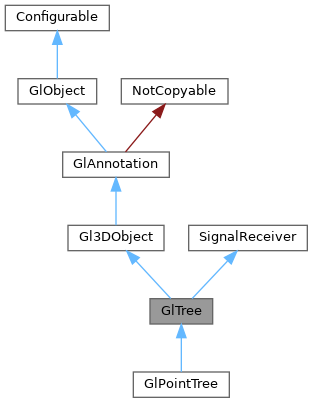

Inheritance diagram for GlTree:
