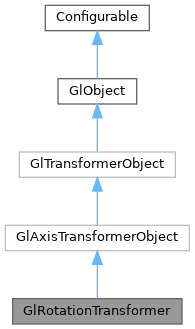

Inheritance diagram for GlRotationTransformer:

Public Member Functions
	GlRotationTransformer (int axis=0, double axialOffset=0, double smallRadius=20, double bigRadius=30, const isom3 &offset=isom3::Identity(), bool contour=true)

void	draw (const GlView &view) override
	Draw the object in 3D space.

Geometry::AlignedBox	bounds () const override
	Get the axis-aligned bounding box of this GlObject in world space.

std::string	typeName () const override
	Return unique identifier for this object class used for serialization.

bool	isInside (const vec2 &pos, const GL::ViewState &state) override

void	activate (const vec2 &start, const GL::ViewState &state) override

void	moveTo (const vec2 &pos, const vec2 &start, const GL::ViewState &state) override

double	distanceTo (const vec2 &pos, const GL::ViewState &state) override

Public Member Functions inherited from GlAxisTransformerObject
	GlAxisTransformerObject (int axis=0, double axialOffset=0, const isom3 &offset=isom3::Identity(), bool contour=true, bool path=true)

void	setDirection (const std::optional< mat3 > &direction)

Public Member Functions inherited from GlTransformerObject
	GlTransformerObject (const isom3 &offset=isom3::Identity(), bool drawContour=true)

isom3	offset () const

void	setOffset (const isom3 &offset)

bool	isHovering () const

void	setHovering (bool hover)

const vec3 &	center () const

bool	isActive () const

virtual void	deactivate ()

virtual double	distanceTo (const vec3 &val) const

void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.

void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.

Public Member Functions inherited from GlObject
virtual Geometry::AlignedBox	boundsSpherical () const
	Get the spherical bounds of this GlObject in world space.

virtual void	setMatrix (const mat4 &m)
	Set the modelview matrix of this object.

virtual const mat4 &	matrix () const
	Return the modelview matrix.

virtual void	setVisible (bool visible)
	Set object visibility.

virtual bool	visible () const
	Return object visibility.

virtual void	setAlwaysVisible (bool alwaysVisible)
	Set if object is always visible.

virtual bool	alwaysVisible () const
	Return if object is always visible.

RenderingOrderGroup	renderingOrder () const
	Return current rendering order value for this GlObject.

void	setRenderingOrder (RenderingOrderGroup group)
	Set rendering order value for this GlObject.

void	setDraw3DIn2DView (bool draw3DIn2DView)

Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Public Attributes
Parameter< double >	p_smallRadius = {"smallRadius", 20.f, this}

Parameter< double >	p_bigRadius = {"bigRadius", 30.f, this}

Public Attributes inherited from GlAxisTransformerObject
Parameter< int >	p_axis = {"axis", 0, this}

Parameter< double >	p_axialOffset = {"axialOffset", 0, this}

Public Attributes inherited from GlTransformerObject
Parameter< vec3 >	p_color = {"color", vec3::Ones(), this}

Parameter< vec3 >	p_contourColor = {"contourColor", vec3::Zero(), this}

Parameter< vec3 >	p_hoverColor = {"hoverColor", vec3::Constant(0.5), this}

Parameter< bool >	p_drawContour = {"drawContour", true, this}

Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Protected Member Functions
std::optional< vec3 >	project (const vec2 &pos, const GL::ViewState &state) const override

vec3	project (const vec3 &pos)

Protected Member Functions inherited from GlAxisTransformerObject
virtual vec3	axisVector () const

void	setCenter (const vec3 &center) override

virtual std::optional< vec3 >	projectToPlane (const vec2 &pos, const GL::ViewState &state) const

virtual std::optional< vec3 >	projectToAxis (const vec2 &pos, const GL::ViewState &state) const

void	updatePoses (const GL::ViewState &state) override

Protected Member Functions inherited from GlTransformerObject
virtual std::optional< vec3 >	projectToPlane (const vec2 &pos, const Geometry::Plane &plane, const GL::ViewState &state) const

virtual vec3	getColor () const

virtual vec3	getColorContour () const

void	drawLines (const std::vector< vec3 > &vertices, const vec3 &color, float lineWidth=1.0)

void	drawLineStrip (const std::vector< vec3 > &vertices, const vec3 &color, float lineWidth=1.0)

void	drawLineLoop (const std::vector< vec3 > &vertices, const vec3 &color, float lineWidth=1.0)

void	drawTriangles (const std::vector< vec3 > &vertices, const vec3 &color)

void	drawTriangleStrip (const std::vector< vec3 > &vertices, const vec3 &color)

void	drawPoints (const std::vector< vec3 > &points, const vec3 &color, double pointSize=5.0)

void	drawSphere (const vec3 &center, double radius, const vec3 &color)

void	drawCircle (const vec3 &center, const vec3 &normal, double radius, const vec3 &color, bool contour)

Additional Inherited Members
Public Types inherited from GlObject
enum	RenderingOrderGroup { RenderingGroupRest , RenderingGroupMesh , RenderingGroupManipulator }
	Enumeration to determine rendering order of GlObjects in GlSliceView and GlVolumeView. More...

Static Protected Member Functions inherited from GlTransformerObject
static vec3	perpendicular (const vec3 &vector)

static double	safe_acos (double value)

Protected Attributes inherited from GlAxisTransformerObject
std::optional< mat3 >	m_direction

Protected Attributes inherited from GlTransformerObject
std::unique_ptr< GL::VertexBuffer >	m_vbo

const GL::ViewState *	m_viewState = nullptr

bool	m_active = false

bool	m_hover = false

isom3	m_offset = isom3::Identity()

std::optional< isom3 >	m_pos

vec3	m_center = vec3::Zero()

std::optional< vec3 >	m_camera

std::optional< vec3 >	m_init

std::optional< vec3 >	m_start

std::optional< vec3 >	m_startOffset

Protected Attributes inherited from GlObject
mat4	m_matrix = mat4::Identity()
	Modelview transformation matrix of this object.

bool	m_visible = true
	Object visibility.

bool	m_alwaysVisible = false
	Object always visible.

bool	m_draw3DIn2DView
	Draw 3D objects in 2D views. This is to render 3D objects in projective 2D views. Property is not serialized.

RenderingOrderGroup	m_renderingOrder = RenderingGroupRest

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Member Function Documentation

◆ draw()

void draw ( const GlView & view )

overridevirtual

Draw the object in 3D space.

Implements GlObject.

◆ bounds()

Geometry::AlignedBox bounds ( ) const

overridevirtual

Get the axis-aligned bounding box of this GlObject in world space.

Return an empty (default-constructed) AlignedBox object if the GlObject does not reside in world space.

Implements GlObject.

◆ typeName()

std::string typeName ( ) const

overridevirtual

Return unique identifier for this object class used for serialization.

Implements GlObject.

◆ isInside()

bool isInside	(	const vec2 &	pos,
		const GL::ViewState &	state )

overridevirtual

Implements GlTransformerObject.

◆ activate()

void activate	(	const vec2 &	start,
		const GL::ViewState &	state )

overridevirtual

Reimplemented from GlTransformerObject.

◆ moveTo()

void moveTo	(	const vec2 &	pos,
		const vec2 &	start,
		const GL::ViewState &	state )

overridevirtual

Implements GlTransformerObject.

◆ distanceTo()

double distanceTo	(	const vec2 &	pos,
		const GL::ViewState &	state )

overridevirtual

Reimplemented from GlTransformerObject.

◆ project()

std::optional< vec3 > project	(	const vec2 &	pos,
		const GL::ViewState &	state ) const

overrideprotectedvirtual

Implements GlTransformerObject.

The documentation for this class was generated from the following file:

ImFusion/GL/GlRotationTransformer.h
