#include <ImFusion/GL/GlCircle.h>

Circle annotation. More...

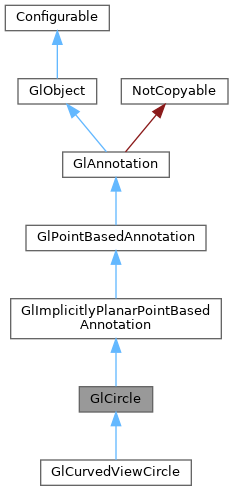

Inheritance diagram for GlCircle:

Detailed Description

Circle annotation.

Public Types
enum class	UpdateMode { Radius , Diameter , Move }

Public Types inherited from GlObject
enum	RenderingOrderGroup { RenderingGroupRest , RenderingGroupMesh , RenderingGroupManipulator }
	Enumeration to determine rendering order of GlObjects in GlSliceView and GlVolumeView. More...

Public Member Functions
void	setAxes (const vec3 &xAxis, const vec3 &yAxis)

void	setCenter (const vec3 &center)

vec3	center () const

void	setRadius (double radius)

double	radius () const

void	draw (const GlView &view) override
	Draw the object in 3D space.

std::string	typeName () const override
	Return unique identifier for this object class used for serialization.

void	configure (const Properties *p) override
	Set one or multiple properties.

void	configuration (Properties *p) const override
	Retrieve the properties of this object.

bool	hitTestLine2D (int x, int y, const GlView &view) const override
	Checks whether the line between handles gets hit (if not a straight line, override this in the annotation)

bool	sampleRenderPath (int samples, std::vector< vec3 > &out) const override
	For annotations where the rendered shape differs from the stored points, this method returns true and a set of points on the rendered curve.

Geometry::AlignedBox	bounds () const override
	Get the axis-aligned bounding box of this GlObject in world space.

void	setUpdateMode (UpdateMode m)
	Set the update mode specifying how the points defining the circle should be updated.

UpdateMode	updateMode ()

Public Member Functions inherited from GlImplicitlyPlanarPointBasedAnnotation
vec3	xAxis () const

vec3	yAxis () const

void	setXAxis (vec3 xAxis)

void	setYAxis (vec3 yAxis)

Public Member Functions inherited from GlPointBasedAnnotation
void	setView (const GlView *view) override
	Set the view through which this annotation is currently being manipulated.

bool	hitTest (int x, int y, const GlView &view) const override
	Perform hit test at screen coordinates (x,y) (OpenGL screen coordinate system) for the specified view.

virtual int	hitTestHandles2D (int x, int y, const GlView &view) const
	Returns the index of the handle being hit, or -1 when missing.

virtual int	hitTestHandles3D (int x, int y, const GlView &view) const

virtual bool	hitTestLabel (int x, int y, const GlView &view) const

virtual bool	addPoint (const vec3 &p)
	Add point to annotation.

const std::vector< vec3 > &	points () const
	Return points making up the annotation.

virtual void	setPoints (const std::vector< vec3 > &points)
	Sets the annotation points.

int	maxPoints () const
	Return maximum number of points allowed for annotation. -1 means no limit.

int	minPoints () const
	Return minimum number of points required for annotation. -1 means no limit.

void	setEditable (bool editable) override
	Set annotation to be editable, i.e.

virtual void	setPointColor (const vec3 &color)
	Set point color.

vec3	pointColor () const
	Get point color.

void	configure (const Properties *p) override
	Set one or multiple properties.

void	configuration (Properties *p) const override
	Retrieve the properties of this object.

Geometry::AlignedBox	bounds () const override
	Get the axis-aligned bounding box of this GlObject in world space.

virtual void	rotate (float angle)
	Change the GlObject matrix to reflect a rotation around the current m_rotationPoint Since this matrix is ignored by most renderers at the moment, this does not currently rotate anything.

virtual void	rotateNoMatrix (float angle)
	Rotate the annotation by changing the handle positions instead of the matrix.

virtual void	setRotationPoint (vec3 &point)
	Set the axis for rotation.

virtual void	setPointSize (float s)
	Set the point size.

virtual void	setLabelPixelOffset (const vec2 &offset)
	Set the label's pixel offset.

float	pointSize () const
	Retrieve the point size.

virtual void	setShowPointsAsCrosses (bool flag)
	Set the rendering of points.

virtual void	setSelected (bool v) override
	When a GlAnnotation is selected, it may be rendered differently to distinguish it from non-selected annotations.

virtual void	setMatrix (const mat4 &m) override
	Overwritten method to update points in world coordinates if the matrix has changed.

virtual void	setMatrixWithoutMoving (const mat4 &m) override
	Change the matrix witout moving the annotation, e.g. for linking it with an image transformation.

virtual void	setLineWidth (float value) override
	Set annotation line width.

void	copyStyle (const GlPointBasedAnnotation &other)

virtual std::optional< vec3 >	labelPosition (const GL::ViewState &state) const
	Position of the label If there is no valid position for the label, returns an empty optional.

Public Member Functions inherited from GlAnnotation
virtual const GlView *	view () const
	Get the view through which this annotation is currently being manipulated.

virtual bool	editable () const
	When a GlAnnotation is editable it may alter its visualization and render UI elements for its manipulation.

virtual void	setColor (const vec3 &color)
	Set annotation color.

virtual vec3	color () const
	Return annotation color.

virtual void	setAlpha (double v)
	Set alpha channel.

virtual double	alpha () const
	Get alpha channel.

virtual float	lineWidth () const
	Return annotation line width.

virtual void	setLabelVisible (bool visible)
	Set annotation label visibility.

virtual bool	labelVisible () const
	Return annotation label visibility.

virtual void	setLabelBackgroundVisible (bool visible)
	Set annotation label background visibility.

virtual bool	labelBackgroundVisible () const
	Return annotation label background visibility.

virtual void	setLabelBackgroundColor (vec4 color)
	Set annotation label background color.

virtual vec4	labelBackgroundColor () const
	Return annotation label background color.

virtual void	setLabelBackgroundMargin (int margin)
	Set annotation label background margin in pixels.

virtual int	labelBackgroundMargin () const
	Return annotation label background margin in pixels.

virtual void	setLabelDepthTest (bool depthTest)
	Set annotation label depth test flag.

virtual bool	labelDepthTest () const
	Return annotation label depth test flag.

virtual void	setLabelColor (const vec3 &color)
	Set annotation label color.

virtual vec3	labelColor () const
	Return annotation label color.

virtual void	setLabelText (const std::string &label)
	Set annotation label text.

virtual std::string	labelText () const
	Return annotation label text.

virtual void	setLabelTextPrefix (const std::string &labelPrefix)
	Set annotation label text prefix.

std::string	labelTextPrefix () const
	Return annotation label text prefix.

virtual void	setLabelTextSuffix (const std::string &labelSuffix)
	Set annotation label text suffix.

std::string	labelTextSuffix () const
	Return annotation label text suffix.

virtual void	setName (const std::string &name)
	Set annotation name.

virtual std::string	name () const
	Return annotation name.

bool	selected () const
	When a GlAnnotation is selected, it may be rendered differently to distinguish it from non-selected annotations.

void	copyStyle (const GlAnnotation &other)
	Copies the settable parameters from another GlAnnotation.

Public Member Functions inherited from GlObject
virtual Geometry::AlignedBox	boundsSpherical () const
	Get the spherical bounds of this GlObject in world space.

virtual const mat4 &	matrix () const
	Return the modelview matrix.

virtual void	setVisible (bool visible)
	Set object visibility.

virtual bool	visible () const
	Return object visibility.

virtual void	setAlwaysVisible (bool alwaysVisible)
	Set if object is always visible.

virtual bool	alwaysVisible () const
	Return if object is always visible.

RenderingOrderGroup	renderingOrder () const
	Return current rendering order value for this GlObject.

void	setRenderingOrder (RenderingOrderGroup group)
	Set rendering order value for this GlObject.

void	setDraw3DIn2DView (bool draw3DIn2DView)

Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Protected Member Functions
void	updatePoints () override
	Update the internal point structure.

std::string	generateLabel ()

Protected Member Functions inherited from GlPointBasedAnnotation
void	renderLabel (const GlView &view) const

void	renderPoints (const GlView &view) const
	Render points.

void	renderPoint (const GlView &view, int index) const
	Render point with the given index. Use -1 to render all points.

bool	viewIsMetric () const

void	renderLabel (const GlView &view, const vec3 &positionWorld) const
	Render the label of the annotation at the given position.

Protected Member Functions inherited from GlAnnotation
void	renderLabel (const GlView &view, const vec3 &positionWorld) const
	Render the label of the annotation at the given position.

vec2i	labelSize () const

Protected Attributes
UpdateMode	m_updateMode = UpdateMode::Radius

vec3	m_center = vec3::Zero()

double	m_radius = 0.0

bool	m_init = false

Protected Attributes inherited from GlImplicitlyPlanarPointBasedAnnotation
vec3	m_xAxis = vec3(1.0, 0.0, 0.0)

vec3	m_yAxis = vec3(0.0, 1.0, 0.0)

Protected Attributes inherited from GlPointBasedAnnotation
std::unique_ptr< GL::VertexBuffer >	m_vbo
	Vertex buffer that can be used for rendering.

std::vector< vec3 >	m_points
	Control points which define the form of the annotation.

std::vector< vec3 >	m_worldPoints
	Points in world coordinates if object matrix differs from identity.

bool	m_wpDirty = false
	True if the world point vector has to be updated.

bool	m_showPointsAsCrosses = false

int	m_maxPoints = -1

int	m_minPoints = -1

float	m_pointSize = 5.f

vec2	m_labelPixelOffset = vec2(6.0, 0.0)

vec4	m_pointColor = vec4(1, 1, 0, 1)

vec3	m_rotationPoint = vec3::Zero()

double	m_hitTest2DMinSize = 4.0

double	m_hitTest3DMinSize = 6.0

Protected Attributes inherited from GlAnnotation
bool	m_editable = true

vec4	m_color {1, 1, 0, 1}

float	m_lineWidth = 1

bool	m_labelVisible = true

bool	m_labelBackgroundVisible = false

vec4	m_labelBackgroundColor {0.3, 0.3, 0.3, 0.7}

int	m_labelBackgroundMargin = 3

bool	m_labelDepthTest = true

bool	m_selected = false

vec3	m_labelColor {0, 1, 1}

std::string	m_labelText

std::string	m_labelTextPrefix

std::string	m_labelTextSuffix

const GlView *	m_view = nullptr

std::string	m_name

Protected Attributes inherited from GlObject
mat4	m_matrix = mat4::Identity()
	Modelview transformation matrix of this object.

bool	m_visible = true
	Object visibility.

bool	m_alwaysVisible = false
	Object always visible.

bool	m_draw3DIn2DView
	Draw 3D objects in 2D views. This is to render 3D objects in projective 2D views. Property is not serialized.

RenderingOrderGroup	m_renderingOrder = RenderingGroupRest

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Attributes inherited from GlPointBasedAnnotation
Signal< const GlPointBasedAnnotation * >	signalPointsChanged

Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Member Function Documentation

◆ draw()

void draw ( const GlView & view )

overridevirtual

Draw the object in 3D space.

Implements GlObject.

Reimplemented in GlCurvedViewCircle.

◆ typeName()

std::string typeName ( ) const

inlineoverridevirtual

Return unique identifier for this object class used for serialization.

Implements GlObject.

Reimplemented in GlCurvedViewCircle.

◆ configure()

void configure ( const Properties * p )

overridevirtual

Set one or multiple properties.

Reimplemented from GlAnnotation.

Reimplemented in GlCurvedViewCircle.

◆ configuration()

void configuration ( Properties * p ) const

overridevirtual

Retrieve the properties of this object.

Reimplemented from GlAnnotation.

Reimplemented in GlCurvedViewCircle.

◆ hitTestLine2D()

bool hitTestLine2D	(	int	x,
		int	y,
		const GlView &	view ) const

overridevirtual

Checks whether the line between handles gets hit (if not a straight line, override this in the annotation)

Reimplemented from GlPointBasedAnnotation.

Reimplemented in GlCurvedViewCircle.

◆ sampleRenderPath()

bool sampleRenderPath	(	int	samples,
		std::vector< vec3 > &	out ) const

overridevirtual

For annotations where the rendered shape differs from the stored points, this method returns true and a set of points on the rendered curve.

Otherwise it returns false and the control points.

Reimplemented from GlPointBasedAnnotation.

◆ bounds()

Geometry::AlignedBox bounds ( ) const

overridevirtual

Get the axis-aligned bounding box of this GlObject in world space.

Return an empty (default-constructed) AlignedBox object if the GlObject does not reside in world space.

Implements GlObject.

Reimplemented in GlCurvedViewCircle.

◆ updatePoints()

void updatePoints ( )

overrideprotectedvirtual

Update the internal point structure.

Should be implemented by subtypes which have custom data depending on the point data. Derived implementation needs to call base class implementation.

Reimplemented from GlPointBasedAnnotation.

Reimplemented in GlCurvedViewCircle.

The documentation for this class was generated from the following file:

ImFusion/GL/GlCircle.h

Detailed Description

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Function Documentation

◆ draw()

◆ typeName()

◆ configure()

◆ configuration()

◆ hitTestLine2D()

◆ sampleRenderPath()

◆ bounds()

◆ updatePoints()
