#include <ImFusion/GL/GlLoop.h>

Loop annotation. More...

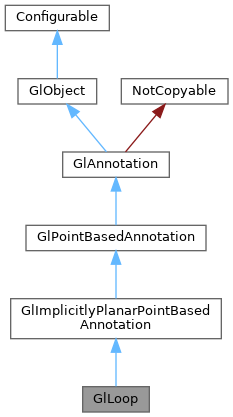

Inheritance diagram for GlLoop:

Detailed Description

Loop annotation.

Renders a circle, ellipse or pseudo-spline, depending on number of points. In pseudo-spline mode, it also renders how the annotation would look without the currently active point. The pseudo-spline initially approximates the shape of the previous ellipse and tries to avoid intersecting itself. I strongly advise against inheriting from or otherwise trying to mess with the internals of this class.

Public Member Functions
	GlLoop (const std::vector< vec3 > &points={})

int	hitTestHandles2D (int x, int y, const GlView &view) const override
	Returns the index of the handle being hit, or -1 when missing.

int	hitTestHandles3D (int x, int y, const GlView &view) const override

bool	hitTestLine2D (int x, int y, const GlView &view) const override
	Checks whether the line between handles gets hit (if not a straight line, override this in the annotation)

bool	hitTest (int x, int y, const GlView &view) const override
	Perform hit test with points of underlying object. Return true if object is hit, false otherwise.

bool	addPoint (const vec3 &p) override
	Adds a new point at world coords p and sets it as active point.

void	undoAdd ()
	Reverts to the state before adding the most recent point.

void	removePoint (int idx)
	Removes a single point without reverting the entire state.

void	setPoints (const std::vector< vec3 > &points) override
	Create annotation from scratch using the given points.

void	updatePoint (size_t idx, const vec3 &pos)

void	setActivePoint (int idx)
	Flags a point as active for the purpose of deforming the spline and rendering the previous outline. Pass -1 for none.

void	setPointColor (const vec3 &color) override
	Set point color.

void	rotate (float angle) override
	Change the GlObject matrix to reflect a rotation around the current m_rotationPoint Since this matrix is ignored by most renderers at the moment, this does not currently rotate anything.

void	rotateNoMatrix (float angle) override
	Rotate the annotation by changing the handle positions instead of the matrix.

void	setRotationPoint (vec3 &point) override
	Set the axis for rotation.

void	setPointSize (float s) override
	Set the point size.

void	setShowPointsAsCrosses (bool flag) override
	Set the rendering of points.

void	setMatrix (const mat4 &m) override
	Overwritten method to update points in world coordinates if the matrix has changed.

void	setMatrixWithoutMoving (const mat4 &m) override
	Change the matrix witout moving the annotation, e.g. for linking it with an image transformation.

bool	sampleRenderPath (int samples, std::vector< vec3 > &out) const override
	For annotations where the rendered shape differs from the stored points, this method returns true and a set of points on the rendered curve.

void	setLineWidth (float value) override
	Set annotation line width.

void	setColor (const vec3 &color) override
	Set annotation color.

void	setAlpha (double v) override
	Set alpha channel.

void	setLabelVisible (bool visible) override
	Set annotation label visibility.

void	setLabelDepthTest (bool depthTest) override
	Set annotation label depth test flag.

void	setLabelColor (const vec3 &color) override
	Set annotation label color.

void	setLabelText (const std::string &label) override
	Set annotation label text.

void	setLabelTextPrefix (const std::string &labelPrefix) override
	Set annotation label text prefix.

void	setLabelTextSuffix (const std::string &labelSuffix) override
	Set annotation label text suffix.

void	setVisible (bool visible) override
	Set object visibility.

void	setAlwaysVisible (bool alwaysVisible) override
	Set if object is always visible.

void	configure (const Properties *p) override
	Set one or multiple properties.

void	configuration (Properties *p) const override
	Retrieve the properties of this object.

void	setSelected (bool m) override
	When a GlAnnotation is selected, it may be rendered differently to distinguish it from non-selected annotations.

bool	selected ()

void	draw (const GlView &view) override
	Draw the object in 3D space.

Geometry::AlignedBox	bounds () const override
	Get the axis-aligned bounding box of this GlObject in world space.

std::string	typeName () const override
	Return unique identifier for this object class used for serialization.

void	setEditable (bool editable) override
	When a GlAnnotation is editable it may alter its visualization and render UI elements for its manipulation.

void	updatePoints () override
	Update the internal point structure.

const std::vector< vec3 > &	internalPoints () const
	Read access to the internal points used by the wrapped annotation.

Public Member Functions inherited from GlImplicitlyPlanarPointBasedAnnotation
vec3	xAxis () const

vec3	yAxis () const

void	setXAxis (vec3 xAxis)

void	setYAxis (vec3 yAxis)

Public Member Functions inherited from GlPointBasedAnnotation
void	setView (const GlView *view) override
	Set the view through which this annotation is currently being manipulated.

bool	hitTest (int x, int y, const GlView &view) const override
	Perform hit test at screen coordinates (x,y) (OpenGL screen coordinate system) for the specified view.

virtual bool	hitTestLabel (int x, int y, const GlView &view) const

const std::vector< vec3 > &	points () const
	Return points making up the annotation.

int	maxPoints () const
	Return maximum number of points allowed for annotation. -1 means no limit.

int	minPoints () const
	Return minimum number of points required for annotation. -1 means no limit.

void	setEditable (bool editable) override
	Set annotation to be editable, i.e.

vec3	pointColor () const
	Get point color.

void	configure (const Properties *p) override
	Set one or multiple properties.

void	configuration (Properties *p) const override
	Retrieve the properties of this object.

Geometry::AlignedBox	bounds () const override
	Get the axis-aligned bounding box of this GlObject in world space.

virtual void	setLabelPixelOffset (const vec2 &offset)
	Set the label's pixel offset.

float	pointSize () const
	Retrieve the point size.

void	copyStyle (const GlPointBasedAnnotation &other)

virtual std::optional< vec3 >	labelPosition (const GL::ViewState &state) const
	Position of the label If there is no valid position for the label, returns an empty optional.

Public Member Functions inherited from GlAnnotation
virtual const GlView *	view () const
	Get the view through which this annotation is currently being manipulated.

virtual bool	editable () const
	When a GlAnnotation is editable it may alter its visualization and render UI elements for its manipulation.

virtual vec3	color () const
	Return annotation color.

virtual double	alpha () const
	Get alpha channel.

virtual float	lineWidth () const
	Return annotation line width.

virtual bool	labelVisible () const
	Return annotation label visibility.

virtual void	setLabelBackgroundVisible (bool visible)
	Set annotation label background visibility.

virtual bool	labelBackgroundVisible () const
	Return annotation label background visibility.

virtual void	setLabelBackgroundColor (vec4 color)
	Set annotation label background color.

virtual vec4	labelBackgroundColor () const
	Return annotation label background color.

virtual void	setLabelBackgroundMargin (int margin)
	Set annotation label background margin in pixels.

virtual int	labelBackgroundMargin () const
	Return annotation label background margin in pixels.

virtual bool	labelDepthTest () const
	Return annotation label depth test flag.

virtual vec3	labelColor () const
	Return annotation label color.

virtual std::string	labelText () const
	Return annotation label text.

std::string	labelTextPrefix () const
	Return annotation label text prefix.

std::string	labelTextSuffix () const
	Return annotation label text suffix.

virtual void	setName (const std::string &name)
	Set annotation name.

virtual std::string	name () const
	Return annotation name.

bool	selected () const
	When a GlAnnotation is selected, it may be rendered differently to distinguish it from non-selected annotations.

void	copyStyle (const GlAnnotation &other)
	Copies the settable parameters from another GlAnnotation.

Public Member Functions inherited from GlObject
virtual Geometry::AlignedBox	boundsSpherical () const
	Get the spherical bounds of this GlObject in world space.

virtual const mat4 &	matrix () const
	Return the modelview matrix.

virtual bool	visible () const
	Return object visibility.

virtual bool	alwaysVisible () const
	Return if object is always visible.

RenderingOrderGroup	renderingOrder () const
	Return current rendering order value for this GlObject.

void	setRenderingOrder (RenderingOrderGroup group)
	Set rendering order value for this GlObject.

void	setDraw3DIn2DView (bool draw3DIn2DView)

Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Additional Inherited Members
Public Types inherited from GlObject
enum	RenderingOrderGroup { RenderingGroupRest , RenderingGroupMesh , RenderingGroupManipulator }
	Enumeration to determine rendering order of GlObjects in GlSliceView and GlVolumeView. More...

Public Attributes inherited from GlPointBasedAnnotation
Signal< const GlPointBasedAnnotation * >	signalPointsChanged

Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Protected Member Functions inherited from GlPointBasedAnnotation
void	renderLabel (const GlView &view) const

void	renderPoints (const GlView &view) const
	Render points.

void	renderPoint (const GlView &view, int index) const
	Render point with the given index. Use -1 to render all points.

bool	viewIsMetric () const

void	renderLabel (const GlView &view, const vec3 &positionWorld) const
	Render the label of the annotation at the given position.

Protected Member Functions inherited from GlAnnotation
void	renderLabel (const GlView &view, const vec3 &positionWorld) const
	Render the label of the annotation at the given position.

vec2i	labelSize () const

Protected Attributes inherited from GlImplicitlyPlanarPointBasedAnnotation
vec3	m_xAxis = vec3(1.0, 0.0, 0.0)

vec3	m_yAxis = vec3(0.0, 1.0, 0.0)

Protected Attributes inherited from GlPointBasedAnnotation
std::unique_ptr< GL::VertexBuffer >	m_vbo
	Vertex buffer that can be used for rendering.

std::vector< vec3 >	m_points
	Control points which define the form of the annotation.

std::vector< vec3 >	m_worldPoints
	Points in world coordinates if object matrix differs from identity.

bool	m_wpDirty = false
	True if the world point vector has to be updated.

bool	m_showPointsAsCrosses = false

int	m_maxPoints = -1

int	m_minPoints = -1

float	m_pointSize = 5.f

vec2	m_labelPixelOffset = vec2(6.0, 0.0)

vec4	m_pointColor = vec4(1, 1, 0, 1)

vec3	m_rotationPoint = vec3::Zero()

double	m_hitTest2DMinSize = 4.0

double	m_hitTest3DMinSize = 6.0

Protected Attributes inherited from GlAnnotation
bool	m_editable = true

vec4	m_color {1, 1, 0, 1}

float	m_lineWidth = 1

bool	m_labelVisible = true

bool	m_labelBackgroundVisible = false

vec4	m_labelBackgroundColor {0.3, 0.3, 0.3, 0.7}

int	m_labelBackgroundMargin = 3

bool	m_labelDepthTest = true

bool	m_selected = false

vec3	m_labelColor {0, 1, 1}

std::string	m_labelText

std::string	m_labelTextPrefix

std::string	m_labelTextSuffix

const GlView *	m_view = nullptr

std::string	m_name

Protected Attributes inherited from GlObject
mat4	m_matrix = mat4::Identity()
	Modelview transformation matrix of this object.

bool	m_visible = true
	Object visibility.

bool	m_alwaysVisible = false
	Object always visible.

bool	m_draw3DIn2DView
	Draw 3D objects in 2D views. This is to render 3D objects in projective 2D views. Property is not serialized.

RenderingOrderGroup	m_renderingOrder = RenderingGroupRest

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Member Function Documentation

◆ hitTestHandles2D()

int hitTestHandles2D	(	int	x,
		int	y,
		const GlView &	view ) const

overridevirtual

Returns the index of the handle being hit, or -1 when missing.

Reimplemented from GlPointBasedAnnotation.

◆ hitTestHandles3D()

int hitTestHandles3D	(	int	x,
		int	y,
		const GlView &	view ) const

overridevirtual

Reimplemented from GlPointBasedAnnotation.

◆ hitTestLine2D()

bool hitTestLine2D	(	int	x,
		int	y,
		const GlView &	view ) const

overridevirtual

Checks whether the line between handles gets hit (if not a straight line, override this in the annotation)

Reimplemented from GlPointBasedAnnotation.

◆ hitTest()

bool hitTest	(	int	,
		int	,
		const GlView &	) const

overridevirtual

Perform hit test with points of underlying object. Return true if object is hit, false otherwise.

Reimplemented from GlAnnotation.

◆ addPoint()

bool addPoint ( const vec3 & p )

overridevirtual

Adds a new point at world coords p and sets it as active point.

Reimplemented from GlPointBasedAnnotation.

◆ setPoints()

void setPoints ( const std::vector< vec3 > & points )

overridevirtual

Create annotation from scratch using the given points.

Reimplemented from GlPointBasedAnnotation.

◆ setPointColor()

void setPointColor ( const vec3 & color )

overridevirtual

Set point color.

Reimplemented from GlPointBasedAnnotation.

◆ rotate()

void rotate ( float angle )

overridevirtual

Change the GlObject matrix to reflect a rotation around the current m_rotationPoint Since this matrix is ignored by most renderers at the moment, this does not currently rotate anything.

Reimplemented from GlPointBasedAnnotation.

◆ rotateNoMatrix()

void rotateNoMatrix ( float angle )

overridevirtual

Rotate the annotation by changing the handle positions instead of the matrix.

Reimplemented from GlPointBasedAnnotation.

◆ setRotationPoint()

void setRotationPoint ( vec3 & point )

overridevirtual

Set the axis for rotation.

Reimplemented from GlPointBasedAnnotation.

◆ setPointSize()

void setPointSize ( float s )

overridevirtual

Set the point size.

Reimplemented from GlPointBasedAnnotation.

◆ setShowPointsAsCrosses()

void setShowPointsAsCrosses ( bool flag )

overridevirtual

Set the rendering of points.

Reimplemented from GlPointBasedAnnotation.

◆ setMatrix()

void setMatrix ( const mat4 & m )

overridevirtual

Overwritten method to update points in world coordinates if the matrix has changed.

Reimplemented from GlPointBasedAnnotation.

◆ setMatrixWithoutMoving()

void setMatrixWithoutMoving ( const mat4 & m )

overridevirtual

Change the matrix witout moving the annotation, e.g. for linking it with an image transformation.

Reimplemented from GlPointBasedAnnotation.

◆ sampleRenderPath()

bool sampleRenderPath	(	int	samples,
		std::vector< vec3 > &	out ) const

overridevirtual

For annotations where the rendered shape differs from the stored points, this method returns true and a set of points on the rendered curve.

Otherwise it returns false and the control points.

Reimplemented from GlPointBasedAnnotation.

◆ setLineWidth()

void setLineWidth ( float value )

overridevirtual

Set annotation line width.

Parameters

lineWidth line width

Reimplemented from GlPointBasedAnnotation.

◆ setColor()

void setColor ( const vec3 & color )

overridevirtual

Set annotation color.

Parameters

color color

Reimplemented from GlAnnotation.

◆ setAlpha()

void setAlpha ( double v )

overridevirtual

Set alpha channel.

Reimplemented from GlAnnotation.

◆ setLabelVisible()

void setLabelVisible ( bool visible )

overridevirtual

Set annotation label visibility.

Parameters

visible visibility

Reimplemented from GlAnnotation.

◆ setLabelDepthTest()

void setLabelDepthTest ( bool depthTest )

overridevirtual

Set annotation label depth test flag.

Parameters

Flag	whether apply depth test during label rendering in 3D views.

Reimplemented from GlAnnotation.

◆ setLabelColor()

void setLabelColor ( const vec3 & color )

overridevirtual

Set annotation label color.

Parameters

color color

Reimplemented from GlAnnotation.

◆ setLabelText()

void setLabelText ( const std::string & label )

overridevirtual

Set annotation label text.

Parameters

label label text

Reimplemented from GlAnnotation.

◆ setLabelTextPrefix()

void setLabelTextPrefix ( const std::string & labelPrefix )

overridevirtual

Set annotation label text prefix.

Parameters

label label text prefix

Reimplemented from GlAnnotation.

◆ setLabelTextSuffix()

void setLabelTextSuffix ( const std::string & labelSuffix )

overridevirtual

Set annotation label text suffix.

Parameters

label label text suffix

Reimplemented from GlAnnotation.

◆ setVisible()

void setVisible ( bool visible )

overridevirtual

Set object visibility.

Reimplemented from GlObject.

◆ setAlwaysVisible()

void setAlwaysVisible ( bool alwaysVisible )

overridevirtual

Set if object is always visible.

Reimplemented from GlObject.

◆ configure()

void configure ( const Properties * p )

overridevirtual

Set one or multiple properties.

Reimplemented from GlAnnotation.

◆ configuration()

void configuration ( Properties * p ) const

overridevirtual

Retrieve the properties of this object.

Reimplemented from GlAnnotation.

◆ setSelected()

void setSelected ( bool m )

overridevirtual

When a GlAnnotation is selected, it may be rendered differently to distinguish it from non-selected annotations.

Reimplemented from GlPointBasedAnnotation.

◆ draw()

void draw ( const GlView & view )

overridevirtual

Draw the object in 3D space.

Implements GlObject.

◆ bounds()

Geometry::AlignedBox bounds ( ) const

overridevirtual

Get the axis-aligned bounding box of this GlObject in world space.

Return an empty (default-constructed) AlignedBox object if the GlObject does not reside in world space.

Implements GlObject.

◆ typeName()

std::string typeName ( ) const

overridevirtual

Return unique identifier for this object class used for serialization.

Implements GlObject.

◆ setEditable()

void setEditable ( bool editable )

overridevirtual

When a GlAnnotation is editable it may alter its visualization and render UI elements for its manipulation.

Reimplemented from GlAnnotation.

◆ updatePoints()

void updatePoints ( )

overridevirtual

Update the internal point structure.

Should be implemented by subtypes which have custom data depending on the point data. Derived implementation needs to call base class implementation.

Reimplemented from GlPointBasedAnnotation.

The documentation for this class was generated from the following file:

ImFusion/GL/GlLoop.h

Detailed Description

Public Member Functions

Additional Inherited Members

Member Function Documentation

◆ hitTestHandles2D()

◆ hitTestHandles3D()

◆ hitTestLine2D()

◆ hitTest()

◆ addPoint()

◆ setPoints()

◆ setPointColor()

◆ rotate()

◆ rotateNoMatrix()

◆ setRotationPoint()

◆ setPointSize()

◆ setShowPointsAsCrosses()

◆ setMatrix()

◆ setMatrixWithoutMoving()

◆ sampleRenderPath()

◆ setLineWidth()

◆ setColor()

◆ setAlpha()

◆ setLabelVisible()

◆ setLabelDepthTest()

◆ setLabelColor()

◆ setLabelText()

◆ setLabelTextPrefix()

◆ setLabelTextSuffix()

◆ setVisible()

◆ setAlwaysVisible()

◆ configure()

◆ configuration()

◆ setSelected()

◆ draw()

◆ bounds()

◆ typeName()

◆ setEditable()

◆ updatePoints()
