ImFusion::CT::ConeBeamReconLoader Class Reference

#include <ImFusion/CT/ConeBeamReconLoader.h>

I/O algorithm for loading cone-beam reconstruction data. More...

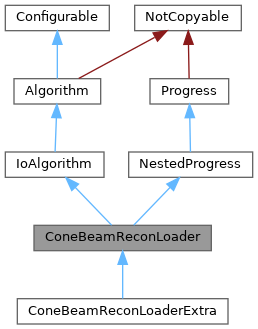

Inheritance diagram for ImFusion::CT::ConeBeamReconLoader:

Detailed Description

I/O algorithm for loading cone-beam reconstruction data.

Handles loading of projection data and reconstruction parameters from various formats.

Public Member Functions
	ConeBeamReconLoader ()
	Constructor.
	~ConeBeamReconLoader () override
	Destructor.
void	setFolder (const std::string &folder)
	Set the folder to load data from, or the base folder of a configuration.
void	configure (const Properties *p) override
	Configure the loader using properties.
void	setOptions (bool orig, bool downsample, int skip=-1, int rotate=-1, int flip=-1, int bits=-1, const vec4i &crop=vec4i::Zero())
	Set pre-processing options, possibly overriding some of the configured settings.
void	onTaskUpdated (const Task *task) override
	Pass on progress and schedule pre-processing of a frame.
void	load ()
	Load the data.
virtual void	loadMatrices (SharedImageSet *data) const
	Tries to load the individual transformation matrices for a cone-beam data set.
const std::vector< SharedImageSet * > &	data ()
	Access the loaded data.
void	configuration (Properties *p) const override
	Store the configuration in properties.
void	options (bool &orig, bool &downsample, int &skip, int &rotate, int &flip, int &bits) const
	Directly retrieve the main pre-processing options.
const ImageDescriptor &	volDesc () const
	Retrieve the reconstruction volume descriptor.
int	projWidth () const
	Return the configured projection image width in pixels.
int	projHeight () const
	Return the configured projection image height in pixels.
int	projNum () const
	Return the configured number of projection images.
ProjectionPreProcessing *	preProcessing ()
	Return projection preprocessing.
void	setPreProcessingEnabled (bool enabled)
	Enable/Disable projection preprocessing.
Properties *	properties ()
	Get stored configuration properties.
void	compute () override
	Execute the algorithm.
OwningDataList	takeOutput () override
	Return any new Data that was created by the Algorithm during the last call to compute().
void	setProgress (Progress *progress) override
	Sets a Progress interface the algorithm can use to notify observers about its computing progress.
Public Member Functions inherited from ImFusion::IoAlgorithm
	IoAlgorithm (IoMode ioMode, int locationType)
	Constructor for initializing IO algorithm.
virtual IoMode	ioMode () const
	Return IO mode.
virtual std::vector< std::string >	supportedFileExtensions () const
	Return supported file extensions (for file based IO).
virtual std::string	suggestedSaveFileName () const
	Return a file name suggestion typically used by IoController to prefill the file name in the save file dialog (for file based write).
virtual bool	canLoad (const Filesystem::Path &filepath) const
	Returns whether the algorithm is suitable for loading the indicated file.
virtual bool	fail (int *errorCode=nullptr) const
int	status () const override
	Indicates the status of the last call to compute().
virtual int	supportedLocations () const
	Return combination of supported location types from LocationType enum.
virtual void	setLocation (const std::string &location)
	Set location for subsequent loading/saving.
virtual std::string	location () const
	Get location for loading/saving.
void	configure (const Properties *p) override
	Set one or multiple properties.
void	configuration (Properties *p) const override
	Retrieve the properties of this object.
std::unique_ptr< Properties >	userOptions (bool includeReadOptions, bool includeWriteOptions) const
	Convenience method to retrieve all properties from this IoAlgorithm that are tagged as user options to be configured during load/save.
void	configureFromGlobalSettings ()
	Convenience method to configure the algorithm's user options with the values stored in the global settings.
Public Member Functions inherited from ImFusion::Algorithm
	Algorithm ()
	Default constructor will registers a single "compute" action that calls compute() and returns status().
Progress *	progress () const
	Returns the progress interface if set.
virtual bool	survivesDataDeletion (const Data *) const
	Indicates whether the algorithm can handle (partial) deletion of the specified data, by default this checks whether the data is in the input list.
const FactoryInfo &	factoryInfo () const
	Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory.
void	setFactoryInfo (const FactoryInfo &value)
	Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory.
Status	runAction (const std::string &id)
	Run the action with name id if it exists.
const std::vector< Action > &	actions ()
	Get a mapping from Action id to Action as registered in this algorithm.
Public Member Functions inherited from ImFusion::Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept
Public Member Functions inherited from ImFusion::NestedProgress
	NestedProgress (Progress *parent=nullptr, Flags< TaskMode > taskFlags=TaskMode::Default)
	Creates a new NestedProgress instance.
void	setParentProgress (Progress *parent)
	Updates the parent Progress instance to which progress updates should be forwarded to.
void	cancelAllTasks ()
	Will cancel all tasks that were spawned from this NestedProgress instance.
Public Member Functions inherited from ImFusion::Progress
Task	addTask (int numSteps, const std::string &description)
	Create a new progress report for an operation with the given number of steps.
Task	addBusyIndicator (const std::string &description)
	Create a busy indicator for an operation but does not have a predefined number of steps.

Protected Types
enum	LoaderType { FILE_LOADER = 0 , SHM_LOADER = 1 , IMFUSION_FILE_LOADER = 2 }
	Enum for projection loader type.

Protected Member Functions
virtual void	createLoader ()
	Auxiliary method to create loader specialization.
virtual void	initCalibration ()
	Auxiliary method to initialize the flat-field calibration.
void	configureVolume (const Properties *p)
	Initialize the volume descriptor from the reconstruction parameters.
Protected Member Functions inherited from ImFusion::IoAlgorithm
void	recordToDataSourceComponent (Data &data, int indexInFile)
	Append the current configuration of the IoAlgorithm to the DataSourceComponent of a data.
Protected Member Functions inherited from ImFusion::Algorithm
void	loadDefaults ()
void	registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action)
	Register an action to be run via runAction.
template<typename D>
void	registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void))
	Template version of runAction that can be used with a pointer to a member function.
void	registerAction (const Action &action)
	Register an action.
Protected Member Functions inherited from ImFusion::NestedProgress
void	onTaskAdded (Task *task) override
	Function is called whenever a new Task has been created.
void	onTaskUpdated (const Task *task) override
	Function is called whenever the state of a Task has changed and the reporter should update its UI.
bool	onTaskRequestsThreadSafety (const Task *task) override
	Function is called by Task::requestThreadSafety() in order to check whether the parent reporter supports concurrent access.
void	onTaskRemoved (const Task *task) override
	Function is called whenever a Task is about to be destroyed and its pointer will become invalid.

Protected Attributes
std::string	m_folder
	Base folder to load data from.
std::string	m_calPath
	Path to detector calibration files.
std::string	m_matFile
	File for individual projection matrices.
std::string	m_isoMatFile
	File for individual motion matrices.
std::string	m_timestampFile
	File for individual timestamps per frame.
int	m_calDepth
	Bit depth for flat-field calibration.
double	m_binning
	Binning for the case that the projection matrices have been calibrated for a different number of pixel on the detector.
bool	m_calInit
	Has the calibration been initialized.
int	m_loadSkip
	Shall frames be skipped during load.
ImageDescriptor	m_volDesc
	Reconstruction volume descriptor from configuration.
int	m_projWidth
	Projection width in pixels, if configured.
int	m_projHeight
	Projection height in pixels, if configured.
int	m_projNum
	Number of projections, if configured.
std::vector< SharedImageSet * >	m_data
	The CBCT data, not owned.
LoaderType	m_loaderType
	Projection loader type.
ProjectionLoader *	m_loader
	Projection loader instance.
ProjectionPreProcessing *	m_preProc
	Projection pre-processing instance.
bool	m_preProcEnabled
	Projection pre-processing enabled.
DetectorCalibration *	m_calib
	Flat-field calibration instance.
Properties *	m_loadProps
	Configuration properties.
bool	m_optOverride
	Override pre-processing option.
bool	m_optOrig
	Pre-processing load original values option.
bool	m_optDownsample
	Pre-processing downsample option.
int	m_optSkip
	Pre-processing skip option.
int	m_optRotate
	Pre-processing rotate option.
int	m_optFlip
	Pre-processing flip option.
int	m_optBits
	Pre-processing bits option.
vec4i	m_optCrop
	Pre-processing crop option.
Protected Attributes inherited from ImFusion::IoAlgorithm
bool	m_forceCannotLoad = false
	Used to disable the IoAlgorithm in the global settings by forcing canLoad() to return false.
std::string	m_location
IoMode	m_ioMode
int	m_locationType
Protected Attributes inherited from ImFusion::Algorithm
std::string	m_name
	Algorithm name.
Progress *	m_progress = nullptr
	Non-owing pointer to a progress interface. May be a nullptr.
FactoryInfo	m_factoryInfo = {}
	Record describing how this algorithm was instantiated by the AlgorithmFactory.
int	m_status = Status::Unknown
	Algorithm status after last call to compute().
std::vector< Action >	m_actions
	Map of key given by the id of the action, of the available actions of this algorithm.
Protected Attributes inherited from ImFusion::Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.
Protected Attributes inherited from ImFusion::NestedProgress
Progress *	m_parent
const Flags< TaskMode >	m_taskFlags
std::unique_ptr< std::mutex >	m_mutex
std::unique_ptr< Task >	m_parentThreadSafetyGuard
std::vector< Task * >	m_tasks

Additional Inherited Members
Public Types inherited from ImFusion::IoAlgorithm
enum	IoMode { Read = 0 , Write = 1 }
enum	LocationType {   File = 1 , Folder = 2 , URI = 4 , OpenIGTLink = 8 ,   Device = 16 }
Public Types inherited from ImFusion::Algorithm
enum	Status {   Unknown = -1 , Success = 0 , Error = 1 , InvalidInput ,   IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU ,   UnknownAction , AbortedByUser , User = 1000 }
	Status codes. More...
Public Types inherited from ImFusion::NestedProgress
enum	TaskMode { Default = 0 , ThreadSafe = 1 << 0 , Hidden = 1 << 1 }
	Enumeration of possible invariants that should be ensured by NestedProgress. More...
Static Public Member Functions inherited from ImFusion::IoAlgorithm
static std::unique_ptr< IoAlgorithm >	createFromLastDataSource (const DataSourceComponent &dsc)
	Virtual constructor that creates the IoAlgorithm recorded last in the DataSourceComponent.
Static Public Member Functions inherited from ImFusion::Algorithm
static bool	createCompatible (const DataList &data, Algorithm **a=nullptr)
	Factory function to check algorithm compatibility with input data and optionally instantiate it.
Public Attributes inherited from ImFusion::Algorithm
Signal	signalOutputChanged
	Signal should be emitted by Algorithms when their output/result has changed.
Signal	signalParametersChanged
	Signal should be emitted by Algorithms when their parameter configuration has changed.
Public Attributes inherited from ImFusion::Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.
Public Attributes inherited from ImFusion::NestedProgress
ProtectedSignal< Task * >	signalTaskAdded
	Signal emitted by the default implementation of NestedProgress::onTaskAdded().
ProtectedSignal< const Task * >	signalTaskUpdated
	Signal emitted by the default implementation of NestedProgress::onTaskUpdated().

Member Function Documentation

configure()

void ImFusion::CT::ConeBeamReconLoader::configure ( const Properties * p )

overridevirtual

Configure the loader using properties.

Reimplemented from ImFusion::Configurable.

Reimplemented in ImFusion::CT::ConeBeamReconLoaderExtra.

setOptions()

void ImFusion::CT::ConeBeamReconLoader::setOptions	(	bool	orig,
		bool	downsample,
		int	skip = -1,
		int	rotate = -1,
		int	flip = -1,
		int	bits = -1,
		const vec4i &	crop = vec4i::Zero() )

Set pre-processing options, possibly overriding some of the configured settings.

A value of -1 in the integer parameters means that this setting will not be changed.

onTaskUpdated()

void ImFusion::CT::ConeBeamReconLoader::onTaskUpdated ( const Task * task )

overridevirtual

Pass on progress and schedule pre-processing of a frame.

Implements ImFusion::Progress.

loadMatrices()

virtual void ImFusion::CT::ConeBeamReconLoader::loadMatrices ( SharedImageSet * data ) const

virtual

Tries to load the individual transformation matrices for a cone-beam data set.

Reimplemented in ImFusion::CT::ConeBeamReconLoaderExtra.

configuration()

void ImFusion::CT::ConeBeamReconLoader::configuration ( Properties * p ) const

overridevirtual

Store the configuration in properties.

Reimplemented from ImFusion::Configurable.

Reimplemented in ImFusion::CT::ConeBeamReconLoaderExtra.

compute()

void ImFusion::CT::ConeBeamReconLoader::compute ( )

overridevirtual

Execute the algorithm.

Implements ImFusion::Algorithm.

takeOutput()

OwningDataList ImFusion::CT::ConeBeamReconLoader::takeOutput ( )

overridevirtual

Return any new Data that was created by the Algorithm during the last call to compute().

The default implementation will return an empty list.

Note

Since ownership of the data is transferred, you can call this method only once between calls to compute().

Reimplemented from ImFusion::Algorithm.

setProgress()

void ImFusion::CT::ConeBeamReconLoader::setProgress ( Progress * progress )

overridevirtual

Sets a Progress interface the algorithm can use to notify observers about its computing progress.

Reimplemented from ImFusion::Algorithm.

createLoader()

virtual void ImFusion::CT::ConeBeamReconLoader::createLoader ( )

protectedvirtual

Auxiliary method to create loader specialization.

Reimplemented in ImFusion::CT::ConeBeamReconLoaderExtra.

initCalibration()

virtual void ImFusion::CT::ConeBeamReconLoader::initCalibration ( )

protectedvirtual

Auxiliary method to initialize the flat-field calibration.

Reimplemented in ImFusion::CT::ConeBeamReconLoaderExtra.

---

The documentation for this class was generated from the following file:

• ImFusion/CT/ConeBeamReconLoader.h
