Cone Beam Data

ConeBeamData (concept), including algorithms for X-ray projections generation, I/O, and processing. More...

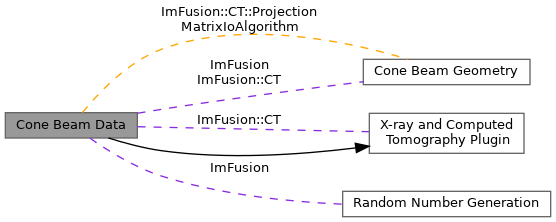

Collaboration diagram for Cone Beam Data:

Detailed Description

ConeBeamData (concept), including algorithms for X-ray projections generation, I/O, and processing.

ConeBeamData is a concept for a SharedImageSet which represents projective X-ray images. In order to match this concept the SharedImageSet needs to fulfill all of the criteria below:

• If the "topDown" property is set, it MUST be set to true.
• SharedImageSet::modality() needs to return Data::XRAY, i.e. all images of the SharedImageSet need to have the modality Data::XRAY OR the SharedImageSet needs to have a modality override set to Data::XRAY.
• The SharedImageSet needs to have a ConeBeamMetadata DataComponent.

In order to create such a SharedImageSet use CT::Utils::makeConeBeamData(). In order to check if a SharedImageSet matches this concept, use CT::Utils::isConeBeamData(const SharedImageSet&)

Namespaces
namespace	ImFusion
	Namespace of the ImFusion SDK.
namespace	ImFusion::CT
	X-ray and computed tomography.
namespace	ImFusion::CT::GridBasedDistortionCorrectionUtils
	Utilities for grid-based distortion correction algorithms.

Classes
class	ImFusion::CT::ConeBeamMetadata
	Data component for cone-beam projection metadata. More...
class	ImFusion::CT::ConeBeamReconLoader
	I/O algorithm for loading cone-beam reconstruction data. More...
class	ImFusion::CT::ConeBeamSimulation
	Algorithm for simulating cone-beam X-ray projections from CT volumes. More...
class	ImFusion::CT::ConvertToConeBeamData
	Algorithm for converting DICOM projection data to ConeBeamData format. More...
class	ImFusion::CT::GlProjectiveObject
	OpenGL wrapper for projecting 3D objects onto 2D X-ray images. More...
class	ImFusion::CT::GridBasedDistortionCorrection
	Grid-based distortion correction algorithm for X-ray images. More...
class	ImFusion::CT::ProjectionLoader
	Abstract base class for X-ray projection image loaders. More...
class	ImFusion::CT::ProjectionMatrixIoAlgorithm
	I/O algorithm for saving and loading projection matrices. More...
class	ImFusion::CT::ProjectionPreProcessingAlgorithm
	Algorithm for X-ray projection image pre-processing. More...
class	ImFusion::CT::RadonTransformAlgorithm
	Algorithm for computing 2D Radon transform. More...
