#include <ImFusion/CT/ConeBeamMetadata.h>

Data component for cone-beam projection metadata. More...

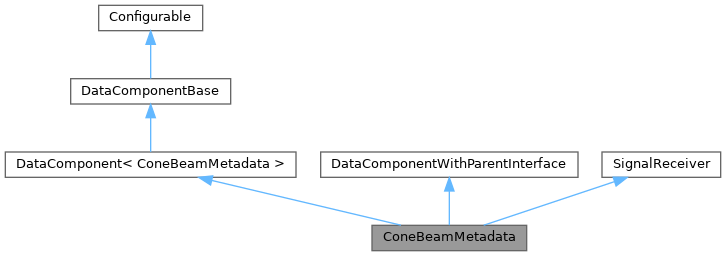

Inheritance diagram for ImFusion::CT::ConeBeamMetadata:

Detailed Description

Data component for cone-beam projection metadata.

Stores and manages geometric and acquisition parameters for cone-beam projection data.

Public Types
enum class	IntensityMode { Absorption , LinearAttenuation }

Public Member Functions
	ConeBeamMetadata (const ConeBeamMetadata &other)
	ConeBeamMetadata (ConeBeamMetadata &&other)=default
ConeBeamMetadata &	operator= (const ConeBeamMetadata &other)
ConeBeamMetadata &	operator= (ConeBeamMetadata &&other)=default
bool	operator== (const ConeBeamMetadata &other) const
	Compares members for equality, for the geometry member only matrices for all frames are compared.
bool	usingLegacyGeometry () const
void	enableModernGeometry ()
	Enables the modern geometry representation, i.e. using SourceDataComponent and DetectorDataComponent instead of ConeBeamGeometry.
void	disableModernGeometry ()
	Disables the modern geometry representation, i.e. using ConeBeamGeometry instead of SourceDataComponent and DetectorDataComponent .
void	syncToModernGeometry ()
	Sync ConeBeamGeometry to the modern geometry representation.
ConeBeamGeometry &	geometry ()
	Access to the geometric parameters.
const ConeBeamGeometry &	geometry () const
	Read-only access to geometric parameters.
void	delayGeneratorUpdateBegin ()
	Begin delay of the geometry update by the generator.
void	delayGeneratorUpdateEnd ()
	End delay of the geometry update by the generator. If m_delayedUpdateRequired is true, an update will be triggered.
void	setI0 (double i0)
	Deprecated functions.
double	i0 () const
Public Member Functions inherited from ImFusion::DataComponent< ConeBeamMetadata >
std::unique_ptr< DataComponentBase >	clone () const override
	Creates a clone of this data component.
std::unique_ptr< Subclass >	cloneDerived () const
bool	assign (const DataComponentBase &other) override
	Assigns the content of other to this data component.
bool	equals (const DataComponentBase &other) const override
	Compares this data component to other for equality.
Public Member Functions inherited from ImFusion::Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept
Public Member Functions inherited from ImFusion::DataComponentWithParentInterface
	DataComponentWithParentInterface (const DataComponentWithParentInterface &)
	DataComponentWithParentInterface (const DataComponentWithParentInterface &&)
DataComponentWithParentInterface &	operator= (const DataComponentWithParentInterface &)
DataComponentWithParentInterface &	operator= (const DataComponentWithParentInterface &&)
Public Member Functions inherited from ImFusion::SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Static Public Member Functions
static const ConeBeamMetadata &	get (const SharedImageSet &sis)
	Shortcut to get ConeBeamMetadata from a SharedImageSet.
static ConeBeamMetadata &	get (SharedImageSet &sis)
	Shortcut to get ConeBeamMetadata from a SharedImageSet.

Public Attributes
Parameter< double >	p_reconSize = {"reconSize", 0.0, this}
	Suggested reconstruction size in mm.
Parameter< IntensityMode >	p_intensityMode = {"intensityMode", IntensityMode::LinearAttenuation, this}
	Intensity mode of the images.
Public Attributes inherited from ImFusion::Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Geometry generators
Parameter< std::optional< std::string > >	p_selectedGenerator = {"selectedGenerator", std::nullopt, this}
	Index of the selected generator.
Parameter< bool >	p_generatorUsesSelection = {"generatorUsesSelection", true, this}
	Index of the selected generator.
std::size_t	numGenerators () const
const SubProperty< std::unique_ptr< GeometryGenerator > > *	p_generator (const std::string &key) const
SubProperty< std::unique_ptr< GeometryGenerator > > *	p_generator (const std::string &key)
std::string	addGenerator (std::unique_ptr< GeometryGenerator > generator, bool select)
std::string	addGenerator (std::unique_ptr< GeometryGenerator > generator, bool select, bool storeCurrentGeometryInHistory)
void	removeGenerator (const std::string &key)
const SubProperty< std::unique_ptr< GeometryGenerator > > *	selectedGenerator () const
SubProperty< std::unique_ptr< GeometryGenerator > > *	selectedGenerator ()
void	clearGenerators ()

Legacy parameters
Parameter< double >	p_globalScaling = {"globalScaling", 1.0, this}
	Legacy parameter for the scaling of the reconstruction.
Parameter< double >	p_i0 = {"i0", 0.0, this}
	Legacy parameter for the intensity mode.
Parameter< std::string >	p_folder = {"folder", "", this}
	Legacy parameter storing the folder from which the data got loaded.

DataComponent interface
std::string	id () const override
	Returns a unique string identifier for this type of data component.
void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.
void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.
void	setParentData (const Data *data) override

Additional Inherited Members
Protected Member Functions inherited from ImFusion::DataComponentBase
	DataComponentBase (const DataComponentBase &)=default
DataComponentBase &	operator= (const DataComponentBase &other)=default
Protected Member Functions inherited from ImFusion::SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.
Protected Attributes inherited from ImFusion::Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.
Protected Attributes inherited from ImFusion::DataComponentWithParentInterface
const Data *	m_parentData = nullptr

Member Enumeration Documentation

◆ IntensityMode

enum class ImFusion::CT::ConeBeamMetadata::IntensityMode

strong

Enumerator
Absorption	Absorption mode, i.e. air is bright.
LinearAttenuation	Linear attenuation mode, i.e. air is dark.

Member Function Documentation

◆ get() [1/2]

const ConeBeamMetadata & ImFusion::CT::ConeBeamMetadata::get ( const SharedImageSet & sis )

static

Shortcut to get ConeBeamMetadata from a SharedImageSet.

This method requires that the DataComponent exists in sis.components(). If this is not certain use Utils::isConeBeamData() to check first.

◆ get() [2/2]

ConeBeamMetadata & ImFusion::CT::ConeBeamMetadata::get ( SharedImageSet & sis )

static

Shortcut to get ConeBeamMetadata from a SharedImageSet.

This method requires that the DataComponent exists in sis.components(). If this is not certain use Utils::isConeBeamData() to check first.

◆ id()

std::string ImFusion::CT::ConeBeamMetadata::id ( ) const

overridevirtual

Returns a unique string identifier for this type of data component.

Note: To avoid conflicts make sure to include potential plugin names into this ID. Due to the modular architecture of the ImFusion library, uniqueness of IDs cannot be checked at compile time. However, DataComponentFactory will check the uniqueness of the ID during registration.

Implements ImFusion::DataComponentBase.

◆ configure()

void ImFusion::CT::ConeBeamMetadata::configure ( const Properties * p )

overridevirtual

Configure this object instance by de-serializing the given Properties.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configuration() for the inverse functionality

Reimplemented from ImFusion::Configurable.

◆ configuration()

void ImFusion::CT::ConeBeamMetadata::configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configure() for the inverse functionality

Reimplemented from ImFusion::Configurable.

◆ setParentData()

void ImFusion::CT::ConeBeamMetadata::setParentData ( const Data * data )

overridevirtual

Implements ImFusion::DataComponentWithParentInterface.

◆ usingLegacyGeometry()

bool ImFusion::CT::ConeBeamMetadata::usingLegacyGeometry ( ) const

inline

Returns: true if the geometry is represented by ConeBeamGeometry, false if it is represented by SourceDataComponent and DetectorDataComponent.

◆ addGenerator() [1/2]

std::string ImFusion::CT::ConeBeamMetadata::addGenerator	(	std::unique_ptr< GeometryGenerator >	generator,
		bool	select )

Returns: The key of the added generator

◆ addGenerator() [2/2]

std::string ImFusion::CT::ConeBeamMetadata::addGenerator	(	std::unique_ptr< GeometryGenerator >	generator,
		bool	select,
		bool	storeCurrentGeometryInHistory )

Returns: The key of the added generator

◆ setI0()

void ImFusion::CT::ConeBeamMetadata::setI0 ( double i0 )

inline

Deprecated functions.

Deprecated

◆ i0()

double ImFusion::CT::ConeBeamMetadata::i0 ( ) const

inline

Deprecated

The documentation for this class was generated from the following file:

ImFusion/CT/ConeBeamMetadata.h
