ConeBeamSimulation Class Reference

#include <ImFusion/CT/ConeBeamSimulation.h>

Algorithm for simulating cone-beam X-ray projections from CT volumes. More...

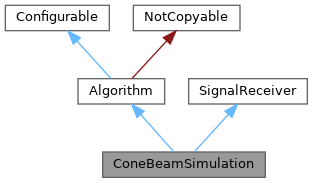

Inheritance diagram for ConeBeamSimulation:

Detailed Description

Algorithm for simulating cone-beam X-ray projections from CT volumes.

Generates synthetic projection data using forward projection with configurable geometry.

Public Types
enum class	GeometryPreset {   None = -1 , HalfScan = 0 , FullScan = 1 , ShortScan = 2 ,   SingleXRayShot = 3 , BiplanarShot = 4 , EOSScanner = 5 , CArmScanner = 6 ,   CardiovascularCArmScanner = 7 , SpecialGeometryPreset = 8 }
	Geometry presets to be simulated. More...
enum class	MotionPreset {   None = -1 , NoMotion = 0 , FollowingDetector = 1 , NodAfter25 = 2 ,   NodAfter50 = 3 , NodAfter75 = 4 , DeviceJitter = 5 , Ramp = 6 ,   IsoJitter = 7 }
	Motion presets to be simulated. More...
enum class	Projection { PhotonCount = 0 , LogConvertedAttenuation = 1 }
	Projection types to be simulated. More...
Public Types inherited from Algorithm
enum	Status {   Unknown = -1 , Success = 0 , Error = 1 , InvalidInput ,   IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU ,   UnknownAction , AbortedByUser , User = 1000 }
	Status codes. More...

Public Member Functions
	ConeBeamSimulation (SharedImage &volume, SharedImageSet *proj=0)
	Constructor with reference to volume data and optional projection data pointer.
	~ConeBeamSimulation () override
	Destructor.
void	setMotion (int par, vec3i pos, vec3 amp, vec3 ofs, bool jitterMode)
	Set motion parameters.
const Properties *	motion () const
	Return configured motion parameters, if available.
const SharedImageSet *	referenceProj () const
	Return pointer to the projections used as reference.
SharedImage &	volume ()
	Return input volume.
void	clearReferenceProj ()
	Clear the reference projection data.
void	updateProjections (Progress *p=nullptr)
	Called by compute() and triggered by signals if p_continuousUpdates is true.
Public Member Functions inherited from Algorithm
	Algorithm ()
	Default constructor will registers a single "compute" action that calls compute() and returns status().
virtual void	setProgress (Progress *progress)
	Sets a Progress interface the algorithm can use to notify observers about its computing progress.
Progress *	progress () const
	Returns the progress interface if set.
virtual int	status () const
	Indicates the status of the last call to compute().
virtual bool	survivesDataDeletion (const Data *) const
	Indicates whether the algorithm can handle (partial) deletion of the specified data, by default this checks whether the data is in the input list.
const FactoryInfo &	factoryInfo () const
	Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory.
void	setFactoryInfo (const FactoryInfo &value)
	Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory.
Status	runAction (const std::string &id)
	Run the action with name id if it exists.
const std::vector< Action > &	actions ()
	Get a mapping from Action id to Action as registered in this algorithm.
Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept
Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Public Attributes
Parameter< GeometryPreset >	p_geometryPreset = {"geometryPreset", GeometryPreset::HalfScan, this}
	Geometry preset of the projections to be simulated.
Parameter< MotionPreset >	p_motionPreset = {"motionPreset", MotionPreset::NoMotion, this}
	Motion preset of the projections to be simulated.
Parameter< Projection >	p_projType = {"projType", Projection::PhotonCount, this}
	Projection type of the projections to be simulated, either log-converted attenuation or photon count projection.
Parameter< int >	p_width = {"width", 0, this}
	Width of the projections to be simulated.
Parameter< int >	p_height = {"height", 0, this}
	Height of the projections to be simulated.
Parameter< int >	p_frames = {"frames", 0, this}
	Number of frames to be simulated.
Parameter< PixelType >	p_dataType = {"dataType", PixelType::Float, this}
	Image data type to use for simulated images.
Parameter< bool >	p_subtract = {"subtract", false, this}
	Subtract reference data from simulation.
Parameter< double >	p_scaling = {"scaling", 1.0, this}
	Global intensity scaling factor.
Parameter< double >	p_i0 = {"i0", 1.0, this}
	Maximum X-Ray intensity, i.e. air intensity value, or 0 for attenuation data (as GL texture value)
Parameter< bool >	p_addPoissonNoise = {"addPoissonNoise", false, this}
	Add Poisson noise if photon count projections are simulated (i.e. if p_i0 != 0).
Parameter< bool >	p_physicalUnits = {"physicalUnits", false, this}
	Whether the input volume should be interpreted as a density map in kg/m^3.
Parameter< bool >	p_streamProj = {"streamProj", false, this}
	If enabled the simulated frames will always be synced to the CPU after simulation.
Parameter< double >	p_duration = {"duration", 1.0, this}
	Duration of the motion in seconds. This will set the timestamps of the SharedImageSet accordingly.
Parameter< std::optional< Random::Generator::Seed > >	p_randomSeed = {"randomSeed", std::nullopt, this}
	Random seed to be used for the random jitter motion.
Parameter< bool >	p_continuousUpdates = {"continuousUpdates", false, this}
	If set, the last projections created by compute() are updated continuously when the volume/geometry changes.
Public Attributes inherited from Algorithm
Signal	signalOutputChanged
	Signal should be emitted by Algorithms when their output/result has changed.
Signal	signalParametersChanged
	Signal should be emitted by Algorithms when their parameter configuration has changed.
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Protected Attributes
SharedImage &	m_volume
	Input volume to simulate from.
SharedImageSet *	m_cbRef = nullptr
	Reference cone-beam data, not owned.
std::unique_ptr< SharedImageSet >	m_cbOutOwned
	Output cone-beam data, owned.
SharedImageSet *	m_cbOut = nullptr
	Output cone-beam data.
ConeBeamGeometry	m_geom
	Cone-beam geometry information.
std::unique_ptr< Properties >	m_motion
	Motion configuration.
mat4	m_initIsoMatrix
	Initial iso-matrix of the cone beam geometry.
std::unique_ptr< GlFilterSet >	m_filter
	FilterSet instance for simulation of Poisson noise.
Protected Attributes inherited from Algorithm
std::string	m_name
	Algorithm name.
Progress *	m_progress = nullptr
	Non-owing pointer to a progress interface. May be a nullptr.
FactoryInfo	m_factoryInfo = {}
	Record describing how this algorithm was instantiated by the AlgorithmFactory.
int	m_status = Status::Unknown
	Algorithm status after last call to compute()
std::vector< Action >	m_actions
	Map of key given by the id of the action, of the available actions of this algorithm.
Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.
ConeBeamGeometry &	geometry ()
	Access the geometry instance for updating it.

Algorithm interface methods
void	compute () override
	Compute the simulation.
OwningDataList	takeOutput () override
	Output the simulated data.
void	configure (const Properties *p) override
	Configure algorithm from properties.
void	configuration (Properties *p) const override
	Store current algorithm configuration.
static bool	createCompatible (const DataList &data, Algorithm **a=nullptr)

Additional Inherited Members
Static Public Member Functions inherited from Algorithm
static bool	createCompatible (const DataList &data, Algorithm **a=nullptr)
	Factory function to check algorithm compatibility with input data and optionally instantiate it.
Protected Member Functions inherited from Algorithm
void	loadDefaults ()
void	registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action)
	Register an action to be run via runAction.
template<typename D>
void	registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void))
	Template version of runAction that can be used with a pointer to a member function.
void	registerAction (const Action &action)
	Register an action.
Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Member Enumeration Documentation

GeometryPreset

enum class GeometryPreset

strong

Geometry presets to be simulated.

Enumerator
None	None.
HalfScan	Half-rotation scan mode.
FullScan	Full-rotation scan mode.
ShortScan	Short scan mode.
SingleXRayShot	Single X-ray shot (AP shot at 180 degrees)
BiplanarShot	Biplanar shot (AP shot at 180 degrees, LAT shot at 270 degrees)
EOSScanner	EOS scanner.
CArmScanner	C-Arm scanner.
CardiovascularCArmScanner	Cardiovascular C-Arm canner.
SpecialGeometryPreset	See the source file for more details.

MotionPreset

enum class MotionPreset

strong

Motion presets to be simulated.

Enumerator
None	None.
NoMotion	No motion.
FollowingDetector	Following detector motion.
NodAfter25	Nod motion after 25%.
NodAfter50	Nod motion after 50%.
NodAfter75	Nod motion after 75%.
DeviceJitter	Device jitter motion.
Ramp	Ramp motion.
IsoJitter	Iso-jitter motion.

Projection

enum class Projection

strong

Projection types to be simulated.

Enumerator
PhotonCount	Photon count projection.
LogConvertedAttenuation	Log-converted attenuation projection.

Member Function Documentation

setMotion()

void setMotion	(	int	par,
		vec3i	pos,
		vec3	amp,
		vec3	ofs,
		bool	jitterMode )

Set motion parameters.

Parameters

par	0 if motion shall be disabled, 1-3 for translation, 4-6 for rotation parameter
pos	frame number at start, turning point and end of motion
amp	amplitude of motion at start, turning point and end of motion (in mm or degrees)
ofs	rotation offset in case of a rotation parameter
jitterMode	jitter motion if true, otherwise ramp motion

createCompatible()

static bool createCompatible ( const DataList & data, Algorithm ** a = nullptr )

static

Create cone-beam simulation algorithm instance

compute()

void compute ( )

overridevirtual

Compute the simulation.

Implements Algorithm.

takeOutput()

OwningDataList takeOutput ( )

overridevirtual

Output the simulated data.

Reimplemented from Algorithm.

configure()

void configure ( const Properties * p )

overridevirtual

Configure algorithm from properties.

Reimplemented from Configurable.

configuration()

void configuration ( Properties * p ) const

overridevirtual

Store current algorithm configuration.

Reimplemented from Configurable.

Member Data Documentation

p_continuousUpdates

Parameter<bool> p_continuousUpdates = {"continuousUpdates", false, this}

If set, the last projections created by compute() are updated continuously when the volume/geometry changes.

This is achieved by listening to the signalChanged signal on the volume, or is triggered by the controller using the updateProjections() function

---

The documentation for this class was generated from the following file:

• ImFusion/CT/ConeBeamSimulation.h
