InteractiveFanAnnotation Class Reference

#include <ImFusion/US/InteractiveFanAnnotation.h>

An interactive fan annotation that manages an internal FrameGeometry. More...

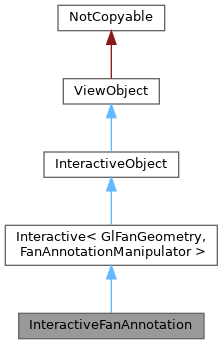

Inheritance diagram for InteractiveFanAnnotation:

Detailed Description

An interactive fan annotation that manages an internal FrameGeometry.

The following example creates an interactive fan annotation that can be dragged or modified from an existing ultrasound sweep, and adds it to a 2D view that will display it.

UltrasoundSweep us;
auto glFanGeom = std::make_unique<GlFanGeometry>(us);

auto interactiveFanAnnotation = std::make_unique<InteractiveFanAnnotation>(glFanGeom.release());
ImageView2D view2d(true, Slice::AnatomicalPlane::Axial);
view2d()->addObject(interactiveFanAnnotation.get());

Public Member Functions
	InteractiveFanAnnotation (GlFanGeometry *fan)
	Constructor from a GlFanGeometry. Takes ownership.
FanAnnotationManipulator *	fanManipulator ()
	Returns the internal manipulator.
Public Member Functions inherited from Interactive< GlFanGeometry, FanAnnotationManipulator >
	Interactive (GlFanGeometry *object, FanAnnotationManipulator *manipulator=nullptr, bool own=true)
	Instantiate a new InteractiveOverlay optionally taking ownership of the underlying GlObject and Manipulator.
const GlFanGeometry *	gl () const
	Get a typed pointer to the underlying annotation.
GlFanGeometry *	gl ()
	Get a typed pointer to the underlying annotation.
const FanAnnotationManipulator *	manipulator () const
	Get the underlying manipulator.
FanAnnotationManipulator *	manipulator ()
	Get the underlying manipulator.
Public Member Functions inherited from InteractiveObject
	InteractiveObject (GlObject *object, Manipulator *manipulator=nullptr, bool own=true)
	Instantiate a new InteractiveOverlay, optionally taking ownership of the underlying GlObject and Manipulator.
template<typename T>
const T *	gl () const
	Get a typed pointer to the underlying GlObject.
template<typename T>
T *	gl ()
	Get a typed pointer to the underlying GlObject.
const GlObject *	gl () const
	Get the underlying abstract GlObject.
GlObject *	gl ()
	Get the underlying abstract GlObject.
const Manipulator *	manipulator () const
	Get the underlying manipulator.
Manipulator *	manipulator ()
	Get the underlying manipulator.
virtual bool	sceneEvent (QEvent *event, InteractiveView *view)
	Called by the hosting InteractiveView to notify on user input events.
virtual void	goTo (DisplayWidgetMulti *display, Data *data=nullptr, int frame=-1) const
	Center the views contained in the passed display widget which show data on the object.
GUI::EventResult	handleInputEvent (const GUI::InputEvent &event, const GUI::View &view) override
	Gets called by the parent view in order to handle user input events.
Public Member Functions inherited from ViewObject
	ViewObject (std::unique_ptr< GlObject > glObject)
	Instantiate a new ViewObject taking ownership of the underlying GlObject which must not be null.
const GlObject &	glObject () const
	Get the underlying abstract GlObject.
GlObject &	glObject ()
const GlObject *	gl () const
	Original API methods for the underlying abstract GlObject.
GlObject *	gl ()

Additional Inherited Members
Public Attributes inherited from InteractiveObject
Signal< const InteractiveObject * >	signalDeleted
	Signal emitted when this instance is deleted.
Protected Attributes inherited from InteractiveObject
GlObject *	m_object
Manipulator *	m_manipulator = nullptr
bool	m_own = true
Protected Attributes inherited from ViewObject
std::unique_ptr< GlObject >	m_glObject

---

The documentation for this class was generated from the following file:

• ImFusion/US/InteractiveFanAnnotation.h
