#include <ImFusion/Stream/StreamRecorderAlgorithm.h>

Records multiple ImageStream and TrackingStream instances and optionally merges their results into one or more TrackedSharedImageSet objects. More...

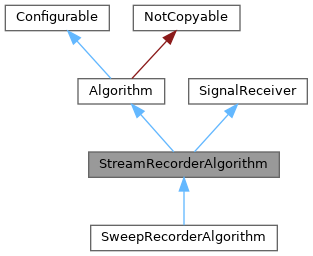

Inheritance diagram for StreamRecorderAlgorithm:

Detailed Description

Records multiple ImageStream and TrackingStream instances and optionally merges their results into one or more TrackedSharedImageSet objects.

There are three modes for the recorded data to be saved to disk:

Data is not saved to disk with setSaveToFile(false)
Data is saved to an .imf-file after recording with setSaveToFile(true) and setLiveStreamRecording(false)
Raw image frames are saved continuously during recording and other data (meta data, tracking data) to an .imf-file after recording with setSaveToFile(true) and setLiveStreamRecording(true)

Modes 2 and 3 support both synchronous/blocking (takeOutput) and asynchronous/non-blocking (takeOutputAsync) saving of recorded data to disk once recording has finished.

In live saving mode (3), you can limit memory use by retaining only the last N frames in memory via setSaveStreamingFramesKeptInMemory(N).

Warning: If frames are removed from memory, the SharedImageSet or TrackedSharedImageSet returned by takeOutput or takeOutputAsync will not contain the actual image data for those frames as their content was replaced with a placeholder.

Example usage:

// Example recordings of image and tracking stream
//
FakeImageStream imageStream;
imageStream.start();
FakeTrackingStream trackingStream;
trackingStream.start();

StreamRecorderAlgorithm recorderAlgorithm{std::vector<Stream*>{&imageStream, &trackingStream}};
recorderAlgorithm.setDataCombinationMode(StreamRecorderAlgorithm::DataCombinationMode::Individual);

// Record for 5 seconds
recorderAlgorithm.start();
std::this_thread::sleep_for(std::chrono::seconds(5));
recorderAlgorithm.stop();

// Take output
auto recordings = recorderAlgorithm.takeOutput();
auto images = recordings.extractFirst<SharedImageSet>();
auto trackingSequence = recordings.extractFirst<TrackingSequence>();

// Change input (two images and two tracking instruments) and combination mode
imageStream.setNumImages(2);
trackingStream.addDevice(std::make_unique<FakeTrackingStream::SweepDevice>());
recorderAlgorithm.setDataCombinationMode(StreamRecorderAlgorithm::DataCombinationMode::OneOnOne);

// Record for 5 seconds
recorderAlgorithm.start();
std::this_thread::sleep_for(std::chrono::seconds(5));
recorderAlgorithm.stop();

// Take output
recordings = recorderAlgorithm.takeOutput();
auto twotrackedSharedImageSets = recordings.extractAll<TrackedSharedImageSet>();

Classes
struct	OwningDataListAsync
	Helper class for managing recorded data together with a future to ensure that background saving tasks are complete before the data is deleted. More...

Public Types
enum class	DataCombinationMode { Individual = 0 , All = 1 , FirstTracking = 2 , OneOnOne = 3 }
	Specifies how image and tracking data should be combined when both types are recorded. More...

Public Types inherited from Algorithm
enum	Status { Unknown = -1 , Success = 0 , Error = 1 , InvalidInput , IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU , UnknownAction , AbortedByUser , User = 1000 }
	Status codes. More...

Public Member Functions
	StreamRecorderAlgorithm (std::vector< Stream * > inputStreams)
	Constructs the recorder for multiple Stream objects.

void	compute () override
	Performs basic consistency checks, method itself is not involved in recording.

OwningDataList	takeOutput () override
	Returns all recorded data based on the configured combination mode.

OwningDataListAsync	takeOutputAsync ()
	Returns recorded data along with a future for any pending background save tasks.

virtual void	start ()
	Initializes individual StreamRecorder instances for each input stream and starts recording.

virtual void	stop ()
	Stops all StreamRecorders and combines recorded output based on the selected combination mode.

void	restart ()
	Restarts recording without clearing internal data.

bool	isRestarting () const
	Returns true if the algorithm is currently restarting.

bool	isRecording () const
	Returns true if any StreamRecorder is recording.

void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.

void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.

int	recordedFrames () const
	Returns total number of recorded image frames across all ImageStreamRecorders.

int	recordedTrackingData () const
	Returns total number of recorded tracking samples across all TrackingStreamRecorders.

virtual size_t	recordedBytes ()
	Returns total memory usage for all recorded images and tracking data.

double	passedTime () const
	Returns the elapsed recording time of the current recording session, in seconds.

bool	limitReached () const
	Returns true if any recording limit (e.g. time, memory, sample count) has been reached in any of the StreamRecorders.

StreamRecorder *	recorder (int which=0) const
	Returns a specific StreamRecorder instance by index.

int	numRecorders () const
	Returns the number of StreamRecorder instances.

TrackingStreamRecorder *	trackingRecorder (int which=0) const
	Returns a TrackingStreamRecorder by index (only considers tracking recorders).

ImageStreamRecorder *	imageRecorder (int which=0) const
	Returns an ImageStreamRecorder by index (only considers image recorders).

std::vector< Stream * >	recordedStreams () const
	Returns all recorded Stream instances.

TrackingStream &	trackingStream (int which=0) const
	Returns a TrackingStream by index (only considers tracking streams).

ImageStream &	imageStream (int which=0) const
	Returns an ImageStream by index (only considers image streams).

void	setTimestampSource (bool deviceImage=false, bool deviceTracking=false)
	Configures which timestamp source to use for image and tracking streams.

bool	trackingTimeUseDevice () const
	Returns whether device timestamps are used for tracking streams.

bool	imageTimeUseDevice () const
	Returns whether device timestamps are used for image streams.

std::vector< TrackingInstrument >	allTrackingDevices ()
	Returns a copy of all tracking instruments.

std::vector< TrackingInstrument >	allTrackingInstruments () const
	Returns all TrackingInstruments from all recorded TrackingStreams.

void	setSaveToFile (bool save)
	Enables automatic saving of recorded data to `m_savePath` after recording ends.

bool	saveToFile () const
	Returns true if automatic saving to `m_savePath` is enabled.

bool	isDataBeingSaved (const Data *data) const
	Returns true if the given data is currently being saved to disk.

void	setSaveAsDicom (bool flag)
	Enables saving of recorded data as DICOM. Disabled by default; ImFusion format is used otherwise.

bool	saveAsDicom () const
	Returns whether recorded data will be saved in DICOM format.

void	setSavePath (std::string savePath)
	Sets the base directory for saving recorded data. Data is saved to subfolders within this path.

std::string	savePath () const
	Returns the base save directory.

void	setPatientName (std::string patientName)
	Sets the patient name for data saving. Used in subfolder and filename generation.

std::string	patientName () const
	Returns the configured patient name.

void	setPatientNameSuffix (std::string suffix)
	Sets a suffix for the patient name (e.g., name-X-suffix).

std::string	patientNameSuffix () const
	Returns the patient name suffix.

void	setNumberOfDataToKeep (int n)
	Sets how many recent recordings to keep in the data widget. Use 0 to keep all.

int	numberOfDataToKeep () const
	Returns the number of recordings retained in the data widget. 0 means all are kept.

void	setCompression (bool compress)
	Deprecated: Enables compression before saving. Default is off.

void	setCompressSave (bool save)
	Enables compression for saved data. Ignored if saveStreamingFramesKeptInMemory is not Zero.

bool	compressSave () const
	Returns whether compression is enabled for saved data. Ignored if saveStreamingFramesKeptInMemory is not Zero.

DataCombinationMode	dataCombinationMode () const
	Returns the current data combination mode.

void	setDataCombinationMode (DataCombinationMode m)
	Sets how recorded data should be combined. See DataCombinationMode for available modes.

void	setLimits (double timeLimitInSeconds, double systemMemLimit, int imageSamplesLimit, int trackingSamplesLimit, size_t recordedBytesLimit)
	Sets recording constraints. Use zero to disable any given limit.

double	timeLimit () const
	Returns the time limit for recording in seconds. Zero indicates no limit.

double	systemMemLimit () const
	Returns the allowed ratio of RAM usage during recording (between 0 and 1). Zero indicates no limit.

int	imageSamplesLimit () const
	Returns the maximum number of image samples to record per ImageStreamRecorder. Zero disables the limit.

int	trackingSamplesLimit () const
	Returns the maximum number of tracking samples to record per TrackingStreamRecorder. Zero disables the limit.

size_t	recordedBytesLimit () const
	Returns the maximum number of bytes allowed for recording per StreamRecorder. Zero disables the limit.

void	setTrackingQualityThreshold (double t)
	Sets a quality threshold for tracking samples. Values below this threshold or NaN are excluded.

double	trackingQualityThreshold () const
	Returns the configured tracking quality threshold.

void	setStopOnImageSizeChanged (bool flag)
	Enables or disables stopping when the image size changes.

bool	isStopOnImageSizeChanged () const
	Returns true if recording stops when the image size changes.

void	setStopOnDeviceListChanged (bool flag)
	Specify whether to stop when the device list of a tracking stream changes.

bool	isStopOnDeviceListChanged () const
	Returns if the recording stops when the device list of a tracking stream changes.

void	setStopOnInstrumentsChanged (bool flag)
	Sets whether recording stops when currently recorded instrument is removed in a TrackingStream.

bool	stopOnInsturmentsChanged () const
	Returns true if recording stops when an instruments is removed in a TrackingStream.

void	setRecordBothTimestamps (bool x)
	Sets whether both arrival and device timestamps are recorded.

bool	recordBothTimestamps () const
	Returns true if both timestamps are recorded.

void	setCaptureMode (StreamRecorder::CaptureMode captureMode)
	Sets the capture mode.

StreamRecorder::CaptureMode	captureMode () const
	Returns the current capture mode.

void	setCaptureNextSample ()
	Enables capturing the next sample.

void	setLiveStreamRecording (bool x)
	Enables saving images during live recording. Requires `saveToFile` to be true.

bool	liveStreamRecording () const
	Returns true if images are saved during live recording.

void	setSaveStreamingFramesKeptInMemory (int val)
	Specifies how many frames to retain in memory during recording. Use -1 for no limit.

int	saveStreamingFramesKeptInMemory () const
	Returns the number of frames retained in memory. -1 means unlimited.

void	setSaveRecordingsAsync (bool flag)
	Enables asynchronous saving after recording ends.

bool	saveRecordingsAsync () const
	Returns true if asynchronous saving is enabled.

void	setAutomaticLimitRestart (bool flag)
	Enables automatic restart of the recording into new containers if recording stops due to a limit being exceeded.

bool	automaticLimitRestart () const
	Returns true if automatic restart is enabled after a limit being exceeded.

void	setAutomaticImageChangeRestart (bool flag)
	Enables automatic restart of the recording into new containers when images in ImageStream change (e.g., size, type, channels, number of images).

bool	automaticImageChangeRestart () const
	Returns true if restart on image stream changes is enabled.

Public Member Functions inherited from Algorithm
	Algorithm ()
	Default constructor will registers a single "compute" action that calls compute() and returns status().

virtual void	setProgress (Progress *progress)
	Sets a Progress interface the algorithm can use to notify observers about its computing progress.

Progress *	progress () const
	Returns the progress interface if set.

virtual int	status () const
	Indicates the status of the last call to compute().

virtual bool	survivesDataDeletion (const Data *) const
	Indicates whether the algorithm can handle (partial) deletion of the specified data, by default this checks whether the data is in the input list.

const FactoryInfo &	factoryInfo () const
	Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory.

void	setFactoryInfo (const FactoryInfo &value)
	Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory.

Status	runAction (const std::string &id)
	Run the action with name `id` if it exists.

const std::vector< Action > &	actions ()
	Get a mapping from Action id to Action as registered in this algorithm.

Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.

	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.

SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.

virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Static Public Member Functions
static bool	createCompatible (const DataList &data, Algorithm **a=nullptr)

Static Public Member Functions inherited from Algorithm
static bool	createCompatible (const DataList &data, Algorithm **a=nullptr)
	Factory function to check algorithm compatibility with input data and optionally instantiate it.

Protected Member Functions
std::unique_ptr< StreamRecorder >	createRecorderForStream (Stream *stream)
	Creates a suitable recorder for the given stream and attaches listeners for byte count and limit events.

void	addEventListenersToRecorder (StreamRecorder *rec)
	Connects signals from created StreamRecorder instances so that statistics are reflected in the UI.

virtual OwningDataList	outputInternal (std::function< std::unique_ptr< TrackedSharedImageSet >()> containerFactory)
	Combines recorded data based on the configured combination mode using a container factory.

void	saveRecordedData (const OwningDataList &odl)
	Saves recorded data. Uses blocking or asynchronous saving depending on `m_saveRecordingsAsync`.

virtual std::future< void >	saveRecordedDataAsync (const DataList &dataList, const std::vector< std::string > &paths)
	Asynchronously saves data. Override in derived classes for custom saving behavior.

virtual void	saveRecordedDataBlocking (const DataList &dataList, const std::vector< std::string > &paths)
	Synchronously saves data. Override in derived classes for custom saving behavior.

virtual void	extractRecordedData ()
	Collects recorded data from internal recorders and stores it in `m_lastRecordedData`.

Protected Member Functions inherited from Algorithm
void	loadDefaults ()

void	registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action)
	Register an action to be run via runAction.

template<typename D>
void	registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void))
	Template version of runAction that can be used with a pointer to a member function.

void	registerAction (const Action &action)
	Register an action.

Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Protected Attributes
std::vector< Stream * >	m_inputStreams
	Input streams (mapped 1:1 to m_streamRecorders)

std::vector< std::unique_ptr< StreamRecorder > >	m_streamRecorders
	Recorders for input streams.

std::recursive_mutex	m_mutexRecorders
	Mutex to protect recorder manipulation.

std::mutex	m_mutexCtrlUpdate
	Mutex to protect signal emission to controllers.

DataCombinationMode	m_combinationMode = DataCombinationMode::Individual
	How recorded data is combined.

std::string	m_savePath
	Directory for saving recorded data.

std::string	m_patientName = "Patient-01"
	Subfolder and filename for saved data.

std::string	m_patientNameSuffix = ""
	Optional suffix added to filenames.

bool	m_saveToFile = true
	If true, saved automatically to file in background thread.

bool	m_saveAsDicom = false
	If true, data saved in DICOM format; otherwise in ImFusion format.

int	m_numberOfDataToKeep = 1
	Number of recent recordings retained in data widget (default: 1)

bool	m_compressSave = false
	If true, data compressed before saving.

bool	m_useDeviceTracking = false
	If true, use device timestamps for tracking, otherwise arrival timestamps.

bool	m_useDeviceImages = false
	If true, use device timestamps for images, otherwise arrival timestamps.

double	m_timeLimit = 0
	Time-based recording limit (seconds)

double	m_systemMemLimit = 0
	Max ratio of used physical RAM (0 = unlimited)

int	m_imageSamplesLimit = 0
	Max number of image frames to record (per recorder)

int	m_trackingSamplesLimit = 0
	Max number of tracking samples to record (per recorder)

size_t	m_recordedBytesLimit = 0
	Max number of bytes to record.

double	m_trackingQualityThreshold = 0.2
	Quality threshold for tracking samples, samples below threshold (or NaN) are not recorded.

bool	m_stopOnImageSizeChanged = true
	Stops recording when image dimensions change in the stream.

bool	m_restartRecordingOnImageDescriptorsChanged = false
	If true, restarts recording automatically when the image structure (size, number of channels, frame count) changes.

bool	m_stopOnInstrumentsChanged = true
	If true, stops recording when instruments change in a TrackingStream.

bool	m_limitRestartRecording = false
	If true, automatically restarts recording when any limit criterion is exceeded.

bool	m_recordBothTimestamps = false
	If true, saves both arrival and device timestamps in data components.

StreamRecorder::CaptureMode	m_captureMode = StreamRecorder::CaptureMode::CaptureAll
	Selected mode for sample capturing.

bool	m_saveRecordingsAsync = true
	If true, recorded data is saved asynchronously, otherwise block (both in a background thread)

bool	m_liveStreamRecording = false
	If true, enables live recording of image streams during acquisition. Requires m_saveToFile = true.

int	m_saveStreamingFramesKeptInMemory
	Number of image frames retained in memory during live recording. -1 indicates unlimited retention.

std::unique_ptr< BackgroundExporter >	m_exporter
	Exporter for the saving task after recording.

Protected Attributes inherited from Algorithm
std::string	m_name
	Algorithm name.

Progress *	m_progress = nullptr
	Non-owing pointer to a progress interface. May be a nullptr.

FactoryInfo	m_factoryInfo = {}
	Record describing how this algorithm was instantiated by the AlgorithmFactory.

int	m_status = Status::Unknown
	Algorithm status after last call to compute()

std::vector< Action >	m_actions
	Map of key given by the id of the action, of the available actions of this algorithm.

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Attributes inherited from Algorithm
Signal	signalOutputChanged
	Signal should be emitted by Algorithms when their output/result has changed.

Signal	signalParametersChanged
	Signal should be emitted by Algorithms when their parameter configuration has changed.

Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Member Enumeration Documentation

◆ DataCombinationMode

enum class DataCombinationMode

strong

Specifies how image and tracking data should be combined when both types are recorded.

Enumerator
Individual	Default: No merging. One SharedImageSet is created per image in each ImageStream, and one TrackingSequence per TrackingInstrument in each TrackingStream.
All	All recorded images are returned in the form of TrackedSharedImageSets, each containing a copy of all TrackingSequences.
FirstTracking	Each recorded SharedImageSet receives a copy of the first TrackingSequence (first instrument of the first TrackingStream) and is returned as TrackedSharedImageSet. Remaining instruemnts are recorded separately as TrackingSequences. Note Selected TrackingSequence depends on the order of TrackingStreams and instruments therein.
OneOnOne	Combines SharedImageSet and TrackingSequence pairwise into a TrackedSharedImageSets, originating from the first image from the first ImageStream and first TrackingInstrument from the first TrackingStream, the same with the second image and tracking instrument, etc. Remaining image or tracking data is recorded individually. Note Which ImageStreams images are combined with which tracking instrument depends on the order of Streams and the image/tracking instrument order therein.

Constructor & Destructor Documentation

◆ StreamRecorderAlgorithm()

StreamRecorderAlgorithm ( std::vector< Stream * > inputStreams )

Constructs the recorder for multiple Stream objects.

Only ImageStream and TrackingStream types are considered; others are ignored.

Member Function Documentation

◆ compute()

void compute ( )

overridevirtual

Performs basic consistency checks, method itself is not involved in recording.

Implements Algorithm.

◆ takeOutput()

OwningDataList takeOutput ( )

overridevirtual

Returns all recorded data based on the configured combination mode.

Blocks if data is still being saved in the background. Use takeOutputAsync() for non-blocking retrieval. Returned data is sorted by time, newest first, if recording has been performed more than once.

Reimplemented from Algorithm.

◆ takeOutputAsync()

OwningDataListAsync takeOutputAsync ( )

Returns recorded data along with a future for any pending background save tasks.

If no save tasks exist or saving is synchronous, the future will be empty. Check future.valid() and call future.wait() before deleting the data. Data is sorted by time, newest first.

◆ start()

virtual void start ( )

virtual

Initializes individual StreamRecorder instances for each input stream and starts recording.

Clears internal buffers prior to starting.

◆ stop()

virtual void stop ( )

virtual

Stops all StreamRecorders and combines recorded output based on the selected combination mode.

If setSaveToFile(true) is used, data is saved synchronously or asynchronously depending on m_saveRecordingsAsync.

◆ configure()

void configure ( const Properties * p )

overridevirtual

Configure this object instance by de-serializing the given Properties.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configuration() for the inverse functionality

Reimplemented from Configurable.

Reimplemented in SweepRecorderAlgorithm.

◆ configuration()

void configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configure() for the inverse functionality

Reimplemented from Configurable.

Reimplemented in SweepRecorderAlgorithm.

◆ trackingStream()

TrackingStream & trackingStream ( int which = 0 ) const

Returns a TrackingStream by index (only considers tracking streams).

Exceptions

std::range_error if the specified index which is negative or exceeds the number of available tracking streams.

◆ imageStream()

ImageStream & imageStream ( int which = 0 ) const

Returns an ImageStream by index (only considers image streams).

Exceptions

std::range_error if the specified index which is negative or exceeds the number of available image streams.

◆ setTimestampSource()

void setTimestampSource	(	bool	deviceImage = false,
		bool	deviceTracking = false )

Configures which timestamp source to use for image and tracking streams.

Parameters

deviceImage	Use device timestamp in ImageStreamRecorder if true, arrival time otherwise.
deviceTracking	Use device timestamp in TrackingStreamRecorder if true, arrival time otherwise.

◆ allTrackingDevices()

std::vector< TrackingInstrument > allTrackingDevices ( )

Returns a copy of all tracking instruments.

Deprecated: "Method was renamed. Use allTrackingInstruments() instead."

◆ setSaveToFile()

void setSaveToFile ( bool save )

Enables automatic saving of recorded data to m_savePath after recording ends.

Saving occurs in a background thread.

◆ setCompression()

void setCompression ( bool compress )

Deprecated: Enables compression before saving. Default is off.

Deprecated: "Use method setCompressSave() instead."

◆ setStopOnImageSizeChanged()

void setStopOnImageSizeChanged ( bool flag )

Enables or disables stopping when the image size changes.

Deprecated: "The possibility to continue recording when the image size changes will be removed in the future. An image stream with its image size changing will stop the recording automatically."

◆ isStopOnImageSizeChanged()

bool isStopOnImageSizeChanged ( ) const

Returns true if recording stops when the image size changes.

Deprecated: "The possibility to continue recording when the image size changes will be removed in the future. An image stream with its image size changing will stop the recording automatically."

◆ setStopOnDeviceListChanged()

void setStopOnDeviceListChanged ( bool flag )

Specify whether to stop when the device list of a tracking stream changes.

Deprecated: "Method was renamed. Use setStopOnInsturmentsChanged() instead."

◆ isStopOnDeviceListChanged()

bool isStopOnDeviceListChanged ( ) const

Returns if the recording stops when the device list of a tracking stream changes.

Deprecated: "Method was renamed. Use stopOnInsturmentsChanged() instead."

◆ setStopOnInstrumentsChanged()

void setStopOnInstrumentsChanged ( bool flag )

Sets whether recording stops when currently recorded instrument is removed in a TrackingStream.

If false, the resulting TrackingSequences may vary in length and recording duration.

◆ setRecordBothTimestamps()

void setRecordBothTimestamps ( bool x )

Sets whether both arrival and device timestamps are recorded.

If true, the recorded data contains elementwise TimestampDataComponents.

Note: This setting does not affect the timestamp returned by Data::timestamp, but only the value provided to setTimestampSource.

◆ setCaptureMode()

void setCaptureMode ( StreamRecorder::CaptureMode captureMode )

Sets the capture mode.

Note: Has no effect while recording is active.

◆ setCaptureNextSample()

void setCaptureNextSample ( )

Enables capturing the next sample.

Note: Only used when capture mode is set to CaptureMode::OnRequest.

◆ outputInternal()

virtual OwningDataList outputInternal ( std::function< std::unique_ptr< TrackedSharedImageSet >()> containerFactory )

protectedvirtual

Combines recorded data based on the configured combination mode using a container factory.

Parameters

containerFactory Factory function for creating TrackedSharedImageSet instances. Override output() to use this method with custom data container types (e.g., ultrasound sweeps).

Reimplemented in SweepRecorderAlgorithm.

◆ saveRecordedDataAsync()

virtual std::future< void > saveRecordedDataAsync	(	const DataList &	dataList,
		const std::vector< std::string > &	paths )

protectedvirtual

Asynchronously saves data. Override in derived classes for custom saving behavior.

Reimplemented in SweepRecorderAlgorithm.

◆ saveRecordedDataBlocking()

virtual void saveRecordedDataBlocking	(	const DataList &	dataList,
		const std::vector< std::string > &	paths )

protectedvirtual

Synchronously saves data. Override in derived classes for custom saving behavior.

Reimplemented in SweepRecorderAlgorithm.

Member Data Documentation

◆ m_stopOnImageSizeChanged

bool m_stopOnImageSizeChanged = true

protected

Stops recording when image dimensions change in the stream.

Deprecated: "Support for recording with changing image sizes will be removed in a future release. Recording will automatically stop if image size changes."

◆ m_saveStreamingFramesKeptInMemory

int m_saveStreamingFramesKeptInMemory

protected

Initial value:

=

-1

Number of image frames retained in memory during live recording. -1 indicates unlimited retention.

The documentation for this class was generated from the following file:

ImFusion/Stream/StreamRecorderAlgorithm.h

Detailed Description

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Enumeration Documentation

◆ DataCombinationMode

Constructor & Destructor Documentation

◆ StreamRecorderAlgorithm()

Member Function Documentation

◆ compute()

◆ takeOutput()

◆ takeOutputAsync()

◆ start()

◆ stop()

◆ configure()

◆ configuration()

◆ trackingStream()

◆ imageStream()

◆ setTimestampSource()

◆ allTrackingDevices()

◆ setSaveToFile()

◆ setCompression()

◆ setStopOnImageSizeChanged()

◆ isStopOnImageSizeChanged()

◆ setStopOnDeviceListChanged()

◆ isStopOnDeviceListChanged()

◆ setStopOnInstrumentsChanged()

◆ setRecordBothTimestamps()

◆ setCaptureMode()

◆ setCaptureNextSample()

◆ outputInternal()

◆ saveRecordedDataAsync()

◆ saveRecordedDataBlocking()

Member Data Documentation

◆ m_stopOnImageSizeChanged

◆ m_saveStreamingFramesKeptInMemory
