Recording

Generic Recording and Playback of Streams. More...

Collaboration diagram for Recording:

Detailed Description

Generic Recording and Playback of Streams.

The Stream API allows for the generic recording of all streamed data and playing back the exact same stream at a later occasion. This functionality is based on the DataComponent API. When you implement your own specific Stream class you can implement additional DataComponents that store stream-sepcific information. The StreamRecorder interface will take care of storing both individual components per frame as well as global components for the entire stream.

Recording

The generic stream recording is handled by the StreamRecorderAlgorithm class. During recording, the recorder will copy all DataComponents attached to a StreamData instance to the ElementwiseDataComponentList of the output Data.

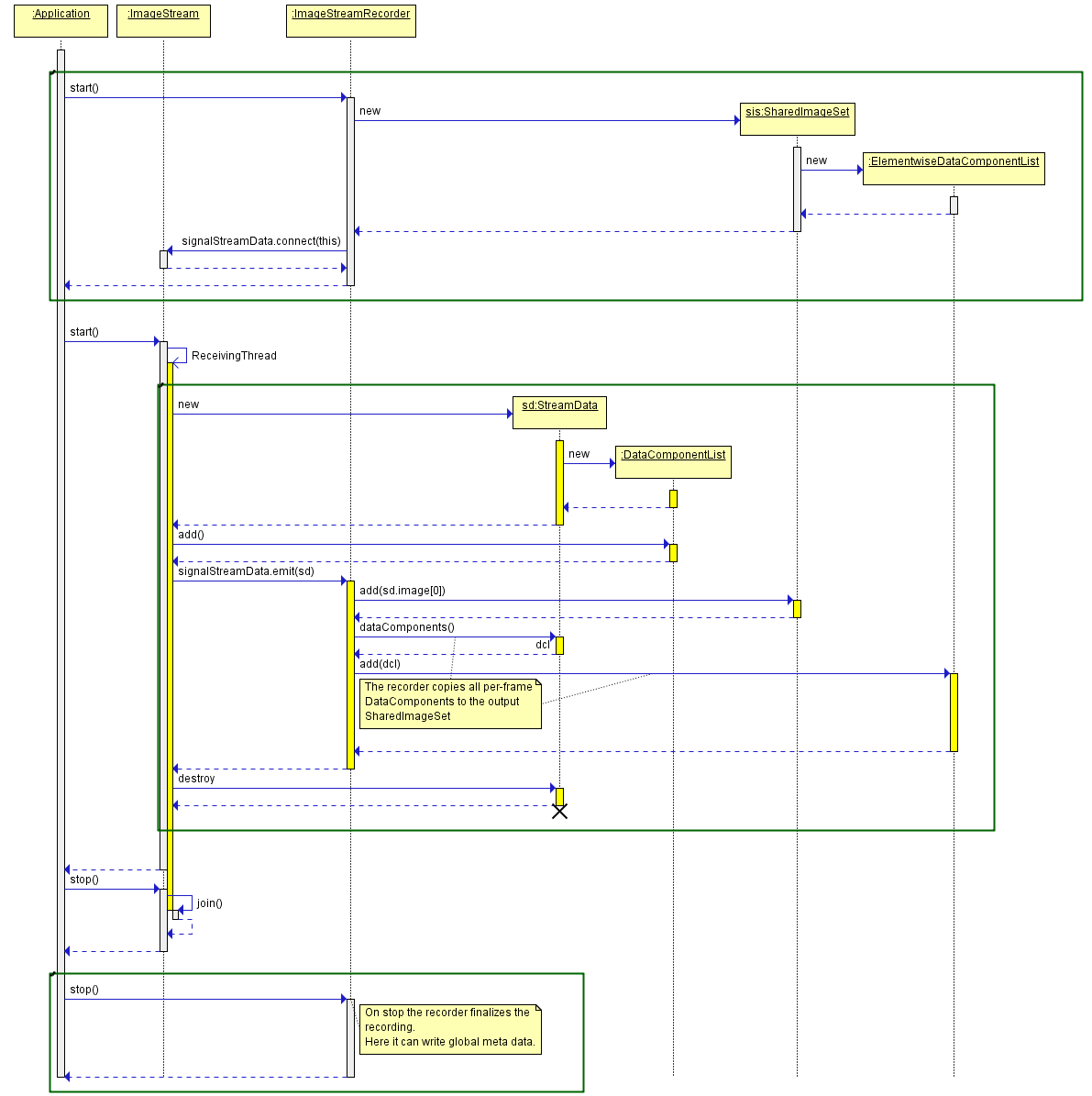

Generic Stream Recording Based on StreamRecordingDataComponents

Playback

The PlaybackAlgorithm will create a new PlaybackStream that replays the recorded data. In order to mimic the original Stream state all DataComponents for an individual frame are restored from the ElementwiseDataComponentList (including potential custom information).

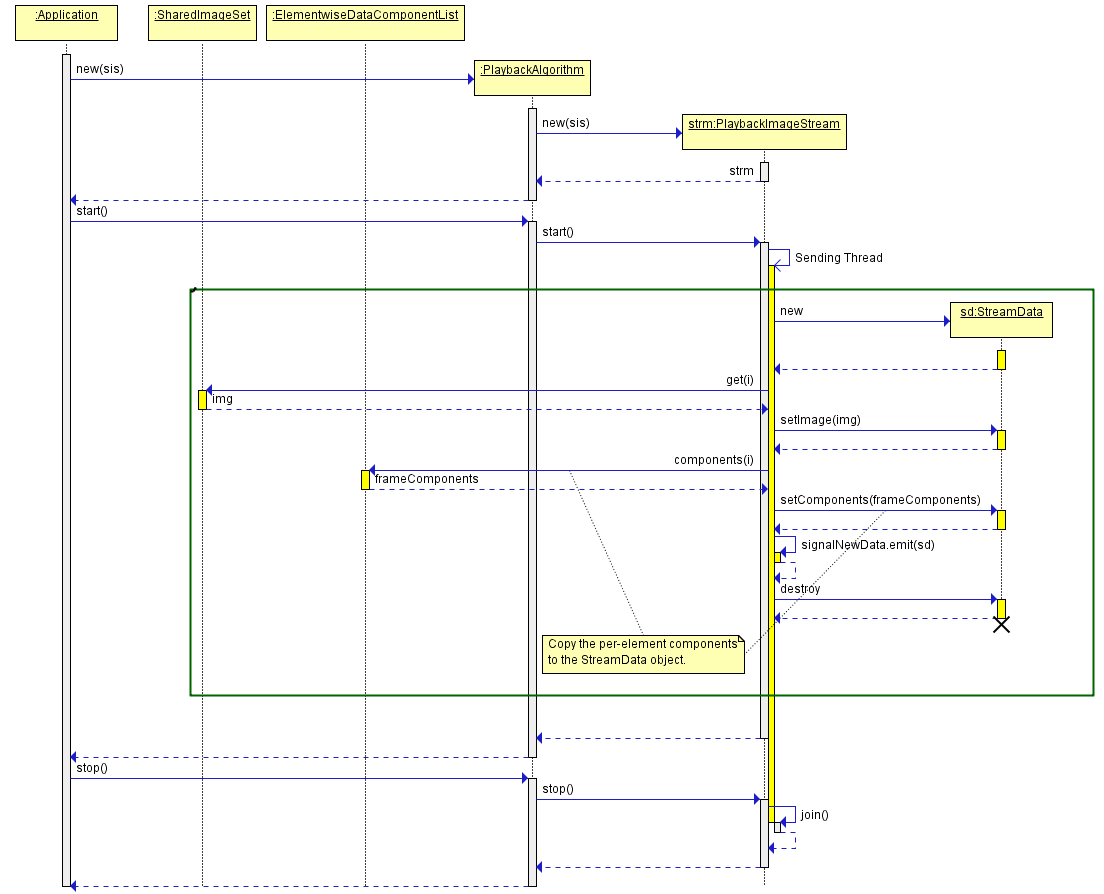

Generic Playback of a Previously Recorded Stream Based on StreamRecordingDataComponents

Classes
class	ImageStreamRecorder
	Records images from an ImageStream. More...
class	StreamRecorder
	Abstract base class for stream recorders. More...
class	StreamRecorderAlgorithm
	Records multiple ImageStream and TrackingStream instances and optionally merges their results into one or more TrackedSharedImageSet objects. More...
class	StreamRecorderController
	Controller for recording and synchronizing any combination of ImageStreams and TrackingStreams. More...
class	TrackingStreamRecorder
	Records data from a TrackingStream. More...
