#include <AnatomyPlugin/include/ImFusion/AnatomyPlugin/ASCRegistration.h>

Registration between two AnatomicalStructureCollections. More...

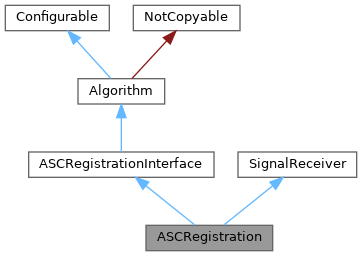

Inheritance diagram for ImFusion::ASCRegistration:

Detailed Description

Registration between two AnatomicalStructureCollections.

The registration is performed by one of several registration methods (e.g. based on stored points, meshes, images...) And is (if necessary) restricted to a registration type (global linear, linear for each AnatomicalStructure, deformable, etc...). The output of this algorithm is an ASCDeformation object, which may or may not directly be applied to the moving AnatomicalStructureCollection. Correspondences between fixed and moving should be determined using ASCDeformation::getCorrespondingStructures. In general, this algorithm will create a sequence of ASCRegistrationMethod objects that sequentially register the moving to the fixed AnatomicalStructureCollection.

Public Types
enum class	RegistrationMethod { Automatic , PointsAndPlanes , DeformableMeshRegistration , RigidImages , PointsRigidScaling , None , CustomRegistrationSequence }
enum class	RegistrationMode { MoveMoving , CreateCopy , RawResult , OnlyRegister }
using	RegistrationType = AnatomicalStructureRegistration::RegistrationType
using	RegistrationSequence = std::vector<std::unique_ptr<ASCRegistrationMethod>>
Public Types inherited from ImFusion::Algorithm
enum	Status { Unknown = -1 , Success = 0 , Error = 1 , InvalidInput , IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU , UnknownAction , AbortedByUser , User = 1000 }
	Status codes. More...

Public Member Functions
	ASCRegistration (AnatomicalStructureCollection &fixed, AnatomicalStructureCollection &moving, SharedImageSet fixedImg=nullptr, SharedImageSet movingImg=nullptr)
void	compute () override
	Resets the registration, and then runs the provided registration sequence.
void	refine ()
	Like compute, but does not call reset() first.
void	interpolate (double p, bool applyGlobal=true, AnatomicalStructureCollection *out=nullptr)
	Interpolates along the stored registration result between the fixed and moving ASCs. If out is null, uses the last stored result as output.
void	perturb (double p, bool applyGlobal=false)
	Pushes the moving image by a factor p (in [0,1], typically very small) towards the fixed image "along" the registration.
Algorithm::Status	reset ()
Algorithm::Status	mapForward (SharedImageSet &ct)
	Helper function that applies the deformation to a volume using the ApplyASCDeformation algorithm.
Algorithm::Status	mapBackward (SharedImageSet &ct)
	Helper function taht applies the inverse deformation to a volume using the ApplyASCDeformation algorithm.
OwningDataList	takeOutput () override
	Return any new Data that was created by the Algorithm during the last call to compute().
void	configureRegistrationMethodProperties (const Properties &properties)
	Configures the last element of the registration sequence.
SharedImageSet *	movingImage ()
SharedImageSet *	undeformedImage ()
DataList	movingData () override
	The "moving" data structure(s) relative to which the movingASC AnatomicalStructureCollection is defined.
DataList	fixedData () override
	The "fixed" data structure(s) relative to which the fixedASC AnatomicalStructureCollection is defined.
std::optional< ASCDeformation > &	storedResult ()
std::optional< ASCDeformation > const &	storedResult () const
AnatomicalStructureCollection &	fixed ()
AnatomicalStructureCollection &	moving ()
AnatomicalStructureCollection *	movingOnUndeformedImage ()
AnatomicalStructureCollection *	fixedASC () override
AnatomicalStructureCollection *	movingASC () override
const RegistrationSequence &	registrationMethodSequence () const
void	removeFromRegistrationSequence (int index, bool triggerSignal=true)
bool	insertIntoRegistrationSequence (int index, std::unique_ptr< ASCRegistrationMethod > method, bool triggerSignal=true)
	Insert a method into the registration sequence at the given index.
bool	appendToRegistrationSequence (std::unique_ptr< ASCRegistrationMethod > method, bool triggerSignal=true)
	Append a method to the registration sequence.
bool	insertIntoRegistrationSequence (int index, const std::string &identifier, bool triggerSignal=true)
	Convenience function for creating method based on identifier from factory For the PerAnatomyAutomatic registration method, sets this as the reg member of the method.
void	replaceRegistrationSequence (RegistrationSequence methods, bool triggerSignal=true)
void	replaceRegistrationSequence (const std::vector< std::string > &methods, bool triggerSignal=true)
	Convenience function for creating methods based on identifiers from factory For the PerAnatomyAutomatic registration method, sets this as the reg member of the method.
ASCRegistrationMethod::Factory &	registrationMethodFactory ()
const ASCRegistrationMethod::Factory &	registrationMethodFactory () const
Public Member Functions inherited from ImFusion::ASCRegistrationInterface
virtual std::unique_ptr< AnatomicalStructureCollection >	takeMovingASC ()
virtual std::unique_ptr< AnatomicalStructureCollection >	takeFixedASC ()
Public Member Functions inherited from ImFusion::Algorithm
	Algorithm ()
	Default constructor will registers a single "compute" action that calls compute() and returns status().
virtual void	setProgress (Progress *progress)
	Sets a Progress interface the algorithm can use to notify observers about its computing progress.
Progress *	progress () const
	Returns the progress interface if set.
virtual int	status () const
	Indicates the status of the last call to compute().
virtual bool	survivesDataDeletion (const Data *) const
	Indicates whether the algorithm can handle (partial) deletion of the specified data, by default this checks whether the data is in the input list.
const FactoryInfo &	factoryInfo () const
	Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory.
void	setFactoryInfo (const FactoryInfo &value)
	Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory.
Status	runAction (const std::string &id)
	Run the action with name id if it exists.
const std::vector< Action > &	actions ()
	Get a mapping from Action id to Action as registered in this algorithm.
Public Member Functions inherited from ImFusion::Configurable
virtual void	configure (const Properties *p)
	Configure this object instance by de-serializing the given Properties.
virtual void	configuration (Properties *p) const
	Serialize the current object configuration into the given Properties object.
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept
Public Member Functions inherited from ImFusion::SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Static Public Member Functions
static bool	createCompatible (DataList dl, Algorithm **alg)
Static Public Member Functions inherited from ImFusion::Algorithm
static bool	createCompatible (const DataList &data, Algorithm **a=nullptr)
	Factory function to check algorithm compatibility with input data and optionally instantiate it.

Public Attributes
Parameter< RegistrationType >	p_registrationType
	Which deformation type to output.
Parameter< RegistrationMethod >	p_registrationMethod = {"registrationMethod", RegistrationMethod::Automatic, *this}
	Which underlying registration method to use.
Parameter< RegistrationMode >	p_registrationMode = {"registrationMode", RegistrationMode::CreateCopy, *this}
	What kind of output to create (or not create).
Parameter< bool >	p_createMissingObjects = {"createMissingObjects", true, *this}
	If set to true, objects (meshes, keypoints, etc...) are created in the output based on the linear part of the deformation even if they are not present in the input.
Parameter< bool >	p_createMissingAnatomicalStructures = {"createMissingAnatomicalStructures", false, *this}
	If set to true, anatomical structures are created in the output based on the (global) linear part of the deformation.
Parameter< std::optional< std::vector< std::string > > >	p_identifiers = {"identifiers", std::nullopt, *this}
	Registration is restricted to Anatomical structures with the given identifiers if set.
Parameter< bool >	p_globalUnitScaling = {"globalUnitScaling", true, *this}
	Sets the global scaling to 1. This is useful to avoid changing the spacing when applied to a volume.
Parameter< bool >	p_rigidSegments = {"rigid", false, *this}
	If set to true, the scaling is either discarded or moved to the deformable parts of the registration.
Parameter< double >	p_deformationFieldResolution = {"deformationFieldResolution", 4.0, *this}
	If creating a deformation for a moving image, this resolution will be used for the (dense) deformation.
Signal	signalRegistrationSequenceChanged
Public Attributes inherited from ImFusion::ASCRegistrationInterface
Signal	signalMovingASCCreated
	For algorithms that additionally create an AnatomicalStructureCollection, this signal can be used to trigger actions that need to be performed once the AnatomicalStructureCollection has been created.
Signal	signalFixedASCCreated
	For algorithms that additionally create an AnatomicalStructureCollection, this signal can be used to trigger actions that need to be performed once the AnatomicalStructureCollection has been created.
Public Attributes inherited from ImFusion::Algorithm
Signal	signalOutputChanged
	Signal should be emitted by Algorithms when their output/result has changed.
Signal	signalParametersChanged
	Signal should be emitted by Algorithms when their parameter configuration has changed.
Public Attributes inherited from ImFusion::Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Additional Inherited Members
Protected Member Functions inherited from ImFusion::Algorithm
void	loadDefaults ()
void	registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action)
	Register an action to be run via runAction.
template<typename D>
void	registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void))
	Template version of runAction that can be used with a pointer to a member function.
void	registerAction (const Action &action)
	Register an action.
Protected Member Functions inherited from ImFusion::SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.
Protected Attributes inherited from ImFusion::Algorithm
std::string	m_name
	Algorithm name.
Progress *	m_progress = nullptr
	Non-owing pointer to a progress interface. May be a nullptr.
FactoryInfo	m_factoryInfo = {}
	Record describing how this algorithm was instantiated by the AlgorithmFactory.
int	m_status = Status::Unknown
	Algorithm status after last call to compute().
std::vector< Action >	m_actions
	Map of key given by the id of the action, of the available actions of this algorithm.
Protected Attributes inherited from ImFusion::Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Member Function Documentation

◆ compute()

void ImFusion::ASCRegistration::compute ( )

overridevirtual

Resets the registration, and then runs the provided registration sequence.

Implements ImFusion::Algorithm.

◆ takeOutput()

OwningDataList ImFusion::ASCRegistration::takeOutput ( )

overridevirtual

Return any new Data that was created by the Algorithm during the last call to compute().

The default implementation will return an empty list.

Note: Since ownership of the data is transferred, you can call this method only once between calls to compute().

Reimplemented from ImFusion::Algorithm.

◆ configureRegistrationMethodProperties()

void ImFusion::ASCRegistration::configureRegistrationMethodProperties ( const Properties & properties )

Configures the last element of the registration sequence.

Deprecated: "Manipulate the registration sequence directly"

◆ movingData()

DataList ImFusion::ASCRegistration::movingData ( )

inlineoverridevirtual

The "moving" data structure(s) relative to which the movingASC AnatomicalStructureCollection is defined.

The typical use-case for this is the image on which a segmentation algorithm then extracts an AnatomicalStructureCollection.

Implements ImFusion::ASCRegistrationInterface.

◆ fixedData()

DataList ImFusion::ASCRegistration::fixedData ( )

inlineoverridevirtual

The "fixed" data structure(s) relative to which the fixedASC AnatomicalStructureCollection is defined.

The typical use-case for this is the image on which a segmentation algorithm then extracts an AnatomicalStructureCollection.

Implements ImFusion::ASCRegistrationInterface.

◆ fixedASC()

AnatomicalStructureCollection * ImFusion::ASCRegistration::fixedASC ( )

inlineoverridevirtual

Implements ImFusion::ASCRegistrationInterface.

◆ movingASC()

AnatomicalStructureCollection * ImFusion::ASCRegistration::movingASC ( )

inlineoverridevirtual

Implements ImFusion::ASCRegistrationInterface.

◆ insertIntoRegistrationSequence()

bool ImFusion::ASCRegistration::insertIntoRegistrationSequence	(	int	index,
		std::unique_ptr< ASCRegistrationMethod >	method,
		bool	triggerSignal = true )

Insert a method into the registration sequence at the given index.

If method is nullptr, a dummy (ASCRegistrationMethod::ReturnError) is inserted at the given position.

Returns: true if the method was not nullptr and was successfully inserted.

◆ appendToRegistrationSequence()

bool ImFusion::ASCRegistration::appendToRegistrationSequence	(	std::unique_ptr< ASCRegistrationMethod >	method,
		bool	triggerSignal = true )

inline

Append a method to the registration sequence.

If method is nullptr, a dummy (ASCRegistrationMethod::ReturnError) is appended.

Returns: true if the method was not nullptr and was successfully appended.

Member Data Documentation

◆ p_registrationType

Parameter<RegistrationType> ImFusion::ASCRegistration::p_registrationType

Initial value:

= {
            "registrationType",
            Flags<RegistrationType>{RegistrationType::Deformable, RegistrationType::GlobalScaledE3, RegistrationType::LocalScaledE3},
            *this}

Which deformation type to output.

Resulting deformation is filtered to match this type. Not all registration types support all deformation types.

◆ p_identifiers

Parameter<std::optional<std::vector<std::string> > > ImFusion::ASCRegistration::p_identifiers = {"identifiers", std::nullopt, *this}

Registration is restricted to Anatomical structures with the given identifiers if set.

Deprecated: "Use a ModifyBehavior registration operation directly "

The documentation for this class was generated from the following file:

AnatomyPlugin/include/ImFusion/AnatomyPlugin/ASCRegistration.h

Detailed Description

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Additional Inherited Members

Member Function Documentation

◆ compute()

◆ takeOutput()

◆ configureRegistrationMethodProperties()

◆ movingData()

◆ fixedData()

◆ fixedASC()

◆ movingASC()

◆ insertIntoRegistrationSequence()

◆ appendToRegistrationSequence()

Member Data Documentation

◆ p_registrationType

◆ p_identifiers
