#include <AnatomyPlugin/include/ImFusion/AnatomyPlugin/ASCRegistrationMethod.h>

Abstract base class for registration of AnatomicalStructureCollection objects to each other. More...

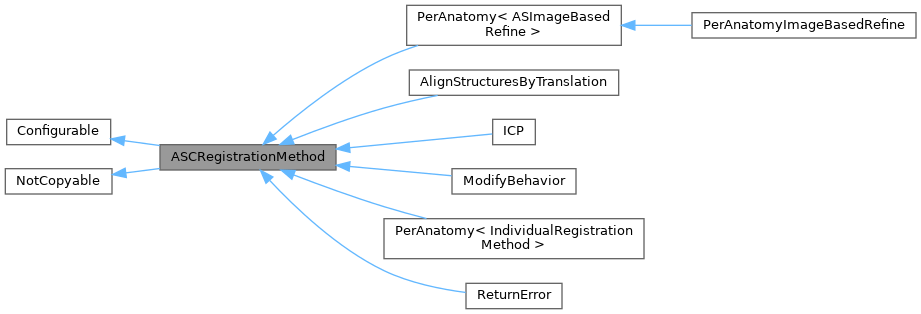

Inheritance diagram for ImFusion::ASCRegistrationMethod:

Detailed Description

Abstract base class for registration of AnatomicalStructureCollection objects to each other.

The (entire) moving object is moved to best fit the fixed object.

Classes
class	Factory
	Global and local factories for ASCRegistrationMethod objects. More...

Public Member Functions
virtual bool	computeRegistration (AnatomicalStructureCollection &fixed, AnatomicalStructureCollection &moving)=0
	Computes the registration of moving to fixed.
virtual std::string	identifier () const =0
	Machine-readable identifier for the registration method. Must be unique to the type.
virtual std::string	name () const
	Human-readable name for the registration method.
void	setRigid (bool rigid)
	Getter for the rigid parameter. If this is true, registrations should be (per-anatomy) rigid, but implementations may choose to ignore this.
bool	rigid () const
	Setter for the rigid parameter. If this is true, registrations should be (per-anatomy) rigid, but implementations may choose to ignore this.
void	setProgress (Progress *progress)
Public Member Functions inherited from ImFusion::Configurable
virtual void	configure (const Properties *p)
	Configure this object instance by de-serializing the given Properties.
virtual void	configuration (Properties *p) const
	Serialize the current object configuration into the given Properties object.
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept

Static Public Member Functions
static Factory &	factory ()

Protected Attributes
bool	m_rigid = false
	If this is true, registrations should be (per-anatomy) rigid, but implementations may choose to ignore this.
Progress *	m_progress = nullptr
Protected Attributes inherited from ImFusion::Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Attributes inherited from ImFusion::Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.
Protected Member Functions inherited from ImFusion::Utils::NotCopyable
	NotCopyable (NotCopyable &&) noexcept=default
NotCopyable &	operator= (NotCopyable &&) noexcept=default
	NotCopyable (const NotCopyable &)=delete
NotCopyable &	operator= (const NotCopyable &)=delete

Member Function Documentation

◆ computeRegistration()

virtual bool ImFusion::ASCRegistrationMethod::computeRegistration	(	AnatomicalStructureCollection &	fixed,
		AnatomicalStructureCollection &	moving )

pure virtual

Computes the registration of moving to fixed.

Warning: it is important for the structure to update all objects contained by the structure to the new position. Registrations will construct an ASCDeformation by directly mapping the initial state of moving to its final state. If some objects (e.g. graphs) are not updated, the resulting linear part of the deformation will not match the linear part of the registration as computed.

Implemented in ImFusion::ASCRegistrationMethods::AlignStructuresByTranslation, ImFusion::ASCRegistrationMethods::ICP, ImFusion::ASCRegistrationMethods::ModifyBehavior, ImFusion::ASCRegistrationMethods::PerAnatomy< IndividualRegistrationMethod >, ImFusion::ASCRegistrationMethods::PerAnatomy< ASImageBasedRefine >, ImFusion::ASCRegistrationMethods::PerAnatomyImageBasedRefine, and ImFusion::ASCRegistrationMethods::ReturnError.

◆ identifier()

virtual std::string ImFusion::ASCRegistrationMethod::identifier ( ) const

pure virtual

Machine-readable identifier for the registration method. Must be unique to the type.

Implemented in ImFusion::ASCRegistrationMethods::AlignStructuresByTranslation, ImFusion::ASCRegistrationMethods::ICP, ImFusion::ASCRegistrationMethods::ModifyBehavior, ImFusion::ASCRegistrationMethods::PerAnatomy< IndividualRegistrationMethod >, ImFusion::ASCRegistrationMethods::PerAnatomy< ASImageBasedRefine >, and ImFusion::ASCRegistrationMethods::ReturnError.

◆ name()

virtual std::string ImFusion::ASCRegistrationMethod::name ( ) const

inlinevirtual

Human-readable name for the registration method.

Reimplemented in ImFusion::ASCRegistrationMethods::AlignStructuresByTranslation, ImFusion::ASCRegistrationMethods::ICP, ImFusion::ASCRegistrationMethods::ModifyBehavior, ImFusion::ASCRegistrationMethods::PerAnatomy< IndividualRegistrationMethod >, ImFusion::ASCRegistrationMethods::PerAnatomy< ASImageBasedRefine >, and ImFusion::ASCRegistrationMethods::ReturnError.

The documentation for this class was generated from the following file:

AnatomyPlugin/include/ImFusion/AnatomyPlugin/ASCRegistrationMethod.h
