SweepOptimization Class Reference

#include <ImFusion/US/SweepOptimization.h>

Class that factors out the parametrization of an UltrasoundSweep as needed for registration, motion estimation and calibration. More...

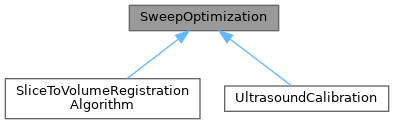

Inheritance diagram for SweepOptimization:

Detailed Description

Class that factors out the parametrization of an UltrasoundSweep as needed for registration, motion estimation and calibration.

SweepOptimization provides a unified interface to optimize various parameters of an ultrasound sweep, including registration (rigid/affine), calibration, temporal offset, image size, probe trajectory motion, and parametric deformation. Parameters are optimized with relative to their initial values (see defineReferenceState()).

This class is designed to be used a base class for algorithms that optimize ultrasound sweep parameters.

Public Member Functions
	SweepOptimization (UltrasoundSweep *us)
	Constructor, stores the current sweep setting as reference state.
void	defineReferenceState ()
	Define the current sweep settings as reference for relative optimization.
void	setOptRelativeToProbeTip (bool flag)
	Set whether to optimize the calibration and the size w.r.t. the tip of the probe instead of the image center.
bool	optRelativeToProbeTip () const
	Returns whether to optimize the calibration and the size w.r.t. the tip of the probe instead of the image center.
void	setUseReferenceCoordinateSystem (bool flag)
	Specify if the sweep's reference coordinate system shall be used.
void	setMovingVolume (SharedImageSet *vol)
	Set pointer to a volume to be used instead of the ultrasound sweep to apply the registration to.
void	setMotion (SweepMotion *sm)
	Set pointer to a sweep trajectory motion instance to also optimize.
SweepMotion *	motion () const
	Return pointer to sweep trajectory motion instance.
double	motionPenalty () const
	Computes a penalty to be used within sweep optimization taking into account geometry constraints.
bool	applyRegistrationPars (const double *sixParsRigid, const double *sixParsAffine=nullptr)
	Applies relative registration parameters to the ultrasound sweep or moving volume.
bool	applyCalibrationPars (const double *sixPars)
	Applies relative calibration parameters to the ultrasound sweep.
bool	applyTemporalOffsetPar (const double *onePar, double scaleFactor=0.1)
	Applies a relative temporal offset parameter to the ultrasound sweep.
bool	applyImageSizePars (const double *twoPars, double scaleFactor=1.)
	Applies relative image size parameters to the ultrasound sweep.
bool	applyMotionPars (int nPars, const double *pars)
	Applies motion parameters to the ultrasound sweep.
bool	applyDeformationPars (int nPars, const double *pars)
	Applies deformation parameters to the ultrasound sweep.
UltrasoundSweep *	sweep ()
	Returns the ultrasound sweep.

Static Public Member Functions
static void	restorePositionOfProbeTipAfterSizeChange (UltrasoundSweep *sweep, vec2 prevSize)
	After the image size of sweep has been changed, this function can be used to adjust its calibration matrix, so that the tip of the probe is at the same position in the world coordinate system as before the size change (assuming that the image size before the size change was prevSize).

Protected Attributes
UltrasoundSweep *	m_us
	Pointer to the ultrasound sweep.
SharedImageSet *	m_movingVol = nullptr
	Pointer to the moving volume to be used instead of the sweep to apply the registration to.
mat4	m_initReg
	Initial registration at start of optimization.
mat4	m_initCal
	Initial calibration at start of optimization.
double	m_initTemporal
	Initial temporal calibration.
vec2	m_initSize
	Initial size of the ultrasound frames.
std::vector< double >	m_initMot
	Initial motion parameters if applicable.
std::vector< double >	m_initDef
	Initial deformation parameters if applicable.
mat4	m_refMat
	Reference coordinate system for registration.
bool	m_useRefCoord = false
	Use reference coordinate system, if available.
SweepMotion *	m_motion = nullptr
	Optional instance for sweep trajectory motion.
bool	m_optRelativeToProbeTip = false
	Whether to optimize the calibration and the size w.r.t the tip of the probe instead of the image center.

Member Function Documentation

applyRegistrationPars()

bool applyRegistrationPars	(	const double *	sixParsRigid,
		const double *	sixParsAffine = nullptr )

Applies relative registration parameters to the ultrasound sweep or moving volume.

Parameters

sixParsRigid	Rigid transformation parameters (translation and rotation).
sixParsAffine	Affine transformation parameters (scaling and shearing), optional.

Returns

True if successful, false otherwise.

applyCalibrationPars()

bool applyCalibrationPars

(

const double *

sixPars

)

Applies relative calibration parameters to the ultrasound sweep.

Parameters

sixPars

Calibration parameters (translation and rotation).

Returns

True if successful, false otherwise (if no sweep was provided).

applyTemporalOffsetPar()

bool applyTemporalOffsetPar	(	const double *	onePar,
		double	scaleFactor = 0.1 )

Applies a relative temporal offset parameter to the ultrasound sweep.

Parameters

onePar	Temporal offset parameter.
scaleFactor	Scaling factor for the parameter.

Returns

True if successful, false otherwise (if no sweep was provided).

applyImageSizePars()

bool applyImageSizePars	(	const double *	twoPars,
		double	scaleFactor = 1. )

Applies relative image size parameters to the ultrasound sweep.

Parameters

twoPars	Image size parameters (xSize, ySize).
scaleFactor	Scaling factor for the parameters.

Returns

True if successful, false otherwise (if no sweep was provided).

applyMotionPars()

bool applyMotionPars	(	int	nPars,
		const double *	pars )

Applies motion parameters to the ultrasound sweep.

Parameters

nPars	Number of motion parameters.
pars	Array of motion parameters.

Returns

True if successful, false otherwise (if no sweep or no motion model was provided or the number of parameters don't match the model).

applyDeformationPars()

bool applyDeformationPars	(	int	nPars,
		const double *	pars )

Applies deformation parameters to the ultrasound sweep.

Parameters

nPars	Number of deformation parameters.
pars	Array of deformation parameters.

Returns

True if successful, false otherwise (if no sweep was provided).

---

The documentation for this class was generated from the following file:

• ImFusion/US/SweepOptimization.h
