#include <ImFusion/ImageMath/Tpl/Array.h>

Specialization of ExprBase for a image leaf, i.e. More...

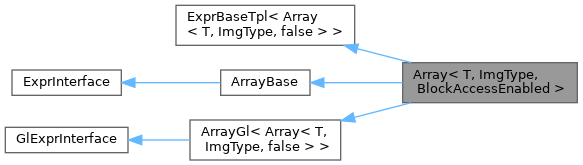

Inheritance diagram for Array< T, ImgType, BlockAccessEnabled >:

Detailed Description

template<typename T, typename ImgType, bool BlockAccessEnabled = false>
class ImFusion::ImageMath::Array< T, ImgType, BlockAccessEnabled >

Specialization of ExprBase for a image leaf, i.e.

an TypedImage, SharedImage and SharedImageSet

Note: The overload for SharedImageSet assumes that all images in the set have the same type and size. If this is not the case you need to run the expression for each ShareImage involved individually.

This class offers an expression leaf which wraps an existing, SharedImage, SharedImageSet, or TypedImage. Such an object can be used as leaf within an expression or as l-value in order to evaluate an expression into an image. This class has two template parameters, T and ImgType. T needs to be either SharedImage, or SharedImageSet, or TypedImage. ImgType can either be void or any type that is supported by our image classes. In the case of void the type is deduced at runtime from the expression, however this requires that all leaves within the expression need to have the same type as the l-value the expression is assigned to. In any other case, i.e. mixed types, you need to hint the type by providing an ImgType. For convenience we provide a builder method which deduces the type directly in the case of TypedImage and offers one template parameter in the case of SharedImage or SharedImageSet. In addition, on construction you need to provide a unique name which will be used as variable name/prefix in e.g. GLSL shaders. The class also provides block access.

Note: The pixel value will always be considered float (GPU) or double (CPU) as due to shift and scale the image type is not sufficient. If you want to use e.g. integer type in the expression you need to use the casting operator.

TypedImage<float> typedImg(...);
SharedImage sharedImg(...);

auto typedImgExpr = makeArray(typedImg); // Will create a Array<TypedImage<float>, float>

auto sharedImgExprTyped = makeArray<float>(sharedImg); // Will create a Array<SharedImage, float>
auto sharedImgExprNonTyped = makeArray(sharedImg); // Will create a Array<SharedImage, void>

Public Types
using	img_type = ImgType

using	expr_type = std::conditional_t<std::is_void_v<ImgType>, void, double>

using	imf_img_type = T

using	var_type = void

Public Member Functions
	Array (T &img, bool ignoreShiftAndScale=false, MagFilter magFilter=MagFilter::Nearest, Wrap wrap=Wrap::ClampToEdge, const vec4f &borderColor=vec4f::Zero())
	Constructor.

	Array (const Array &other)

ImageDescriptor	imgDesc () const override final
	Return ImageDescriptor of this expression. This reference is expected to remain the same while the class exists.

ImageMath::MagFilter	getMagFilter ()

ImageMath::Wrap	getWrap ()

int	numImgs () const override
	Number of images (i.e. the number of image in the SharedImageSets and 1 for MemImage or SharedImage)

auto	block (const vec3i &offset, const vec3i &blockSize) const

DeviceStrategy	deviceStrategy () const override
	Return DeviceStrategy of this expression.

template<typename otherT, typename otherImgType>
auto	cloneLeaf (otherT &img) const
	create Array with different image type but same properties

T &	img ()

const T &	img () const

void	setDeviceStrategy (DeviceStrategy deviceStrategy)
	manually override the deviceStrategy

Public Member Functions inherited from ExprBaseTpl< Array< T, ImgType, false > >
const auto &	get () const
	get a const reference to this with the actual type

auto &	get ()
	get a reference to this with the actual type

auto	polyWrapper () const

auto	uniquePolyWrapper () const

auto	sharedPolyWrapper () const

auto	binaryOp (const ExprBaseTpl< RhsT > &rhs, const Op &func=Op()) const

auto	binaryOp (RhsT rhs, const Op &func=Op(), typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	binaryOp (Eigen::Matrix< RhsT, Dim, 1, Options, MaxRows, MaxCols > rhs, const Op &func=Op(), typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	binaryOp (const ExprBaseTpl< RhsT > &rhs, const Op &func, const StringOp &stringFunc) const

auto	binaryOp (RhsT rhs, const Op &func, const StringOp &stringFunc, typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	binaryOp (Eigen::Matrix< RhsT, Dim, 1, Options, MaxRows, MaxCols > rhs, const Op &func, const StringOp &stringFunc, typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	unaryOp (const Op &func=Op()) const

auto	unaryOp (const Op &func, const StringOp &stringFunc) const

reduction_type	reduce (std::vector< vec4i > *arg=nullptr) const

auto	forceCPU () const
	Forces CPU execution.

auto	forceGPU () const
	Forces GPU execution.

auto	channelSwizzle (const std::vector< std::size_t > &indices) const

auto	head ()

	ADD_SPECIAL_SWIZZLE (x, {0})

	ADD_SPECIAL_SWIZZLE (y, {1})

	ADD_SPECIAL_SWIZZLE (z, {2})

	ADD_SPECIAL_SWIZZLE (w, {3})

	ADD_SPECIAL_SWIZZLE (r, {0})

	ADD_SPECIAL_SWIZZLE (g, {1})

	ADD_SPECIAL_SWIZZLE (b, {2})

	ADD_SPECIAL_SWIZZLE (a, {3})

	ADD_SPECIAL_SWIZZLE (xy, std::vector< size_t >({0, 1}))

	ADD_SPECIAL_SWIZZLE (rg, std::vector< size_t >({0, 1}))

	ADD_SPECIAL_SWIZZLE (xyz, std::vector< size_t >({0, 1, 2}))

	ADD_SPECIAL_SWIZZLE (xyzw, std::vector< size_t >({0, 1, 2, 3}))

	ADD_SPECIAL_SWIZZLE (rgb, std::vector< size_t >({0, 1, 2}))

	ADD_SPECIAL_SWIZZLE (rgba, std::vector< size_t >({0, 1, 2, 3}))

auto	streamChannels (int numStreamedChannels) const

auto	substituteVariableWithImg (T &img) const

auto	operator- () const

auto	cast () const

auto	storageToOriginal (const ImageDescriptor &desc)
	Apply shift/scale to the operand,.

auto	originalToStorage (const ImageDescriptor &desc)
	Apply shift/scale to the operand,.

auto	channelReduction ()

	ADD_CHANNEL_REDUCTION_OPERATOR (channelSum, add)

	ADD_CHANNEL_REDUCTION_OPERATOR (channelProd, mult)

	ADD_CHANNEL_REDUCTION_OPERATOR (channelMax, max)

	ADD_CHANNEL_REDUCTION_OPERATOR (channelMin, min)

	ADD_CHANNEL_REDUCTION_OPERATOR (length, length)

auto	channelMean ()

auto	squaredLength () const

auto	channelDistance (const ExprBaseTpl< RhsT > &other) const

auto	channelDistance (const Eigen::Matrix< T, Dim, 1 > c)

auto	dot (const ExprBaseTpl< RhsT > &other) const

auto	stashThenApply (const ExprBaseTpl< VariableT > &varExpr) const

auto	hnormalized () const

auto	normalized () const

auto	homogeneous () const

auto	appendZero () const

auto	select (const ExprBaseTpl< LhsT > &lhs, const ExprBaseTpl< RhsT > &rhs) const
	Ternary (condition.x ? if_true : if_false) operator.

auto	select (LhsT lhs, RhsT rhs, typename std::enable_if< std::is_arithmetic_v< LhsT > &&std::is_arithmetic_v< RhsT > >::type *=nullptr) const
	Ternary (condition.x ? if_true : if_false) operator.

auto	select (LhsT lhs, const ExprBaseTpl< RhsT > &rhs, typename std::enable_if< std::is_arithmetic_v< LhsT > >::type *=nullptr) const
	Ternary (condition.x ? if_true : if_false) operator.

auto	select (const ExprBaseTpl< LhsT > &lhs, RhsT rhs, typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const
	Ternary (condition.x ? if_true : if_false) operator.

	ADD_REDUCTION_OPERATOR (sum, add)

	ADD_REDUCTION_OPERATOR (prod, mult)

	ADD_ARG_REDUCTION_OPERATOR (min, min)

	ADD_ARG_REDUCTION_OPERATOR (max, max)

Eigen::Matrix< double, Eigen::Dynamic, 1 >	mean () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	l1Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	squaredl2Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	l2Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	lpNorm (double p) const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	lInfNorm () const

auto	evaluateIntoImage (bool clearShiftScale=false) const
	Create an empty image and evaluate this expression into it.

auto	toMask () const

auto	toDeformation (const ImageDescriptorWorld imgDesc) const

auto	resample (const ImageDescriptorWorld &inputDesc, const ImageDescriptorWorld &outputDesc) const

auto	resample (SharedImage &inputDesc, SharedImage &outputDesc, std::enable_if_t< std::is_same_v< T, SharedImage > > *=nullptr) const

auto	resample (SharedImageSet &inputDesc, SharedImageSet &outputDesc, std::enable_if_t< std::is_same_v< T, SharedImageSet > > *=nullptr) const

Public Member Functions inherited from ArrayGl< Array< T, ImgType, false > >
std::string	evalString (bool tagAndAssign=true) const override final
	Print expression.

void	tagAndAssignNames (std::unordered_map< internal::TaggingIndex, const void * > &taggedLeaves, std::unordered_map< std::type_index, int > &countPerLeafType, const std::string &prefix) const override final
	We need to tag leaves and tell unique leaves that they are responsible to define the uniforms and set the shader arguments.

void	getUniformDefinitionList (std::string &definitionList, const std::vector< int > &indices, const std::string &prefix) const override final
	Collect uniform/sampler definitions.

void	getVariableDefinitionList (std::string &definitionList, const std::vector< int > &indices, const std::string &prefix) const override final
	Collect variable definitions.

int	setArguments (GL::Program &p, const std::vector< int > &indices, const std::string &prefix) const override final
	Set uniform/sampler arguments.

bool	assignGl (const internal::GlExprInterface &expr)
	Evaluates expression into this ArrayGl on the GPU.

std::vector< internal::GlExprInterface * >	children () override final
	Used for traversing the expression tree. Contains the immediate children of node.

std::vector< const internal::GlExprInterface * >	children () const override final
	Used for traversing the expression tree. Contains the immediate children of node.

bool	setMagFilter (ImageMath::MagFilter m) override final
	Set interpolation behaviour of the current leaf (only)

bool	setWrap (ImageMath::Wrap w) override final
	Set interpolation behaviour of the current leaf (only)

Public Member Functions inherited from GlExprInterface
ExprInterface &	exprInterface ()
	Get image descriptor of the wrapped expression.

const ExprInterface &	exprInterface () const

bool	setMagFilterRecursive (ImageMath::MagFilter mag)
	Set interpolation behaviour of the current leaf and all of its children.

bool	setWrapRecursive (ImageMath::Wrap wrap)
	Set wrap behaviour of the current leaf and all of its children.

Static Public Attributes
static constexpr bool	block_access_enabled = BlockAccessEnabled

static constexpr bool	has_variable = false

Assignments
template<typename ExprT>
Array< T, ImgType, BlockAccessEnabled > &	operator= (const ExprBaseTpl< ExprT > &operand)
	Assign and actual evaluation.

Array< T, ImgType, BlockAccessEnabled > &	operator= (const Array< T, img_type, BlockAccessEnabled > &operand)
	copy assignment. Calls the templated assignment internally.

template<typename RhsT>
std::enable_if< std::is_arithmetic_v< RhsT >, Array< T, img_type, BlockAccessEnabled > & >::type	operator= (RhsT rhs)
	Specialized assign for Scalar.

template<typename RhsT, int Dim>
Array< T, ImgType, BlockAccessEnabled > &	operator= (Eigen::Matrix< RhsT, Dim, 1 > rhs)
	Specialized assign for ChannelWiseScalar.

MemImage implementations
IMFUSION_STRONG_INLINE expr_type	eval (const std::size_t i, const vec4i &coord) const
	Evaluate the expression at position i.

Convert the expression to MemImage.
template<typename ImgT>
auto	convertToMemImgExpr () const noexcept
	Convert the expression to MemImage.

Convert the expression to SharedImage.
auto	convertToSharedImgExpr (std::size_t index) const
	Convert the expression to SharedImage.

Constructor & Destructor Documentation

◆ Array()

template<typename T, typename ImgType, bool BlockAccessEnabled = false>

Array	(	T &	img,
		bool	ignoreShiftAndScale = false,
		MagFilter	magFilter = MagFilter::Nearest,
		Wrap	wrap = Wrap::ClampToEdge,
		const vec4f &	borderColor = vec4f::Zero() )

inlineexplicit

Constructor.

Parameters

img	Image wrapped by this expression leaf
ignoreShiftAndScale	if false the shift and scale of the image will be considered for evaluation and assignment
magFilter	magFilter to be used in the GPU path
wrap	wrapping to be used
borderColor	border color used if wrap it ClampToBorder

Member Function Documentation

◆ imgDesc()

template<typename T, typename ImgType, bool BlockAccessEnabled = false>

ImageDescriptor imgDesc ( ) const

inlinefinaloverridevirtual

Return ImageDescriptor of this expression. This reference is expected to remain the same while the class exists.

Implements ExprInterface.

◆ operator=()

template<typename T, typename ImgType, bool BlockAccessEnabled = false>

template<typename ExprT>

Array< T, ImgType, BlockAccessEnabled > & operator= ( const ExprBaseTpl< ExprT > & operand )

inline

Assign and actual evaluation.

Parameters

operand The expression to be evaluated.

Returns: Reference to *this.

The MemImage path uses OpenMP parallelization and iterates over m_img and for each pixel evaluated the expression at this position and stores the result in the corresponding pixel.

The SharedImage path checks if the SharedImage has a Gl representation (SharedImage::hasGl()) and if uses the GlExpr in order to evaluate the expression into *this. Otherwise it falls back to the MemImage variant.

The SharedImageSet method tries to process multiple SharedImages of the SharedImageSet at once, if possible. Otherwise falls back to the SharedImage variant and evaluates them sequentially.

◆ numImgs()

template<typename T, typename ImgType, bool BlockAccessEnabled = false>

int numImgs ( ) const

inlineoverridevirtual

Number of images (i.e. the number of image in the SharedImageSets and 1 for MemImage or SharedImage)

Implements ExprInterface.

◆ block()

template<typename T, typename ImgType, bool BlockAccessEnabled = false>

auto block	(	const vec3i &	offset,
		const vec3i &	blockSize ) const

inline

Returns: an expression which provides a block wise view of *this

If you want block access to the channels

See also: ChannelSwizzleViewTpl and; ExprBaseTpl::channelswizzle()

The block will start at the coord offset and will have size blockSize.

Note: Aliasing warning.

See also: operator=()

◆ deviceStrategy()

template<typename T, typename ImgType, bool BlockAccessEnabled = false>

DeviceStrategy deviceStrategy ( ) const

inlineoverridevirtual

Return DeviceStrategy of this expression.

Implements ExprInterface.

The documentation for this class was generated from the following files:

ImFusion/ImageMath/Tpl/Array.h
ImFusion/ImageMath/Utils/ForwardDeclarations.h

Detailed Description

Public Types

Public Member Functions

Static Public Attributes

Assignments

MemImage implementations

Convert the expression to MemImage.

Convert the expression to SharedImage.

Constructor & Destructor Documentation

◆ Array()

Member Function Documentation

◆ imgDesc()

◆ operator=()

◆ numImgs()

◆ block()

◆ deviceStrategy()
