#include <ImFusion/ImageMath/Poly/ExprBase.h>

Base class for expressions (non-templated) (needs to be empty in order to enable empty base class optimization!) More...

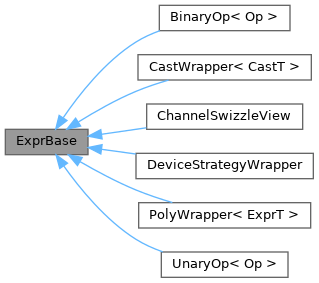

Inheritance diagram for ExprBase:

Detailed Description

Base class for expressions (non-templated) (needs to be empty in order to enable empty base class optimization!)

ExprBase provides a (non-templated) base class for arithmetic operations on ImFusion images. This class can be used in interfaces and provides an interface in order to evaluate a arithmetic expression into a SharedImage or a SharedImageSet. If the expression is fully known at compile-time using the ExprBaseTpl is encouraged! This subclass provides a compile time optimization of expressions using the curiously recurring template pattern (CRTP).

Note: All images within an expression are assumed to have the same size and spacing and the same matrix. I.e. there is a direct correspondence between the pixels in each image.

Example usage for polymorphic expressions:

SharedImage img1(...);
SharedImage img2(...);
SharedImage img3(...);
SharedImage img4(...);

 // Expression wrapper for SharedImage
Array<SharedImage> img1Expr(img1);
// Expression wrapper for SharedImage
Array<SharedImage> img2Expr(img2);
// Expression wrapper for SharedImage
Array<SharedImage> img3Expr(img3);

 // Setup a polymorphic expression
 std::shared_ptr<ExprBase> expr1 = std::make_shared<BinaryExpr<add>>(img1Expr.uniquePolyWrapper(), img2Expr.uniquePolyWrapper());
 // expr1 represents the same arithmetic expression as above but the evaluation will be slower due to the polymorphic overhead.
 expr1 = expr1 * img1Expr.uniquePolyWrapper();
 // Evaluate the expression into img4
 expr1->eval(img4);

Public Types
enum class	ExprType { Scalar = 0 , SharedImage = 1 , SharedImageSet = 2 , Variable = 3 }

Public Member Functions
virtual std::unique_ptr< ExprBase >	clone () const =0
	Clone the current expression. May not return nullptr.

virtual std::unique_ptr< ExprBase >	convertToSharedImgExpr (std::size_t index) const =0
	Convert a SharedImageSet expression to a SharedImage expression.

ImageDescriptor	imgDesc () const
	Return ImageDescriptor of the expression (forwards to the ExprInterface)

int	numImgs () const
	Return the number of images of the expression (forwards to the ExprInterface)

virtual ExprType	exprType () const =0
	Return the ImFusion image type, i.e. NoImage, SharedImage, SharedImageSet.

template<typename T, typename ImgType = void>
auto	evaluateIntoImage (bool clearShiftScale=false) const
	Evaluate expression into an image.

Variable substitution
virtual std::unique_ptr< ExprBase >	substituteVariableWithImg (const SharedImage &variable) const =0

virtual std::unique_ptr< ExprBase >	substituteVariableWithImg (const SharedImageSet &variable) const =0
	Substitute all variables with `variable`.

Evaluate an expression into an Array (polymorphic version)
void	eval (Array< SharedImage, void > &img, const SharedImage *variable) const

void	eval (Array< SharedImage, void > &img) const
	Evaluate into SharedImage.

void	eval (Array< SharedImageSet, void > &img, const SharedImageSet *variable) const
	Evaluate into SharedImageSet. Variable leafs will be substituted with `variable`.

void	eval (Array< SharedImageSet, void > &img) const
	Evaluate into SharedImageSet.

Convert to GlExprInterface
internal::GlExprInterface &	glExprInterface ()

const internal::GlExprInterface &	glExprInterface () const

Convert to ExprInterface
ExprInterface &	exprInterface ()

const ExprInterface &	exprInterface () const

Special functions
template<typename Op>
reduction_type	reduce (std::vector< vec4i > *arg=nullptr) const

std::unique_ptr< ExprBase >	forceCPU () const
	Forces CPU execution.

std::unique_ptr< ExprBase >	forceGPU () const
	Forces GPU execution.

Channel swizzling
std::unique_ptr< ExprBase >	channelSwizzle (const std::vector< std::size_t > &indices) const

Predefined unary operators
template<typename CastT>
std::unique_ptr< ExprBase >	cast () const

Predefined reduction operators
	ADD_REDUCTION_OP_DEF (sum, add)

	ADD_REDUCTION_OP_DEF (prod, mult)

	ADD_ARG_REDUCTION_OP_DEF (min, min)

	ADD_ARG_REDUCTION_OP_DEF (max, max)

Eigen::Matrix< double, Eigen::Dynamic, 1 >	mean () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	l1Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	squaredl2Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	l2Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	lpNorm (double p) const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	lInfNorm () const

Implementation for eval()
virtual void	evalImpl (Array< SharedImage, void > &img) const =0

virtual void	evalImpl (Array< SharedImageSet, void > &img) const =0
	Implementation functionality used in eval()

Member Function Documentation

◆ clone()

virtual std::unique_ptr< ExprBase > clone ( ) const

pure virtual

Clone the current expression. May not return nullptr.

Implemented in BinaryOp< Op >, CastWrapper< CastT >, ChannelSwizzleView, DeviceStrategyWrapper, PolyWrapper< ExprT >, and UnaryOp< Op >.

◆ substituteVariableWithImg() [1/2]

virtual std::unique_ptr< ExprBase > substituteVariableWithImg ( const SharedImage & variable ) const

pure virtual

Substitute all variables with variable

Implemented in BinaryOp< Op >, CastWrapper< CastT >, ChannelSwizzleView, DeviceStrategyWrapper, PolyWrapper< ExprT >, and UnaryOp< Op >.

◆ substituteVariableWithImg() [2/2]

virtual std::unique_ptr< ExprBase > substituteVariableWithImg ( const SharedImageSet & variable ) const

pure virtual

Substitute all variables with variable.

Implemented in BinaryOp< Op >, CastWrapper< CastT >, ChannelSwizzleView, DeviceStrategyWrapper, PolyWrapper< ExprT >, and UnaryOp< Op >.

◆ eval()

void eval	(	Array< SharedImage, void > &	img,
		const SharedImage *	variable ) const

Evaluate into SharedImage. Variable leafs will be substituted with variable.

◆ convertToSharedImgExpr()

virtual std::unique_ptr< ExprBase > convertToSharedImgExpr ( std::size_t index ) const

pure virtual

Convert a SharedImageSet expression to a SharedImage expression.

Implemented in BinaryOp< Op >, CastWrapper< CastT >, ChannelSwizzleView, DeviceStrategyWrapper, PolyWrapper< ExprT >, and UnaryOp< Op >.

◆ exprType()

virtual ExprType exprType ( ) const

pure virtual

Return the ImFusion image type, i.e. NoImage, SharedImage, SharedImageSet.

Implemented in BinaryOp< Op >, CastWrapper< CastT >, ChannelSwizzleView, DeviceStrategyWrapper, PolyWrapper< ExprT >, and UnaryOp< Op >.

◆ reduce()

template<typename Op>

reduction_type reduce ( std::vector< vec4i > * arg = nullptr ) const

inline

Returns: an expression which represents a reduction of *this using the operator Op

◆ channelSwizzle()

std::unique_ptr< ExprBase > channelSwizzle ( const std::vector< std::size_t > & indices ) const

Returns: an expression which swizzles the channel indices of *this according to indices, i.e. the channel 0 gets mapped to the channel indices[0].

◆ mean()

Eigen::Matrix< double, Eigen::Dynamic, 1 > mean ( ) const

Returns: the reduction using mean of *this

◆ l1Norm()

Eigen::Matrix< double, Eigen::Dynamic, 1 > l1Norm ( ) const

Returns: the reduction using l1norm of *this

◆ squaredl2Norm()

Eigen::Matrix< double, Eigen::Dynamic, 1 > squaredl2Norm ( ) const

Returns: the reduction using the squared l2-norm of *this

◆ l2Norm()

Eigen::Matrix< double, Eigen::Dynamic, 1 > l2Norm ( ) const

Returns: the reduction using l2norm of *this

◆ lpNorm()

Eigen::Matrix< double, Eigen::Dynamic, 1 > lpNorm ( double p ) const

Returns: the reduction using lpnorm of *this

◆ lInfNorm()

Eigen::Matrix< double, Eigen::Dynamic, 1 > lInfNorm ( ) const

Returns: the reduction using linfnorm of *this

◆ evalImpl() [1/2]

virtual void evalImpl ( Array< SharedImage, void > & img ) const

protectedpure virtual

Implementation functionality used in eval()

Implemented in BinaryOp< Op >, CastWrapper< CastT >, ChannelSwizzleView, DeviceStrategyWrapper, PolyWrapper< ExprT >, and UnaryOp< Op >.

◆ evalImpl() [2/2]

virtual void evalImpl ( Array< SharedImageSet, void > & img ) const

protectedpure virtual

Implementation functionality used in eval()

Implemented in BinaryOp< Op >, CastWrapper< CastT >, ChannelSwizzleView, DeviceStrategyWrapper, PolyWrapper< ExprT >, and UnaryOp< Op >.

The documentation for this class was generated from the following file:

ImFusion/ImageMath/Poly/ExprBase.h
