#include <ImFusion/GUI/PointsOnImageManipulator.h>

Class that handles creation and manipulation of points on a volume or image. More...

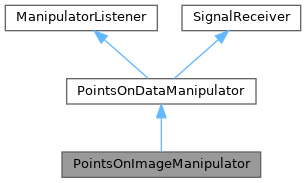

Inheritance diagram for PointsOnImageManipulator:

Detailed Description

Class that handles creation and manipulation of points on a volume or image.

It connects to the events emitted by PointsOnVolume and automatically update the displayed points It can also be used inside controllers to show/hide points on sharedImageSets depending on image focus

Public Member Functions
	PointsOnImageManipulator (PointsOnImage &pointHandler, bool ignoreMatrix=false)
	If ignoreMatrix is set to true, it changes the behavior of the class so that it shows points on the SharedImageSet.

void	init (DisplayWidgetMulti *disp) override

bool	ignoreTransformationMatrix () const

PointsOnData &	pointHandler () const override
	Gets the underlying `PointsOnVolume`

void	setVisible (bool visible) override
	Shows or hides all the points.

void	showVisualGuideInViews (InteractiveObject &visualGuideIObj, SharedImageSet &visualGuideImg, TransferFunction *tf=nullptr) override
	Displays visual guide in views GlSliceView can properly render the InteractiveObject, while other views require the SharedImageSet with transfer function.

Public Member Functions inherited from PointsOnDataManipulator
virtual void	startPointCreation ()
	Start the interactive creation of a new point.

bool	isCreatingPoint () const
	Return true if it is currently creating a new point.

virtual void	cancelPointCreation ()
	Cancel the interactive creation of a new point.

virtual void	exportPoints (AnnotationModel *annotationModel)

virtual void	goToPoint (int index)

void	onManipulatorEvent (Manipulator src, void eventData) override
	Called when an event occurs.

void	showNames (bool show)

void	setPointSize (float pointSize)

float	pointSize () const

virtual void	setEditable (bool editable)
	Enables or disables the manipulation of points.

bool	isEditable () const

virtual void	setPointColor (const vec3 &color)
	Set the color of all points.

const vec3 &	pointColor () const

virtual std::vector< InteractiveView * >	pointViews () const
	Return the current views showing the points.

virtual void	recomputePointViews ()
	Recomputes the views where points are visible and add points to those views.

virtual void	hideVisualGuideInViews ()
	Hide the visual guide from views.

void	storeBlendingMode2DViews (GlSlice::BlendingMode blendingMode2DView)
	Store original blending mode for 2D views.

void	restoreBlendingMode2DViews (std::vector< ImageView2D * > views2d)
	Restore original blending mode for 2D views.

void	setListenToDisplayChanges (bool listen=true)
	Sets whether the class should listen to display changes and add the points to new views.

bool	isListeningToDisplayChanges () const

Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.

	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.

SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.

virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Protected Member Functions
void	onCreatePointInteraction (const vec3 &point) override
	This function is called when the user creates a point. The implementation should update of the underlying `PointsOnData` structure.

void	onMovePointInteraction (Manipulator *src) override
	This function is called when the user moves a point. The implementation should update of the underlying `PointsOnData` structure.

void	onPointsAdded (int first, int last) override
	These methods are called when the underlying `PointsOnImage` structure changes.

void	onPointsRemoved (int first, int last) override

void	onPointsChanged (int first, int last) override

void	onPointsRenamed (int first, int last) override

void	updatePointsVisibility ()
	This function is used in case `ignoreMatrix` was set to true.

Protected Member Functions inherited from PointsOnDataManipulator
virtual std::vector< InteractiveView * >	availableViews () const
	Return a vector of views where the points should be shown.

void	removePoint (Interactive< GlPoint, PointBasedAnnotationManipulator > *p)
	Removes a specific point from all the views.

void	clearPendingPoint ()
	Removes the temporary point used in user interation.

std::unique_ptr< Interactive< GlPoint, PointBasedAnnotationManipulator > >	createInteractivePoint (const vec3 *point=nullptr, bool interactive=true, const std::string &name="")
	Creates an interactive point.

void	sanitizeRange (int &first, int &last, size_t size)
	Makes sure that the range [first, last) is inside the range [0, size)

Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Protected Attributes
PointsOnImage &	m_pointHandler

bool	m_visible = true

bool	m_ignoreMatrix = false

Protected Attributes inherited from PointsOnDataManipulator
std::unique_ptr< Interactive< GlPoint, PointBasedAnnotationManipulator > >	m_pendingPoint
	Pending point currently being set.

std::vector< std::unique_ptr< Interactive< GlPoint, PointBasedAnnotationManipulator > > >	m_points

vec3	m_pointColor = vec3(1.0, 0.0, 0.0)

float	m_pointSize = 5.0f

DisplayWidgetMulti *	m_disp = nullptr

bool	m_isEditable = true

bool	m_showNames = false

std::unique_ptr< Receiver >	m_receiver

bool	m_isListeningToDisplayChanges = true

Data *	m_visualGuideData = nullptr
	Pointer to the visual guide data.

InteractiveObject *	m_visualGuideIObj = nullptr
	Pointer to the visual guide interactive object.

std::vector< GlSlice::BlendingMode >	m_blendingMode2DViewsRestore
	Backup to restore blending mode for 2D views on hiding of visual guide.

Constructor & Destructor Documentation

◆ PointsOnImageManipulator()

PointsOnImageManipulator	(	PointsOnImage &	pointHandler,
		bool	ignoreMatrix = false )

explicit

If ignoreMatrix is set to true, it changes the behavior of the class so that it shows points on the SharedImageSet.

by creating points interactive objects, which gets updated if the selected shown image is changed Preferably used inside a controller.

Member Function Documentation

◆ init()

void init ( DisplayWidgetMulti * disp )

overridevirtual

Reimplemented from PointsOnDataManipulator.

◆ pointHandler()

PointsOnData & pointHandler ( ) const

overridevirtual

Gets the underlying PointsOnVolume

Implements PointsOnDataManipulator.

◆ setVisible()

void setVisible ( bool visible )

overridevirtual

Shows or hides all the points.

If ignoreTransformationMatrix is set to true, this function controls the visibility of the points on the current image within the SharedImageSet.

Reimplemented from PointsOnDataManipulator.

◆ showVisualGuideInViews()

void showVisualGuideInViews	(	InteractiveObject &	visualGuideIObj,
		SharedImageSet &	visualGuideImg,
		TransferFunction *	tf = nullptr )

overridevirtual

Displays visual guide in views GlSliceView can properly render the InteractiveObject, while other views require the SharedImageSet with transfer function.

Parameters

visualGuideIObj	The visual guide interactive object
visualGuideImg	The visual guide image
tf	The transfer function (optional)

Implements PointsOnDataManipulator.

◆ onCreatePointInteraction()

void onCreatePointInteraction ( const vec3 & point )

overrideprotectedvirtual

This function is called when the user creates a point. The implementation should update of the underlying PointsOnData structure.

Implements PointsOnDataManipulator.

◆ onMovePointInteraction()

void onMovePointInteraction ( Manipulator * src )

overrideprotectedvirtual

This function is called when the user moves a point. The implementation should update of the underlying PointsOnData structure.

Implements PointsOnDataManipulator.

◆ onPointsAdded()

void onPointsAdded	(	int	first,
		int	last )

overrideprotectedvirtual

These methods are called when the underlying PointsOnImage structure changes.

Reimplemented from PointsOnDataManipulator.

◆ onPointsRemoved()

void onPointsRemoved	(	int	first,
		int	last )

overrideprotectedvirtual

Reimplemented from PointsOnDataManipulator.

◆ onPointsChanged()

void onPointsChanged	(	int	first,
		int	last )

overrideprotectedvirtual

Reimplemented from PointsOnDataManipulator.

◆ onPointsRenamed()

void onPointsRenamed	(	int	first,
		int	last )

overrideprotectedvirtual

Reimplemented from PointsOnDataManipulator.

◆ updatePointsVisibility()

void updatePointsVisibility ( )

protected

This function is used in case ignoreMatrix was set to true.

It hides points of all images except the one selected in SharedImageSet

The documentation for this class was generated from the following file:

ImFusion/GUI/PointsOnImageManipulator.h
