#include <ImFusion/GUI/PointBasedAnnotationManipulator.h>

Manipulator for point-based annotations. More...

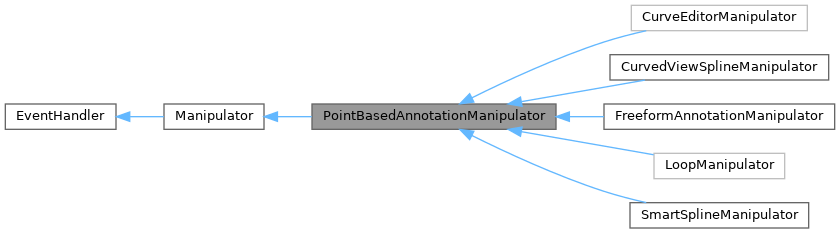

Inheritance diagram for ImFusion::PointBasedAnnotationManipulator:

Detailed Description

Manipulator for point-based annotations.

Classes
struct	MouseEvent
	Mouse event structure. More...
class	InteractionModeWrapper

Public Types
enum	InteractionMode { InteractionNone = 0 , InteractionCreate = 1 , InteractionMove = 2 , InteractionAdd = 4 , InteractionRemove = 8 , InteractionEdit = 16 , InteractionScale = 32 , InteractionRotate = 64 }
enum class	VolumeViewPickingMode { On , Off , Automatic }
	Enumeration to describe when PointBasedAnnotationManipulator should perform 3D position picking in GlVolumeViews. More...

Public Member Functions
	PointBasedAnnotationManipulator (GlPointBasedAnnotation &annotation)
bool	sceneEvent (QEvent *event, const GlView &view) override
virtual bool	sceneEvent3D (const MouseEvent &ev, const GlVolumeView &view)
bool	get3dPos (const MouseEvent &ev, const GlVolumeView &view, vec3 &result)
virtual void	setInteractionMode (PointBasedAnnotationManipulator::InteractionMode mode, bool finalize=true)
	Sets the interaction mode.
InteractionMode	interactionMode () const
	Returns the interactions mode.
void	setAllowedInteractions (Flags< PointBasedAnnotationManipulator::InteractionMode > allowedInteractions)
	Sets allowed interactions.
Flags< PointBasedAnnotationManipulator::InteractionMode >	allowedInteractions () const
	Returns the allowed interactions.
void	setHovering (bool hovering)
	Sets the hovering behavior (i.e.
bool	hovering () const
	Returns whether hovering support is enabled.
void	reset ()
	Resets all parameters to their default value.
void	setPoints (const std::vector< vec3 > &points)
void	setAxisManip (int axis)
	Set axis along which points can be moved. Point coordinates will be fixed on other axes. Only applies to move and edit interactions.
void	clearAxisManip ()
	Make point movable along all axes.
void	setBounds (double x0, double x1, double y0, double y1, double z0, double z1)
	Set bounds for allowed point coordinates.
void	clearBounds ()
	Clear bounds.
MouseEvent::Button	lastButton () const
	Return button with which last interaction was performed.
virtual void	setHoverCursor ()
	Sets cursor to open hand.
virtual void	setInteractionCursor ()
	Sets cursor to closed (grabbing) hand.
void	resetCursor ()
	Resets cursor to default.
void	setInteractiveAnnotation (InteractiveAnnotation *annot)
bool	requiresFocus () override
	Derived classes that need priority scene events can override this.
void	setVolumeViewPickingMode (VolumeViewPickingMode pickingMode)
void	setChangeCursorOnEdit (bool change)
Qt::Key	finishCreationKey () const
void	setFinishCreationKey (Qt::Key key)
Qt::Key	abortCreationKey () const
void	setAbortCreationKey (Qt::Key key)
Public Member Functions inherited from ImFusion::Manipulator
void	addListener (ManipulatorListener *listener)
void	removeListener (const ManipulatorListener *listener)
virtual void	openContextMenu (QPoint pos, QPoint globalPos, Qt::KeyboardModifiers modifiers)
GUI::EventResult	handleInputEvent (const GUI::InputEvent &event, const GUI::View &view) override
	This function is called by sources of input events in order to dispatch them to the handlers.

Public Attributes
Signal< const PointBasedAnnotationManipulator * >	signalCreatingFinished
	Emitted when the manipulator leaves the InteractionCreate mode.

Protected Member Functions
virtual InteractionMode	selectInteraction (const MouseEvent &ev, bool hitLine)
	Selects the next interaction given the mouse event and hitLine.
virtual bool	onCreate (const MouseEvent &event, vec3 &X, bool &update, const GlView &view)
	Handler for mouse events in the InteractionCreate mode.
virtual bool	onMove (const MouseEvent &event, vec3 &X, bool &update)
	Handler for mouse events in the InteractionMove mode.
virtual bool	onAdd (const MouseEvent &event, vec3 &X, bool &update)
	Handler for mouse events in the InteractionAdd mode.
virtual bool	onRemove (const MouseEvent &event, vec3 &X, bool &update)
	Handler for mouse events in the InteractionRemove mode.
virtual bool	onEdit (const MouseEvent &event, vec3 &X, bool &update, const GlView &view)
	Handler for mouse events in the InteractionEdit mode.
virtual bool	onScale (const MouseEvent &event, vec3 &X, bool &update)
	Handler for mouse events in the InteractionScale mode.
virtual bool	onRotate (const MouseEvent &event, vec3 &X, bool &update, const GlView &view)
	Handler for mouse events in the InteractionRotate mode.
void	finalizeInteraction ()
virtual bool	pickingNeeded ()
bool	computeCursorMeshIntersection (const MouseEvent &event, const GlVolumeView &view, const GlMesh *mesh, vec3 &result)
void	enablePicking (GlVolumeView &view)
void	disablePicking ()
Protected Member Functions inherited from ImFusion::Manipulator
void	notifyListeners (void *eventData)

Protected Attributes
GlPointBasedAnnotation &	m_annotation
GlObject::RenderingOrderGroup	m_originalAnnotationRenderingOrder = GlObject::RenderingGroupRest
vec3	m_pos0
int	m_selectedPoint
InteractionModeWrapper	m_interactionMode
Flags< InteractionMode >	m_allowedInteractions
bool	m_hovering
std::vector< vec3 >	m_points0
int	m_axisManip
bool	m_useBounds
double	m_bounds [6]
bool	m_changeCursorOnEdit = false
bool	m_interactionCursor = false
bool	m_hoverCursor = false
bool	m_wantsFocus
bool	m_suppressNextContextMenuEvent
	If true, the context menu is not shown after right mouse release (usually set after a move).
bool	m_isPressed = false
VolumeViewPickingMode	m_3dPickingMode = VolumeViewPickingMode::On
InteractiveAnnotation *	m_interactiveAnnotation
vec3	m_center
vec2i	m_mouse0
vec2i	m_mouse
vec3	m_depthAxis
vec3	m_xAxis
vec3	m_yAxis
std::unique_ptr< GlVolumeView::PickingToken >	m_pickingToken
std::map< GlMesh *, int >	m_originalMeshPickingModes
MouseEvent::Button	m_lastButton
Qt::Key	m_abortCreationKey
Qt::Key	m_finishCreationKey

Member Enumeration Documentation

◆ VolumeViewPickingMode

enum class ImFusion::PointBasedAnnotationManipulator::VolumeViewPickingMode

strong

Enumeration to describe when PointBasedAnnotationManipulator should perform 3D position picking in GlVolumeViews.

Enumerator
On	Always on.
Off	Always off.
Automatic	Automatic based on annotation type, and presence of meshes in the AnnotationModel.

Member Function Documentation

◆ sceneEvent()

bool ImFusion::PointBasedAnnotationManipulator::sceneEvent	(	QEvent *	event,
		const GlView &	view )

overridevirtual

Implements ImFusion::Manipulator.

◆ setInteractionMode()

virtual void ImFusion::PointBasedAnnotationManipulator::setInteractionMode	(	PointBasedAnnotationManipulator::InteractionMode	mode,
		bool	finalize = true )

virtual

Sets the interaction mode.

Parameters

mode	interaction mode

◆ interactionMode()

InteractionMode ImFusion::PointBasedAnnotationManipulator::interactionMode ( ) const

inline

Returns the interactions mode.

Returns: interaction mode

◆ setAllowedInteractions()

void ImFusion::PointBasedAnnotationManipulator::setAllowedInteractions ( Flags< PointBasedAnnotationManipulator::InteractionMode > allowedInteractions )

inline

Sets allowed interactions.

Parameters

allowedInteractions allowed interactions

◆ allowedInteractions()

Flags< PointBasedAnnotationManipulator::InteractionMode > ImFusion::PointBasedAnnotationManipulator::allowedInteractions ( ) const

inline

Returns the allowed interactions.

Returns: allowed interactions

◆ setHovering()

void ImFusion::PointBasedAnnotationManipulator::setHovering ( bool hovering )

inline

Sets the hovering behavior (i.e.

whether to update the point set on mouse hovering events)

Parameters

hovering true to enable hovering support

◆ hovering()

bool ImFusion::PointBasedAnnotationManipulator::hovering ( ) const

inline

Returns whether hovering support is enabled.

Returns: true if hovering support is enabled

◆ setHoverCursor()

virtual void ImFusion::PointBasedAnnotationManipulator::setHoverCursor ( )

virtual

Sets cursor to open hand.

Reimplemented in ImFusion::FreeformAnnotationManipulator.

◆ setInteractionCursor()

virtual void ImFusion::PointBasedAnnotationManipulator::setInteractionCursor ( )

virtual

Sets cursor to closed (grabbing) hand.

Reimplemented in ImFusion::FreeformAnnotationManipulator.

◆ requiresFocus()

bool ImFusion::PointBasedAnnotationManipulator::requiresFocus ( )

inlineoverridevirtual

Derived classes that need priority scene events can override this.

By definition only one manipulator can get served first, so use with care.

Reimplemented from ImFusion::Manipulator.

◆ onCreate()

virtual bool ImFusion::PointBasedAnnotationManipulator::onCreate	(	const MouseEvent &	event,
		vec3 &	X,
		bool &	update,
		const GlView &	view )

protectedvirtual

Handler for mouse events in the InteractionCreate mode.

Parameters

event	mouse event
update	true if the point set was changed (output parameter)

Reimplemented in ImFusion::LoopManipulator, and ImFusion::SmartSplineManipulator.

◆ onMove()

virtual bool ImFusion::PointBasedAnnotationManipulator::onMove	(	const MouseEvent &	event,
		vec3 &	X,
		bool &	update )

protectedvirtual

Handler for mouse events in the InteractionMove mode.

Parameters

event	mouse event
update	true if the point set was changed (output parameter)

Reimplemented in ImFusion::CurveEditorManipulator, and ImFusion::LoopManipulator.

◆ onAdd()

virtual bool ImFusion::PointBasedAnnotationManipulator::onAdd	(	const MouseEvent &	event,
		vec3 &	X,
		bool &	update )

protectedvirtual

Handler for mouse events in the InteractionAdd mode.

Parameters

event	mouse event
update	true if the point set was changed (output parameter)

Reimplemented in ImFusion::CurveEditorManipulator.

◆ onRemove()

virtual bool ImFusion::PointBasedAnnotationManipulator::onRemove	(	const MouseEvent &	event,
		vec3 &	X,
		bool &	update )

protectedvirtual

Handler for mouse events in the InteractionRemove mode.

Parameters

event	mouse event
update	true if the point set was changed (output parameter)

Reimplemented in ImFusion::CurveEditorManipulator.

◆ onEdit()

virtual bool ImFusion::PointBasedAnnotationManipulator::onEdit	(	const MouseEvent &	event,
		vec3 &	X,
		bool &	update,
		const GlView &	view )

protectedvirtual

Handler for mouse events in the InteractionEdit mode.

Parameters

event	mouse event
update	true if the point set was changed (output parameter)

Reimplemented in ImFusion::CurveEditorManipulator, and ImFusion::LoopManipulator.

◆ onScale()

virtual bool ImFusion::PointBasedAnnotationManipulator::onScale	(	const MouseEvent &	event,
		vec3 &	X,
		bool &	update )

protectedvirtual

Handler for mouse events in the InteractionScale mode.

Parameters

event	mouse event
update	true if the point set was changed (output parameter)

◆ onRotate()

virtual bool ImFusion::PointBasedAnnotationManipulator::onRotate	(	const MouseEvent &	event,
		vec3 &	X,
		bool &	update,
		const GlView &	view )

protectedvirtual

Handler for mouse events in the InteractionRotate mode.

Parameters

event	mouse event
update	true if the point set was changed (output parameter)

The documentation for this class was generated from the following file:

ImFusion/GUI/PointBasedAnnotationManipulator.h
