PointsOnData Class Reference

#include <ImFusion/Base/PointsOnData.h>

Interface class for points linked to Data. More...

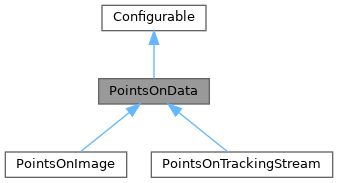

Inheritance diagram for PointsOnData:

Detailed Description

Interface class for points linked to Data.

Implementations of this class handle the addition of points and update of such points when the data changes. This class supports selection of a subset of points. Be default all the points are selected, selection can be changed using the setSelected method

Public Member Functions
const std::vector< vec3 > &	points () const
	Return all the points in world coordinates whether they are selected or not.
std::vector< vec3 >	selectedPoints () const
	Return the selected points in world coordinates.
virtual const std::vector< vec3 > &	allPoints () const =0
	Return all the points in world coordinates whether they are selected or not.
virtual const Data *	data () const =0
	Return the underlying data.
virtual void	remove (int first, int last)=0
	Remove the points in range [first,last)
void	remove (int index)
	Remove the point at index
virtual int	size () const
	Number of stored points ignoring the selection.
virtual bool	empty () const
	Check if the list of points is empty.
virtual void	clear ()
	Remove all the points.
virtual const vec3 &	point (int which) const
	Get a point in world coordinates. The index can be negative, in which case it is counted from the end.
std::string	name (int which) const
	Get the name of a point.
void	setName (std::string name, int which)
	Set the name of a point.
bool	isSelected (int which) const
	Checks whether a point is selected. By default all points are selected.
void	setSelected (int which, bool selected)
	Sets whether a point is selected or not. By default all points are selected.
int	find (const std::string &name, int start=0) const
	Get the first index of a point with the given name, starting from index start. Return -1 if not found.
virtual void	configurePoint (const Properties *p)=0
	Add the point described by the properties.
virtual void	pointConfiguration (Properties *p, int which) const =0
	Extract the configuration of the point at index
void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.
void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.
Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept

Public Attributes
Signal< int, int >	signalPointsChanged
	Signal emitted when the points in range [first, last) are updated.
Signal< int, int >	signalPointsAdded
	Signal emitted when points are added. The range [first, last) contains the new points.
Signal< int, int >	signalPointsRemoved
	Signal emitted when the points in range [first, last) are removed.
Signal< int, int >	signalPointsRenamed
	Signal emitted when the points in range [first, last) are renamed.
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Protected Attributes
std::vector< std::string >	m_names
std::vector< bool >	m_selection
	< names of the points
std::string	m_pointSetName
	Optional name of the point set.
Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Member Function Documentation

points()

const std::vector< vec3 > & points ( ) const

inline

Return all the points in world coordinates whether they are selected or not.

Deprecated

"If you want to ignore selection use allPoints(), otherwise use selectedPoints()"

allPoints()

virtual const std::vector< vec3 > & allPoints ( ) const

pure virtual

Return all the points in world coordinates whether they are selected or not.

Implemented in PointsOnImage, and PointsOnTrackingStream.

data()

virtual const Data * data ( ) const

pure virtual

Return the underlying data.

Implemented in PointsOnImage, and PointsOnTrackingStream.

remove()

virtual void remove ( int first, int last )

pure virtual

Remove the points in range [first,last)

Implemented in PointsOnImage, and PointsOnTrackingStream.

configurePoint()

virtual void configurePoint ( const Properties * p )

pure virtual

Add the point described by the properties.

Implemented in PointsOnImage, and PointsOnTrackingStream.

pointConfiguration()

virtual void pointConfiguration ( Properties * p, int which ) const

pure virtual

Extract the configuration of the point at index

Implemented in PointsOnImage, and PointsOnTrackingStream.

configure()

void configure ( const Properties * p )

overridevirtual

Configure this object instance by de-serializing the given Properties.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also

configuration() for the inverse functionality

Reimplemented from Configurable.

Reimplemented in PointsOnTrackingStream.

configuration()

void configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also

configure() for the inverse functionality

Reimplemented from Configurable.

Reimplemented in PointsOnTrackingStream.

---

The documentation for this class was generated from the following file:

• ImFusion/Base/PointsOnData.h
