#include <ImFusion/Reg/ImageRegistration.h>
High-level interface for image registration. More...

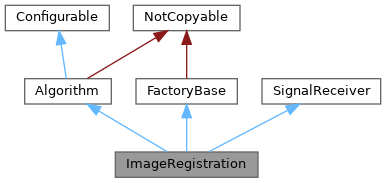

Inheritance diagram for ImageRegistration:High-level interface for image registration.
The image registration algorithm wraps several concrete image registration algorithms (e.g. linear and deformable) and extends them with pre-processing techniques. Available pre-processing options include downsampling and gradient-magnitude used for LC2. On creation, the algorithm tries to find the best settings for the registration problem depending on the modality, size and other properties of the input images. The image registration comes with a default set of different transformation models but new ones can be registered on runtime.
Public Types | |
| enum | TransformationModel { Linear = 0 , FFD = 1 , TPS = 2 , Demons = 3 , GreedyDemons = 4 , PolyRigid = 5 , DisaDemons = 6 , Gated4D = 7 , UserDefined = 100 } |
| Available registration models. Each one correlates to a certain AbstractImageRegistration subclass. More... | |
| enum | PreprocessingOptions { NoPreprocessing = 0 , RestrictMemory = 1 , AdjustSpacing = 2 , IgnoreFiltering = 4 , CacheResults = 16 , Normalize = 32 } |
| Flags to enable/disable certain preprocessing options. More... | |
| Public Types inherited from Algorithm | |
| enum | Status { Unknown = -1 , Success = 0 , Error = 1 , InvalidInput , IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU , UnknownAction , AbortedByUser , User = 1000 } |
| Status codes. More... | |
Public Member Functions | |
| ImageRegistration (SharedImageSet *image1, SharedImageSet *image2, TransformationModel dof=Linear, bool image2IsMoving=true) | |
| virtual bool | computePreprocessing () |
| Applies the pre-processing options on the input images. | |
| void | compute () override |
| Starts the registration. | |
| virtual void | reset () |
| Resets the transformation of moving to its initial transformation. | |
| void | setTransformationModel (TransformationModel dof) |
| Sets the transformation model for the registration. | |
| TransformationModel | transformationModel () const |
| const AbstractImageRegistration * | registrationObject () const |
| Returns the internal registration object that performs the actual registration. | |
| AbstractImageRegistration * | registrationObject () |
| const ParametricImageRegistration * | parametric () const |
| ParametricImageRegistration * | parametric () |
| bool | isDeformable () const |
| Returns true if the registration is based on Deformation object. | |
| void | setOptimizer (std::shared_ptr< Optimizer > opt) |
| Sets an optimizer. | |
| std::shared_ptr< Optimizer > | optimizer () |
| SharedImageSet * | image1 () const |
| SharedImageSet * | image2 () const |
| void | setMoving (SharedImageSet *moving) |
| Sets the image which will be modified. | |
| void | setFixed (SharedImageSet *fixed) |
| Sets the image which will be fixed. | |
| SharedImageSet * | fixed () const |
| SharedImageSet * | moving () const |
| SharedImageSet * | image1Preprocessed () const |
| Returns the preprocessed version of image1 or 0 if the preprocessing has not been applied yet. | |
| SharedImageSet * | image2Preprocessed () const |
| Returns the preprocessed version of image2 or 0 if the preprocessing has not been applied yet. | |
| void | setPreprocessingOptions (PreprocessingOptions options) |
| Sets which options should be enabled for preprocessing. | |
| PreprocessingOptions | preprocessingOptions () const |
| Returns the current preprocessing options as a bitwise OR combination. | |
| PreprocessingOptions | defaultPreprocessingOptions () const |
| Returns the default options for the current configuration. | |
| void | setMaximumMemory (int sizeInMB) |
| Restrict the memory used by the registration to the given amount in mebibyte. | |
| int | maximumMemory () const |
| Returns the current memory limit of the registration in mebibyte. | |
| bool | verbose () const |
| Returns whether info logs are enabled for this instance. | |
| void | setVerbose (bool flag) |
| Sets whether info logs are enabled for this instance. | |
| void | configure (const Properties *p) override |
| Configure this object instance by de-serializing the given Properties. | |
| void | configuration (Properties *p) const override |
| Serialize the current object configuration into the given Properties object. | |
| double | bestSimilarityValue () const |
| Returns the best value of the similarity measure after optimization. | |
| Public Member Functions inherited from Algorithm | |
| Algorithm () | |
| Default constructor will registers a single "compute" action that calls compute() and returns status(). | |
| virtual OwningDataList | takeOutput () |
| Return any new Data that was created by the Algorithm during the last call to compute(). | |
| virtual void | setProgress (Progress *progress) |
| Sets a Progress interface the algorithm can use to notify observers about its computing progress. | |
| Progress * | progress () const |
| Returns the progress interface if set. | |
| virtual int | status () const |
| Indicates the status of the last call to compute(). | |
| virtual bool | survivesDataDeletion (const Data *) const |
| Indicates whether the algorithm can handle (partial) deletion of the specified data, by default this checks whether the data is in the input list. | |
| const FactoryInfo & | factoryInfo () const |
| Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory. | |
| void | setFactoryInfo (const FactoryInfo &value) |
| Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory. | |
| Status | runAction (const std::string &id) |
Run the action with name id if it exists. | |
| const std::vector< Action > & | actions () |
| Get a mapping from Action id to Action as registered in this algorithm. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
| Public Member Functions inherited from FactoryBase | |
| FactoryBase () | |
| No license check is performed for the module instantiated with this constructor. | |
| FactoryBase (std::string module, bool checkLicense=true) | |
| std::string | moduleName () const |
| Returns the module name of the factory. | |
| Public Member Functions inherited from SignalReceiver | |
| SignalReceiver ()=default | |
| Default constructor. | |
| SignalReceiver (const SignalReceiver &other) | |
| Copy constructor, does not copy any existing signal connections from other. | |
| SignalReceiver & | operator= (SignalReceiver rhs) |
| Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs. | |
| virtual | ~SignalReceiver () |
| Virtual destructor disconnects from all connected signals. | |
Static Public Member Functions | |
| static bool | createCompatible (const DataList &data, Algorithm **a=0) |
| If data is compatible with algorithm return true. If a is not zero, create algorithm with input data. | |
| template<typename T> | |
| static bool | registerTransformationModel (TransformationModel id, const std::string &name) |
| Registers a AbstractImageRegistration subclass to the avaiable transformation models. | |
| static bool | registerTransformationModel (TransformationModel id, const std::string &name, std::function< AbstractImageRegistration *(SharedImageSet *, SharedImageSet *)> createFunc, std::function< bool(SharedImageSet *, SharedImageSet *)> compatibleFunc) |
| Registers a AbstractImageRegistration subclass to the available transformation models. | |
| static bool | unregisterTransformationModel (TransformationModel id) |
| Unregisteres a transformation model. | |
| static std::vector< TransformationModel > | registeredTransformationModels () |
| Returns a list of all registered transformation models. | |
| static std::string | transformationModelName (TransformationModel model) |
| Returns the name for the given model or an empty string if the model is unknown. | |
| static bool | isTransformationModelCompatible (TransformationModel model, SharedImageSet *img1, SharedImageSet *img2) |
| Returns true if the transformation model can work with the given images. | |
| static void | setErodedZeroMask (SharedImageSet *img, int erosionSize=1) |
| Sets a zero-intensity mask onto the given image, eroded by one or more pixels to avoid numerical stepping problems. | |
| Static Public Member Functions inherited from Algorithm | |
| static bool | createCompatible (const DataList &data, Algorithm **a=nullptr) |
| Factory function to check algorithm compatibility with input data and optionally instantiate it. | |
Additional Inherited Members | |
| Public Attributes inherited from Algorithm | |
| Signal | signalOutputChanged |
| Signal should be emitted by Algorithms when their output/result has changed. | |
| Signal | signalParametersChanged |
| Signal should be emitted by Algorithms when their parameter configuration has changed. | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
| Protected Member Functions inherited from Algorithm | |
| void | loadDefaults () |
| void | registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action) |
| Register an action to be run via runAction. | |
| template<typename D> | |
| void | registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void)) |
| Template version of runAction that can be used with a pointer to a member function. | |
| void | registerAction (const Action &action) |
| Register an action. | |
| Protected Member Functions inherited from FactoryBase | |
| virtual | ~FactoryBase () |
| Virtual destructor. | |
| std::string | getComponentPath (const std::string &componentName) const |
Returns the path to the component referred to by name. | |
| bool | isLicensed (const std::string &name) |
Return true if the license allows the use of the component referred to by name. | |
| Protected Member Functions inherited from SignalReceiver | |
| void | disconnectAll () |
| Disconnects all existing connections. | |
| Static Protected Member Functions inherited from FactoryBase | |
| static std::string | getComponentPath (const std::string &moduleName, const std::string &componentName) |
Returns the path to the component referred to by name. | |
| static bool | isLicensed (const std::string &moduleName, const std::string &name) |
Return true if the license allows the use of the component referred to by name. | |
| Protected Attributes inherited from Algorithm | |
| std::string | m_name |
| Algorithm name. | |
| Progress * | m_progress = nullptr |
| Non-owing pointer to a progress interface. May be a nullptr. | |
| FactoryInfo | m_factoryInfo = {} |
| Record describing how this algorithm was instantiated by the AlgorithmFactory. | |
| int | m_status = Status::Unknown |
| Algorithm status after last call to compute() | |
| std::vector< Action > | m_actions |
| Map of key given by the id of the action, of the available actions of this algorithm. | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
| Protected Attributes inherited from FactoryBase | |
| std::string | m_factoryModule |
| bool | m_checkLicense |
| enum TransformationModel |
Available registration models. Each one correlates to a certain AbstractImageRegistration subclass.
| Enumerator | |
|---|---|
| Linear | 6 (rigid) or 12 (affine) DOF registration |
| FFD | Registration with non-linear Free-Form deformations. |
| TPS | Registration with non-linear Thin-Plate-Splines deformations. |
| Demons | Registration with non-linear dense (per-pixel) deformations. |
| GreedyDemons | Registration with non-linear dense (per-pixel) deformations using patch-based SimilarityMeasures. |
| PolyRigid | Registration with poly-rigid (i.e. partially piecewise rigid) deformations. |
| DisaDemons | Registration with non-linear dense (per-pixel) deformations, computed using DISA features (Ronchetti et al., 2023) |
| Gated4D | Same as linear, but for 4D-4D registration with a GatingMetadata in either of the two models. |
| UserDefined | First model that can be used for user defined transformation models (see registerTransformationModel) |
| enum PreprocessingOptions |
Flags to enable/disable certain preprocessing options.
| Enumerator | |
|---|---|
| NoPreprocessing | Disable preprocessing completely (this cannot be ORed with other options) |
| RestrictMemory | Downsamples the images so that the registration will not use more than a given maximum of (video) memory. |
| AdjustSpacing | if the spacing difference of both images is large, the spacing of the adjusted to the smaller one |
| IgnoreFiltering | Ignore any PreProcessingFilter required by the AbstractImageRegistration object. |
| CacheResults | Store PreProcessing results and only re-compute if necessary. |
| Normalize | Normalize images to float range [0.0, 1.0]. |
|
inlinestatic |
Registers a AbstractImageRegistration subclass to the avaiable transformation models.
The template type T must derive from AbstractImageRegistration. Each registered transformation model is a assigned to the given id. If a an id is already taken, false is returned. User defined transformation model should be assigned to ids starting from TransformationModel::UserDefined. It is up to the user to find non-overlapping ids when registering multiple models (e.g. use registeredTransformationModel to find a free id). The given name will be used to store and retrieve the configuration for the registration object.
|
static |
Unregisteres a transformation model.
Returns true if the model is registered and was successfully unregistered.
|
virtual |
Applies the pre-processing options on the input images.
The results of the pre-processing is always stored in extra images, the input images will remain unchanged. The pre-processed images share the transformation with the input images, i.e. changing the transformation on the pre-processed images also changes it on the input ones and vice versa. If several pre-processing options are applied on the same image, their results are combined into one image. The preprocessing options are applied in the following order:
AdjustSpacing
|
overridevirtual |
Starts the registration.
Implements Algorithm.
| void setTransformationModel | ( | TransformationModel | dof | ) |
Sets the transformation model for the registration.
If the transformation model changes the current registrationObject will be deleted and a new created. The configuration of the current model will be saved and the new model will be configured with any previously saved configuration for that model. Any attached identity deformations are removed from both images.
| void setMoving | ( | SharedImageSet * | moving | ) |
Sets the image which will be modified.
Must be either image1 or image2. Calling this function will re-create the registration object if image1 is not fixed or image2 is not moving.
| void setFixed | ( | SharedImageSet * | fixed | ) |
Sets the image which will be fixed.
Must be either image1 or image2. Calling this function will re-create the registration object if image1 is not fixed or image2 is not moving.
| void setPreprocessingOptions | ( | PreprocessingOptions | options | ) |
Sets which options should be enabled for preprocessing.
The options are bitwise OR combination of PreprocessingOptions.
| void setMaximumMemory | ( | int | sizeInMB | ) |
Restrict the memory used by the registration to the given amount in mebibyte.
The value can be set in any case but will only have an effect if RestrictMemory is enabled. The restrict video memory as well. The mininum size is 64 MB (the value will be clamped).
|
overridevirtual |
Configure this object instance by de-serializing the given Properties.
The default implementation will do so automatically for all registered Parameter and SubProperty instances.
Reimplemented from Configurable.
|
overridevirtual |
Serialize the current object configuration into the given Properties object.
The default implementation will do so automatically for all registered Parameter and SubProperty instances.
Reimplemented from Configurable.
|
static |
Sets a zero-intensity mask onto the given image, eroded by one or more pixels to avoid numerical stepping problems.
| erosionSize | gives the number of pixels that are eroded. |
