#include <ImFusion/CT/MetalArtifactReduction.h>
Metal artifact reduction algorithm for CT reconstruction. More...

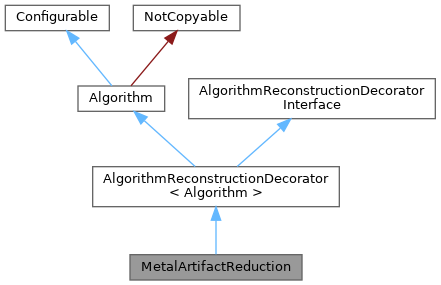

Inheritance diagram for MetalArtifactReduction:Metal artifact reduction algorithm for CT reconstruction.
Wraps a reconstruction algorithm to compute initial reconstruction for metal detection. Optionally accepts pre-computed reconstruction for metal region detection.
Public Member Functions | |
| MetalArtifactReduction (SharedImageSet &data, SharedImageSet *vol=nullptr) | |
| Constructor. | |
| void | compute () override |
| Execute the algorithm. | |
| OwningDataList | takeOutput () override |
| Return any new Data that was created by the Algorithm during the last call to compute(). | |
| SharedImageSet * | projMetalMask () |
| Public Member Functions inherited from AlgorithmReconstructionDecorator< Algorithm > | |
| AlgorithmReconstructionDecorator (SharedImageSet &cbData) | |
| Constructor with reference to cone-beam data. | |
| AlgorithmReconstructionDecorator (std::unique_ptr< SharedImageSet > cbData) | |
| Constructor taking ownership of cone-beam data. | |
| virtual | ~AlgorithmReconstructionDecorator () override=0 |
| Virtual destructor. | |
| void | configure (const Properties *p) override |
| void | configuration (Properties *p) const override |
| void | setProgress (Progress *progress) override |
| bool | survivesDataDeletion (const Data *) const override |
| Check if data is not in the input list but is using by the algorithm. | |
| ReconstructionAlgorithm * | getReconAlgorithm () override |
| Public Member Functions inherited from Algorithm | |
| Algorithm () | |
| Default constructor will registers a single "compute" action that calls compute() and returns status(). | |
| Progress * | progress () const |
| Returns the progress interface if set. | |
| virtual int | status () const |
| Indicates the status of the last call to compute(). | |
| const FactoryInfo & | factoryInfo () const |
| Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory. | |
| void | setFactoryInfo (const FactoryInfo &value) |
| Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory. | |
| Status | runAction (const std::string &id) |
Run the action with name id if it exists. | |
| const std::vector< Action > & | actions () |
| Get a mapping from Action id to Action as registered in this algorithm. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
Static Public Member Functions | |
| static bool | createCompatible (const DataList &data, Algorithm **a=nullptr) |
| Static Public Member Functions inherited from Algorithm | |
| static bool | createCompatible (const DataList &data, Algorithm **a=nullptr) |
| Factory function to check algorithm compatibility with input data and optionally instantiate it. | |
Public Attributes | |
| Parameter< bool > | p_inPlace = {"inPlace", false, *this} |
| Boolean variable indicating whether to inpaint the projections in place. | |
| Parameter< double > | p_metalThreshold = {"metalThreshold", 0.0, *this} |
| Threshold for masking the metal region. | |
| Parameter< int > | p_gaussianKernelSize = {"gaussianKernelSize", 15, *this} |
| Kernel size of the Gaussian smoothing filter. | |
| Parameter< int > | p_morphologicalOpSize = {"morphologicalOpSize", 3, *this} |
| Kernel size of the morphological operation. | |
| Parameter< bool > | p_outputProjectionMasks = {"outputProjectionMasks", false, *this} |
| Whether to output the masks on projections for convenience of debugging. | |
| Public Attributes inherited from AlgorithmReconstructionDecorator< Algorithm > | |
| SubProperty< std::unique_ptr< ReconstructionAlgorithm > > | p_reconAlgorithm |
| Reconstruction algorithm for computing the intermediate CT volume. | |
| Public Attributes inherited from Algorithm | |
| Signal | signalOutputChanged |
| Signal should be emitted by Algorithms when their output/result has changed. | |
| Signal | signalParametersChanged |
| Signal should be emitted by Algorithms when their parameter configuration has changed. | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
Protected Attributes | |
| SharedImageSet * | m_inputVol = nullptr |
| std::unique_ptr< SharedImageSet > | m_imgOut |
| Output images. | |
| std::unique_ptr< SharedImageSet > | m_mask |
| Mask for metal regions. | |
| std::unique_ptr< SharedImageSet > | m_outputProjs |
| Output projections. Only set if p_inPlace is false. | |
| std::unique_ptr< SharedImageSet > | m_projMask |
| Mask for projections. | |
| Protected Attributes inherited from AlgorithmReconstructionDecorator< Algorithm > | |
| SharedImageSet & | m_cbData |
| ConeBeamData instance, storing projection data. | |
| std::unique_ptr< SharedImageSet > | m_cbDataOwn |
| Owning ConeBeamData, storing projection data. | |
| Protected Attributes inherited from Algorithm | |
| std::string | m_name |
| Algorithm name. | |
| Progress * | m_progress = nullptr |
| Non-owing pointer to a progress interface. May be a nullptr. | |
| FactoryInfo | m_factoryInfo = {} |
| Record describing how this algorithm was instantiated by the AlgorithmFactory. | |
| int | m_status = Status::Unknown |
| Algorithm status after last call to compute() | |
| std::vector< Action > | m_actions |
| Map of key given by the id of the action, of the available actions of this algorithm. | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
Additional Inherited Members | |
| Public Types inherited from Algorithm | |
| enum | Status { Unknown = -1 , Success = 0 , Error = 1 , InvalidInput , IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU , UnknownAction , AbortedByUser , User = 1000 } |
| Status codes. More... | |
| Protected Member Functions inherited from Algorithm | |
| void | loadDefaults () |
| void | registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action) |
| Register an action to be run via runAction. | |
| template<typename D> | |
| void | registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void)) |
| Template version of runAction that can be used with a pointer to a member function. | |
| void | registerAction (const Action &action) |
| Register an action. | |
| MetalArtifactReduction | ( | SharedImageSet & | data, |
| SharedImageSet * | vol = nullptr ) |
Constructor.
| data | Cone-beam projection data |
| vol | Optional pre-computed reconstruction volume for metal detection |
|
overridevirtual |
Execute the algorithm.
Implements Algorithm.
|
overridevirtual |
