VitalsDataController Class Reference

#include <ImFusion/GL/GlVitalsOverlay.h>

GUI controller to show the GlVitalsOverlay. More...

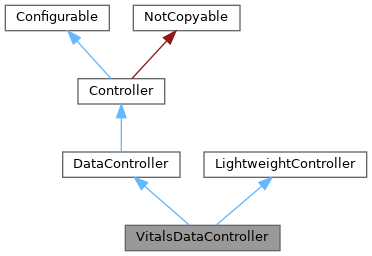

Inheritance diagram for VitalsDataController:

Detailed Description

GUI controller to show the GlVitalsOverlay.

Public Member Functions
	VitalsDataController (SharedImageSet *sis)
void	init () override
	Two-step initialization function to be implemented by subclasses.
std::string	title () const override
	Returns the shown widget title if the controller is shown in a mode that supports this (e.g.
void	setDisplay (GUI::RadiologyDisplay *disp) override
	Needed to support operation in Labels without MainWindowBase.
void	onSelectedDataChanged (const DataList &data) override
	React when a different image set is selected.
void	onVisibleDataChanged (const DataList &data) override
	Called by MainWindowBase in the case that the currently visible data has changed.
std::vector< Location >	supportedLocations () const override
	Returns the list of locations in which this controller is allowed to be placed by the parent MainWindowBase.
Location	preferredLocation () const override
	Returns the preferred location in which the parent MainWindowBase should place this controller.
Public Member Functions inherited from DataController
std::string	factoryName () const
	Returns the name used to identify this DataController in the factory.
void	setFactoryName (const std::string &factoryName)
	Sets the name used to identify this DataController in the factory.
Public Member Functions inherited from Controller
void	setMainWindowBase (MainWindowBase *mw)
	Complete the initialization by providing the parent MainWindowBase instance hosting the controller by setting m_main and m_disp and eventually call init().
virtual void	onLocationChanged (Location newLocation)
	Callback function called by the parent MainWindowBase/ControllerDecorator whenever the place was changed.
Location	location () const
	Convenience function to query the current controller Location from the parent ControllerDecorator.
ControllerDecorator *	getDecorator () const
	Convenience function to return m_main->getControllerDecorator(this) if m_main is set or nullptr otherwise.
template<typename T>
T *	getDecorator () const
	Convenience function to dynamic_cast the return value of getDecorator() to a derived type.
Public Member Functions inherited from Configurable
virtual void	configure (const Properties *p)
	Configure this object instance by de-serializing the given Properties.
virtual void	configuration (Properties *p) const
	Serialize the current object configuration into the given Properties object.
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept

Static Public Member Functions
static bool	createCompatible (const DataList &data, DataController **a=0)
Static Public Member Functions inherited from DataController
static bool	createCompatible (const DataList &, DataController **=0)
	Factory interface for DataControllers: If data is compatible with data controller return true.

Protected Member Functions
bool	supportsToolBar () const override
	Subclasses can return true if they support showing their GUI in Location::ToolBar.

Additional Inherited Members
Public Types inherited from Controller
enum class	Location : int {   Unknown = -1 , Naked = 0 , PrimaryDock = 1 , SecondaryDock = 2 ,   Detached = 3 , ToolBar = 4 , UserLocation = 100 }
	Enumeration of possible placement/decoration options of a Controller. More...
Public Attributes inherited from Controller
Signal	signalTitleChanged
	Signal emitted when the title() has changed.
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.
Protected Attributes inherited from DataController
std::string	m_factoryName
Protected Attributes inherited from Controller
MainWindowBase *	m_main = nullptr
	The parent MainWindowBase instance hosting this Controller.
DisplayWidgetMulti *	m_disp = nullptr
	The main DisplayWidget instance, convenience shortcut for m_main->display().
Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Member Function Documentation

init()

void init ( )

overridevirtual

Two-step initialization function to be implemented by subclasses.

This function is called by setMainWindowBase() after the m_disp and m_main attributes have been set and hence a complete initialization of the controller is possible at this point.

Reimplemented from DataController.

title()

std::string title ( ) const

overridevirtual

Returns the shown widget title if the controller is shown in a mode that supports this (e.g.

when in dock). Unless overridden, it returns the factory name.

Reimplemented from DataController.

setDisplay()

void setDisplay ( GUI::RadiologyDisplay * disp )

overridevirtual

Needed to support operation in Labels without MainWindowBase.

Implements LightweightController.

onSelectedDataChanged()

void onSelectedDataChanged ( const DataList & data )

overridevirtual

React when a different image set is selected.

Reimplemented from Controller.

onVisibleDataChanged()

void onVisibleDataChanged ( const DataList & )

overridevirtual

Called by MainWindowBase in the case that the currently visible data has changed.

Reimplemented from Controller.

supportedLocations()

std::vector< Location > supportedLocations ( ) const

inlineoverridevirtual

Returns the list of locations in which this controller is allowed to be placed by the parent MainWindowBase.

If the controller should not be placed/wrapped by the host but stand by itself you should return a list containing only Location::Naked.

Reimplemented from DataController.

preferredLocation()

Location preferredLocation ( ) const

inlineoverridevirtual

Returns the preferred location in which the parent MainWindowBase should place this controller.

If the controller should not be placed/wrapped by the host but stand by itself you should return Location::Naked.

Reimplemented from DataController.

supportsToolBar()

bool supportsToolBar ( ) const

inlineoverrideprotectedvirtual

Subclasses can return true if they support showing their GUI in Location::ToolBar.

This interface is used by the default implementation of supportedLocations() and preferredLocation() to decide whether to use Location::ToolBar.

Reimplemented from DataController.

---

The documentation for this class was generated from the following file:

• ImFusion/GL/GlVitalsOverlay.h
