RadiologyDisplay Class Reference

#include <ImFusion/GUI/RadiologyDisplay.h>

Specialization of a Display that provides an off-the-shelf setup typically present in radiology workstations. More...

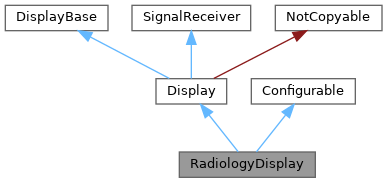

Inheritance diagram for RadiologyDisplay:

Detailed Description

Specialization of a Display that provides an off-the-shelf setup typically present in radiology workstations.

This class serves as convenience wrapper aggregating several helper classes and providing syntactic sugar:

• It has a RadiologyViewGroup so that a 2D image view, as well as 3 MPR views and a VolumeView are present.
• It has a RadiologyViewOverlays instance so that you can easily add and maintain common ViewOverlays. The RadiologyDisplay constructor will not ask it to create any overlays, thus this has to be done by the user.
• It has a DisplayAutoLayouter so that all views are automatically shown in a useful default way.
• You can optionally enable setAutomaticallyShowHideViews() so that only Views with active datasets are shown.
• It provides a set of convenience getter functions to directly access important entities inside.

GUI::RadiologyDisplay display;

// create common ViewOverlays as needed
display.mainViewOverlays().addOverlays(display.views(), RadiologyViewOverlays::OverlayType::AllOverlays);

// select a particular view layout
display.layouter().setCurrentMode(DisplayAutoLayouter::Mode::FocusPlusStack);
display.layouter().setFocusedView(&display.main3dView());

// show a dataset
display.mainViewGroup().showData(image);

Public Member Functions
	RadiologyDisplay (DataModel *dataModel)
bool	automaticallyShowsHidesViews () const
	Returns the flag whether to automatically show a view when it shows datasets and hide it when it becomes empty.
void	setAutomaticallyShowHideViews (bool value)
	Sets the flag whether to automatically show a view when it shows datasets and hide it when it becomes empty.
void	requestViewVisibility (const std::vector< const View * > views, bool value)
	Sets whether the given set of views should be shown by the layouter() if applicable or not.
SliceView &	main2dView ()
	Returns the SliceView of mainViewGroup() for showing 2D data.
SliceView &	mainAxialView ()
	Returns the axial MPR SliceView of mainViewGroup() for showing 3D data.
SliceView &	mainCoronalView ()
	Returns the sagittal MPR SliceView of mainViewGroup() for showing 3D data.
SliceView &	mainSagittalView ()
	Returns the coronal MPR SliceView of mainViewGroup() for showing 3D data.
VolumeView &	main3dView ()
	Returns the VolumeView of mainViewGroup() for showing 3D data.
std::vector< SliceView * >	mainMprViews ()
	Returns the three MPR views of mainViewGroup for showing 3D data.
RadiologyViewGroup &	mainViewGroup ()
	Returns the main RadiologyViewGroup hosting the 2D view, the three MPR views, and the 3D VolumeView.
RadiologyViewOverlays &	mainViewOverlays ()
	Returns the RadiologyViewOverlays instance enabling you to easily create and maintain common ViewOverlays.
DisplayAutoLayouter &	layouter ()
	Returns the DisplayAutoLayouter used to perform automatic layouting of the views.
void	addView (std::unique_ptr< View > view) override
	Adds the given view to this display surface.
std::unique_ptr< View >	removeView (View *view) override
	Remove view from this display surface again.
void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.
void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.
Public Member Functions inherited from Display
std::vector< View * >	views () const override
	Returns all views hosted by this display.
DisplayLayout &	layout () override
	Returns the DisplayLayout determining how views are distributed within the viewport.
GL::Viewport	viewport () const override
	Returns the viewport of this display surface in OpenGL coordinates (origin in lower-left corner).
virtual void	setViewport (const GL::Viewport &viewport)
	Sets the viewport size of this display surface in OpenGL coordinates (origin in lower-left corner) and re-layouts the layout() if applicable.
const std::optional< vec3 > &	backgroundColor () const
	Returns the optional background color of the rendering area.
void	setBackgroundColor (const std::optional< vec3 > &value)
	Sets the optional background color of the rendering area.
void	setWatermark (const SharedImage &image)
	Sets a watermark image to be rendered on top of the display.
virtual void	render (std::string *outCriticalGlErrorMessage=nullptr) const
	Perform OpenGL-based rendering of the Display and all its Views.
EventResult	handleInputEvent (const InputEvent &event)
	Entry point for the dispatching of input events from users.
void	requestUpdate () override
	Request an update of the rendered display content.
Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.
Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept

Protected Member Functions
std::optional< DisplayLayoutConfig >	defaultLayoutConfig () const override
void	onViewVisibleDataChanged (View &view, const DataList &before, const DataList &after)
Protected Member Functions inherited from Display
virtual EventResult	handleKeyEvent (const KeyEvent &event)
virtual EventResult	handleMouseEvent (const MouseEvent &event)
virtual EventResult	handleTouchEvent (const TouchEvent &event)
virtual EventResult	handleContextMenuEvent (const ContextMenuEvent &event)
Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Protected Attributes
std::unique_ptr< DisplayAutoLayouter >	m_layouter
std::unique_ptr< RadiologyViewGroup >	m_rvg
std::unique_ptr< RadiologyViewOverlays >	m_viewOverlays
bool	m_automaticallyShowHideViews = false
Protected Attributes inherited from Display
std::vector< std::unique_ptr< View > >	m_views
DisplayLayout	m_layout
std::shared_ptr< DataDisplayDispatcher >	m_dataDisplayDispatcher
GL::Viewport	m_viewport
std::optional< vec3 >	m_backgroundColor = vec3::Zero()
std::unique_ptr< GL::VertexBuffer >	m_vbo
std::shared_ptr< const GlImage >	m_watermark
View *	m_mouseEventReceiver = nullptr
	View where the mouse was pressed and that therefore has the mouse focus.
View *	m_touchEventReceiver = nullptr
	View where a touch event was pressed and that therefore has the touch focus.
View *	m_lastEnteredView = nullptr
	View that where the last mouse enter event was posted to.
Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Attributes inherited from Display
Signal< View * >	signalViewAdded
	Signal emitted when a View was added.
Signal< View * >	signalViewRemoved
	Signal emitted when a View was removed.
Signal	signalUpdateRequested
	Signal emitted when scene has changed and a re-render is requested.
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Member Function Documentation

requestViewVisibility()

void requestViewVisibility	(	const std::vector< const View * >	views,
		bool	value )

Sets whether the given set of views should be shown by the layouter() if applicable or not.

This is a convenience function simply forwarding to layouter->setViewsHidden(views, !value).

Note

The underlying layouting algorithm may still decide to not show a view even if it was set to visible here. See DisplayAutoLayouter::setViewHidden() for a detailed explanation.

addView()

void addView ( std::unique_ptr< View > view )

overridevirtual

Adds the given view to this display surface.

The default implementation will reset the DisplayLayout with the return value of defaultLayoutConfig() if valid.

Reimplemented from Display.

removeView()

std::unique_ptr< View > removeView ( View * view )

overridevirtual

Remove view from this display surface again.

The default implementation will reset the DisplayLayout with the return value of defaultLayoutConfig() if valid.

Reimplemented from Display.

configure()

void configure ( const Properties * p )

overridevirtual

Configure this object instance by de-serializing the given Properties.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also

configuration() for the inverse functionality

Reimplemented from Configurable.

configuration()

void configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also

configure() for the inverse functionality

Reimplemented from Configurable.

defaultLayoutConfig()

std::optional< DisplayLayoutConfig > defaultLayoutConfig ( ) const

overrideprotectedvirtual

Reimplemented from Display.

---

The documentation for this class was generated from the following file:

• ImFusion/GUI/RadiologyDisplay.h
