SpineBaseAlgorithmImpl Class Reference

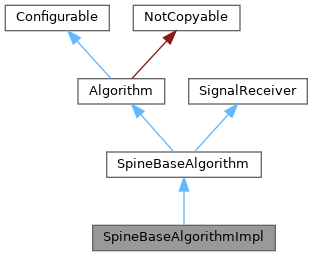

Inheritance diagram for SpineBaseAlgorithmImpl:

Static Public Member Functions
static bool	createCompatible (const DataList &data, Algorithm **a)
Static Public Member Functions inherited from SpineBaseAlgorithm
static bool	createCompatible (const DataList &data, Algorithm **a)
static const AnatomyPlugin::ModelFactory &	globalModelFactoryInstance ()
	Global model factory instance that contains e.g.
Static Public Member Functions inherited from Algorithm
static bool	createCompatible (const DataList &data, Algorithm **a=nullptr)
	Factory function to check algorithm compatibility with input data and optionally instantiate it.

Additional Inherited Members
Public Types inherited from Algorithm
enum	Status {   Unknown = -1 , Success = 0 , Error = 1 , InvalidInput ,   IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU ,   UnknownAction , AbortedByUser , User = 1000 }
	Status codes. More...
Public Member Functions inherited from SpineBaseAlgorithm
	SpineBaseAlgorithm (SharedImageSet *source, SharedImageSet *label=nullptr)
	SpineBaseAlgorithm (SharedImageSet *source, SpineData *spineData)
	SpineBaseAlgorithm (SharedImageSet *source, std::unique_ptr< SpineData > spineData)
void	compute () override
	Execute the algorithm.
OwningDataList	takeOutput () override
	Return any new Data that was created by the Algorithm during the last call to compute().
std::unique_ptr< SpineData >	takeSpineData ()
	Take ownership of the current SpineData object.
void	setSpineData (std::unique_ptr< SpineData > spineData)
	Set new SpineData object for the algorithm to work with.
SpineData &	spineData ()
	Access to the current SpineData object.
Algorithm::Status	localiseVertebrae ()
	Run vertebra localisation.
void	addVertebraByBody (vec3 bodyPos, bool rerunClassification=true)
	Add vertebra with a specified body position Uses the localisation prediction to find the closest matching body of a vertebra, and adds corresponding vertebra If rerunClassification is set, the classification of the vertebrae including neural network is run again.
Algorithm::Status	addVertebraeByMatchingKeypoints (const std::vector< std::tuple< vec3, double > > &bodyKps, const std::vector< std::tuple< vec3, double > > &leftKps, const std::vector< std::tuple< vec3, double > > &rightKps)
	Add a set of vertebrae by providing body, left pedicle, and right pedicle lists.
void	addVertebraByKeypoints (std::vector< vec3 > keypoints, bool rerunClassification=true)
	Add vertebra explicitly by keypoints Keypoint order is: body, left-keypoint, right-keypoint.
void	addVertebra (std::unique_ptr< OrientedVertebra > vertebra, bool rerunClassification=true)
	Add an oriented vertebra directly The vertebra automatically gets sorted over the z axis.
void	deleteVertebra (int index)
	Delete a vertebra at index. Number of vertebrae will decrease and indices of subsequent vertebrae will shift.
void	clearVertebrae ()
	Clear all vertebrae.
void	reset ()
	Reset algorithm state to initial state on construction (will still keep pointing to the original input data)
void	reset (SharedImageSet *source, SharedImageSet *label, const std::vector< vec3 > &bodies, const std::vector< vec3 > &left, const std::vector< vec3 > &right, bool loadSegmentationMeshes=true)
	Reset algorithm state to point to new input data, guess keypoints/classifications based on provided list of body/left/right keypoints If this guessing fails, then classification models are run to reclassify the keypoints.
Algorithm::Status	classifyVertebraType (bool skipPrediction=false)
	Run deep learning based classification, and subsequent Markov Chain based optimal sequence To only run the Markov Chain optimal sequence, e.g.
int	nVertebrae () const
	Number of vertebrae.
int	closestVertebraByBody (vec3 bodyPos) const
	Get the index of the vertebra with the closest body position to bodyPos return index if there are vertebrae present, and -1 if not vertebra exist and there is no possible match.
std::vector< vec3 >	vertebraBodyPositions () const
	Return a list of detected vertebra body positions; coordinates are in world coordinates.
std::vector< vec3 >	vertebraCenterPositions () const
	Return a list of centers of the detected vertebrae; coordinates are in world coordinates.
std::vector< vec3 >	getKeypoints (int index) const
	Return keypoints of vertebra with index 'index'.
std::vector< std::string >	vertebraTypes () const
	Return types of all vertebrae in string form.
void	pinVertebraType (std::string sourceName, std::string pinName)
	Pin vertebra type to a known type.
void	pinVertebraType (int index, std::string pinName)
	Pin vertebra at 'index' to a known type.
std::unique_ptr< SharedImageSet >	segmentVertebraAsImage (int index)
	Returns the prediction of the current segmentation model for the vertebra at index 'index'.
std::shared_ptr< SharedImageSet >	cropVertebra (int index)
	Crop a vertebra region from the source image.
std::unique_ptr< Mesh >	segmentVertebra (int index, bool highRes=false)
	Return a mesh of vertebra at index 'index' Result is a mesh for the entire vertebra.
std::unique_ptr< Mesh >	segmentVertebraOnly (vec3 center, bool highRes=false)
	Run Segmentation of the vertebra around position 'center' Finds the closest matching vertebra body to 'center' and runs the segmentation and mesh generation there Result is a mesh for the entire vertebra.
std::unique_ptr< SharedImageSet >	vertebraSegmentation ()
	To be used after calling segmentVertebra() or segmentVertebraOnly() Return the corresponding vertebra segmentation as an image and also takes ownership of this segmentation Therefore should be only called once after a call to segmentVertebra()
std::unique_ptr< SharedImageSet >	foramenSegmentation ()
	To be used after calling segmentVertebra() or segmentVertebraOnly() Return the corresponding foramen segmentation as an image and also takes ownership of this segmentation Therefore should be only called once after a call to segmentVertebra()
mat4	estimateVertebraMatrix (int vertebraIndex, bool cropMode=false)
	Estimate the orientation matrix corresponding to vertebra at index vertebraIndex localiseVertebrae() must have been called before using this function.
std::vector< std::unique_ptr< Mesh > > &	meshes ()
	Returns current output meshes, depending on the algorithm used.
std::unique_ptr< SharedImageSet > &	output ()
	Return general output image, depending on algorithm used.
vec3	mainDirection ()
	Find the main direction of the spine (average of all vertebrae)
Algorithm::Status	segmentAllVertebrae ()
	Run segmentation on all vertebae.
SharedImageSet *	source ()
	Access current source image.
SharedImageSet *	originalSource ()
	Original Source pointer.
double	sourceVolume ()
	Calculate volume of current image in mm^3.
Geometry::AlignedBox	predictSpineBounds ()
	Runs a neural network based Spine prediction on the input image.
virtual std::unique_ptr< SharedImageSet >	predictSpineMask ()
	Predict a mask image that forms an area around the spine.
void	setBounds (Geometry::AlignedBox bounds, double scaleFactor=1.5)
	Set the region of interest bounds for spine processing.
virtual void	setSpline (Spline const *spline)
std::unique_ptr< SharedImageSet >	exportLabelMap (bool resampleToSource)
	Exports current segmentations as a label map Optionally resamples the result towards the source image, which is required in case of creating a labeling.
std::unique_ptr< SharedImageSet >	exportLabelMapWithConvertToMultiLabel ()
	Export segmentations as a multi-label image Converts vertebra segmentations to a single multi-label image where each vertebra has a unique label.
std::vector< int >	exportTypeIds ()
	Export the type IDs of all segmented vertebrae.
void	getAngles (std::unique_ptr< std::vector< double > > &x_angles, std::unique_ptr< std::vector< double > > &y_angles, std::unique_ptr< std::vector< double > > &z_angles)
	Calculate angles between subsequent vertebrae (deprecated)
Algorithm::Status	segmentDiscs ()
	Segment vertebral discs in the image.
Algorithm::Status	localizeDiscs ()
	Localize vertebral discs in the image.
const std::vector< std::unique_ptr< OrientedVertebra > > &	vertebrae () const
	Direct accessor to vertebra structures.
std::vector< std::unique_ptr< OrientedVertebra > > &	vertebrae ()
bool	estimateVertebraeFromLabels (bool useLocalization=false)
	Estimate vertebrae keypoints from a label image.
bool	hasLabel ()
	Check if the algorithm has a label image associated with it.
bool	hasSacrum ()
	Check if a sacrum vertebra is present in the current spine data.
bool	segmentPelvis (bool joinLeftAndRightPelvis=false)
	Segment the pelvis.
bool	segmentPelvisDetectionSegmentationWorkflow (bool joinLeftAndRightPelvis=false)
bool	segmentSacrum ()
	Segment the sacrum bone.
bool	segmentIlium ()
	Segment Ilium, requires positions to be detected by localiseVertebrae.
bool	predictSacrumKeypoints ()
	Run a dedicated sacrum keypoint model at the position of the current localised sacrum.
std::vector< vec3 >	detectHipCenters ()
	Detect hip center positions using machine learning model.
bool	saveState (std::ostream &out)
	Save the current algorithm state to an output stream.
bool	loadState (std::istream &in)
	Load algorithm state from an input stream.
bool	saveState (std::string path)
	Save the current algorithm state to a file.
bool	loadState (std::string path)
	Load algorithm state from a file.
std::vector< std::string >	availableModelNames () const
	Returns the available model names.
const std::string &	currentModelName () const
	Return current modelset name.
bool	setModelByName (const std::string &modelSetVersion)
	Deprecation layer to sets the ModelSet by what was the model name.
Algorithm::Status	consolidateOverlappingSegmentationsAndMeshes ()
	Run Consolidation process to avoid overlapping segmentations and meshes Requires segmentations to be computed beforehand and stored by setting p_savePredictions.
Data::Modality	sourceModality () const
void	clearCache ()
	Clear all cached data including cluster results, type predictions, and context predictions.
void	clearTypePredictionCache ()
	Clear the cached type prediction results, forcing recomputation on next classification.
void	clearSegmentationModelCache ()
	Clear the cached segmentation model, forcing model reload on next segmentation.
void	setVertebraMeshes (int index, std::vector< std::unique_ptr< Mesh > > &meshes)
std::unique_ptr< Mesh >	cleanMesh (std::unique_ptr< Mesh > mesh) const
	Clean a mesh by removing artifacts and improving quality.
std::unique_ptr< Mesh >	smoothMesh (std::unique_ptr< Mesh > mesh) const
	Smooth a mesh using surface smoothing algorithms.
vec3	projectOnSpline (vec3 pos, vec3 *tangent=nullptr) const
	Project a 3D position onto the spine spline curve.
void	runContextModel ()
	Force re-calculation of the context model Exposes context model re-calculation to SpineBaseController.
std::unique_ptr< Data >	cloneContextPredictionCache () const
	Clone the current context prediction cache.
AnatomyPlugin::ModelFactory &	modelFactory ()
	ModelFactory that holds the available model sets used for spine localisation, classification, and segmentation.
const AnatomyPlugin::ModelFactory &	modelFactory () const
	ModelFactory that holds the available model sets used for spine localisation, classification, and segmentation.
std::optional< std::string >	modelPath (const AnatomyPlugin::ModelFactory::ModelIdentifier &modelIdentifier) const
	Get the file path for a specific model.
bool	hasModel (const AnatomyPlugin::ModelFactory::ModelIdentifier &modelIdentifier) const
	Check if a specific model is available.
std::unique_ptr< ML::MachineLearningModel >	createModel (const AnatomyPlugin::ModelFactory::ModelIdentifier &modelIdentifier) const
	Create an instance of a machine learning model.
std::vector< AnatomyPlugin::ModelFactory::MLEngineName >	enginePreferenceOrder () const
	Get the preferred order of machine learning engines.
bool	setCurrentModelSet (const std::string &modelSetName, const std::string &modelSetVersion)
	Functions for choosing models.
const std::pair< AnatomyPlugin::ModelFactory::ModelSet::Name, AnatomyPlugin::ModelFactory::ModelSet::Version > &	currentModelSet ()
	Return the last model set using setCurrentModelSet().
const std::vector< std::pair< AnatomyPlugin::ModelFactory::ModelSet::Name, AnatomyPlugin::ModelFactory::ModelSet::Version > >	availableModelSets () const
void	logRegisteredModelSets (bool currentOnly=false) const
	Log all registered model sets or just the currently active combination of model, version, and engine.
Public Member Functions inherited from Algorithm
	Algorithm ()
	Default constructor will registers a single "compute" action that calls compute() and returns status().
virtual void	setProgress (Progress *progress)
	Sets a Progress interface the algorithm can use to notify observers about its computing progress.
Progress *	progress () const
	Returns the progress interface if set.
virtual int	status () const
	Indicates the status of the last call to compute().
virtual bool	survivesDataDeletion (const Data *) const
	Indicates whether the algorithm can handle (partial) deletion of the specified data, by default this checks whether the data is in the input list.
const FactoryInfo &	factoryInfo () const
	Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory.
void	setFactoryInfo (const FactoryInfo &value)
	Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory.
Status	runAction (const std::string &id)
	Run the action with name id if it exists.
const std::vector< Action > &	actions ()
	Get a mapping from Action id to Action as registered in this algorithm.
Public Member Functions inherited from Configurable
virtual void	configure (const Properties *p)
	Configure this object instance by de-serializing the given Properties.
virtual void	configuration (Properties *p) const
	Serialize the current object configuration into the given Properties object.
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept
Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.
Public Attributes inherited from SpineBaseAlgorithm
Parameter< double >	p_keypointSensitivity = {"keypointSensitivity", 0.2, *this}
Parameter< double >	p_classificationSensitivity = {"classificationSensitivity", 0.2, *this}
Parameter< double >	p_hipCenterDetectionThreshold = {"hipCenterDetectionThreshold", 0.95, *this}
Parameter< bool >	p_filterKeypointsByMask = {"filterKeypointsByMask", true, *this}
Parameter< SortingStrategy >	p_sortingStrategy = {"sortingStrategy", SortingStrategy::Spline, *this}
Parameter< bool >	p_savePredictions = {"savePredictions", false, *this}
Parameter< bool >	p_consolidatePredictions = {"consolidatePredictions", false, *this}
Parameter< double >	p_consolidateThreshold = {"consolidateThreshold", 0.4, *this}
Parameter< AnatomyPlugin::ModelFactory::MLEngineName >	p_preferredEngine = {"preferredEngine", "", *this}
Signal	m_spineUpdatedSignal
Public Attributes inherited from Algorithm
Signal	signalOutputChanged
	Signal should be emitted by Algorithms when their output/result has changed.
Signal	signalParametersChanged
	Signal should be emitted by Algorithms when their parameter configuration has changed.
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.
Protected Member Functions inherited from SpineBaseAlgorithm
void	setupSource (SharedImageSet *source)
void	setupModelSets ()
Algorithm::Status	printError (std::string message)
std::unique_ptr< SharedImageSet >	predictKeypoints (SharedImageSet *sis)
void	sortVertebrae ()
SharedImageSet *	getSourceCrop ()
ClusterResult *	getClusterResult ()
std::vector< vec3 >	detectPediclesFromSegmentation (SharedImage *segmentation)
void	updateSpline ()
void	fillHoles (SharedImageSet *data)
void	recenterMesh (Mesh *mesh, mat4 newCenter) const
std::vector< std::tuple< vec3, double > >	filterPointsByMask (std::vector< std::tuple< vec3, double > > &input)
virtual Algorithm::Status	localiseVertebrae_3kp ()
Algorithm::Status	localiseVertebrae_4kp ()
std::unique_ptr< SharedImageSet > &	fullSpineSegmentation ()
std::unique_ptr< Mesh >	extractMesh (SharedImageSet *input, OrientedVertebra &vertebra)
SharedImageSet *	getTypePrediction ()
Algorithm::Status	setTypeProbabilitiesFromBlobs ()
Algorithm::Status	predictAnatomyContext ()
Algorithm::Status	findCostoVertebralJointCandidates (std::map< std::string, size_t > *jointNameSizeMap=nullptr)
Algorithm::Status	setTypeProbabilitiesFromContext ()
Protected Member Functions inherited from Algorithm
void	loadDefaults ()
void	registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action)
	Register an action to be run via runAction.
template<typename D>
void	registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void))
	Template version of runAction that can be used with a pointer to a member function.
void	registerAction (const Action &action)
	Register an action.
Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.
Protected Attributes inherited from SpineBaseAlgorithm
SharedImageSet *	m_label
SharedImageSet *	m_originalSource = nullptr
std::unique_ptr< SharedImageSet >	m_source
std::unique_ptr< SpineData >	m_spineDataOwned
SpineData *	m_spineData = nullptr
bool	m_keypointsWereFiltered = false
std::unique_ptr< SharedImageSet >	m_output
std::vector< std::unique_ptr< Mesh > >	m_meshes
std::unique_ptr< SharedImageSet >	m_vertebraSegmentation
std::unique_ptr< SharedImageSet >	m_foramenSegmentation
std::unique_ptr< SharedImageSet >	m_spineMask
std::unique_ptr< SharedImageSet >	m_sourceCrop
Algorithm::Status	m_lastContextPredictionStatus = Algorithm::Status::Unknown
vec3	m_ROICenter = vec3::Zero()
vec3	m_ROIWidth = vec3::Zero()
size_t	m_dataHash = 0
std::unique_ptr< ML::MachineLearningModel >	m_segmentationModelCache
std::unique_ptr< SharedImageSet >	m_fullSpineSegmentation
std::unique_ptr< SharedImageSet >	m_sacrumSegmentation
SpineCache	m_spineCache
Protected Attributes inherited from Algorithm
std::string	m_name
	Algorithm name.
Progress *	m_progress = nullptr
	Non-owing pointer to a progress interface. May be a nullptr.
FactoryInfo	m_factoryInfo = {}
	Record describing how this algorithm was instantiated by the AlgorithmFactory.
int	m_status = Status::Unknown
	Algorithm status after last call to compute()
std::vector< Action >	m_actions
	Map of key given by the id of the action, of the available actions of this algorithm.
Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

---

The documentation for this class was generated from the following file:

• SpinePlugin/include/ImFusion/Spine/SpineBaseAlgorithm.h
