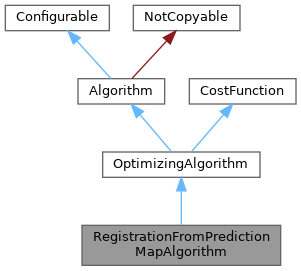

Detailed Description

Algorithm to register two images based on prediction maps.

If the prediction maps are not provided, pixel-wise machine learning models are computed on both volumes, which have to output a multi-channel float prediction map. These are internally converted to a label map by thresholding; the reference image one will be converted to a distance volume, the moving one will be sampled as point cloud. Each channel/label will be added with the point-cloud distance to the cost function, which is minimized with a global optimizer.

Public Member Functions
	RegistrationFromPredictionMapAlgorithm (SharedImageSet image, SharedImageSet imageRef, SharedImageSet pred, SharedImageSet predRef)
	Constructor with moving and reference image, and optional pre-computed float prediction maps.

	~RegistrationFromPredictionMapAlgorithm () override
	Destructor.

void	configure (const Properties *p) override
	Set one or multiple properties.

void	configuration (Properties *p) const override
	Retrieve the properties of this object.

std::shared_ptr< Optimizer >	createDefaultOptimizer () const override
	Creates and configures the global optimizer required for the registration.

OwningDataList	takeOutput () override
	Return the output data based on the export flags.

void	setErrorFunction (ErrorFunction *ef)
	Set an optional error function that is used to penalize cost function with e.g. a skin surface distance.

void	setTranslationOnly (bool flag)
	Set if only translation should be optimized.

double	evaluate (int n, const double x, double dx=nullptr) override
	Evaluate the multipe point cloud post function derived from the predictions.

Public Member Functions inherited from OptimizingAlgorithm
void	setOptimizer (std::shared_ptr< Optimizer > opt)
	Set an optimizer from outside.

std::shared_ptr< Optimizer >	optimizer ()
	Returns the current optimizer.

Public Member Functions inherited from Algorithm
	Algorithm ()
	Default constructor will registers a single "compute" action that calls compute() and returns status().

virtual void	setProgress (Progress *progress)
	Sets a Progress interface the algorithm can use to notify observers about its computing progress.

Progress *	progress () const
	Returns the progress interface if set.

virtual int	status () const
	Indicates the status of the last call to compute().

virtual bool	survivesDataDeletion (const Data *) const
	Indicates whether the algorithm can handle (partial) deletion of the specified data, by default this checks whether the data is in the input list.

const FactoryInfo &	factoryInfo () const
	Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory.

void	setFactoryInfo (const FactoryInfo &value)
	Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory.

Status	runAction (const std::string &id)
	Run the action with name `id` if it exists.

const std::vector< Action > &	actions ()
	Get a mapping from Action id to Action as registered in this algorithm.

Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Protected Member Functions
virtual void	processLabel (TypedImage< unsigned char > &label, int channel, bool isReference, Data::Modality modality)
	Analyze and process a single label of either reference or moving image, adding to the data to be exported.

PointDistanceReg *	createCostFunctionFromPredictions (int classIndex, std::vector< std::unique_ptr< TypedImage< float > > > &distMaps)
	Convert machine learning model output to point-distance registration instances used for optimization.

Protected Member Functions inherited from Algorithm
void	loadDefaults ()

void	registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action)
	Register an action to be run via runAction.

template<typename D>
void	registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void))
	Template version of runAction that can be used with a pointer to a member function.

void	registerAction (const Action &action)
	Register an action.

Methods implementing the algorithm interface
void	compute () override
	Execute the algorithm.

static bool	createCompatible (const DataList &data, Algorithm **a=0)

Additional Inherited Members
Public Types inherited from Algorithm
enum	Status { Unknown = -1 , Success = 0 , Error = 1 , InvalidInput , IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU , UnknownAction , AbortedByUser , User = 1000 }
	Status codes. More...

Static Public Member Functions inherited from Algorithm
static bool	createCompatible (const DataList &data, Algorithm **a=nullptr)
	Factory function to check algorithm compatibility with input data and optionally instantiate it.

Public Attributes inherited from Algorithm
Signal	signalOutputChanged
	Signal should be emitted by Algorithms when their output/result has changed.

Signal	signalParametersChanged
	Signal should be emitted by Algorithms when their parameter configuration has changed.

Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Protected Attributes inherited from OptimizingAlgorithm
std::shared_ptr< Optimizer >	m_opt
	The optimizer instance.

Protected Attributes inherited from Algorithm
std::string	m_name
	Algorithm name.

Progress *	m_progress = nullptr
	Non-owing pointer to a progress interface. May be a nullptr.

FactoryInfo	m_factoryInfo = {}
	Record describing how this algorithm was instantiated by the AlgorithmFactory.

int	m_status = Status::Unknown
	Algorithm status after last call to compute()

std::vector< Action >	m_actions
	Map of key given by the id of the action, of the available actions of this algorithm.

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Member Function Documentation

◆ configure()

void configure ( const Properties * p )

overridevirtual

Set one or multiple properties.

Reimplemented from OptimizingAlgorithm.

◆ configuration()

void configuration ( Properties * p ) const

overridevirtual

Retrieve the properties of this object.

Reimplemented from OptimizingAlgorithm.

◆ compute()

void compute ( )

overridevirtual

Execute the algorithm.

Implements Algorithm.

◆ createDefaultOptimizer()

std::shared_ptr< Optimizer > createDefaultOptimizer ( ) const

overridevirtual

Creates and configures the global optimizer required for the registration.

Implements OptimizingAlgorithm.

◆ takeOutput()

OwningDataList takeOutput ( )

overridevirtual

Return the output data based on the export flags.

Reimplemented from Algorithm.

◆ evaluate()

double evaluate	(	int	n,
		const double *	x,
		double *	dx = nullptr )

overridevirtual

Evaluate the multipe point cloud post function derived from the predictions.

Implements CostFunction.

The documentation for this class was generated from the following file:

ImFusion/Reg/RegistrationFromPredictionMapAlgorithm.h
