#include <ImFusion/Base/ImageResamplingAlgorithm.h>

Algorithm for resampling an image to a target dimension or resolution, optionally with respect to another image. More...

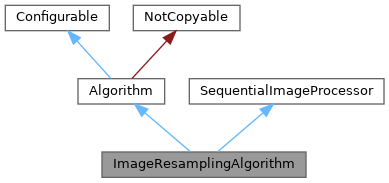

Inheritance diagram for ImageResamplingAlgorithm:

Detailed Description

Algorithm for resampling an image to a target dimension or resolution, optionally with respect to another image.

If a reference image is not provided the size of the output can be either explicitly specified, or implicitly determined by setting a target spacing, binning or relative size w.r.t. the input (in percentage). Only one of these strategies can be active at a time, as specified by the resamplingMode field. The value of the other target fields will be ignored. The algorithm offers convenience methods to jointly update the value of a target field and change the resampling mode accordingly.

In case you provide a reference image it will its pixel grid (dimensions, spacing, pose matrix) for the output. However, the pixel type as well as shift/scale will remain the same as in the input image.

The algorithm supports Linear and Nearest interpolation modes. In the Linear case (default), when accessing the input image at a fractional coordinate, the obtained value will be computed by linearly interpolating between the closest pixels/voxels. In the Nearest case, the value of the closest pixel/voxel will be used instead.

Furthermore, multiple reduction modes are also supported. In contrast to the interpolation mode, which affects how the value of the input image at a given (potentially fractional) coordinate is extracted, this determines what happens when multiple input pixels/voxels contribute to the value of a single output pixel/voxel. In Nearest mode, the value of the closest input pixel/voxel is used as-is. Alternatively, the Minimum, Maximum or Average value of the neighboring pixel/voxels can be used.

By default, the image will be modified in-place; a new one can be created instead by changing the value of the createNewImage parameter.

By default, the resulting image will have an altered physical extent, since the original extent may not be divisible by the target spacing. The algorithm can modify the target spacing to exactly maintain the physical extent, by toggling the preserveExtent parameter.

If the keepZeroValues parameter is set to true, the input pixels/voxels having zero value will not be modified by the resampling process.

Public Types
enum	ResamplingMode { TARGET_DIM = 0 , TARGET_PERCENT = 1 , TARGET_SPACING = 2 , TARGET_BINNING = 3 }
	Enum for new dimension computation. More...

Public Types inherited from Algorithm
enum	Status { Unknown = -1 , Success = 0 , Error = 1 , InvalidInput , IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU , UnknownAction , AbortedByUser , User = 1000 }
	Status codes. More...

Public Member Functions
	ImageResamplingAlgorithm (SharedImageSet inImages, const SharedImageSet refImages=nullptr)

	ImageResamplingAlgorithm (SharedImageSet *inImages, std::vector< ImageDescriptorWorld > refWorldDescriptor)

void	compute () override
	Execute the algorithm.

OwningDataList	takeOutput () override
	Return any new Data that was created by the Algorithm during the last call to compute().

void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.

void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.

void	setTargetDimensions (const vec3i &newDims)
	Set the desired dimension for the output image - changes the resampling mode to TARGET_DIMS.

void	setTargetPercent (const vec3i &newPercent)
	Set the target dimension for the output image as a percentage of the input - changes the resampling mode to TARGET_PERCENT.

void	setTargetSpacing (double newSpacing)
	Set an isotropic target spacing - changes the resampling mode to TARGET_SPACING.

void	setTargetSpacing (const vec3 &newSpacing)
	Set the target spacing - changes the resampling mode to TARGET_SPACING.

bool	setTargetMinSpacing (double minSpacing)
	Set the target spacing with the spacing of the input image, replacing the value in each dimension with the maximum between the original and the provided value.

bool	setTargetMinSpacing (const vec3 &minSpacing)
	Set the target spacing with the spacing of the input image, replacing the value in each dimension with the maximum between the original and the provided value.

void	setTargetBinning (const vec3i &newBinning)
	Set the binning to be used to create output image and compute its size - changes the resampling mode to TARGET_BINNING.

void	setCreateNew (bool createNew)

void	setCloneDeformation (bool cloneDeformation)

void	setVerbose (bool newVerbose)

void	setForceCPU (bool newForceCPU)

void	setInterpolationMode (InterpolationMode mode)

void	setKeepZeroValues (bool keepZero)

void	setReductionMode (ReductionMode mode)

void	setPreserveExtent (bool presExt)

bool	resamplingNeeded (int frame=-1) const
	Return whether resampling is needed or the specified settings result in the same image size and spacing.

std::unique_ptr< SharedImage >	processImage (int frame, bool always=false)
	Compute resampling on one frame, return resulting image if applicable.

std::pair< std::shared_ptr< SharedImage >, DataComponentList >	processImage (const SharedImage &image, const DataComponentList &components) const override
	Compute resampling on one frame, return resulting image if applicable.

void	setInput (SharedImageSet newInImages, const SharedImageSet newRefImages, bool reconfigureFromNewData)
	Replaces the input of the algorithm If reconfigureFromNewData is true, the algorithm reconfigures itself based on meta data of the new input.

void	setInput (SharedImageSet *newInImages, std::vector< ImageDescriptorWorld > worldImageDescriptor, bool reconfigureFromNewData)
	If reconfigureFromNewData is true, the algorithm reconfigures itself based on meta data of the new input.

Public Member Functions inherited from Algorithm
	Algorithm ()
	Default constructor will registers a single "compute" action that calls compute() and returns status().

virtual void	setProgress (Progress *progress)
	Sets a Progress interface the algorithm can use to notify observers about its computing progress.

Progress *	progress () const
	Returns the progress interface if set.

virtual int	status () const
	Indicates the status of the last call to compute().

virtual bool	survivesDataDeletion (const Data *) const
	Indicates whether the algorithm can handle (partial) deletion of the specified data, by default this checks whether the data is in the input list.

const FactoryInfo &	factoryInfo () const
	Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory.

void	setFactoryInfo (const FactoryInfo &value)
	Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory.

Status	runAction (const std::string &id)
	Run the action with name `id` if it exists.

const std::vector< Action > &	actions ()
	Get a mapping from Action id to Action as registered in this algorithm.

Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Public Member Functions inherited from SequentialImageProcessor
virtual void	setSequentialMode (bool b)
	This method should be called to let the algorithm know that it should only run in sequential mode.

virtual bool	isSequentialMode () const
	Returns of the algorithm should only run in sequential mode.

Static Public Member Functions
static bool	createCompatible (const DataList &data, Algorithm **a)

Static Public Member Functions inherited from Algorithm
static bool	createCompatible (const DataList &data, Algorithm **a=nullptr)
	Factory function to check algorithm compatibility with input data and optionally instantiate it.

Public Attributes
Parameter< bool >	p_createNewImage = {"createNewImage", true}
	Whether to compute the result in-place or in a newly allocated image.

Parameter< bool >	p_cloneDeformation = {"cloneDeformation", true, this}
	Whether to clone deformation from original image before attaching to result.

Parameter< bool >	p_forceCPU = {"forceCPU", false, this}
	Whether to force the computation on the CPU.

Parameter< bool >	p_preserveExtent = {"preserveExtent", false, this}
	Whether to update the target spacing to keep exactly the physical dimensions of the input image.

Parameter< bool >	p_keepZeroValues = {"keepZeroValues", false}
	Whether to to interpret 0 values as mask values, discarding its neighbors.

Parameter< bool >	p_verbose = {"verbose", false, this}
	Whether to enable advanced logging.

Parameter< ReductionMode >	p_reductionMode = {"reductionMode", ReductionMode::Average}
	Mode for image reduction (e.g. downsampling, resampling, binning)

Parameter< InterpolationMode >	p_interpolationMode = {"interpolationMode", InterpolationMode::Linear}
	Mode for image interpolation.

Parameter< ResamplingMode >	p_resamplingMode = {"resamplingMode", TARGET_PERCENT}
	How the output image size should be obtained (explicit dimensions, percentage relative to the input image, ...)

Parameter< vec3i >	p_targetDimensions = {"targetDimensions", vec3i::Zero()}
	Target dimensions for the new image.

Parameter< vec3i >	p_targetPercent = {"targetPercent", vec3i{100, 100, 100}}
	Target dimensions for the new image, relatively to the input one.

Parameter< vec3 >	p_targetSpacing = {"targetSpacing", vec3::Zero()}
	Target spacing for the new image.

Parameter< vec3i >	p_targetBinning = {"targetBinning", vec3i::Ones()}
	How many pixels from the input image should be combined into an output pixel.

Public Attributes inherited from Algorithm
Signal	signalOutputChanged
	Signal should be emitted by Algorithms when their output/result has changed.

Signal	signalParametersChanged
	Signal should be emitted by Algorithms when their parameter configuration has changed.

Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Protected Attributes
SharedImageSet *	m_inImages

std::vector< ImageDescriptorWorld >	m_refDescriptors

std::unique_ptr< SharedImageSet >	m_outImages

std::unique_ptr< GL::ImageProgram >	m_program

std::pair< std::shared_ptr< Mask >, std::shared_ptr< Mask > >	m_masks

Protected Attributes inherited from Algorithm
std::string	m_name
	Algorithm name.

Progress *	m_progress = nullptr
	Non-owing pointer to a progress interface. May be a nullptr.

FactoryInfo	m_factoryInfo = {}
	Record describing how this algorithm was instantiated by the AlgorithmFactory.

int	m_status = Status::Unknown
	Algorithm status after last call to compute()

std::vector< Action >	m_actions
	Map of key given by the id of the action, of the available actions of this algorithm.

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Protected Attributes inherited from SequentialImageProcessor
bool	m_isSequentialMode = false
	Flag to determine if algorithm is running in sequential mode.

Additional Inherited Members
Protected Member Functions inherited from Algorithm
void	loadDefaults ()

void	registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action)
	Register an action to be run via runAction.

template<typename D>
void	registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void))
	Template version of runAction that can be used with a pointer to a member function.

void	registerAction (const Action &action)
	Register an action.

Member Enumeration Documentation

◆ ResamplingMode

enum ResamplingMode

Enum for new dimension computation.

Enumerator
TARGET_DIM	The size of the output will be targetDimensions.
TARGET_PERCENT	The size of the output will be targetPercentage w.r.t. the input size in each axis.
TARGET_SPACING	The size of the output will be computed according to the input image spacing and targetSpacing.
TARGET_BINNING	The size of the output will be computed by dividing the input image size by the targetBinning in each dimension.

Member Function Documentation

◆ compute()

void compute ( )

overridevirtual

Execute the algorithm.

Implements Algorithm.

◆ takeOutput()

OwningDataList takeOutput ( )

overridevirtual

Return any new Data that was created by the Algorithm during the last call to compute().

The default implementation will return an empty list.

Note: Since ownership of the data is transferred, you can call this method only once between calls to compute().

Reimplemented from Algorithm.

◆ configure()

void configure ( const Properties * p )

overridevirtual

Configure this object instance by de-serializing the given Properties.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configuration() for the inverse functionality

Reimplemented from Configurable.

◆ configuration()

void configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configure() for the inverse functionality

Reimplemented from Configurable.

◆ setTargetMinSpacing() [1/2]

bool setTargetMinSpacing ( double minSpacing )

Set the target spacing with the spacing of the input image, replacing the value in each dimension with the maximum between the original and the provided value.

Parameters

minSpacing the minimum value that the target spacing should have in each direction

Returns: true if the final target spacing is different than the input image spacing

◆ setTargetMinSpacing() [2/2]

bool setTargetMinSpacing ( const vec3 & minSpacing )

Set the target spacing with the spacing of the input image, replacing the value in each dimension with the maximum between the original and the provided value.

Parameters

minSpacing the minimum value that the target spacing should have in each direction

Returns: true if the final target spacing is different than the input image spacing

◆ processImage() [1/2]

std::unique_ptr< SharedImage > processImage	(	int	frame,
		bool	always = false )

Compute resampling on one frame, return resulting image if applicable.

If the always flag is enabled, the output image will always be created even if no resampling would be needed.

◆ processImage() [2/2]

std::pair< std::shared_ptr< SharedImage >, DataComponentList > processImage	(	const SharedImage &	image,
		const DataComponentList &	components ) const

overridevirtual

Compute resampling on one frame, return resulting image if applicable.

Implements SequentialImageProcessor.

The documentation for this class was generated from the following file:

ImFusion/Base/ImageResamplingAlgorithm.h

Detailed Description

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Attributes

Additional Inherited Members

Member Enumeration Documentation

◆ ResamplingMode

Member Function Documentation

◆ compute()

◆ takeOutput()

◆ configure()

◆ configuration()

◆ setTargetMinSpacing() [1/2]

◆ setTargetMinSpacing() [2/2]

◆ processImage() [1/2]

◆ processImage() [2/2]
