GraphBasedSegmentation Class Reference

#include <ImFusion/Seg/GraphBasedSegmentation.h>

Image segmentation in 2D or 3D using graph-based segmentation. More...

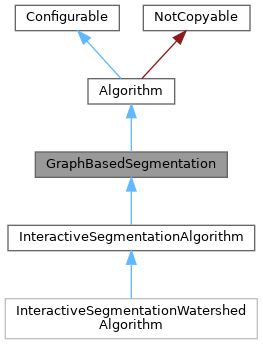

Inheritance diagram for GraphBasedSegmentation:

Detailed Description

Image segmentation in 2D or 3D using graph-based segmentation.

Public Member Functions
	GraphBasedSegmentation (SharedImageSet *image, SharedImageSet *labels, SharedImageSet *prior=nullptr)
	Algorithm is created with image and labels, the latter will be updated with the result.
	~GraphBasedSegmentation () override
	Destructor.
void	compute () override
	Execute the algorithm.
void	configure (const Properties *p) override
	Set one or multiple properties.
void	configuration (Properties *p) const override
	Retrieve the properties of this object.
OwningDataList	takeOutput () override
	If the algorithm creates new image data, it has to be transferred here.
virtual void	prepareForComputation ()
	Execute some pre-processing (e.g. crop the data)
void	setSolver (int solver)
	Specify a custom solver to be used.
void	setSolverParameters (int iter, double tol)
	Specify the maximum number of steps for iterative solvers.
void	setAdaptiveness (double val)
	Specify the adaptiveness to the image (lower means a smoother segmentation)
void	setAutoCrop (bool flag)
	If true, the segmentation problem is cropped with the bounding box of the labels.
void	setVerbose (bool flag)
	Set the verbose flag.
void	setUseSuperpixels (bool flag)
	Set the superpixels flag.
void	setPyramidLevels (int numLevels, int minLevel)
	Set the pyramid levels.
void	setNumPyramidLevels (int numLevels)
	Set the numbers of pyramid levels.
void	setMinPyramidLevel (int minLevel)
	Set the minimum pyramid level.
int	numPyramidLevels () const
	Get the number of pyramid levels.
int	minPyramidLevel () const
	Get the minimum pyramid level.
void	setPriorWeight (double weight)
	Set the prior weight.
void	setSuperpixelsConfiguration (const Properties *superpixelsProperties)
	Set the superpixels configuration.
void	convertToLabels (bool entireImage=true)
	Convert the segmentation result into foreground and background labels.
std::vector< std::vector< vec3 > >	extractSegmentation2D (double smoothness, double exportRes, bool closeAnnotation=true)
	Extract the segmentation as a set of point-based contours (only for 2D images)
Mesh *	extractSegmentation3D (double smoothness, double exportRes, bool closeAnnotation=true)
	Extract the segmentation as a mesh (only for 3D images)
void	clearResult ()
	Clear the segmentation from the label image.
SharedImageSet *	probabilityImage ()
	Create and return a probability image from the segmentation result (takes ownsership)
size_t	memoryEstimation (int minLevel)
	Returns an estimation of the required memory with the current configuration.
int	currentObjectLabel (int ind) const
	Returns the current label for the foreground for one particular image.
void	setCurrentObjectLabel (int label, int ind)
	Set the current label for the foreground for one particular image.
Public Member Functions inherited from Algorithm
	Algorithm ()
	Default constructor will registers a single "compute" action that calls compute() and returns status().
virtual void	setProgress (Progress *progress)
	Sets a Progress interface the algorithm can use to notify observers about its computing progress.
Progress *	progress () const
	Returns the progress interface if set.
virtual int	status () const
	Indicates the status of the last call to compute().
virtual bool	survivesDataDeletion (const Data *) const
	Indicates whether the algorithm can handle (partial) deletion of the specified data, by default this checks whether the data is in the input list.
const FactoryInfo &	factoryInfo () const
	Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory.
void	setFactoryInfo (const FactoryInfo &value)
	Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory.
Status	runAction (const std::string &id)
	Run the action with name id if it exists.
const std::vector< Action > &	actions ()
	Get a mapping from Action id to Action as registered in this algorithm.
Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept

Static Public Member Functions
static bool	createCompatible (const DataList &data, Algorithm **a=0)
	If data is compatible with algorithm return true. If a is not zero, create algorithm with input data.
Static Public Member Functions inherited from Algorithm
static bool	createCompatible (const DataList &data, Algorithm **a=nullptr)
	Factory function to check algorithm compatibility with input data and optionally instantiate it.

Protected Attributes
SharedImageSet *	m_image
	Input image data.
SharedImageSet *	m_labels
	Image containing the labels.
SharedImageSet *	m_prior
	Prior probability map.
SharedImageSet *	m_probability
	Output probability of the graph Laplacian problem.
std::unique_ptr< SharedImageSet >	m_labelsCopy
	Copy of the labels (used to remember prev label map when segmenting multiple objects)
std::vector< int >	m_currentObjectLabel
	Current label for the foreground, for each image.
std::shared_ptr< SharedImage >	m_workingImage
	Working cropped version of the image.
std::shared_ptr< SharedImage >	m_workingLabels
	Working cropped version of the labels.
vec3i	m_ofs
	Offset of cropped segmentation.
vec3i	m_dim
	Dimension of cropped segmentation.
double	m_bboxMargin
	Margin percentage for bounding box.
bool	m_verbose
	Display messages.
GraphLaplacianAlgorithm *	m_graphAlgo
	Graph segmentation algorithm.
int	m_solver
	Custom solver to be used.
int	m_iterations
	Maximum number of iterations of the solver.
double	m_tolerance
	Tolerance of the solver.
bool	m_autoCrop
	Flag for cropping the segmentation with the labels.
double	m_adaptiveness
	Parameter controlling the adaptiveness to the image.
int	m_numLevels
	Number of pyramid levels.
int	m_minLevel
	Minimum pyramid level (1 = lowest)
bool	m_exportProbability
	Accept the segmentation after computation.
bool	m_applyWindowLevel
	whether window/level of the input image should be considered
double	m_previousWindow
	window of the image in the previous computation
double	m_previousLevel
	level of the image in the previous computation
bool	m_autoAccept
	Automatically accept the result (lose seeds)
double	m_priorWeight
	Weight of the prior term.
int	m_filterSize
	Size of the smoothing filter.
bool	m_useSuperpixels
	Flag for superpixels.
Properties *	m_superpixelsProperties
	Properties for superpixel algorithm.
Protected Attributes inherited from Algorithm
std::string	m_name
	Algorithm name.
Progress *	m_progress = nullptr
	Non-owing pointer to a progress interface. May be a nullptr.
FactoryInfo	m_factoryInfo = {}
	Record describing how this algorithm was instantiated by the AlgorithmFactory.
int	m_status = Status::Unknown
	Algorithm status after last call to compute()
std::vector< Action >	m_actions
	Map of key given by the id of the action, of the available actions of this algorithm.
Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Types inherited from Algorithm
enum	Status {   Unknown = -1 , Success = 0 , Error = 1 , InvalidInput ,   IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU ,   UnknownAction , AbortedByUser , User = 1000 }
	Status codes. More...
Public Attributes inherited from Algorithm
Signal	signalOutputChanged
	Signal should be emitted by Algorithms when their output/result has changed.
Signal	signalParametersChanged
	Signal should be emitted by Algorithms when their parameter configuration has changed.
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.
Protected Member Functions inherited from Algorithm
void	loadDefaults ()
void	registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action)
	Register an action to be run via runAction.
template<typename D>
void	registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void))
	Template version of runAction that can be used with a pointer to a member function.
void	registerAction (const Action &action)
	Register an action.

Member Function Documentation

compute()

void compute ( )

overridevirtual

Execute the algorithm.

Implements Algorithm.

Reimplemented in InteractiveSegmentationAlgorithm, and InteractiveSegmentationWatershedAlgorithm.

configure()

void configure ( const Properties * p )

overridevirtual

Set one or multiple properties.

Reimplemented from Configurable.

configuration()

void configuration ( Properties * p ) const

overridevirtual

Retrieve the properties of this object.

Reimplemented from Configurable.

takeOutput()

OwningDataList takeOutput ( )

overridevirtual

If the algorithm creates new image data, it has to be transferred here.

Reimplemented from Algorithm.

prepareForComputation()

virtual void prepareForComputation ( )

virtual

Execute some pre-processing (e.g. crop the data)

Reimplemented in InteractiveSegmentationAlgorithm.

convertToLabels()

void convertToLabels

(

bool

entireImage = true

)

Convert the segmentation result into foreground and background labels.

If the entireImage parameter is true, all pixels outside of the cropping region are marked as background.

---

The documentation for this class was generated from the following file:

• ImFusion/Seg/GraphBasedSegmentation.h
