#include <ImFusion/GL/GlFreeFormDeformation.h>
Free Form Deformation. More...

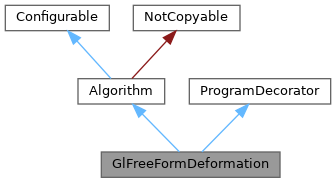

Inheritance diagram for GlFreeFormDeformation:Free Form Deformation.
Public Types | |
| enum | DeformationType { CubicBSpline } |
| Public Types inherited from Algorithm | |
| enum | Status { Unknown = -1 , Success = 0 , Error = 1 , InvalidInput , IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU , UnknownAction , AbortedByUser , User = 1000 } |
| Status codes. More... | |
Public Member Functions | |
| GlFreeFormDeformation (SharedImage *img, SharedImage *out=0) | |
| int | dimension () const |
| void | setSubdivisions (const vec3 &n) |
| Set number of control points (without border needed for interpolation) | |
| vec3 | subdivisions () const |
| Get number of internal subdivisions. | |
| void | setGridSpacing (const vec3 &s) |
| Set grid spacing in pixels. | |
| vec3 | gridSpacing () const |
| Get grid spacing in pixels. | |
| std::vector< vec3 > | gridPoints () const |
| Get current grid point locations (including displacement) | |
| vec3i | gridSize () const |
| void | setDeformationType (DeformationType type) |
| Set deformation type. | |
| DeformationType | deformationType () const |
| Get deformation type. | |
| void | setTransformation (const mat4 &T) |
| Set transformation to be applied to the control points in world coordinate system. | |
| mat4 | transformation () const |
| Get control point transformation in world coordinate system. | |
| void | setDisplacement (const std::vector< vec3f > &d) |
| Set displacement in pixels for every control points. | |
| void | setDisplacement (const std::vector< vec2f > &d) |
| Set displacement in pixels for every control points. Convenience function for 2D images. | |
| void | setInnerDisplacement (int n, const double *d, int borderXY=0, int borderZ=-1, std::vector< vec3 > *cpOut=0) |
| Set the 3D world displacement for all inner control points (the outer ones are kept unchanged) using single linearized array. | |
| const std::vector< vec3f > & | displacement () const |
| Get displacement in pixels. | |
| SharedImageSet * | displacementField () |
| Creates and returns a dense displacement field. | |
| SharedImage * | getOutput () const |
| void | applyToProgram (GL::Program *prog) override |
| Apply the FFD variables to a shader program. | |
| GL::Program * | createSliceProgram () |
| Create a shader program for deformed slice visualization. | |
| void | compute () override |
| Apply free form deformation to image imgIn and imgOut have to be two different images. | |
| void | compute (SharedImage *imgIn) |
| Apply free form deformation to the given image imgIn and imgOut have to be two different images. | |
| vec3 | transformPoint (const vec3 &p) const |
| Transform point given in output image world coordinate system to input image world coordinate system. | |
| Public Member Functions inherited from Algorithm | |
| Algorithm () | |
| Default constructor will registers a single "compute" action that calls compute() and returns status(). | |
| virtual OwningDataList | takeOutput () |
| Return any new Data that was created by the Algorithm during the last call to compute(). | |
| virtual void | setProgress (Progress *progress) |
| Sets a Progress interface the algorithm can use to notify observers about its computing progress. | |
| Progress * | progress () const |
| Returns the progress interface if set. | |
| virtual int | status () const |
| Indicates the status of the last call to compute(). | |
| virtual bool | survivesDataDeletion (const Data *) const |
| Indicates whether the algorithm can handle (partial) deletion of the specified data, by default this checks whether the data is in the input list. | |
| const FactoryInfo & | factoryInfo () const |
| Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory. | |
| void | setFactoryInfo (const FactoryInfo &value) |
| Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory. | |
| Status | runAction (const std::string &id) |
Run the action with name id if it exists. | |
| const std::vector< Action > & | actions () |
| Get a mapping from Action id to Action as registered in this algorithm. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configure (const Properties *p) |
| Configure this object instance by de-serializing the given Properties. | |
| virtual void | configuration (Properties *p) const |
| Serialize the current object configuration into the given Properties object. | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
Static Public Member Functions | |
| static bool | createCompatible (const DataList &data, Algorithm **a=0) |
| If data is compatible with algorithm return true. If a is not zero, create algorithm with input data. | |
| Static Public Member Functions inherited from Algorithm | |
| static bool | createCompatible (const DataList &data, Algorithm **a=nullptr) |
| Factory function to check algorithm compatibility with input data and optionally instantiate it. | |
Additional Inherited Members | |
| Public Attributes inherited from Algorithm | |
| Signal | signalOutputChanged |
| Signal should be emitted by Algorithms when their output/result has changed. | |
| Signal | signalParametersChanged |
| Signal should be emitted by Algorithms when their parameter configuration has changed. | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
| Protected Member Functions inherited from Algorithm | |
| void | loadDefaults () |
| void | registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action) |
| Register an action to be run via runAction. | |
| template<typename D> | |
| void | registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void)) |
| Template version of runAction that can be used with a pointer to a member function. | |
| void | registerAction (const Action &action) |
| Register an action. | |
| Protected Attributes inherited from Algorithm | |
| std::string | m_name |
| Algorithm name. | |
| Progress * | m_progress = nullptr |
| Non-owing pointer to a progress interface. May be a nullptr. | |
| FactoryInfo | m_factoryInfo = {} |
| Record describing how this algorithm was instantiated by the AlgorithmFactory. | |
| int | m_status = Status::Unknown |
| Algorithm status after last call to compute() | |
| std::vector< Action > | m_actions |
| Map of key given by the id of the action, of the available actions of this algorithm. | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
| void setDisplacement | ( | const std::vector< vec3f > & | d | ) |
Set displacement in pixels for every control points.
For 2D images the z-coordinate of the displacement is ignored.
|
overridevirtual |
Apply the FFD variables to a shader program.
Implements ProgramDecorator.
|
overridevirtual |
Apply free form deformation to image imgIn and imgOut have to be two different images.
Implements Algorithm.
