#include <ImFusion/Base/BasicImageProcessing.h>

Basic image processing such as downsample, flip, rotate or data type change. More...

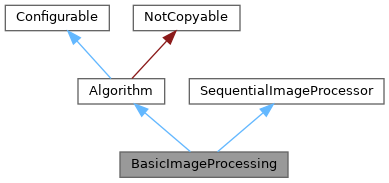

Inheritance diagram for BasicImageProcessing:

Detailed Description

Basic image processing such as downsample, flip, rotate or data type change.

Public Types
enum	Mode { DOWNSAMPLE = 0 , RESAMPLE = 1 , FLIP = 2 , ROTATE = 3 , THRESHOLDING = 4 , INVERT = 5 , CROP = 6 , CONVERTGRAY = 7 , NORMALIZE = 8 , SHARPNESS = 9 , REDUCE_BIT_DEPTH = 10 , GRADATION = 11 , EQUALIZE_HISTOGRAM = 12 , RESIZE = 14 , EMBED_ROTATION = 15 , SHIFT_N_SCALE = 16 , CONVERT_TO_FLOAT = 17 , BRIGHTNESS_PRESERVING_HE = 18 , BAYER_PATTERN_TO_COLOR = 19 , INCREASE_BIT_DEPTH , ADD_REMOVE_ALPHA , NR_MODES }

Public Types inherited from Algorithm
enum	Status { Unknown = -1 , Success = 0 , Error = 1 , InvalidInput , IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU , UnknownAction , AbortedByUser , User = 1000 }
	Status codes. More...

Public Member Functions
	BasicImageProcessing (SharedImageSet *img)
	Creates the algorithm instance with an image.

void	setMode (Mode mode)
	Specify the processing mode.

Mode	mode () const
	Get current mode.

void	setSharpnessMeasure (int measure)

int	sharpnessMeasure () const

void	setCreateNew (bool flag)
	Specify whether a new image shall be created.

bool	createNew () const

void	setDownsampling (int dx, int dy, int dz, bool filter=true)
	Set the downsampling parameters.

void	downsampling (int &dx, int &dy, int &dz, bool &filter) const

void	setResampling (double resx, double resy, double resz)
	Set the resampling parameters.

void	resampling (double &resx, double &resy, double &resz) const

void	setFlipAxis (int val)
	Set the flip axis.

int	flipAxis () const
	Get flip axis.

void	setRotationAngle (int angle)
	Set the rotation angle Supported values: -90, 90, -180, 180, -270, 270.

int	rotationAngle () const
	Get rotation angle.

void	setRotationAxis (int axis)
	Set the rotation axis.

int	rotationAxis () const
	Get the rotation axis.

void	setIgnoreAlphaChannel (bool b)
	Define if alpha channel should be ignored during grayscale conversion.

bool	ignoreAlphaChannel () const
	Returns if the alpha channel will be ignored during grayscale conversion.

void	setRangeThresholdParams (bool thresholdInside, double lowerThreshold, double upperThreshold)
	Set the parameters for thresholding.

void	rangeThresholdParams (bool &mode, double &lowerThreshold, double &upperThreshold) const
	Get threshold parameters.

void	setInvertImageRange (bool flag)
	Set whether to use the range of the image intensities for inverting (true) or the range of the image type (false)

bool	invertImageRange () const
	Get the parameter for the range of inverted image.

void	setCropParams (const vec3i &lower, const vec3i &upper)
	Set the parameters for cropping in pixel coordinates (inclusive)

void	cropParams (vec3i &lowerOut, vec3i &upperOut) const
	Get cropping parameters.

void	setGradationMode (int mode)
	Set gradation mode (0 = interactive, 1 = log, 2 = square root, 3 = square)

int	gradationMode () const
	Get gradation mode.

void	setGradationNormalize (bool normalize)
	Set whether to normalize image after gradation.

bool	gradationNormalize () const
	Get gradation normalization.

void	setGradationMap (const TypedImage< float > *gradationMap)
	Set gradation map. Output range is [0;1]. Ownership remains with caller.

void	shiftScale (double &shift, double &scale) const

void	setShift (double val)

void	setScale (double val)

void	setTargetResolution (const vec3i &resolution)

vec3i	targetResolution () const

void	setInterpolateOnResolutionChange (bool val)

bool	interpolateOnResolutionChange () const

void	setPreserveValuesOnBitReduction (bool flag)
	If enabled, 16-bit values are clamped to 8-bit during REDUCE_BIT_DEPTH.

bool	preserveValuesOnBitReduction () const

void	setBlockListenersSignal (bool flag)
	Set the flag blocking signals to listeners.

Public Member Functions inherited from Algorithm
	Algorithm ()
	Default constructor will registers a single "compute" action that calls compute() and returns status().

virtual void	setProgress (Progress *progress)
	Sets a Progress interface the algorithm can use to notify observers about its computing progress.

Progress *	progress () const
	Returns the progress interface if set.

virtual int	status () const
	Indicates the status of the last call to compute().

virtual bool	survivesDataDeletion (const Data *) const
	Indicates whether the algorithm can handle (partial) deletion of the specified data, by default this checks whether the data is in the input list.

const FactoryInfo &	factoryInfo () const
	Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory.

void	setFactoryInfo (const FactoryInfo &value)
	Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory.

Status	runAction (const std::string &id)
	Run the action with name `id` if it exists.

const std::vector< Action > &	actions ()
	Get a mapping from Action id to Action as registered in this algorithm.

Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Public Member Functions inherited from SequentialImageProcessor
virtual void	setSequentialMode (bool b)
	This method should be called to let the algorithm know that it should only run in sequential mode.

virtual bool	isSequentialMode () const
	Returns of the algorithm should only run in sequential mode.

Static Public Member Functions
static void	downsample (SharedImageSet *sis, int dx, int dy, int dz, bool zeroMask=false, bool interpolate=true)
	Convenience function to downsample by binning on the CPU, and adjusting the image matrix afterwards.

Static Public Member Functions inherited from Algorithm
static bool	createCompatible (const DataList &data, Algorithm **a=nullptr)
	Factory function to check algorithm compatibility with input data and optionally instantiate it.

Methods implementing the algorithm interface
void	setBayerPatternMode (int val)
	Set the bayer pattern mode.

int	bayerPatternMode () const
	Get Bayer pattern mode.

void	compute () override
	Applies the processing in the offline case.

std::pair< std::shared_ptr< SharedImage >, DataComponentList >	processImage (const SharedImage &image, const DataComponentList &components) const override
	Applies the processing to an individual image, used in stream processing case.

const SharedImageSet *	input () const

OwningDataList	takeOutput () override
	If new data was created, make it available here.

static bool	createCompatible (const DataList &data, Algorithm **a=0)

Methods implementing the Configurable interface
void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.

void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.

Additional Inherited Members
Public Attributes inherited from Algorithm
Signal	signalOutputChanged
	Signal should be emitted by Algorithms when their output/result has changed.

Signal	signalParametersChanged
	Signal should be emitted by Algorithms when their parameter configuration has changed.

Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Protected Member Functions inherited from Algorithm
void	loadDefaults ()

void	registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action)
	Register an action to be run via runAction.

template<typename D>
void	registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void))
	Template version of runAction that can be used with a pointer to a member function.

void	registerAction (const Action &action)
	Register an action.

Protected Attributes inherited from Algorithm
std::string	m_name
	Algorithm name.

Progress *	m_progress = nullptr
	Non-owing pointer to a progress interface. May be a nullptr.

FactoryInfo	m_factoryInfo = {}
	Record describing how this algorithm was instantiated by the AlgorithmFactory.

int	m_status = Status::Unknown
	Algorithm status after last call to compute()

std::vector< Action >	m_actions
	Map of key given by the id of the action, of the available actions of this algorithm.

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Protected Attributes inherited from SequentialImageProcessor
bool	m_isSequentialMode = false
	Flag to determine if algorithm is running in sequential mode.

Member Enumeration Documentation

◆ Mode

enum Mode

Enumerator
DOWNSAMPLE	Use ImageResamplingAlgorithm instead.
RESAMPLE	Use ImageResamplingAlgorithm instead.
FLIP	Flip the image along the flipAxis.
ROTATE	Rotate the image around the rotationAngle.
THRESHOLDING	Thresholdsthe image according to the rangeThresholdParams.
INVERT	Invert all intensities in the image.
CROP	Crop the image dimensions according to the cropParams.
CONVERTGRAY	Convert a multichannel image to a single channel by averaging.
NORMALIZE	Convert the image to float by normalizing the value range of the image to [0,1].
SHARPNESS	Compute the image sharpness and prints it to the console (see GlImageMetric)
REDUCE_BIT_DEPTH	Convert a 16-bit image to a 8-bit one.
GRADATION	Convert intensities according to the gradationMap.
EQUALIZE_HISTOGRAM	Perform a standard histogram equalization.
RESIZE	Use ImageResamplingAlgorithm instead.
EMBED_ROTATION	Similar to ROTATE but uses the image matrix. Only works if the rotation in the matrix is a multiple of 90°
SHIFT_N_SCALE	Set shift and scale of the image.
CONVERT_TO_FLOAT	Convert the image to float without normalizing it.
BRIGHTNESS_PRESERVING_HE	Brightness preserving histogram equalization (internal only, use at your own risk!)
BAYER_PATTERN_TO_COLOR	Convert a bayer pattern images to color coded images.
NR_MODES	Internal end marker of available modes, don't use directly!

Member Function Documentation

◆ setFlipAxis()

void setFlipAxis ( int val )

inline

Set the flip axis.

0: X-axis 1: Y-axis 2: Z-axis

◆ setRotationAxis()

void setRotationAxis ( int axis )

inline

Set the rotation axis.

0: X-axis 1: Y-axis 2: Z-axis

◆ setRangeThresholdParams()

void setRangeThresholdParams	(	bool	thresholdInside,
		double	lowerThreshold,
		double	upperThreshold )

Set the parameters for thresholding.

Parameters

thresholdInside Whether the values inside the tresholding range should be assigned the value of 1 (true) or the values outside the range (false)

◆ setPreserveValuesOnBitReduction()

void setPreserveValuesOnBitReduction ( bool flag )

inline

If enabled, 16-bit values are clamped to 8-bit during REDUCE_BIT_DEPTH.

Otherwise 16-bit values are bit shifted by 8.

◆ createCompatible()

static bool createCompatible	(	const DataList &	data,
		Algorithm **	a = 0 )

static

Factory method to check for applicability or to create the algorithm

◆ setBayerPatternMode()

void setBayerPatternMode ( int val )

inline

Set the bayer pattern mode.

0: Bayer RGGB to RGB 1: Bayer GRBG to RGB 2: Bayer BGGR to RGB 3: Bayer GBRG to RGB

◆ compute()

void compute ( )

overridevirtual

Applies the processing in the offline case.

Implements Algorithm.

◆ processImage()

std::pair< std::shared_ptr< SharedImage >, DataComponentList > processImage	(	const SharedImage &	image,
		const DataComponentList &	components ) const

overridevirtual

Applies the processing to an individual image, used in stream processing case.

Implements SequentialImageProcessor.

◆ takeOutput()

OwningDataList takeOutput ( )

overridevirtual

If new data was created, make it available here.

Reimplemented from Algorithm.

◆ configure()

void configure ( const Properties * p )

overridevirtual

Configure this object instance by de-serializing the given Properties.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configuration() for the inverse functionality

Reimplemented from Configurable.

◆ configuration()

void configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also: configure() for the inverse functionality

Reimplemented from Configurable.

The documentation for this class was generated from the following file:

ImFusion/Base/BasicImageProcessing.h

Detailed Description

Public Types

Public Member Functions

Static Public Member Functions

Methods implementing the algorithm interface

Methods implementing the Configurable interface

Additional Inherited Members

Member Enumeration Documentation

◆ Mode

Member Function Documentation

◆ setFlipAxis()

◆ setRotationAxis()

◆ setRangeThresholdParams()

◆ setPreserveValuesOnBitReduction()

◆ createCompatible()

◆ setBayerPatternMode()

◆ compute()

◆ processImage()

◆ takeOutput()

◆ configure()

◆ configuration()
