ApplyMaskAlgorithm Class Reference

#include <ImFusion/Base/ApplyMaskAlgorithm.h>

Algorithm for applying a mask and a cropping to an image. More...

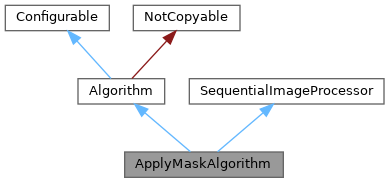

Inheritance diagram for ApplyMaskAlgorithm:

Detailed Description

Algorithm for applying a mask and a cropping to an image.

Public Member Functions
	ApplyMaskAlgorithm (SharedImageSet *imgIn, SharedImage *mask)
	Main constructor of the algorithm.
	ApplyMaskAlgorithm (SharedImageSet *imgIn, std::shared_ptr< Mask > mask)
	Main Constructor for images that have a mask embedded Mask is supplied explicitly to make this requirement strict.
	~ApplyMaskAlgorithm () override
	Destructor of the algorithm.
void	setCreateNew (bool flag)
	Specify whether a new image should be created (true by default)
void	setAutoCropping (bool flag)
	Specify whether the images should be cropped automatically after masking (true by default)
void	setElevateInside (bool flag)
	If enabled, zero intensity values inside the mask are elevated to one (false by default)
void	setAboveThreshold (bool flag)
	If enabled, values above threshold are kept (true by default)
void	configure (const Properties *p) override
	Set one or multiple properties.
void	configuration (Properties *p) const override
	Retrieve the properties of this object.
void	compute () override
	Compute the result.
std::pair< std::shared_ptr< SharedImage >, DataComponentList >	processImage (const SharedImage &image, const DataComponentList &components) const override
	Processes a single image without modifying the algorithm's status.
OwningDataList	takeOutput () override
	If the algorithm creates new image data, it has to be transferred here.
std::pair< std::optional< vec3i >, std::optional< vec3i > >	cropping ()
	Retrieve the cropping bounds if image was cropped.
Public Member Functions inherited from Algorithm
	Algorithm ()
	Default constructor will registers a single "compute" action that calls compute() and returns status().
virtual void	setProgress (Progress *progress)
	Sets a Progress interface the algorithm can use to notify observers about its computing progress.
Progress *	progress () const
	Returns the progress interface if set.
virtual int	status () const
	Indicates the status of the last call to compute().
virtual bool	survivesDataDeletion (const Data *) const
	Indicates whether the algorithm can handle (partial) deletion of the specified data, by default this checks whether the data is in the input list.
const FactoryInfo &	factoryInfo () const
	Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory.
void	setFactoryInfo (const FactoryInfo &value)
	Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory.
Status	runAction (const std::string &id)
	Run the action with name id if it exists.
const std::vector< Action > &	actions ()
	Get a mapping from Action id to Action as registered in this algorithm.
Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept
Public Member Functions inherited from SequentialImageProcessor
virtual void	setSequentialMode (bool b)
	This method should be called to let the algorithm know that it should only run in sequential mode.
virtual bool	isSequentialMode () const
	Returns of the algorithm should only run in sequential mode.

Static Public Member Functions
static bool	createCompatible (const DataList &data, Algorithm **a)
	If data is compatible with algorithm return true. If a is not zero, create algorithm with input data.
Static Public Member Functions inherited from Algorithm
static bool	createCompatible (const DataList &data, Algorithm **a=nullptr)
	Factory function to check algorithm compatibility with input data and optionally instantiate it.

Protected Attributes
SharedImageSet *	m_inImg
SharedImage *	m_mask
std::unique_ptr< SharedImageSet >	m_outImg = nullptr
std::unique_ptr< SharedImage >	m_optionalMask
std::optional< vec3i >	m_cropUp
std::optional< vec3i >	m_cropDown
bool	m_createNew = true
	Whether to compute the result in-place or not.
bool	m_autoCrop = true
	Whether to automatically crop the images.
bool	m_elevateInside = false
	Elevate pixels inside the mask from zero to one.
double	m_thresholdValue = 0.5
	Threshold value used for the mask image.
bool	m_aboveThreshold = true
	If true, valid pixels have mask intensities higher than the threshold.
double	m_outsideValue = 0
	The value to be set in the 'outside' of the mask.
Protected Attributes inherited from Algorithm
std::string	m_name
	Algorithm name.
Progress *	m_progress = nullptr
	Non-owing pointer to a progress interface. May be a nullptr.
FactoryInfo	m_factoryInfo = {}
	Record describing how this algorithm was instantiated by the AlgorithmFactory.
int	m_status = Status::Unknown
	Algorithm status after last call to compute()
std::vector< Action >	m_actions
	Map of key given by the id of the action, of the available actions of this algorithm.
Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.
Protected Attributes inherited from SequentialImageProcessor
bool	m_isSequentialMode = false
	Flag to determine if algorithm is running in sequential mode.

Additional Inherited Members
Public Types inherited from Algorithm
enum	Status {   Unknown = -1 , Success = 0 , Error = 1 , InvalidInput ,   IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU ,   UnknownAction , AbortedByUser , User = 1000 }
	Status codes. More...
Public Attributes inherited from Algorithm
Signal	signalOutputChanged
	Signal should be emitted by Algorithms when their output/result has changed.
Signal	signalParametersChanged
	Signal should be emitted by Algorithms when their parameter configuration has changed.
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.
Protected Member Functions inherited from Algorithm
void	loadDefaults ()
void	registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action)
	Register an action to be run via runAction.
template<typename D>
void	registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void))
	Template version of runAction that can be used with a pointer to a member function.
void	registerAction (const Action &action)
	Register an action.

Member Function Documentation

configure()

void configure ( const Properties * p )

overridevirtual

Set one or multiple properties.

Reimplemented from Configurable.

configuration()

void configuration ( Properties * p ) const

overridevirtual

Retrieve the properties of this object.

Reimplemented from Configurable.

compute()

void compute ( )

overridevirtual

Compute the result.

Implements Algorithm.

processImage()

std::pair< std::shared_ptr< SharedImage >, DataComponentList > processImage ( const SharedImage & image, const DataComponentList & components ) const

overridevirtual

Processes a single image without modifying the algorithm's status.

For performance reasons, it is possible to do this in-place, i.e. with m_createNew=false, in which case the input image is const-cast and modified direcly. Proceed with care. If you intend to run this algorithm with the StreamAlgorithmExecutor, ensure that m_createNew=true (default).

Implements SequentialImageProcessor.

takeOutput()

OwningDataList takeOutput ( )

overridevirtual

If the algorithm creates new image data, it has to be transferred here.

Reimplemented from Algorithm.

---

The documentation for this class was generated from the following file:

• ImFusion/Base/ApplyMaskAlgorithm.h
