VolumeBasedMeshRegistrationAlgorithm Class Reference

#include <ImFusion/Reg/VolumeBasedMeshRegistration.h>

Calculates a deformable registration between two meshes by calculating a deformable registration between distance volumes. More...

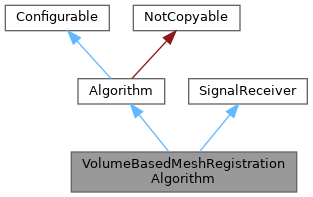

Inheritance diagram for VolumeBasedMeshRegistrationAlgorithm:

Detailed Description

Calculates a deformable registration between two meshes by calculating a deformable registration between distance volumes.

Internally, an instance of the DemonsImageRegistration algorithm is used to register the "fixed" distance volume to the "moving" distance volume. As this registration computes the inverse of the mapping from the fixed to the moving volume, this directly yields a registration of the "moving" Mesh to the "fixed" Mesh.

Public Types
enum class	InitializationMode { ScaledRigid = 0 , Affine = 1 , FFD = 2 }
Public Types inherited from Algorithm
enum	Status {   Unknown = -1 , Success = 0 , Error = 1 , InvalidInput ,   IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU ,   UnknownAction , AbortedByUser , User = 1000 }
	Status codes. More...

Public Member Functions
	VolumeBasedMeshRegistrationAlgorithm ()
	Constructor that initializes parameter attributes, algorithm actions. Use this together with setFixed/setMoving.
	VolumeBasedMeshRegistrationAlgorithm (Mesh &meshFixed, Mesh &meshMoving, PointCloud *movingPoints=nullptr)
	Constructor with two Mesh arguments.
void	compute () override
	Computes the deformable registration from meshMoving to meshFixed.
void	setMoving (Mesh &movingMesh)
	Set moving mesh. Algorithm expects this object to remain valid during its lifetime.
void	setFixed (const Mesh &fixedMesh)
	Set fixed mesh. Algorithm expects this object to remain valid during its lifetime.
Mesh *	movingMesh ()
	Getter for the reference (template) mesh if it exists.
const Mesh *	fixedMesh ()
	Getter for the fixed mesh if it exitss.
const PointCloud *	pointCloud ()
	Point-cloud on the reference mesh.
void	setMovingLandmarks (PointCloud *p)
	Setter for point-cloud.
Status	initialize ()
	Initializes the registration by rescaling and preforming a linear registration.
Status	runImageBasedDeformableRegistration ()
	Performs a image based deformable registration (without initialization)
Status	resetDeformation ()
	Resets the internally stored deformable registration This also loads original (i.e.
OwningDataList	takeDebugVolumes ()
	Gives up ownership of internally used distance/label volumes.
virtual double	meshError ()
	Return an error measure between the segmentation mesh and the deformed reference mesh.
bool	isStateValid ()
	Returns true if the algorithm is in a valid state, i.e. meshes exist and distance and label maps etc have been initialized correctly.
const DemonsImageRegistration *	demonsRegistration ()
	Getter for m_demonsRegistration.
Public Member Functions inherited from Algorithm
	Algorithm ()
	Default constructor will registers a single "compute" action that calls compute() and returns status().
virtual OwningDataList	takeOutput ()
	Return any new Data that was created by the Algorithm during the last call to compute().
virtual void	setProgress (Progress *progress)
	Sets a Progress interface the algorithm can use to notify observers about its computing progress.
Progress *	progress () const
	Returns the progress interface if set.
virtual int	status () const
	Indicates the status of the last call to compute().
virtual bool	survivesDataDeletion (const Data *) const
	Indicates whether the algorithm can handle (partial) deletion of the specified data, by default this checks whether the data is in the input list.
const FactoryInfo &	factoryInfo () const
	Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory.
void	setFactoryInfo (const FactoryInfo &value)
	Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory.
Status	runAction (const std::string &id)
	Run the action with name id if it exists.
const std::vector< Action > &	actions ()
	Get a mapping from Action id to Action as registered in this algorithm.
Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept
Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Static Public Member Functions
static bool	createCompatible (const DataList &data, Algorithm **a)
	Used to create the algorithm from the ImFusionSuite.
Static Public Member Functions inherited from Algorithm
static bool	createCompatible (const DataList &data, Algorithm **a=nullptr)
	Factory function to check algorithm compatibility with input data and optionally instantiate it.

Public Attributes
Parameter< bool >	p_debugMode = {"debugMode", false, this}
	Whether to export debug output, this is used only by the controller.
Parameter< double >	p_distCutOff = {"distCutOff", 4.0, this}
	Signed distances are clamped to this value in initialize()
Parameter< bool >	p_subVoxelPrecision = {"subVoxelPrecision", true, *this}
	Whether to use sub-voxel precision for distance-volumes.
Parameter< double >	p_resolution = {"resolution", 1.0, *this}
	Resolution (i.e. spacing) of textures used internally. This does only affects textures obtained from Mesh objects.
Parameter< std::optional< size_t > >	p_memoryLimitMB = {"memoryLimitMB", std::nullopt, this}
	Memory limit that aborts creation of internal helper objects (e.g.
Parameter< InitializationMode >	p_initializationMode = {"initMode", InitializationMode::Affine, this}
	Which method to use to initialize the transformation.
Parameter< double >	p_maximumStretching = {"maximumStretching", 5, this}
	If volume of fixed mesh relative to moving mesh (or vice versa) exceeds the cube of this value, abort.
Public Attributes inherited from Algorithm
Signal	signalOutputChanged
	Signal should be emitted by Algorithms when their output/result has changed.
Signal	signalParametersChanged
	Signal should be emitted by Algorithms when their parameter configuration has changed.
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Protected Member Functions
bool	initializeScaling ()
	Rescales the distance volume, label map, and (if applicable) mesh of the reference image so that the total volume of the volume defined by the label map matches that of the segmentation.
void	saveWithoutDeformationIfEmpty ()
	If such a copy does not exist: save a copy of the meshes/pointclouds without displacement values in this class, cf.
void	setupDemonsRegistration ()
	Setup the internal DemonsImageRegistration instance.
bool	checkOutOfMemory (std::size_t increaseBytes)
	Increments the counter of memory used by the given amount, and check whether this goes beyond memory limit.
Status	createEmptyDeformation ()
void	applyDeformationToMeshAndLandmarks ()
Protected Member Functions inherited from Algorithm
void	loadDefaults ()
void	registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action)
	Register an action to be run via runAction.
template<typename D>
void	registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void))
	Template version of runAction that can be used with a pointer to a member function.
void	registerAction (const Action &action)
	Register an action.
Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Protected Attributes
const Mesh *	m_fixedMesh = nullptr
Mesh *	m_movingMesh = nullptr
PointCloud *	m_movingLandmarks = nullptr
SharedImageSet *	m_fixedLabelMap = nullptr
SharedImageSet *	m_movingLabelMap = nullptr
SharedImageSet *	m_fixedDist = nullptr
SharedImageSet *	m_movingDist = nullptr
std::unique_ptr< SharedImageSet >	m_fixedDistOwned
std::unique_ptr< SharedImageSet >	m_movingDistOwned
std::unique_ptr< SharedImageSet >	m_fixedLabelMapOwned
std::unique_ptr< SharedImageSet >	m_movingLabelMapOwned
std::unique_ptr< DemonsImageRegistration >	m_demonsRegistration
std::optional< std::unique_ptr< Mesh > >	m_movingMeshWithoutDeformation
	The algorithm uses the displacement values from an (inverse) deformation to update the moving mesh and landmarks.
std::optional< std::unique_ptr< PointCloud > >	m_movingLandmarksWithoutDeformation
std::optional< size_t >	m_totMemoryUsedMB = std::nullopt
	Counter for the amount of memory used.
Protected Attributes inherited from Algorithm
std::string	m_name
	Algorithm name.
Progress *	m_progress = nullptr
	Non-owing pointer to a progress interface. May be a nullptr.
FactoryInfo	m_factoryInfo = {}
	Record describing how this algorithm was instantiated by the AlgorithmFactory.
int	m_status = Status::Unknown
	Algorithm status after last call to compute()
std::vector< Action >	m_actions
	Map of key given by the id of the action, of the available actions of this algorithm.
Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.
void	configure (const Properties *p) override
	Configurable interface.
void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.

Member Enumeration Documentation

InitializationMode

enum class InitializationMode

strong

Enumerator
ScaledRigid	Initialization is performed by adjusting scaling and a rigid transformation.
Affine	Initialization is performed by a full affine registration.
FFD	Initialization is performed by first registering a 2x2x2 FFD deformation on a downsampled volume.

Constructor & Destructor Documentation

VolumeBasedMeshRegistrationAlgorithm()

VolumeBasedMeshRegistrationAlgorithm	(	Mesh &	meshFixed,
		Mesh &	meshMoving,
		PointCloud *	movingPoints = nullptr )

Constructor with two Mesh arguments.

Parameters

meshFixed	is the fixed Mesh to which the moving Mesh is registered.
meshMoving	is a Mesh of the moving mesh. The vertices of this Mesh are modified by this algorithm.
movingPoints	optionally points to a PointCloud that is deformed in the same way as the moving mesh is. Algorithm expects both the fixed and moving meshes to remain valid during its lifetime.

Member Function Documentation

compute()

void compute ( )

overridevirtual

Computes the deformable registration from meshMoving to meshFixed.

If a moving mesh has been provided, the result of this deformation is applied to the "moving" mesh in place. If a PointCloud on the "moving" mesh was provided, this is also deformed in-place. The registration comprises a scaling and rigid initialization, followed by an image-based deformable registration.

Implements Algorithm.

resetDeformation()

Status resetDeformation

(

)

Resets the internally stored deformable registration This also loads original (i.e.

after initialization, but before deformable registration) meshes/pointclouds if applicable

configure()

void configure ( const Properties * p )

overridevirtual

Configurable interface.

Reimplemented from Configurable.

configuration()

void configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also

configure() for the inverse functionality

Reimplemented from Configurable.

meshError()

virtual double meshError ( )

virtual

Return an error measure between the segmentation mesh and the deformed reference mesh.

This measure is given (in mm) by the maximum displacement of the projections of the vertices of the moving mesh onto the fixed mesh This is only possible if two meshes were provided at construction, std::numeric_limits<double>::max() is returned otherwise.

demonsRegistration()

const DemonsImageRegistration * demonsRegistration ( )

inline

Getter for m_demonsRegistration.

Warning

pointer may become invalidated e.g. when setFixed/setMoving is called, so do not store it.

initializeScaling()

bool initializeScaling ( )

protected

Rescales the distance volume, label map, and (if applicable) mesh of the reference image so that the total volume of the volume defined by the label map matches that of the segmentation.

Also truncates the distance volume based on p_distCutOff

saveWithoutDeformationIfEmpty()

void saveWithoutDeformationIfEmpty ( )

protected

If such a copy does not exist: save a copy of the meshes/pointclouds without displacement values in this class, cf.

m_movingMeshWithoutDeformation Only a single copy is stored by the algorithm.

Member Data Documentation

p_subVoxelPrecision

Parameter<bool> p_subVoxelPrecision = {"subVoxelPrecision", true, *this}

Whether to use sub-voxel precision for distance-volumes.

This is slow on systems where the computation cannot be performed on the GPU (i.e. if OpenGl 4.3 is not available)

p_memoryLimitMB

Parameter<std::optional<size_t> > p_memoryLimitMB = {"memoryLimitMB", std::nullopt, this}

Memory limit that aborts creation of internal helper objects (e.g.

distance volume, label map) if they cumulatively surpass this limit.

Warning

This algorithm keeps an internal counter of the amount of memory allocated during its lifetime that is only reset when the parameter is changed.

Only the GPU paths are reliably compatible with this, e.g. setting p_subVoxelPrecision=false may result in larger volumes being allocated..

m_movingMeshWithoutDeformation

std::optional<std::unique_ptr<Mesh> > m_movingMeshWithoutDeformation

protected

The algorithm uses the displacement values from an (inverse) deformation to update the moving mesh and landmarks.

We store the meshes/landmarks without the added displacement values here in order to be able to update the moving mesh/landmarks appropriately.

---

The documentation for this class was generated from the following file:

• ImFusion/Reg/VolumeBasedMeshRegistration.h
