#include <ImFusion/US/FrameGeometryLinear.h>

Specialization for linear frame geometries. More...

Inheritance diagram for FrameGeometryLinear:

Detailed Description

Specialization for linear frame geometries.

See FrameGeometry for a detailed summary of the frame geometry concept.

Width and depth define the size of the ultrasound frame relative to the offset location. The offset is in the top or bottom center of the frame, depending on the topDown setting, i.e. at the center of the transducer array. For a classic linear frame without steering, the offset is at (width/2, 0) in pixels, and at (0, -height/2) in image coordinates.

The steering angle is positive when tilted to the right, for instance when using Doppler CFM windows.

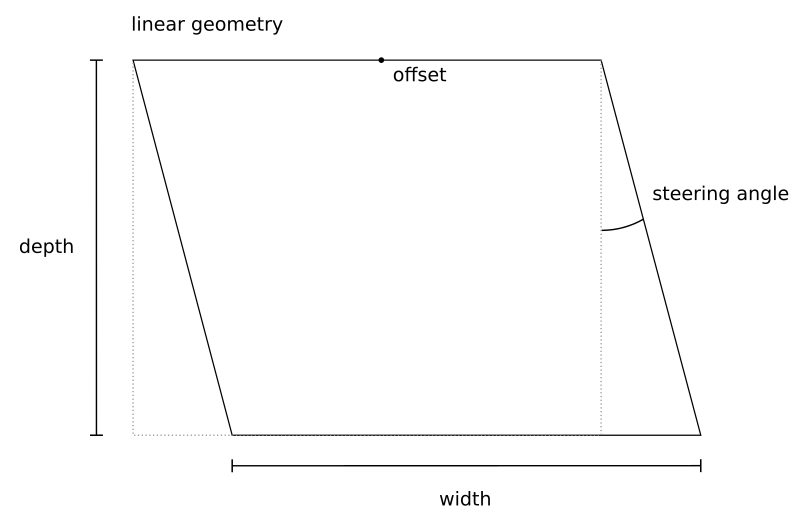

Linear frame geometry

Public Member Functions
	FrameGeometryLinear (CoordinateSystem coordSys)

FrameGeometryLinear *	asLinear () override
	Returns a pointer to this object as a FrameGeometryLinear, or nullptr if not possible.

bool	operator== (const FrameGeometry &rhs) const override
	Checks for equality, also considering the image descriptor.

void	setWidth (double width)
	Set the width of the frame sector, in mm or pixels, depending on the coordinate system.

void	setDepth (double depth) override
	Set the depth of the frame sector, in mm or pixels, depending on the coordinate system.

void	setSteeringAngle (double degrees)
	Set the steering angle of the frame sector [deg]. The angle is positive when tilted to the right.

double	width () const
	Get the width of the frame sector, in mm or pixels, depending on the coordinate system.

double	depth () const override
	Get the depth of the frame sector, in mm or pixels, depending on the coordinate system.

double	steeringAngle () const
	Get the steering angle of the frame sector [deg]. The angle is positive when tilted to the right.

void	configure (const Properties *) override
	Sets general properties. Only intended to be called from derived classes. See FrameGeometryMetadata.

void	configuration (Properties *) const override
	Retrieves general properties. Only intended to be called from derived classes. See FrameGeometryMetadata.

std::unique_ptr< FrameGeometry >	convertTo (CoordinateSystem coordSys) const override
	Convert the frame geometry to the given coordinate system.

std::unique_ptr< FrameGeometry >	clone () const override
	Create a copy of this frame geometry.

bool	contains (vec2 coord) const override
	Returns true if the given point is within the fan.

vec2	frameCenter () const override
	Returns the center of the frame.

bool	isSimilar (const FrameGeometry *other, bool ignoreOffset=false, double eps=0.1) const override
	True if the given frame geometry is similar to this one, within a given tolerance.

vec2	transformPoint (const vec2 &p, TransformationMode mode) const override
	Applies the specified geometric transformation to a point.

std::unique_ptr< GlGeometricTransform >	glGeometricTransform () const override
	Returns the geometric transformation between image coordinates and pre-scan converted coordinates, if available.

Public Member Functions inherited from FrameGeometry
	FrameGeometry (CoordinateSystem coordSys)
	Constructor requires the coordinate system to be defined. It cannot be changed afterward.

bool	operator!= (const FrameGeometry &rhs) const
	Checks for inequality, also considering the image descriptor.

vec2	offset () const
	Offset of the geometry within the image.

void	setOffset (const vec2 &offset)
	Sets the offset of the geometry.

bool	isTopDown () const
	Returns if the geometry is oriented top to bottom, where the frame geometry origin is higher on the image than the end.

void	setTopDown (bool b)
	Sets if the geometry is oriented top to bottom, or bottom to top.

const ImageDescriptor &	imgDesc () const
	Returns the ImageDescriptor for the frame geometry.

const ImageDescriptor &	imgDescPrescan () const
	Returns the ImageDescriptor for the pre-scanconverted image.

void	setImgDesc (const ImageDescriptor &imgDescr)
	Sets the ImageDescriptor for the frame geometry.

void	setImgDescPrescan (const ImageDescriptor &imgDescrPrescan)
	Sets the ImageDescriptor for the pre-scanconverted image.

OrientationIndicatorPosition	indicatorPos () const
	Returns the OrientationIndicatorPosition for the frame geometry.

void	setIndicatorPos (OrientationIndicatorPosition pos)
	Sets the OrientationIndicatorPosition for the frame geometry.

CoordinateSystem	coordinateSystem () const
	Returns the CoordinateSystem used in the frame geometry.

Geometry::AlignedBox	bounds () const
	Returns the Bounds of the frame geometry.

mat4	transformation () const
	Convenience method to get the 2D transformation formed by the offset and orientation.

bool	isLinear () const
	Convenience type check.

bool	isCircular () const
	Convenience type check.

bool	isConvex () const
	Convenience type check.

bool	isSector () const
	Convenience type check.

virtual FrameGeometryConvex *	asConvex ()
	Convenience cast to the derived type, or nullptr if not possible.

virtual FrameGeometryConvexSteered *	asConvexSteered ()

virtual FrameGeometrySector *	asSector ()
	Convenience cast to the derived type, or nullptr if not possible.

virtual FrameGeometryCircular *	asCircular ()
	Convenience cast to the derived type, or nullptr if not possible.

const FrameGeometryLinear *	asLinear () const
	Convenience cast to the derived type, or nullptr if not possible.

const FrameGeometryConvex *	asConvex () const
	Convenience cast to the derived type, or nullptr if not possible.

const FrameGeometryConvexSteered *	asConvexSteered () const

const FrameGeometrySector *	asSector () const
	Convenience cast to the derived type, or nullptr if not possible.

const FrameGeometryCircular *	asCircular () const
	Convenience cast to the derived type, or nullptr if not possible.

virtual FrameGeometry::Fan	createFan ()
	Computes the fan geometry edges and points.

Protected Member Functions
FrameGeometry::Fan	createFanImpl () override
	Internal fan geometry generation to be implemented by subclass.

void	onTopLeftChanged (vec2 delta)

void	onTopRightChanged (vec2 delta)

void	onBottomRightChanged (vec2 delta)

void	onBottomLeftChanged (vec2 delta)

void	onTopEdgeChanged (vec2 delta)

void	onRightEdgeChanged (vec2 delta)

void	onBottomEdgeChanged (vec2 delta)

void	onLeftEdgeChanged (vec2 delta)

void	onSteeringAngleChanged (vec2 delta)

Protected Member Functions inherited from FrameGeometry
void	onCenterChanged (vec2 delta)
	Manipulation callback.

vec2	conversionSpacing () const
	Internal helper methods returning the spacing or its inverse, dependent on the current coordinate system, either as vec2, are as the diagonal of a 2x2 matrix.

mat2	localCoordinateFrame () const

Protected Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Protected Attributes
double	m_width
	Width.

double	m_depth
	Depth.

double	m_steeringAngle
	Steering angle [deg].

Protected Attributes inherited from FrameGeometry
vec2	m_offset = vec2::Zero()
	location of the fan center (virtual apex) wrt. transducer center (image top)

bool	m_isTopDown = true
	Orientation of fan.

OrientationIndicatorPosition	m_indicatorPosition
	Position of the external orientation indicator.

CoordinateSystem	m_coordSys = CoordinateSystem::Image
	Coordinate system this geometry is defined in.

ImageDescriptor	m_imgDesc
	Image descriptor for frame conversion.

ImageDescriptor	m_imgDescPrescan
	Image descriptor for pre-scanconverted image conversion.

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Additional Inherited Members
Public Types inherited from FrameGeometry
enum class	OrientationIndicatorPosition { Nearside = 0 , Farside = 1 }
	Position of external orientation indicator (e.g. colored knob) More...

enum class	TransformationMode { NormalizedRawToScanConverted = 0 , NormalizedPrescanToScanConverted = 0 , ScanConvertedToNormalizedRaw = 1 , ScanConvertedToNormalizedPrescan = 1 }
	Used in transformPoint() to specify which geometric transformation to apply. More...

Static Protected Attributes inherited from FrameGeometry
static constexpr double	m_insetEpsilon = 1e-7
	Inset distance to avoid numerical errors when computing frame boundaries.

Member Function Documentation

◆ asLinear()

FrameGeometryLinear * asLinear ( )

overridevirtual

Returns a pointer to this object as a FrameGeometryLinear, or nullptr if not possible.

Reimplemented from FrameGeometry.

◆ operator==()

bool operator== ( const FrameGeometry & rhs ) const

overridevirtual

Checks for equality, also considering the image descriptor.

Reimplemented from FrameGeometry.

◆ setDepth()

void setDepth ( double depth )

overridevirtual

Set the depth of the frame sector, in mm or pixels, depending on the coordinate system.

Implements FrameGeometry.

◆ depth()

double depth ( ) const

overridevirtual

Get the depth of the frame sector, in mm or pixels, depending on the coordinate system.

Implements FrameGeometry.

◆ configure()

void configure ( const Properties * )

overridevirtual

Sets general properties. Only intended to be called from derived classes. See FrameGeometryMetadata.

Reimplemented from FrameGeometry.

◆ configuration()

void configuration ( Properties * ) const

overridevirtual

Retrieves general properties. Only intended to be called from derived classes. See FrameGeometryMetadata.

Reimplemented from FrameGeometry.

◆ convertTo()

std::unique_ptr< FrameGeometry > convertTo ( CoordinateSystem coordSys ) const

overridevirtual

Convert the frame geometry to the given coordinate system.

Reimplemented from FrameGeometry.

◆ clone()

std::unique_ptr< FrameGeometry > clone ( ) const

overridevirtual

Create a copy of this frame geometry.

Implements FrameGeometry.

◆ contains()

bool contains ( vec2 coord ) const

overridevirtual

Returns true if the given point is within the fan.

Implements FrameGeometry.

◆ frameCenter()

vec2 frameCenter ( ) const

overridevirtual

Returns the center of the frame.

Reimplemented from FrameGeometry.

◆ isSimilar()

bool isSimilar	(	const FrameGeometry *	other,
		bool	ignoreOffset = false,
		double	eps = 0.1 ) const

overridevirtual

True if the given frame geometry is similar to this one, within a given tolerance.

Implements FrameGeometry.

◆ transformPoint()

vec2 transformPoint	(	const vec2 &	p,
		TransformationMode	mode ) const

overridevirtual

Applies the specified geometric transformation to a point.

Implements FrameGeometry.

◆ glGeometricTransform()

std::unique_ptr< GlGeometricTransform > glGeometricTransform ( ) const

overridevirtual

Returns the geometric transformation between image coordinates and pre-scan converted coordinates, if available.

Reimplemented from FrameGeometry.

◆ createFanImpl()

FrameGeometry::Fan createFanImpl ( )

overrideprotectedvirtual

Internal fan geometry generation to be implemented by subclass.

Implements FrameGeometry.

The documentation for this class was generated from the following file:

ImFusion/US/FrameGeometryLinear.h
