#include <ImFusion/Base/MorphologicalOperationsAlgorithm.h>
Algorithm for performing morphological operations on images. More...

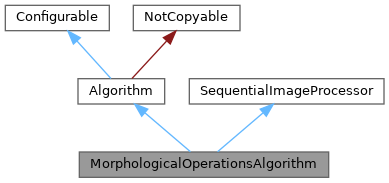

Inheritance diagram for MorphologicalOperationsAlgorithm:Algorithm for performing morphological operations on images.
Supported operations are:
For further reference, see https://homepages.inf.ed.ac.uk/rbf/HIPR2/morops.htm
Public Types | |
| enum class | OperationMode { DILATION = 0 , EROSION = 1 , OPENING = 2 , CLOSING = 3 , SKELETONIZATION = 4 } |
| enum class | Distance { L1 = 0 , L2 = 1 } |
| Public Types inherited from Algorithm | |
| enum | Status { Unknown = -1 , Success = 0 , Error = 1 , InvalidInput , IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU , UnknownAction , AbortedByUser , User = 1000 } |
| Status codes. More... | |
Public Member Functions | |
| MorphologicalOperationsAlgorithm (SharedImageSet &img) | |
| Creates a MorphologicalOperationsAlgorithm instance that will be working on the given SharedImageSet. | |
| MorphologicalOperationsAlgorithm () | |
| Creates a MorphologicalOperationsAlgorithm instance without input data. | |
| ~MorphologicalOperationsAlgorithm () override | |
| Destroy the output. | |
| void | compute () override |
| Compute the result. | |
| OwningDataList | takeOutput () override |
| If the algorithm creates new image data, it has to be transferred here. | |
| void | configuration (Properties *p) const override |
| Serialize the current object configuration into the given Properties object. | |
| std::pair< std::shared_ptr< SharedImage >, DataComponentList > | processImage (const SharedImage &image, const DataComponentList &components) const override |
| SequentialImageProcessor interface method. | |
| bool | inPlace () const |
| Returns the in-place computation flag. | |
| void | setInPlace (bool value) |
| Sets the in-place computation flag. | |
| OperationMode | opMode () const |
| Returns the operation mode. | |
| void | setOpMode (OperationMode value) |
| Sets the operation mode. | |
| int | opSize () const |
| Returns the kernel size of the morphological operation. | |
| void | setOpSize (int value) |
| Sets the kernel size of the morphological operation. | |
| Distance | distance () const |
| Returns whether the algorithm should use the L1 or L2 distance. | |
| void | setDistance (Distance distance) |
| Sets whether the algorithm should use the L1 or L2 distance. | |
| bool | useCPU () const |
| Returns the flag to force CPU computation. | |
| void | setUseCPU (bool value) |
| Sets the flag to force computation on the CPU. | |
| bool | padding () const |
| Returns the flag to use padding. | |
| void | setPadding (bool value) |
| Sets the flag to use padding. | |
| int | paddingSize () const |
| Returns the padding size in a single direction. | |
| void | setPaddingSize (int value) |
| Sets the padding size in a single direction. | |
| PaddingMode | paddingMode () const |
| Returns the padding mode. | |
| void | setPaddingMode (PaddingMode value) |
| Sets the padding mode. | |
| bool | avoidsGlDriverTimeout () const |
| Returns the flag whether to avoid a OpenGL driver timeout when using large kernels. | |
| void | setAvoidGlDriverTimeout (bool value) |
| Sets the flag whether to avoid a OpenGL driver timeout when using large kernels. | |
| template<typename T> | |
| void | processImage (const TypedImage< T > *imgIn, TypedImage< T > *imgOut) const |
| Computes the morphological operation using the CPU according to the current configuration on imgIn and stores the result in imgOut. | |
| void | processImage (const GlImage *imgIn, GlImage *imgOut) const |
| Computes the morphological operation using the GPU according to the current configuration on imgIn and stores the result in imgOut. | |
| void | setInput (SharedImageSet *sis) |
| Update input image. | |
| Public Member Functions inherited from Algorithm | |
| Algorithm () | |
| Default constructor will registers a single "compute" action that calls compute() and returns status(). | |
| virtual void | setProgress (Progress *progress) |
| Sets a Progress interface the algorithm can use to notify observers about its computing progress. | |
| Progress * | progress () const |
| Returns the progress interface if set. | |
| virtual int | status () const |
| Indicates the status of the last call to compute(). | |
| virtual bool | survivesDataDeletion (const Data *) const |
| Indicates whether the algorithm can handle (partial) deletion of the specified data, by default this checks whether the data is in the input list. | |
| const FactoryInfo & | factoryInfo () const |
| Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory. | |
| void | setFactoryInfo (const FactoryInfo &value) |
| Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory. | |
| Status | runAction (const std::string &id) |
Run the action with name id if it exists. | |
| const std::vector< Action > & | actions () |
| Get a mapping from Action id to Action as registered in this algorithm. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configure (const Properties *p) |
| Configure this object instance by de-serializing the given Properties. | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
| Public Member Functions inherited from SequentialImageProcessor | |
| virtual void | setSequentialMode (bool b) |
| This method should be called to let the algorithm know that it should only run in sequential mode. | |
| virtual bool | isSequentialMode () const |
| Returns of the algorithm should only run in sequential mode. | |
Static Public Member Functions | |
| static bool | createCompatible (const DataList &data, Algorithm **a) |
| If data is compatible with algorithm return true. If a is not zero, create algorithm with input data. | |
| Static Public Member Functions inherited from Algorithm | |
| static bool | createCompatible (const DataList &data, Algorithm **a=nullptr) |
| Factory function to check algorithm compatibility with input data and optionally instantiate it. | |
Protected Attributes | |
| SharedImageSet * | m_img = nullptr |
| std::unique_ptr< SharedImageSet > | m_output |
| Parameter< bool > | m_inPlace = {"inPlace", false, this} |
| Parameter< OperationMode > | m_opMode = {"opMode", OperationMode::DILATION, this} |
| Parameter< int > | m_opSize = {"opSize", 3, this} |
| Parameter< Distance > | m_distance = {"distance", Distance::L1, this} |
| Parameter< bool > | m_useCPU = {"useCPU", false, this} |
| Parameter< bool > | m_padding = {"padding", false, this} |
| Parameter< int > | m_paddingSize = {"paddingSize", 1, this} |
| Padding size in a single direction. | |
| Parameter< PaddingMode > | m_paddingMode = {"paddingMode", PaddingMode::Zero, this} |
| Padding mode. | |
| Parameter< bool > | m_avoidGlDriverTimeout = {"avoidGlDriverTimeout", false, this} |
| std::unique_ptr< GL::ImageProgram > | m_program |
| Main program. | |
| std::unique_ptr< GL::ImageProgram > | m_programSecondPass |
| Secondary program for opening and closing. | |
| Protected Attributes inherited from Algorithm | |
| std::string | m_name |
| Algorithm name. | |
| Progress * | m_progress = nullptr |
| Non-owing pointer to a progress interface. May be a nullptr. | |
| FactoryInfo | m_factoryInfo = {} |
| Record describing how this algorithm was instantiated by the AlgorithmFactory. | |
| int | m_status = Status::Unknown |
| Algorithm status after last call to compute() | |
| std::vector< Action > | m_actions |
| Map of key given by the id of the action, of the available actions of this algorithm. | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
| Protected Attributes inherited from SequentialImageProcessor | |
| bool | m_isSequentialMode = false |
| Flag to determine if algorithm is running in sequential mode. | |
Additional Inherited Members | |
| Public Attributes inherited from Algorithm | |
| Signal | signalOutputChanged |
| Signal should be emitted by Algorithms when their output/result has changed. | |
| Signal | signalParametersChanged |
| Signal should be emitted by Algorithms when their parameter configuration has changed. | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
| Protected Member Functions inherited from Algorithm | |
| void | loadDefaults () |
| void | registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action) |
| Register an action to be run via runAction. | |
| template<typename D> | |
| void | registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void)) |
| Template version of runAction that can be used with a pointer to a member function. | |
| void | registerAction (const Action &action) |
| Register an action. | |
Creates a MorphologicalOperationsAlgorithm instance without input data.
Thus, compute() won't do anything. However, you can still configure the instance and call processImage() directly.
|
overridevirtual |
Compute the result.
Implements Algorithm.
|
overridevirtual |
If the algorithm creates new image data, it has to be transferred here.
Reimplemented from Algorithm.
|
overridevirtual |
Serialize the current object configuration into the given Properties object.
The default implementation will do so automatically for all registered Parameter and SubProperty instances.
Reimplemented from Configurable.
|
overridevirtual |
SequentialImageProcessor interface method.
Processes an image without modifying the algorithm's status Warning: Not to be confused with the processImage functions below!
Implements SequentialImageProcessor.
