ImFusion::ImFusionPlugin Class Reference

#include <ImFusion/Base/ImFusionPlugin.h>

Base class for plugins that can be loaded by the ImFusion SDK. More...

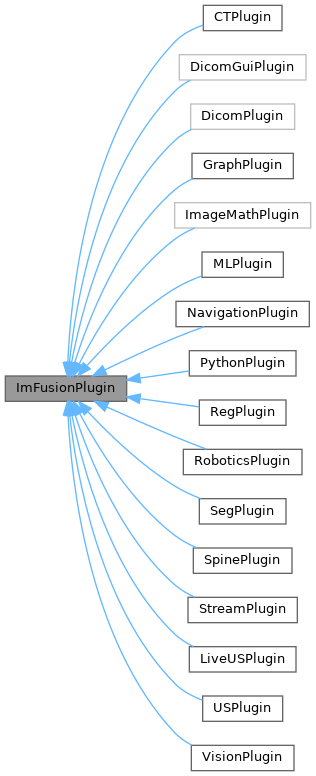

Inheritance diagram for ImFusion::ImFusionPlugin:

Detailed Description

Base class for plugins that can be loaded by the ImFusion SDK.

This base class defines the interface so that the ImFusionLib and the plugin can interact with each other (e.g. add algorithm factories). If you need to do any initialization work (e.g. populate additional factories) you should do this in the constructor.

Note

In order to be discoverable by the ImFusionLib you must further export an ImFusion::ImFusionPlugin* createPlugin() C function that instantiates your derived class. This can be easily done with the IMFUSION_REGISTER_PLUGIN() macro.

MyExamplePlugin.h

#include <ImFusion/Base/ImFusionPlugin.h>
class MyExamplePlugin : public ImFusion::ImFusionPlugin {
    ...
};

MyExamplePlugin.cpp

#include <MyExamplePlugin.h>
IMFUSION_REGISTER_PLUGIN(MyPlugin)
...

See also

• ImFusionPlugin Migration
• Plugin Architecture
• PluginManager
• ImFusionLibPlugin

Deprecated

"Use ImFusionLibPlugin instead"

Public Member Functions
virtual const AlgorithmFactory *	getAlgorithmFactory ()=0
	Get algorithm factory for algorithms hosted by plugin.
virtual const AlgorithmControllerFactory *	getAlgorithmControllerFactory ()=0
	Get algorithm controller factory for algorithms hosted by plugin.
virtual const DataAnnotationFactory *	getDataAnnotationFactory ()
	Get data GL annotation factory for annotations hosted by plugin.
virtual std::string	pluginName () const
	Return the name of the plugin.
virtual std::vector< WorkspaceConversionFunction >	getWorkspaceConversionFunctions ()
	Return a list of workspace conversion functions and the corresponding workspace versions they apply to.
Public Member Functions inherited from ImFusion::ImFusionLibPlugin
virtual void	setApplicationController (ApplicationController &)
	Gives the plugin access to the application controller.
Public Member Functions inherited from ImFusion::PluginBase
std::string	pluginId () const
	Convenience function to query the plugin ID of a concrete instance at runtime.
PluginManager::PluginStatus	pluginStatus () const
	Convenience function to query the plugin status of a concrete instance at runtime.
virtual std::string	author () const =0
	Name of the author of the plugin for informative purposes.
virtual std::string	description () const =0
	Description of the plugin purpose/functionality for informative purposes.
Utils::Version	version () const
	Convenience function to query the version number of the plugin for informative purposes.
virtual std::vector< std::string >	dependencies () const
	Optional list of plugin IDs on which this plugin depends.

Additional Inherited Members
Public Types inherited from ImFusion::PluginBase
enum class	Status { Success = 0 , LicenseCheckFailed , Unsupported , UnknownError }
	Enumeration of status codes for plugin initialization. More...
Protected Member Functions inherited from ImFusion::ImFusionLibPlugin
bool	isLicensed (const std::string &entitlementName) const
	Helper function to check whether entitlementName is included in the currently activated license.
void	registerFactories (std::unique_ptr< AlgorithmFactory > algorithmFactory, std::unique_ptr< AlgorithmControllerFactory > controllerFactory, std::unique_ptr< DataAnnotationFactory > annotationFactory)
	Helper function to register the given factories with the FactoryRegistry.
Protected Member Functions inherited from ImFusion::PluginBase
virtual Status	init ()=0
	Perform plugin initialization, for instance by populating factories and registering custom types with the host application.

Member Function Documentation

getAlgorithmFactory()

virtual const AlgorithmFactory * ImFusion::ImFusionPlugin::getAlgorithmFactory ( )

pure virtual

Get algorithm factory for algorithms hosted by plugin.

Implemented in ImFusion::Robotics::RoboticsPlugin.

getAlgorithmControllerFactory()

virtual const AlgorithmControllerFactory * ImFusion::ImFusionPlugin::getAlgorithmControllerFactory ( )

pure virtual

Get algorithm controller factory for algorithms hosted by plugin.

Implemented in ImFusion::Robotics::RoboticsPlugin.

pluginName()

virtual std::string ImFusion::ImFusionPlugin::pluginName ( ) const

inlinevirtual

Return the name of the plugin.

Note

When implementing this method, make sure to use a unique identifier to avoid conflicts with other plugins.

Reimplemented in ImFusion::Robotics::RoboticsPlugin.

---

The documentation for this class was generated from the following file:

• ImFusion/Base/ImFusionPlugin.h
