DataAnnotationFactory Class Reference

#include <ImFusion/Base/DataAnnotationFactory.h>

Interface for data annotation factories. More...

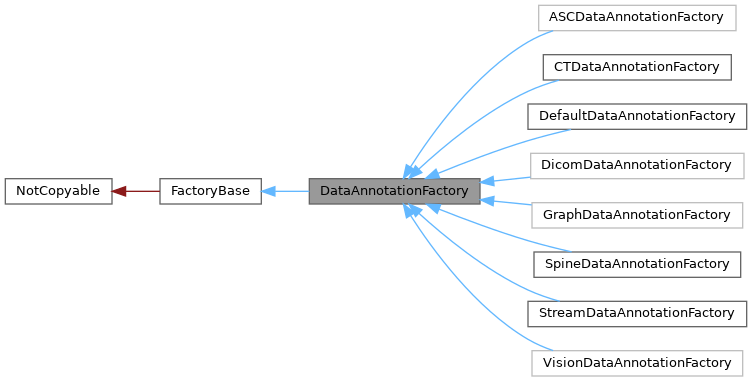

Inheritance diagram for DataAnnotationFactory:

Detailed Description

Interface for data annotation factories.

Classes
struct	DataAttribute

Public Member Functions
virtual InteractiveObject *	createDataAnnotation (const std::string &name, Data &data) const =0
	Create data annotation.
virtual std::vector< std::string >	compatibleDataAnnotations (Data &data) const =0
	Return true when a data object supports having a data annotation.
virtual std::string	dataDescription (const Data &data) const
	Return a description string to be shown in the data model for a data type.
virtual std::string	dataIconPath (const Data &data) const
	Return a file path to an icon representing a data type, may point to a Qt resource.
virtual std::vector< DataAttribute >	dataAttributes (const Data &data) const
	Return a list of attributes to be shown in the DataWidget GUI for a data type.
virtual std::unique_ptr< Data >	cloneData (const Data *data) const
	Return a clone of a given Data instance.
Public Member Functions inherited from FactoryBase
	FactoryBase ()
	No license check is performed for the module instantiated with this constructor.
	FactoryBase (std::string module, bool checkLicense=true)
std::string	moduleName () const
	Returns the module name of the factory.

Additional Inherited Members
Protected Member Functions inherited from FactoryBase
virtual	~FactoryBase ()
	Virtual destructor.
std::string	getComponentPath (const std::string &componentName) const
	Returns the path to the component referred to by name.
bool	isLicensed (const std::string &name)
	Return true if the license allows the use of the component referred to by name.
Static Protected Member Functions inherited from FactoryBase
static std::string	getComponentPath (const std::string &moduleName, const std::string &componentName)
	Returns the path to the component referred to by name.
static bool	isLicensed (const std::string &moduleName, const std::string &name)
	Return true if the license allows the use of the component referred to by name.
Protected Attributes inherited from FactoryBase
std::string	m_factoryModule
bool	m_checkLicense

Member Function Documentation

createDataAnnotation()

virtual InteractiveObject * createDataAnnotation ( const std::string & name, Data & data ) const

pure virtual

Create data annotation.

Parameters

data	input data

Returns

pointer to generated annotation if successful, zero otherwise

Implemented in ASCDataAnnotationFactory, CTDataAnnotationFactory, DefaultDataAnnotationFactory, DicomDataAnnotationFactory, GraphDataAnnotationFactory, SpineDataAnnotationFactory, StreamDataAnnotationFactory, and VisionDataAnnotationFactory.

compatibleDataAnnotations()

virtual std::vector< std::string > compatibleDataAnnotations ( Data & data ) const

pure virtual

Return true when a data object supports having a data annotation.

Implemented in ASCDataAnnotationFactory, CTDataAnnotationFactory, DefaultDataAnnotationFactory, DicomDataAnnotationFactory, GraphDataAnnotationFactory, SpineDataAnnotationFactory, StreamDataAnnotationFactory, and VisionDataAnnotationFactory.

dataDescription()

virtual std::string dataDescription ( const Data & data ) const

inlinevirtual

Return a description string to be shown in the data model for a data type.

Return an empty string for unsupported types.

Reimplemented in ASCDataAnnotationFactory, CTDataAnnotationFactory, DefaultDataAnnotationFactory, GraphDataAnnotationFactory, SpineDataAnnotationFactory, StreamDataAnnotationFactory, and VisionDataAnnotationFactory.

dataIconPath()

virtual std::string dataIconPath ( const Data & data ) const

inlinevirtual

Return a file path to an icon representing a data type, may point to a Qt resource.

Return an empty string for unsupported types.

Reimplemented in ASCDataAnnotationFactory, CTDataAnnotationFactory, DefaultDataAnnotationFactory, GraphDataAnnotationFactory, SpineDataAnnotationFactory, StreamDataAnnotationFactory, and VisionDataAnnotationFactory.

dataAttributes()

virtual std::vector< DataAttribute > dataAttributes ( const Data & data ) const

inlinevirtual

Return a list of attributes to be shown in the DataWidget GUI for a data type.

Reimplemented in CTDataAnnotationFactory, DefaultDataAnnotationFactory, StreamDataAnnotationFactory, and VisionDataAnnotationFactory.

cloneData()

virtual std::unique_ptr< Data > cloneData ( const Data * data ) const

inlinevirtual

Return a clone of a given Data instance.

This allows plugins to expose cloning logics for custom data types to the base ImFusionLib.

Reimplemented in ASCDataAnnotationFactory, DefaultDataAnnotationFactory, GraphDataAnnotationFactory, SpineDataAnnotationFactory, and VisionDataAnnotationFactory.

---

The documentation for this class was generated from the following file:

• ImFusion/Base/DataAnnotationFactory.h
