#include <ImFusion/GL/GlFilter.h>
Base class for filters. More...

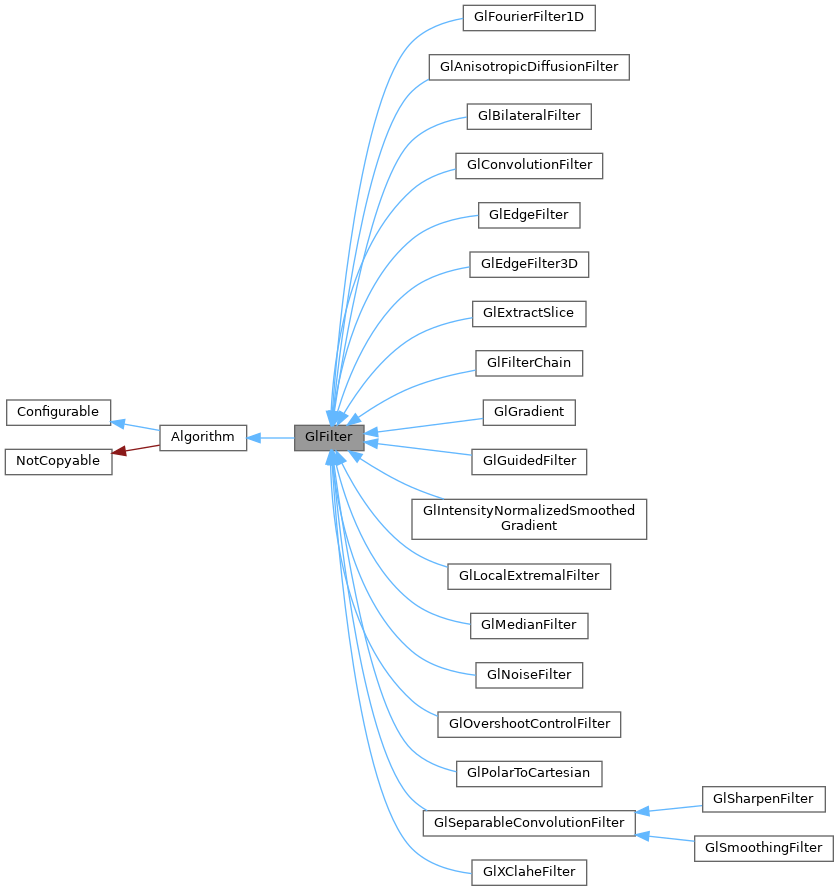

Inheritance diagram for GlFilter:Base class for filters.
Public Member Functions | |
| GlFilter (GL::Framebuffer *fbo=0) | |
| Constructor with optional FBO to use. If no FBO is specified a private FBO is created. | |
| ~GlFilter () override | |
| Destructor. | |
| void | compute () override |
| Algorithm interface. | |
| virtual bool | setKernelSize (int, double) |
| Common interface to set filter kernel size and parameter. | |
| virtual bool | setKernelSize (double, vec3, double) |
| Common interface to set filter kernel size in mm and parameter. | |
| virtual void | compute (const GlImage &imgIn, GlImage &imgOut)=0 |
| Execute the filter on the image. | |
| virtual void | compute (SharedImage &imgIn, SharedImage &imgOut) |
| virtual void | compute (const std::vector< GlImage * > &imgIn, std::vector< GlImage * > &imgOut) |
| Convenience function for executing filter on multiple images. | |
| virtual void | prepareForMasking (Mask *) |
| Prepare the filter's GlProgram(s) for masking. | |
| virtual bool | good () const =0 |
| Return true if the filter can be used, in particular if the shaders are available. | |
| virtual bool | supportsMetricMode () const |
| Return true if the filter supports anisotropic spacing, i.e. metric. | |
| void | setMetricMode (bool value) |
| If the GlFilter supports metric, i.e. | |
| bool | metricMode () const |
| Getter for m_metricMode. | |
| Public Member Functions inherited from Algorithm | |
| Algorithm () | |
| Default constructor will registers a single "compute" action that calls compute() and returns status(). | |
| virtual OwningDataList | takeOutput () |
| Return any new Data that was created by the Algorithm during the last call to compute(). | |
| virtual void | setProgress (Progress *progress) |
| Sets a Progress interface the algorithm can use to notify observers about its computing progress. | |
| Progress * | progress () const |
| Returns the progress interface if set. | |
| virtual int | status () const |
| Indicates the status of the last call to compute(). | |
| virtual bool | survivesDataDeletion (const Data *) const |
| Indicates whether the algorithm can handle (partial) deletion of the specified data, by default this checks whether the data is in the input list. | |
| const FactoryInfo & | factoryInfo () const |
| Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory. | |
| void | setFactoryInfo (const FactoryInfo &value) |
| Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory. | |
| Status | runAction (const std::string &id) |
Run the action with name id if it exists. | |
| const std::vector< Action > & | actions () |
| Get a mapping from Action id to Action as registered in this algorithm. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configure (const Properties *p) |
| Configure this object instance by de-serializing the given Properties. | |
| virtual void | configuration (Properties *p) const |
| Serialize the current object configuration into the given Properties object. | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
Protected Attributes | |
| GL::Framebuffer * | m_fbo |
| bool | m_ownFbo |
| bool | m_metricMode |
| If set to true the GlFilter result will be computed taking the spacing into account. | |
| Protected Attributes inherited from Algorithm | |
| std::string | m_name |
| Algorithm name. | |
| Progress * | m_progress = nullptr |
| Non-owing pointer to a progress interface. May be a nullptr. | |
| FactoryInfo | m_factoryInfo = {} |
| Record describing how this algorithm was instantiated by the AlgorithmFactory. | |
| int | m_status = Status::Unknown |
| Algorithm status after last call to compute() | |
| std::vector< Action > | m_actions |
| Map of key given by the id of the action, of the available actions of this algorithm. | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
Additional Inherited Members | |
| Public Types inherited from Algorithm | |
| enum | Status { Unknown = -1 , Success = 0 , Error = 1 , InvalidInput , IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU , UnknownAction , AbortedByUser , User = 1000 } |
| Status codes. More... | |
| Static Public Member Functions inherited from Algorithm | |
| static bool | createCompatible (const DataList &data, Algorithm **a=nullptr) |
| Factory function to check algorithm compatibility with input data and optionally instantiate it. | |
| Public Attributes inherited from Algorithm | |
| Signal | signalOutputChanged |
| Signal should be emitted by Algorithms when their output/result has changed. | |
| Signal | signalParametersChanged |
| Signal should be emitted by Algorithms when their parameter configuration has changed. | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
| Protected Member Functions inherited from Algorithm | |
| void | loadDefaults () |
| void | registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action) |
| Register an action to be run via runAction. | |
| template<typename D> | |
| void | registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void)) |
| Template version of runAction that can be used with a pointer to a member function. | |
| void | registerAction (const Action &action) |
| Register an action. | |
|
inlineoverridevirtual |
|
inlinevirtual |
Common interface to set filter kernel size and parameter.
Reimplemented in GlFourierFilter1D, GlBilateralFilter, GlGuidedFilter, GlLocalExtremalFilter, GlMedianFilter, GlNoiseFilter, GlSharpenFilter, and GlSmoothingFilter.
|
inlinevirtual |
Common interface to set filter kernel size in mm and parameter.
Reimplemented in GlSmoothingFilter.
Execute the filter on the image.
Implemented in GlFourierFilter1D, GlAnisotropicDiffusionFilter, GlBilateralFilter, GlConvolutionFilter, GlEdgeFilter3D, GlEdgeFilter, GlExtractSlice, GlFilterChain, GlGradient, GlGuidedFilter, GlIntensityNormalizedSmoothedGradient, GlLocalExtremalFilter, GlMedianFilter, GlNoiseFilter, GlOvershootControlFilter, GlPolarToCartesian, GlSeparableConvolutionFilter, GlSharpenFilter, and GlXClaheFilter.
|
virtual |
Convenience function for executing filter on multiple images.
|
inlinevirtual |
Prepare the filter's GlProgram(s) for masking.
|
pure virtual |
Return true if the filter can be used, in particular if the shaders are available.
Implemented in GlFourierFilter1D, GlAnisotropicDiffusionFilter, GlBilateralFilter, GlConvolutionFilter, GlEdgeFilter3D, GlEdgeFilter, GlExtractSlice, GlFilterChain, GlGradient, GlGuidedFilter, GlIntensityNormalizedSmoothedGradient, GlLocalExtremalFilter, GlMedianFilter, GlNoiseFilter, GlOvershootControlFilter, GlPolarToCartesian, GlSeparableConvolutionFilter, GlSharpenFilter, and GlXClaheFilter.
|
virtual |
Return true if the filter supports anisotropic spacing, i.e. metric.
Reimplemented in GlSmoothingFilter.
| void setMetricMode | ( | bool | value | ) |
If the GlFilter supports metric, i.e.
supportsMetricMode() return true, the metric mode will be enabled or disabled based on the argument value.
