Detailed Description

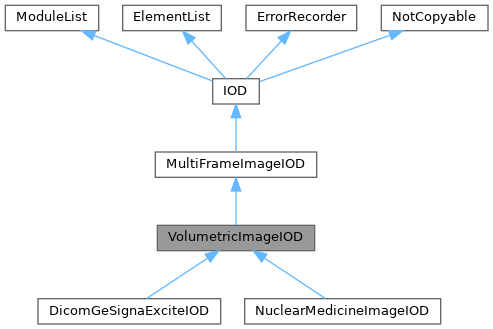

The VolumetricImageIOD is a generic IOD for volumetric data that is stored slice by slice.

The frame loaded by this class usually has some kind of transformation. Multiple frames with the same orientation and an uniform spacing can be combined into a volume.

If numberOfFrames is greater than 1, the frames are stacked from feet to head with a spacing of spacingBetweenSlices (or sliceThickness).

Relevant IODs:

Public Member Functions
	VolumetricImageIOD (DcmDataset &dataset, const OFString &sopClassUID)

std::vector< FrameDescriptorSet >	sortAndGroupFrames (const std::vector< FrameDescriptor > &frames) const override
	Sorts and groups the frame into volumetric groups if possible.

std::vector< FrameDescriptor >	loadFrames () override
	Loads all frames and initializes the matrix of each FrameDescriptor.

void	save (SharedImageSet &imageSet, int sharedImageIndex, int sliceIndex) override
	Stores the general image descriptor and metadata of imageSet in the DICOM data set.

Public Member Functions inherited from MultiFrameImageIOD
	MultiFrameImageIOD (DcmDataset &dataset, const OFString &sopClassUID)

void	loadFrameData (const FrameDescriptor &desc, MemImage &image, int slice=-1) override
	Loads the actual frame data into the given image.

void	loadFrameProperties (const FrameDescriptor &desc, SharedImageSet &image) override
	Loads any additional properties into the given image.

void	savePixelData (SharedImageSet &imageSet, int sharedImageIndex, int sliceIndex) override
	Writes the pixel data of imageSet in the DICOM data set.

Public Member Functions inherited from IOD
	IOD (DcmDataset &dataset, const OFString &sopClassUID)
	Creates a new IOD representation using the given DcmDataset and SOP class UID.

virtual void	checkErrors () const
	Checks modules for errors and adds them to the list.

template<typename T>
const T *	searchModule ()
	Returns the first module of the given type or nullptr if no such module exists.

DcmDataset &	dataset () override
	Returns the dataset represented by this IOD.

Public Member Functions inherited from ModuleList
const std::vector< const Module * > &	modules () const
	List of all modules.

Public Member Functions inherited from ElementList
const std::vector< ElementBase * > &	elements () const
	List of all elements.

Public Member Functions inherited from ErrorRecorder
virtual void *	registerErrorHandler (ErrorCallback handler)
	Registers a new handler callback function.

virtual void	unregisterErrorHandler (void *handler)
	Removes a previously registered handler again.

void *	forwardErrors (const ErrorRecorder *otherRecorder)
	Convenient function to forward all errors registered to this recorder to another recorder.

virtual void	registerError (const Error &error) const
	Sends the given error to all error handler callbacks.

void	registerError (Error::Code code, Error::Type type, const std::string &details, TagProxy tag=TagProxy()) const

Public Attributes
ImagePlane	imagePlane

Element< int >	echoNumbers

Element< int >	acquisitionNumber

Dicom::Element< std::vector< int > >	sliceVector
	The following elements are used for sorting if numberOfFrames is greater 1:

Dicom::Element< std::vector< int > >	angularViewVector

Public Attributes inherited from MultiFrameImageIOD
PixelSpacingCalibration	pixelSpacingCalib

ModalityLUT	modalityLut

Public Attributes inherited from IOD
const OFString	sopClassUID
	DICOM SOP used.

std::string	pathInfo
	Optional information from which file this IOD was loaded from (only use for display purposes)

CommonModule	common

ImagePixel	imagePixel

Element< int >	numberOfFrames
	If this element exists and is larger than 1, multiple frames will be loaded regardless of the SOP Class defining it or not.

Additional Inherited Members
Public Types inherited from ErrorRecorder
using	ErrorCallback = std::function<void(const Error&)>
	Alias for a function to call for each error recorded.

Protected Member Functions inherited from ModuleList
virtual void	addModule (const Module &m)
	Adds a the module to the list. Should only be called by the Module constructor.

virtual void	removeModule (const Module &m)

Protected Member Functions inherited from NotCopyable
	NotCopyable (NotCopyable &&) noexcept=default

NotCopyable &	operator= (NotCopyable &&) noexcept=default

	NotCopyable (const NotCopyable &)=delete

NotCopyable &	operator= (const NotCopyable &)=delete

Protected Attributes inherited from IOD
DcmDataset &	m_dataset

Protected Attributes inherited from ModuleList
std::vector< const Module * >	m_modules
	List of all modules.

Protected Attributes inherited from ElementList
std::vector< ElementBase * >	m_elements
	List of all elements.

Member Function Documentation

◆ sortAndGroupFrames()

std::vector< FrameDescriptorSet > sortAndGroupFrames ( const std::vector< FrameDescriptor > & frames ) const

overridevirtual

Sorts and groups the frame into volumetric groups if possible.

MR images might be split into groups according to their echo numbers.

WARNING: This method currently removes duplicate frames that have the same instance number and instance uid. This will be removed in the future.

Reimplemented from MultiFrameImageIOD.

◆ loadFrames()

std::vector< FrameDescriptor > loadFrames ( )

overridevirtual

Loads all frames and initializes the matrix of each FrameDescriptor.

Reimplemented from MultiFrameImageIOD.

◆ save()

void save	(	SharedImageSet &	imageSet,
		int	sharedImageIndex,
		int	sliceIndex )

overridevirtual

Stores the general image descriptor and metadata of imageSet in the DICOM data set.

sharedImageIndex and sliceIndex describe which part of the image set should be stored.

Reimplemented from MultiFrameImageIOD.

The documentation for this class was generated from the following file:

ImFusion/Dicom/DicomIOD.h
