ImFusion::Dicom::ModalityLUT Class Reference

#include <ImFusion/Dicom/DicomModule.h>

Modality LUT Module (PS 3.3 C.11.1). More...

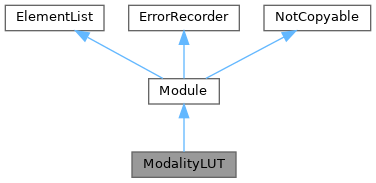

Inheritance diagram for ImFusion::Dicom::ModalityLUT:

Detailed Description

Modality LUT Module (PS 3.3 C.11.1).

See also

http://dicom.nema.org/medical/dicom/current/output/chtml/part03/sect_C.11.html#sect_C.11.1

Classes
class	LutItem

Public Member Functions
	ModalityLUT (ModuleList &parent, Type type, bool searchIntoSubs=false)
bool	load (ImageDescriptor &desc) const
	Loads rescale intercept and scale.
void	save (const ImageDescriptor &desc)
void	loadRescaleType (SharedImageSet &image) const
bool	burnInLut (MemImage &mem) const
	Applies the first LUT Sequence in lut to the intensities found in the given image.
Public Member Functions inherited from ImFusion::Dicom::Module
	Module (ModuleList &parent, Type type)
	Creates a new Dicom Module, registers it with the given parent and sets the given type/conditionality.
virtual bool	isMandatory () const
	Evaluates whether this module is mandatory (based on the specified type and optionally condition).
void	setCondition (std::function< bool()> predicate)
	Sets a callback function that determines if a conditional module is mandatory.
virtual void	checkErrors (bool ignoreMandatory=false) const
	Checks the module for errors.
DcmItem &	dataset () override
	Returns the data set this module corresponds to.
Public Member Functions inherited from ImFusion::Dicom::ElementList
const std::vector< ElementBase * > &	elements () const
	List of all elements.
Public Member Functions inherited from ImFusion::Dicom::ErrorRecorder
virtual void *	registerErrorHandler (ErrorCallback handler)
	Registers a new handler callback function.
virtual void	unregisterErrorHandler (void *handler)
	Removes a previously registered handler again.
void *	forwardErrors (const ErrorRecorder *otherRecorder)
	Convenient function to forward all errors registered to this recorder to another recorder.
virtual void	registerError (const Error &error) const
	Sends the given error to all error handler callbacks.
void	registerError (Error::Code code, Error::Type type, const std::string &details, TagProxy tag=TagProxy()) const

Public Attributes
Element< double >	rescaleIntercept
Element< double >	rescaleSlope
Element< std::string >	rescaleType
Element< bool >	pixelRepresentationIsSigned
Sequence< LutItem >	lut

Additional Inherited Members
Public Types inherited from ImFusion::Dicom::Module
enum	Type { Mandatory , UserOption , Conditional }
	Conditionality of the module.
Public Types inherited from ImFusion::Dicom::ErrorRecorder
using	ErrorCallback = std::function<void(const Error&)>
	Alias for a function to call for each error recorded.
Protected Member Functions inherited from ImFusion::Utils::NotCopyable
	NotCopyable (NotCopyable &&) noexcept=default
NotCopyable &	operator= (NotCopyable &&) noexcept=default
	NotCopyable (const NotCopyable &)=delete
NotCopyable &	operator= (const NotCopyable &)=delete
Protected Attributes inherited from ImFusion::Dicom::Module
ModuleList &	m_parent
	List this module is part of.
DcmItem &	m_dataset
	The data set this module corresponds to.
Type	m_type
	Conditionality of this module.
std::function< bool()>	m_typeCondition
	Optional predicate function to evaluate mandatoriness.
Protected Attributes inherited from ImFusion::Dicom::ElementList
std::vector< ElementBase * >	m_elements
	List of all elements.

Member Function Documentation

load()

bool ImFusion::Dicom::ModalityLUT::load

(

ImageDescriptor &

desc

)

const

Loads rescale intercept and scale.

Returns true if values were loaded or false otherwise. Automatically registers an error when existing values cannot be loaded.

burnInLut()

bool ImFusion::Dicom::ModalityLUT::burnInLut

(

MemImage &

mem

)

const

Applies the first LUT Sequence in lut to the intensities found in the given image.

Parameters

mem

---

The documentation for this class was generated from the following file:

• ImFusion/Dicom/DicomModule.h
