Detailed Description

Image Plane Module (PS 3.3 C.7.6.2)

See also: http://dicom.nema.org/medical/dicom/current/output/chtml/part03/sect_C.7.6.2.html

Classes
class	DetectorInformationSequence
	C.8.4.11 NM Detector Module. More...

Public Member Functions
	ImagePlane (ModuleList &parent, Type type, bool searchIntoSubs=false)

bool	computeTransformation (const ImageDescriptor &desc, mat4 &matrixOut) const
	Compute plane transformation from the position and orientation.

void	saveTransformation (const ImageDescriptor &desc, const mat4 &matrix, int sliceIndex)

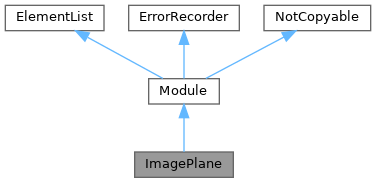

Public Member Functions inherited from Module
	Module (ModuleList &parent, Type type)
	Creates a new Dicom Module, registers it with the given parent and sets the given type/conditionality.

virtual bool	isMandatory () const
	Evaluates whether this module is mandatory (based on the specified type and optionally condition).

void	setCondition (std::function< bool()> predicate)
	Sets a callback function that determines if a conditional module is mandatory.

virtual void	checkErrors (bool ignoreMandatory=false) const
	Checks the module for errors.

DcmItem &	dataset () override
	Returns the data set this module corresponds to.

Public Member Functions inherited from ElementList
const std::vector< ElementBase * > &	elements () const
	List of all elements.

Public Member Functions inherited from ErrorRecorder
virtual void *	registerErrorHandler (ErrorCallback handler)
	Registers a new handler callback function.

virtual void	unregisterErrorHandler (void *handler)
	Removes a previously registered handler again.

void *	forwardErrors (const ErrorRecorder *otherRecorder)
	Convenient function to forward all errors registered to this recorder to another recorder.

virtual void	registerError (const Error &error) const
	Sends the given error to all error handler callbacks.

void	registerError (Error::Code code, Error::Type type, const std::string &details, TagProxy tag=TagProxy()) const

Public Attributes
Element< double >	sliceThickness

Element< double >	spacingBetweenSlices

Element< std::vector< double > >	imagePositionPatient

Element< std::vector< double > >	imageOrientationPatient

Dicom::Sequence< DetectorInformationSequence >	detectorInformationSequence

Additional Inherited Members
Public Types inherited from Module
enum	Type { Mandatory , UserOption , Conditional }
	Conditionality of the module.

Public Types inherited from ErrorRecorder
using	ErrorCallback = std::function<void(const Error&)>
	Alias for a function to call for each error recorded.

Protected Member Functions inherited from NotCopyable
	NotCopyable (NotCopyable &&) noexcept=default

NotCopyable &	operator= (NotCopyable &&) noexcept=default

	NotCopyable (const NotCopyable &)=delete

NotCopyable &	operator= (const NotCopyable &)=delete

Protected Attributes inherited from Module
ModuleList &	m_parent
	List this module is part of.

DcmItem &	m_dataset
	The data set this module corresponds to.

Type	m_type
	Conditionality of this module.

std::function< bool()>	m_typeCondition
	Optional predicate function to evaluate mandatoriness.

Protected Attributes inherited from ElementList
std::vector< ElementBase * >	m_elements
	List of all elements.

Member Function Documentation

◆ computeTransformation()

bool computeTransformation	(	const ImageDescriptor &	desc,
		mat4 &	matrixOut ) const

Compute plane transformation from the position and orientation.

The descriptor must already contain the final spacing in 2D. If the plane transformation could be determined, matrix will be set to the transformation and true is returned. Otherwise the matrix will be set to identity and false is returned. See also Slice on how the properties (e.g. normal or position) of the plane can be extracted.

The documentation for this class was generated from the following file:

ImFusion/Dicom/DicomModule.h
