#include <ImFusion/Vision/CreateGroupedStereoImageStreamAlgorithm.h>
The algorithm creates a GroupedStereoImageStream from two image streams and takes over their control Before using any stereo-related algorithms (e.g., depth estimation, disparity calculation, or 3D reconstruction), it is recommended to first run this algorithm to convert the two image streams into a stereo image stream. More...

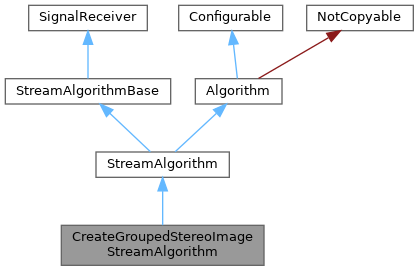

Inheritance diagram for CreateGroupedStereoImageStreamAlgorithm:The algorithm creates a GroupedStereoImageStream from two image streams and takes over their control Before using any stereo-related algorithms (e.g., depth estimation, disparity calculation, or 3D reconstruction), it is recommended to first run this algorithm to convert the two image streams into a stereo image stream.
The stereo image stream also handles synchronization between the two image streams. There are two ways to set input data: set them in the constructor Or use setOwningStereoData function
Public Member Functions | |
| CreateGroupedStereoImageStreamAlgorithm (std::unique_ptr< ImageStream > &&leftImageStream, std::unique_ptr< ImageStream > &&rightImageStream) | |
| bool | setOwningStereoData (std::unique_ptr< ImageStream > &&leftImageStream, std::unique_ptr< ImageStream > &&rightImageStream) |
| Set input data if the algorithm is contructed with default constructor. | |
| OwningDataList | takeOutput () override |
| Returns an OwningDataList containing the stream and sets m_isOutputTaken to true. | |
| virtual void | compute () override |
| Execute the algorithm. | |
| Stream * | stream () override |
| Helper function to get access to GroupedStereoImageStream. | |
| bool | survivesDataDeletion (const Data *data) const override |
| very important step: in controller if we remove the selected data, the algorithm will also be deleted we have to keep the algorithm alive Therefore this is the opposite of the default implementation | |
| Public Member Functions inherited from StreamAlgorithmBase | |
| bool | isOutputTaken () const |
| virtual DataGroup * | dataGroup () |
| Public Member Functions inherited from SignalReceiver | |
| SignalReceiver ()=default | |
| Default constructor. | |
| SignalReceiver (const SignalReceiver &other) | |
| Copy constructor, does not copy any existing signal connections from other. | |
| SignalReceiver & | operator= (SignalReceiver rhs) |
| Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs. | |
| virtual | ~SignalReceiver () |
| Virtual destructor disconnects from all connected signals. | |
| Public Member Functions inherited from Algorithm | |
| Algorithm () | |
| Default constructor will registers a single "compute" action that calls compute() and returns status(). | |
| virtual void | setProgress (Progress *progress) |
| Sets a Progress interface the algorithm can use to notify observers about its computing progress. | |
| Progress * | progress () const |
| Returns the progress interface if set. | |
| virtual int | status () const |
| Indicates the status of the last call to compute(). | |
| const FactoryInfo & | factoryInfo () const |
| Returns the record describing how this Algorithm was instantiated by the AlgorithmFactory. | |
| void | setFactoryInfo (const FactoryInfo &value) |
| Sets the record describing how this Algorithm was instantiated by the AlgorithmFactory. | |
| Status | runAction (const std::string &id) |
Run the action with name id if it exists. | |
| const std::vector< Action > & | actions () |
| Get a mapping from Action id to Action as registered in this algorithm. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configure (const Properties *p) |
| Configure this object instance by de-serializing the given Properties. | |
| virtual void | configuration (Properties *p) const |
| Serialize the current object configuration into the given Properties object. | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
Static Public Member Functions | |
| static bool | createCompatible (const DataList &data, Algorithm **a=nullptr) |
| Static Public Member Functions inherited from Algorithm | |
| static bool | createCompatible (const DataList &data, Algorithm **a=nullptr) |
| Factory function to check algorithm compatibility with input data and optionally instantiate it. | |
Protected Member Functions | |
| void | resetStream () override |
Deletes the stream if m_isOutputTaken is false. In any case sets the stream to nullptr. | |
| Protected Member Functions inherited from SignalReceiver | |
| void | disconnectAll () |
| Disconnects all existing connections. | |
| Protected Member Functions inherited from Algorithm | |
| void | loadDefaults () |
| void | registerAction (const std::string &id, const std::string &guiName, const std::function< Algorithm::Status(void)> &action) |
| Register an action to be run via runAction. | |
| template<typename D> | |
| void | registerAction (const std::string &id, const std::string &guiName, Algorithm::Status(D::*action)(void)) |
| Template version of runAction that can be used with a pointer to a member function. | |
| void | registerAction (const Action &action) |
| Register an action. | |
Additional Inherited Members | |
| Public Types inherited from Algorithm | |
| enum | Status { Unknown = -1 , Success = 0 , Error = 1 , InvalidInput , IncompleteInput , OutOfMemoryHost , OutOfMemoryGPU , UnsupportedGPU , UnknownAction , AbortedByUser , User = 1000 } |
| Status codes. More... | |
| Public Attributes inherited from Algorithm | |
| Signal | signalOutputChanged |
| Signal should be emitted by Algorithms when their output/result has changed. | |
| Signal | signalParametersChanged |
| Signal should be emitted by Algorithms when their parameter configuration has changed. | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
| Protected Attributes inherited from StreamAlgorithmBase | |
| bool | m_isOutputTaken = false |
| Protected Attributes inherited from Algorithm | |
| std::string | m_name |
| Algorithm name. | |
| Progress * | m_progress = nullptr |
| Non-owing pointer to a progress interface. May be a nullptr. | |
| FactoryInfo | m_factoryInfo = {} |
| Record describing how this algorithm was instantiated by the AlgorithmFactory. | |
| int | m_status = Status::Unknown |
| Algorithm status after last call to compute() | |
| std::vector< Action > | m_actions |
| Map of key given by the id of the action, of the available actions of this algorithm. | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
|
overridevirtual |
Returns an OwningDataList containing the stream and sets m_isOutputTaken to true.
If m_isOutputTaken is already true then an empty list is returned.
Reimplemented from StreamAlgorithmBase.
|
overridevirtual |
Execute the algorithm.
Implements Algorithm.
|
inlineoverridevirtual |
Helper function to get access to GroupedStereoImageStream.
Implements StreamAlgorithmBase.
|
inlineoverridevirtual |
very important step: in controller if we remove the selected data, the algorithm will also be deleted we have to keep the algorithm alive Therefore this is the opposite of the default implementation
Reimplemented from Algorithm.
|
inlineoverrideprotectedvirtual |
Deletes the stream if m_isOutputTaken is false. In any case sets the stream to nullptr.
Implements StreamAlgorithmBase.
