ImFusion::ASCDataDisplayHandler< Q, T > Class Template Reference

#include <AnatomyPlugin/include/ImFusion/AnatomyPlugin/ASCDataDisplayHandler.h>

Template class that creates an ASCDataDisplayHandlerBase for a specific ASCVisualiser/AnatomicalStructureCollection pair. More...

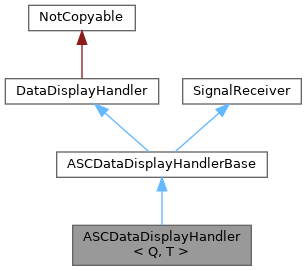

Inheritance diagram for ImFusion::ASCDataDisplayHandler< Q, T >:

Detailed Description

template<typename Q, typename T>
class ImFusion::ASCDataDisplayHandler< Q, T >

Template class that creates an ASCDataDisplayHandlerBase for a specific ASCVisualiser/AnatomicalStructureCollection pair.

DataDisplayHandler interface
bool	handlesType (const Data *data) const override
	Check whether this specialization handles the given Data type.

Additional Inherited Members
Public Member Functions inherited from ImFusion::ASCDataDisplayHandlerBase
	ASCDataDisplayHandlerBase (std::function< std::unique_ptr< ASCVisualiser >(AnatomicalStructureCollection &arg)> construct)
	Constructor with a callback function that constructs an ASCVisualiser from an AnatomicalStructureCollection.
void	setDisplayOptionsWidgetDisabled (bool disabled)
bool	handlesType (const Data *data) const override
	Check whether this specialization handles the given Data type.
bool	canBeShownInView (const Data *data, const GUI::View &view) const override
	Check whether a particular Data can be shown in the given view.
void	show (Data *data, GUI::View &view) override
	Visualize the given data in the given view.
void	hide (Data *data, GUI::View &view) override
	Remove the given data from the given view.
void	onViewDeleted (GUI::View &view) override
	Called if a view associated with this DataDisplayHandler is destroyed.
std::unique_ptr< QWidget >	createDisplayOptionsWidget (Data *data, GUI::DisplayBase &display, GUI::View &view) const override
	Provides an optional QtWidgets-based GUI to configure display options for the given data shown in view.
Public Member Functions inherited from ImFusion::SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.
Protected Member Functions inherited from ImFusion::ASCDataDisplayHandlerBase
virtual DataComponentBase &	getOrCreateDisplayOptions (Data &data)
Protected Member Functions inherited from ImFusion::SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.
Protected Attributes inherited from ImFusion::ASCDataDisplayHandlerBase
bool	m_displayOptionsWidgetDisabled = false
	If set to true, the display options widget will not be created. This is useful for the case that another class (like ASCSet) handles the display.
std::unordered_map< const Data *, std::unique_ptr< ASCVisualiser > >	m_ascVisualisers

Member Function Documentation

handlesType()

template<typename Q, typename T>

bool ImFusion::ASCDataDisplayHandler< Q, T >::handlesType ( const Data * data ) const

inlineoverridevirtual

Check whether this specialization handles the given Data type.

Checks should be as narrow as possible to avoid potential overlap with other handlers.

Implements ImFusion::DataDisplayHandler.

---

The documentation for this class was generated from the following file:

• AnatomyPlugin/include/ImFusion/AnatomyPlugin/ASCDataDisplayHandler.h
