ImFusion::Seg::SegmentedStructureWithReference Class Reference

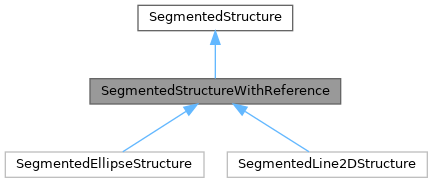

Inheritance diagram for ImFusion::Seg::SegmentedStructureWithReference:

Public Member Functions
std::pair< vec3, vec3 >	markers (int id, double position) const override
	Compute a pair of measuring markers at the specified position.
bool	isOk () const override
Public Member Functions inherited from ImFusion::Seg::SegmentedStructure
virtual std::pair< vec3, vec3 >	axis (int id) const
virtual std::vector< vec3 >	contour (int id) const
int	numMarkers () const
int	numAxes () const
int	numContours () const

Protected Member Functions
	SegmentedStructureWithReference (ReferenceShape *reference)
void	computeTopAndBottomPoints (const SharedImage *segmentation, unsigned char label)
void	computeTopAndBottomPoints (const std::vector< vec3 > &contour)

Protected Attributes
std::vector< vec3 >	m_topPoints
std::vector< vec3 >	m_bottomPoints
ReferenceShape *	m_referenceShape
Protected Attributes inherited from ImFusion::Seg::SegmentedStructure
int	m_segmentedStructureNumMarkers = 0
int	m_segmentedStructureNumAxes = 0
int	m_segmentedStructureNumContours = 0

Member Function Documentation

markers()

std::pair< vec3, vec3 > ImFusion::Seg::SegmentedStructureWithReference::markers ( int id, double position ) const

overridevirtual

Compute a pair of measuring markers at the specified position.

Parameters

id	integer in [0, numMarkers()) that identifies a marker
position	value in [-1, 1] that gives the position of the marker on the axis of the reference shape

Returns

pair of points that lie on the contour of the segmentation

Reimplemented from ImFusion::Seg::SegmentedStructure.

isOk()

bool ImFusion::Seg::SegmentedStructureWithReference::isOk ( ) const

overridevirtual

Implements ImFusion::Seg::SegmentedStructure.

---

The documentation for this class was generated from the following file:

• ImFusion/Seg/SegmentedStructure.h
