ImFusion::Seg::SegmentedStructure Class Reference

#include <ImFusion/Seg/SegmentedStructure.h>

Interface class that offers methods to obtain measuring markers on a segmented object. More...

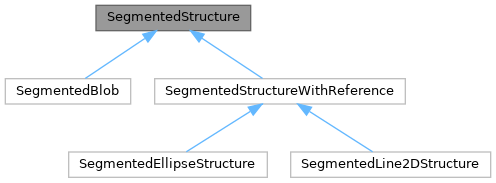

Inheritance diagram for ImFusion::Seg::SegmentedStructure:

Detailed Description

Interface class that offers methods to obtain measuring markers on a segmented object.

Public Member Functions
virtual std::pair< vec3, vec3 >	markers (int id, double position) const
	Compute a pair of measuring markers at the specified position.
virtual std::pair< vec3, vec3 >	axis (int id) const
virtual std::vector< vec3 >	contour (int id) const
int	numMarkers () const
int	numAxes () const
int	numContours () const
virtual bool	isOk () const =0

Protected Attributes
int	m_segmentedStructureNumMarkers = 0
int	m_segmentedStructureNumAxes = 0
int	m_segmentedStructureNumContours = 0

Member Function Documentation

markers()

virtual std::pair< vec3, vec3 > ImFusion::Seg::SegmentedStructure::markers ( int id, double position ) const

virtual

Compute a pair of measuring markers at the specified position.

Parameters

id	integer in [0, numMarkers()) that identifies a marker
position	value in [-1, 1] that gives the position of the marker on the axis of the reference shape

Returns

pair of points that lie on the contour of the segmentation

Reimplemented in ImFusion::Seg::SegmentedBlob, and ImFusion::Seg::SegmentedStructureWithReference.

---

The documentation for this class was generated from the following file:

• ImFusion/Seg/SegmentedStructure.h
