ImFusion::Seg::ReferenceShape Class Reference

#include <ImFusion/Seg/ReferenceShape.h>

Abstract class defining a reference shape which has been fitted to a segmentation map. More...

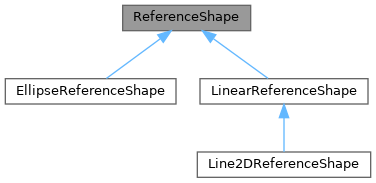

Inheritance diagram for ImFusion::Seg::ReferenceShape:

Detailed Description

Abstract class defining a reference shape which has been fitted to a segmentation map.

The class defines local coordinates (which could also be curved) for the segmented object.

Public Member Functions
virtual vec3	worldToLocal (vec3 p) const =0
virtual vec3	localToWorld (vec3 p) const =0
void	addMargin (double margin, int axis=0)
double	lowerBound (int axis) const
double	upperBound (int axis) const
std::pair< double, double >	range (int axis) const
bool	isOk () const
virtual bool	is2D () const

Protected Member Functions
void	computeBounds (const std::vector< vec2 > &points)

Protected Attributes
vec3	m_lowerBounds = {0, 0, 0}
vec3	m_upperBounds = {0, 0, 0}
bool	m_isOk = true

---

The documentation for this class was generated from the following file:

• ImFusion/Seg/ReferenceShape.h
