OutStream Class Reference

#include <ImFusion/Stream/OutStream.h>

Base class for streams which are sent by an OutputConnection through network or other ports. More...

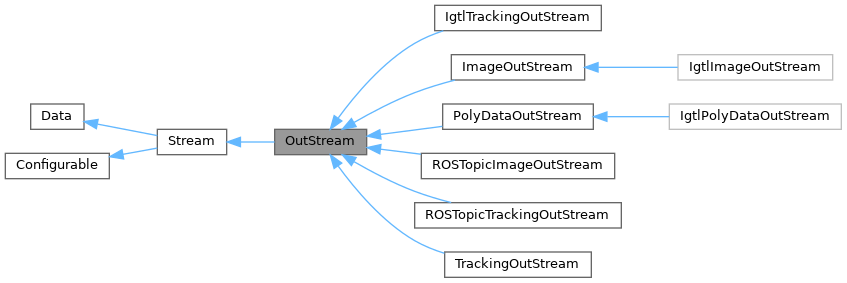

+ Inheritance diagram for OutStream:

Detailed Description

Base class for streams which are sent by an OutputConnection through network or other ports.

Public Member Functions

 OutStream (OutputConnection &con, const std::string &name)
 Constructor with an OutputConnection instance and the name which is passed to Data.

virtual void sendStreamData (const StreamData &streamData) const
 Passes the streamData to OutputConnection if the running flag is true.

bool openImpl () override
 Open stream.

bool closeImpl () override
 Close stream.

bool startImpl () override
 Start stream.

bool stopImpl () override
 Stop stream.

std::optional< WorkContinuationdoWork () override
 Stop stream.

std::string uuid () override
 Unique identifier for this stream.

- Public Member Functions inherited from Stream
 Stream (const std::string &name="")
 Constructor with the name for this stream.

virtual ThreadingMode threadingMode () const
 Configures threading mode of stream.

virtual bool supportsAsyncOperation ()
 Returns true if xxxAsync() methods support execution in a background thread.

std::shared_future< bool > openAsync ()
 Open stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful.

std::shared_future< bool > closeAsync ()
 Close stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful.

std::shared_future< bool > startAsync ()
 Start stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful.

std::shared_future< bool > stopAsync ()
 Stop stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful.

std::shared_future< bool > pauseAsync ()
 Pause stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful.

std::shared_future< bool > resumeAsync ()
 Resume stream in an asynchronous fashion (wait on the returned future before taking further actions). Returns whether the operation was successful.

bool open ()
 Open stream and wait for the operation to complete. Returns whether the operation was successful.

bool close ()
 Close stream and wait for the operation to complete. Returns whether the operation was successful.

bool start ()
 Start stream and wait for the operation to complete. Returns whether the operation was successful.

bool stop ()
 Stop stream and wait for the operation to complete. Returns whether the operation was successful.

bool pause ()
 Pause stream and wait for the operation to complete. Returns whether the operation was successful.

bool resume ()
 Resume stream and wait for the operation to complete. Returns whether the operation was successful.

virtual bool supportsPausing () const
 Override and return true if this stream implements the pausing and resume operations.

bool restart ()
 Stops, closes, opens and starts the stream. Returns whether the operation was successful.

virtual bool reset ()
 Reverts stream to first frame, if possible. Returns whether the operation was successful.

virtual bool isRunning () const
 Return whether stream is currently running.

State currentState () const

bool isStateOneOf (const std::vector< State > &states) const

Geometry::AlignedBox bounds () const override
 Per default a Stream has empty/invalid bounds.

Pose::TransformationConvention matrixConvention () const override
 Matrices of streams by default map to the world coordinate system.

virtual bool createDefaultStreamController ()
 Indicates whether a StreamController should be created for the stream (by default returns true).

double updateRate () const
 Average update rate in Hz of the signalStreamData.

std::string describe () const override
 Short description of the stream including latest state and update rate information.

- Public Member Functions inherited from Data
 Data (const std::string &name="")

 Data (const Data &other)

Dataoperator= (const Data &other)

virtual ~Data ()
 Mandatory virtual destructor.

virtual Kind kind () const =0
 Return the kind of this data.

virtual Modality modality () const
 Return the modality of this data.

const std::stringname () const
 Return the name of this data.

void setName (const std::string &name)
 Sets the name of this data.

virtual bool isAnnotationType () const
 Return whether this data type is visualized through an annotation (e.g. mesh)

const DataComponentListcomponents () const
 Returns the list of DataComponents for this data.

DataComponentListcomponents ()

virtual void setMatrixFromWorld (const mat4 &m)
 Set matrix mapping from the world coordinate system to the data coordinate system.

virtual void setMatrixToWorld (const mat4 &m)
 Set matrix mapping from the data coordinate system to the world coordinate system.

virtual mat4 matrixFromWorld () const
 Get matrix mapping from the world coordinate system to the data coordinate system.

virtual mat4 matrixToWorld () const
 Get matrix mapping from the data coordinate system to the world coordinate system.

virtual mat4 matrix () const
 Return the transformation matrix.

virtual void setMatrix (const mat4 &m)
 Set the transformation matrix.

- Public Member Functions inherited from Configurable
virtual void configure (const Properties *p)
 Configure this object instance by de-serializing the given Properties.

virtual void configuration (Properties *p) const
 Serialize the current object configuration into the given Properties object.

virtual void configureDefaults ()
 Retrieve the properties of this object, replaces values with their defaults and sets it again.

void registerParameter (ParameterBase *param)
 Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void unregisterParameter (const ParameterBase *param)
 Remove the given Parameter or SubProperty from the list of registered parameters.

 Configurable (const Configurable &rhs)

 Configurable (Configurable &&rhs) noexcept

Configurableoperator= (const Configurable &)

Configurableoperator= (Configurable &&) noexcept


Protected Attributes

OutputConnectionm_connection

- Protected Attributes inherited from Data
mat4 m_matrix
 Transformation matrix.

std::recursive_mutexm_matrixMutex
 Used to internally synchronize access to the matrix of data.

DataComponentList m_dataComponentList
 The list of DataComponents for this data.

- Protected Attributes inherited from Configurable
std::vector< Paramm_params
 List of all registered Parameter and SubProperty instances.


Additional Inherited Members

- Public Types inherited from Stream
enum class  ThreadingMode { BaseClassRunsWorkerThread , DerivedClassHandlesThreading }
 This flag represents the two supported threading modes of a Stream. More...

enum class  State {
  Closed , Opening , Open , Starting ,
  Running , Pausing , Paused , Resuming ,
  Stopping , Closing
}

- Public Types inherited from Data
enum  Kind {
  UNKNOWN = 0 , IMAGE = 1 , VOLUME = 2 , IMAGESET = 3 ,
  VOLUMESET = 4 , IMAGESTREAM = 5 , VOLUMESTREAM = 6 , POINTSET = 7 ,
  SURFACE = 8 , TRACKINGSTREAM = 9 , LIVETRACKINGSTREAM = TRACKINGSTREAM , TRACKINGDATA = 10 ,
  TREE = 11 , TENSOR = 12 , POLYDATASTREAM = 13 , STEREOIMAGESET = 14 ,
  STEREOIMAGESTREAM = 15 , VOLUMETRICMESH = 16
}
 Kind of data. More...

enum  Modality {
  NA = 0 , XRAY = 1 , CT = 2 , MRI = 3 ,
  ULTRASOUND = 4 , VIDEO = 5 , NM = 6 , OCT = 7 ,
  LABEL = 8 , DISTANCE = 9
}
 Image modality of the data. More...

- Static Public Member Functions inherited from Stream
static std::string stateToString (State state)

- Static Public Member Functions inherited from Data
static std::string modalityString (Data::Modality m)
 Return the name of an image modality.

static Data::Modality stringToModality (const std::string &s)
 Returns the modality corresponding to a modality string or NA if nothing matches.

- Public Attributes inherited from Stream
ProtectedSignal< StateChangesignalStateChanged
 Emitted after a state change has been completed with the old and new state.

ProtectedSignal signalEnded
 Indicates that the stream reached the end of its data, e.g. when a video stream has played to the end.

ProtectedSignal< std::shared_ptr< const StreamData > > signalStreamData
 Signal that is emitted by the stream when a new StreamData is available.

DeprecatedSignal< ProtectedSignal< std::shared_ptr< const StreamData > >, const StreamData & > signalNewData
 Signal that is emitted by the stream when a new StreamData is available.

- Public Attributes inherited from Data
Signal< const Data * > signalDeleted
 Signal emitted when this instance is deleted.

Signal< const Data * > signalMatrixChanged
 Signal emitted when the transformation of this Data has changed.

Signal< std::stringsignalNameChanged
 Signal emitted when the name changed.

- Public Attributes inherited from Configurable
Signal signalParametersChanged
 Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

- Protected Member Functions inherited from Stream
virtual bool pauseImpl ()
 Pause stream (not required to be supported).

virtual bool resumeImpl ()
 Resume stream from pause (only required to be supported when pauseImpl() is supported).

virtual bool workerThreadRequiresOpenGl () const
 Override and return true if worker thread should create a GL::Context.

virtual bool worksWhilePaused () const
 Override if doWork() should be called also in the Paused state.

void changeState (State newState)

std::shared_future< bool > attemptStateChange (std::function< bool()> work, State stateWorking, State stateSuccess, State stateError)

- Protected Member Functions inherited from Data
void swapWith (Data &other)
 Swaps the data and emits a matrix and name changed signal for both.


Member Function Documentation

◆ sendStreamData()

virtual void sendStreamData ( const StreamData & streamData) const
virtual

Passes the streamData to OutputConnection if the running flag is true.

Reimplemented in IgtlImageOutStream, IgtlPolyDataOutStream, IgtlTrackingOutStream, ROSTopicImageOutStream, and ROSTopicTrackingOutStream.

◆ openImpl()

bool openImpl ( )
inlineoverridevirtual

Open stream.

Implements Stream.

Reimplemented in ROSTopicImageOutStream, and ROSTopicTrackingOutStream.

◆ closeImpl()

bool closeImpl ( )
inlineoverridevirtual

Close stream.

Implements Stream.

Reimplemented in ROSTopicImageOutStream, and ROSTopicTrackingOutStream.

◆ startImpl()

bool startImpl ( )
inlineoverridevirtual

Start stream.

Implements Stream.

Reimplemented in ROSTopicImageOutStream, and ROSTopicTrackingOutStream.

◆ stopImpl()

bool stopImpl ( )
inlineoverridevirtual

Stop stream.

Implements Stream.

Reimplemented in ROSTopicImageOutStream, and ROSTopicTrackingOutStream.

◆ doWork()

std::optional< WorkContinuation > doWork ( )
inlineoverridevirtual

Stop stream.

Implements Stream.

◆ uuid()

std::string uuid ( )
overridevirtual

Unique identifier for this stream.

Implements Stream.

Reimplemented in ROSTopicImageOutStream, and ROSTopicTrackingOutStream.


The documentation for this class was generated from the following file:
